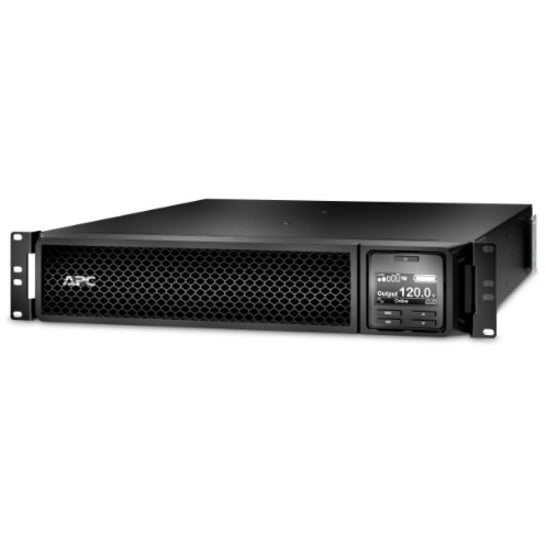

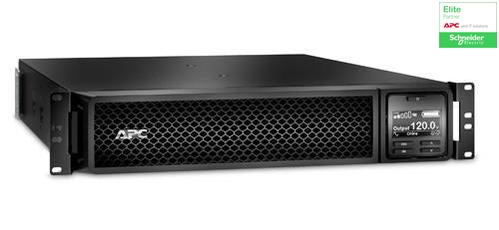

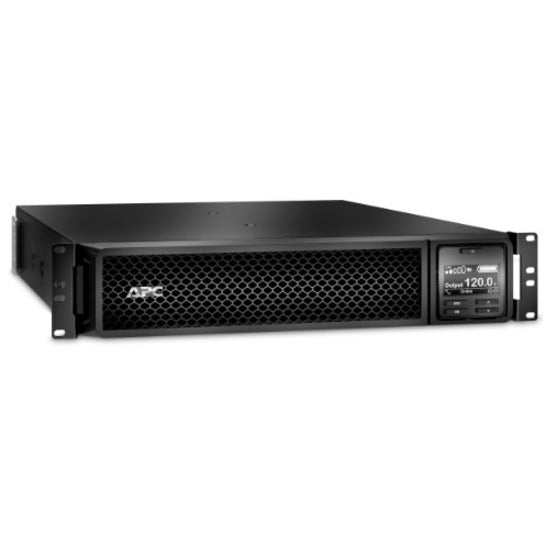

This APC Smart UPS 3000 system is perfect for data centers, server rooms, and critical IT infrastructure requiring server rack battery backup with true online protection. Our solution delivers:
-
APC 3000VA Smart UPS capacity providing reliable power protection for rack-mounted equipment
-
Double conversion UPS technology ensuring pure sine wave output and zero transfer time
-
Rackmount UPS design maximizing space efficiency in 2U form factor
-
Smart UPS 3000VA APC reliability with extended runtime capabilities
Key Features
-
Online UPS system providing continuous double-conversion power conditioning
-
APC Smart UPS 3000 architecture with SmartSlot for network management cards
- Optimized for server rack battery backup applications with extended runtime options
- Consistent rackmount UPS performance in compact 2U chassis
-
Networkable UPS capabilities for remote monitoring and management
-
Pure sine wave output protecting sensitive electronic equipment
-

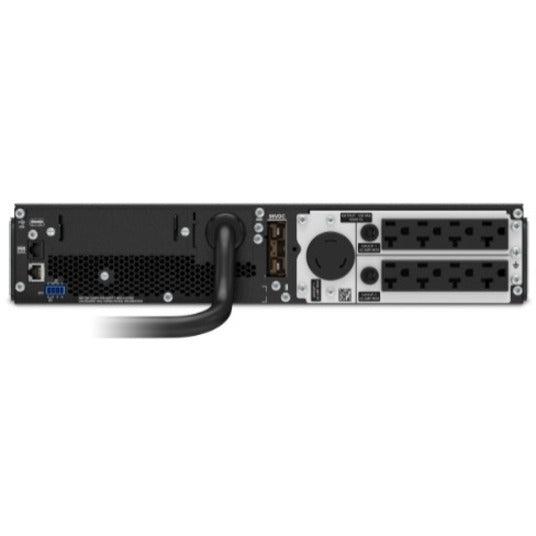

8x NEMA 5-20R outlets plus 1x L5-30R high-power outlet
-
Rail kit included for easy rack installation
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SRT3000RMXLA |
| Type |
Smart-UPS Online Rackmount Double-Conversion UPS |
| Power Rating |
3000 VA / 2700 W |
| Input Voltage |
120V AC |
| Output Voltage |
120V AC ± 2% |
| Frequency |
50/60 Hz ± 3 Hz |
| Conversion Type |
Online double-conversion (VFI) |
| Form Factor |
2U rackmount with rail kit |
| Output Waveform |
Pure sine wave |
| Output Outlets |
8x NEMA 5-20R + 1x NEMA L5-30R |
| Runtime |
Extended runtime with external battery packs |
| Management |
SmartSlot for network cards |
| Transfer Time |
Zero (online operation) |
| Efficiency |
Up to 94% online mode |
| Compatible Systems |
Data centers, servers, network equipment, storage systems, critical IT infrastructure |
Frequently Asked Questions
Q: What is the difference between APC Smart UPS 3000 online and line-interactive models?
A: This APC Smart UPS 3000 uses online double-conversion technology, continuously converting AC to DC and back to AC, providing zero transfer time and perfect power conditioning. Line-interactive models only activate during power events, making online models superior for sensitive equipment protection.
Q: How does the SmartSlot enhance networkable UPS capabilities?
A: The SmartSlot allows installation of networkable UPS management cards, enabling SNMP monitoring, email alerts, web-based management, and integration with network management systems. This makes the server rack battery backup system remotely manageable and provides detailed power monitoring data.
Q: What runtime can I expect from this rackmount UPS system?
A: Runtime varies by load, but this rackmount UPS supports extended runtime configurations with additional battery packs. At 50% load, expect approximately 10-15 minutes with internal batteries, with options to extend to hours using external APC power distribution unit and battery solutions.
Q: Is this UPS suitable for blade servers and high-density computing?
A: Yes, the Smart UPS 3000VA APC design specifically targets high-density applications. The 2700W power capacity, multiple outlet types, and 2U form factor make it ideal for blade servers, storage arrays, and other space-constrained critical equipment in modern data centers.
Q: How does the pure sine wave output benefit connected equipment?
A: Pure sine wave output from this double conversion UPS ensures compatibility with all equipment types, prevents transformer heating, reduces electrical noise, and extends equipment lifespan. This is especially important for servers, storage systems, and other sensitive electronic devices requiring clean power.
