This APC Smart-UPS On-Line 5.4kVA rackmount UPS is perfect for data center operators, enterprise IT administrators, and critical facility managers requiring double conversion power protection for mission-critical equipment. Our online UPS with extended runtime delivers:
-
True double conversion technology providing continuous pure sine wave power and complete isolation from input power anomalies
-
3U rackmount form factor optimizing rack space utilization while delivering enterprise-grade power protection
-
Extended runtime capability supporting additional battery packs for prolonged backup power during outages
-
Comprehensive network management featuring SmartSlot and network card for remote monitoring and control
Key Features
-
Double conversion topology delivering continuous power conditioning and zero transfer time protection
-
Pure sine wave output ensuring compatibility with sensitive electronic equipment and servers
-
Smart-UPS On-Line technology providing superior power quality regulation under all operating conditions
-

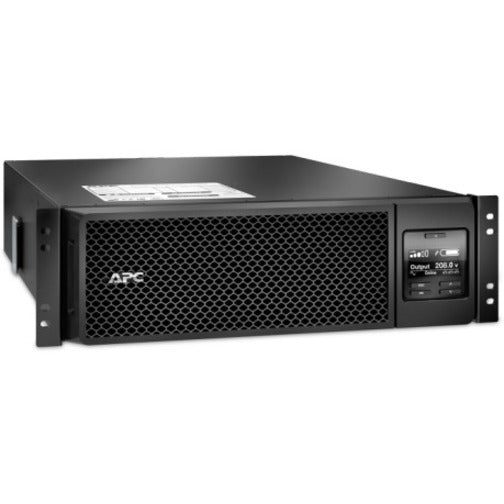

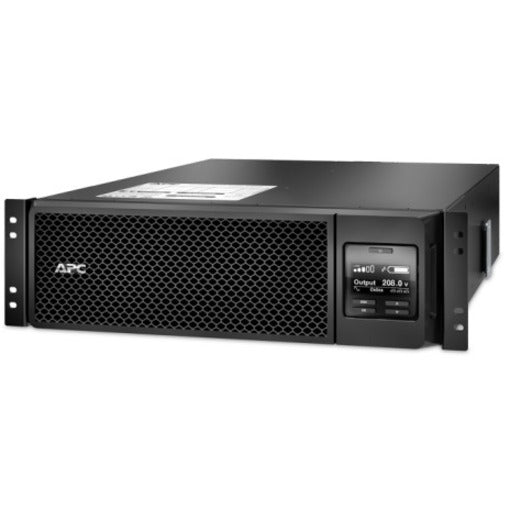

Rackmount 3U design integrating seamlessly into standard 19-inch server racks
-
SmartSlot interface supporting optional network management cards and environmental monitoring accessories
-
Extended runtime options accommodating additional battery packs for customized backup duration
-

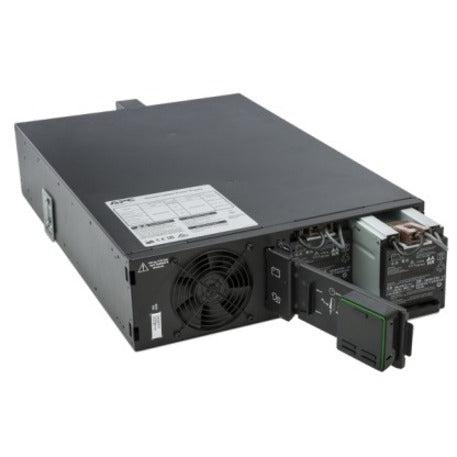

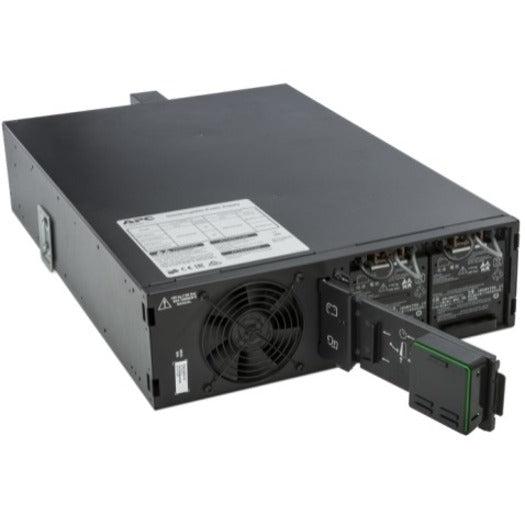

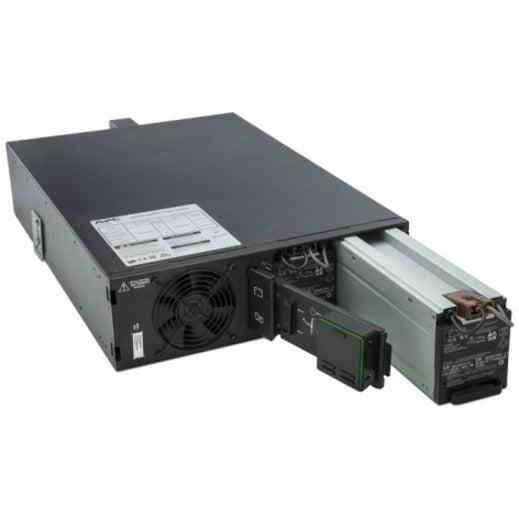

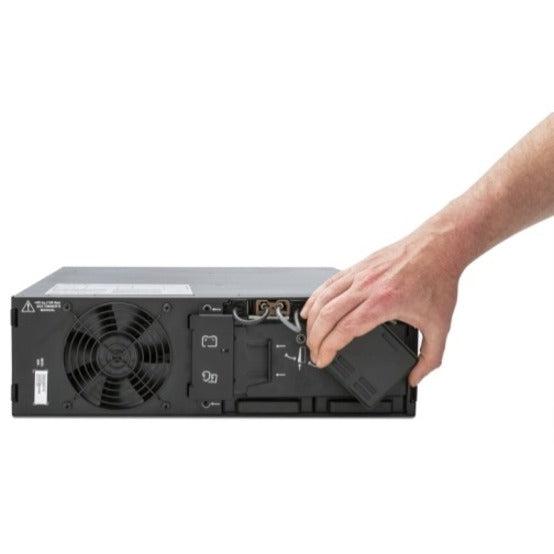

Hot-swappable batteries enabling maintenance without powering down connected equipment
-
Intelligent battery management maximizing battery life through temperature compensation and automatic testing
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Product Type |
Smart-UPS On-Line Double Conversion UPS |
| Capacity |
5.4kVA / 4.32kW |
| Form Factor |
Rackmount 3U (19-inch) |
| Topology |
Double Conversion Online |
| Input Voltage |
208V AC |
| Input Frequency |
50/60 Hz ±3 Hz |
| Output Voltage |
208V AC ±1% |
| Output Frequency |
50/60 Hz ±0.1 Hz (battery mode) |
| Output Waveform |
Pure Sine Wave |
| Output Outlets |
2x L6-20R, 2x L6-30R NEMA |
| Transfer Time |
Zero (Online Operation) |
| Efficiency |
Up to 94% (online mode) |
| Runtime |
Standard + Extended Runtime Options
|
| Battery Type |
Sealed Lead Acid (VRLA) |
| Network Management |
Network Card and SmartSlot |
| Communication |
SNMP, HTTP, SSH, Telnet |
| Display |

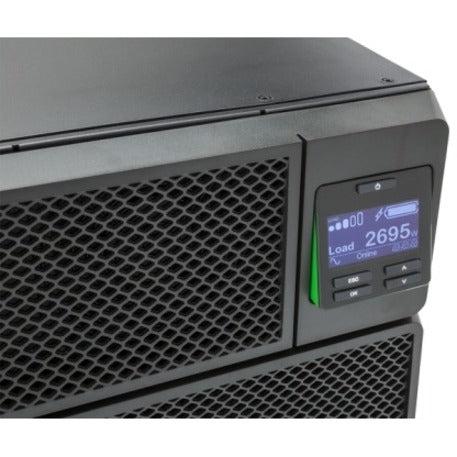

Multifunction LCD display |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Included Accessories |
Rail Kit, Network Card, SmartConnect |
| Certifications |
UL, FCC Part 15 Class A, CE, ENERGY STAR |
| Dimensions |
5.25" H x 17" W x 22.8" D |
| Weight |
125 lbs (56.7 kg) |
Frequently Asked Questions
Q: What are the advantages of double conversion technology?
A: Double conversion online UPS technology provides continuous power conditioning by converting AC input to DC and back to AC, ensuring pure sine wave output with zero transfer time. This eliminates power disturbances, voltage fluctuations, and frequency variations that can damage sensitive equipment or cause data loss.
Q: How does the extended runtime feature work?
A: The extended runtime capability allows connection of additional external battery packs to significantly increase backup duration. This Smart-UPS system can accommodate multiple battery cabinets, providing hours of runtime for critical applications during extended power outages.
Q: What network management capabilities are included?
A: The included network card and SmartSlot provide comprehensive remote monitoring via SNMP, web interface, and command line access. Features include real-time UPS status, environmental monitoring, email notifications, automatic shutdowns, and integration with data center infrastructure management (DCIM) systems.
Q: Is this UPS suitable for server room installations?
A: Yes, this rackmount UPS is specifically designed for server rack installations with its 3U form factor, rail kit mounting, and enterprise-grade features. The pure sine wave output ensures compatibility with all server equipment, while the network management capabilities enable integration with existing IT infrastructure monitoring systems.
APC Smart-UPS On-Line 5.4kVA 3U rackmount double conversion UPS with extended runtime, network card, SmartSlot, and pure sine wave output for enterprise servers.
