General
| Brand |
APEVIA |
| Series |
Astro |
| Model |
ATX-AS450W |
Details
| Type |
ATX12V |
| Maximum Power
|
450 W |
| Fans
|

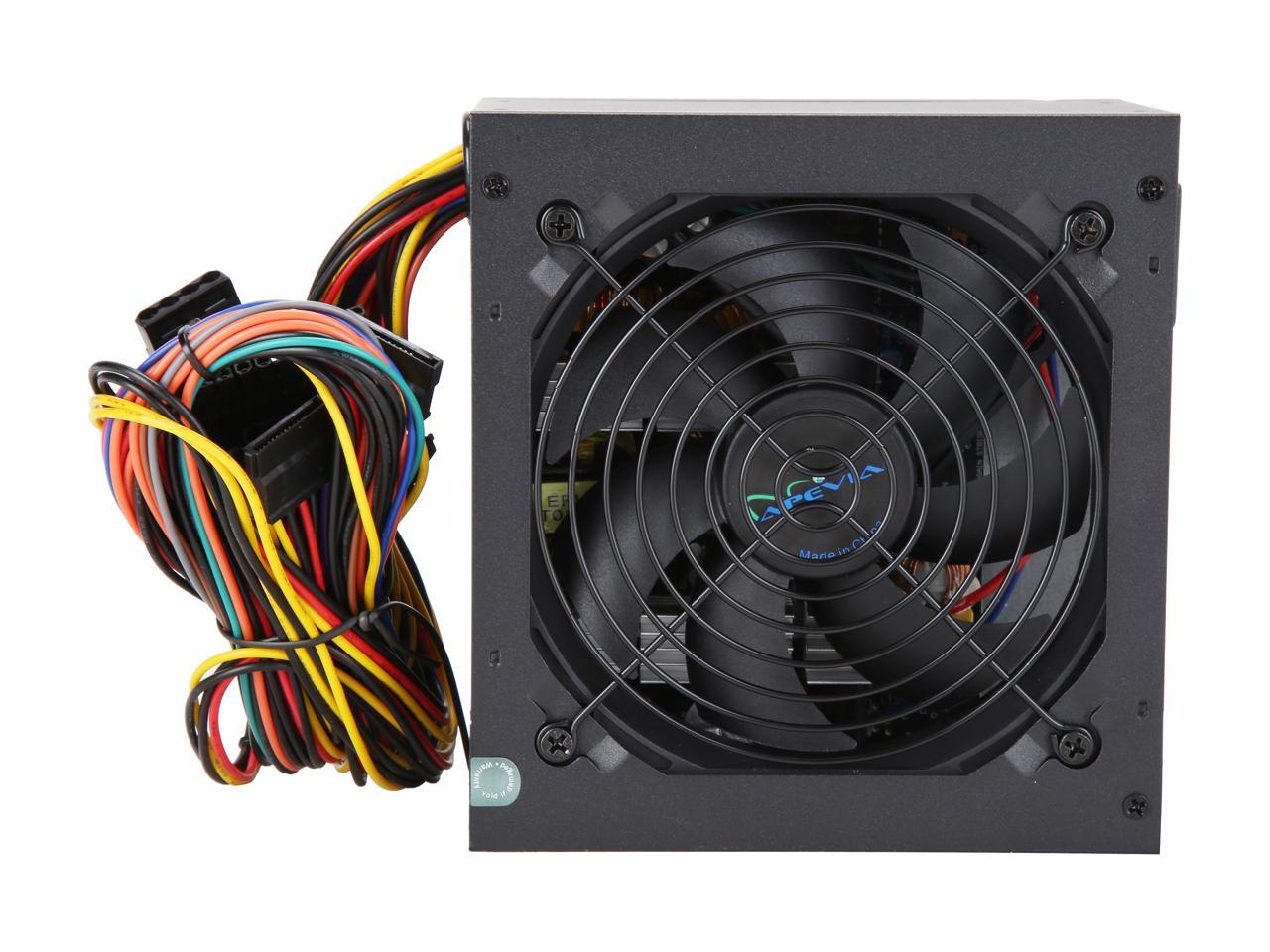

1 x 120mm black fan |
| Main Connector
|
20+4Pin |
| +12V Rails
|
Single |
| SATA Power Connector
|
3 |
| Over Voltage Protection
|
Yes |
| Input Voltage |
115 / 230 V |
| Input Frequency Range |
50/60 Hz |
| Input Current |
10A for 115VAC, 5A for 230VAC |

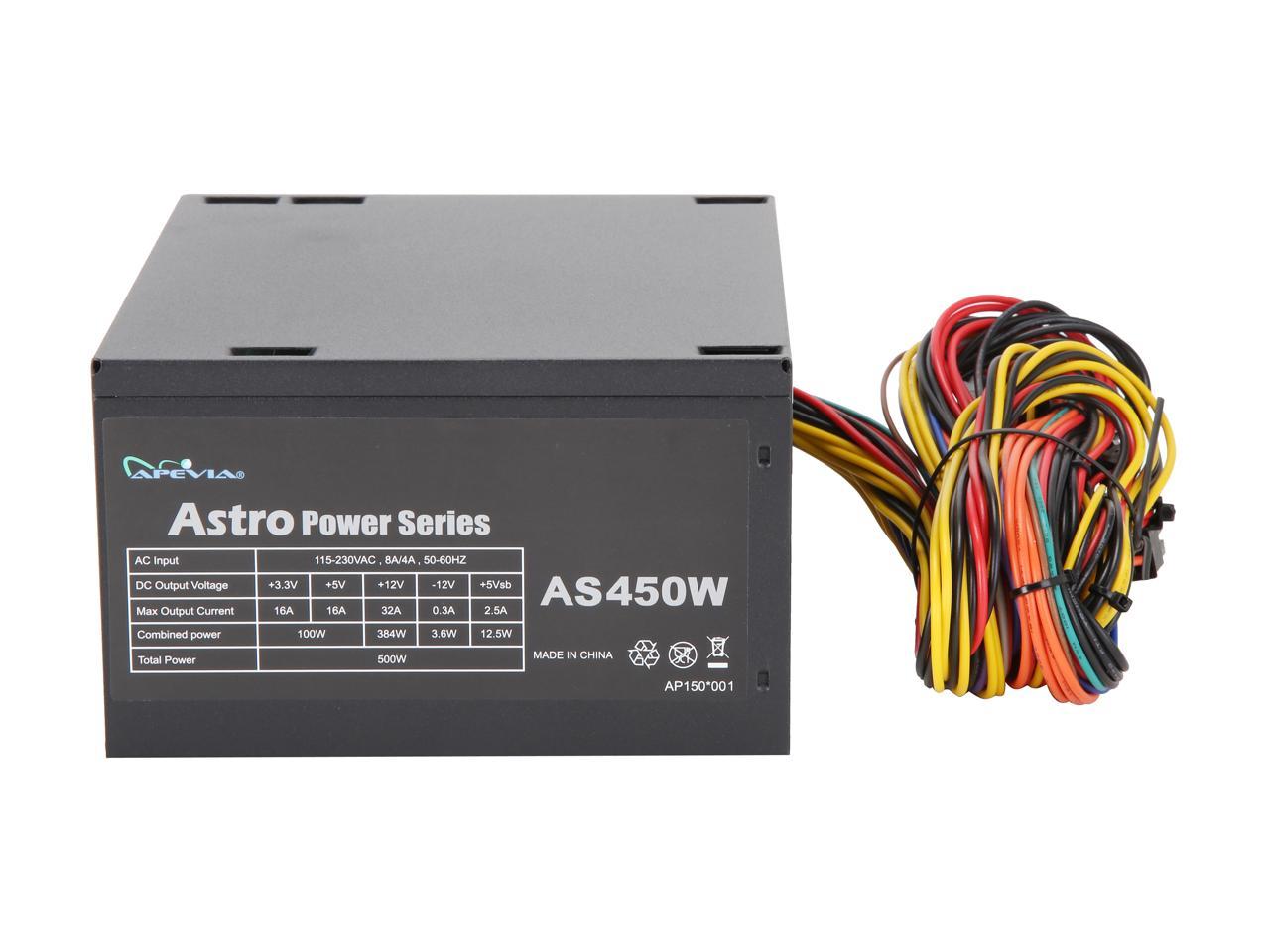

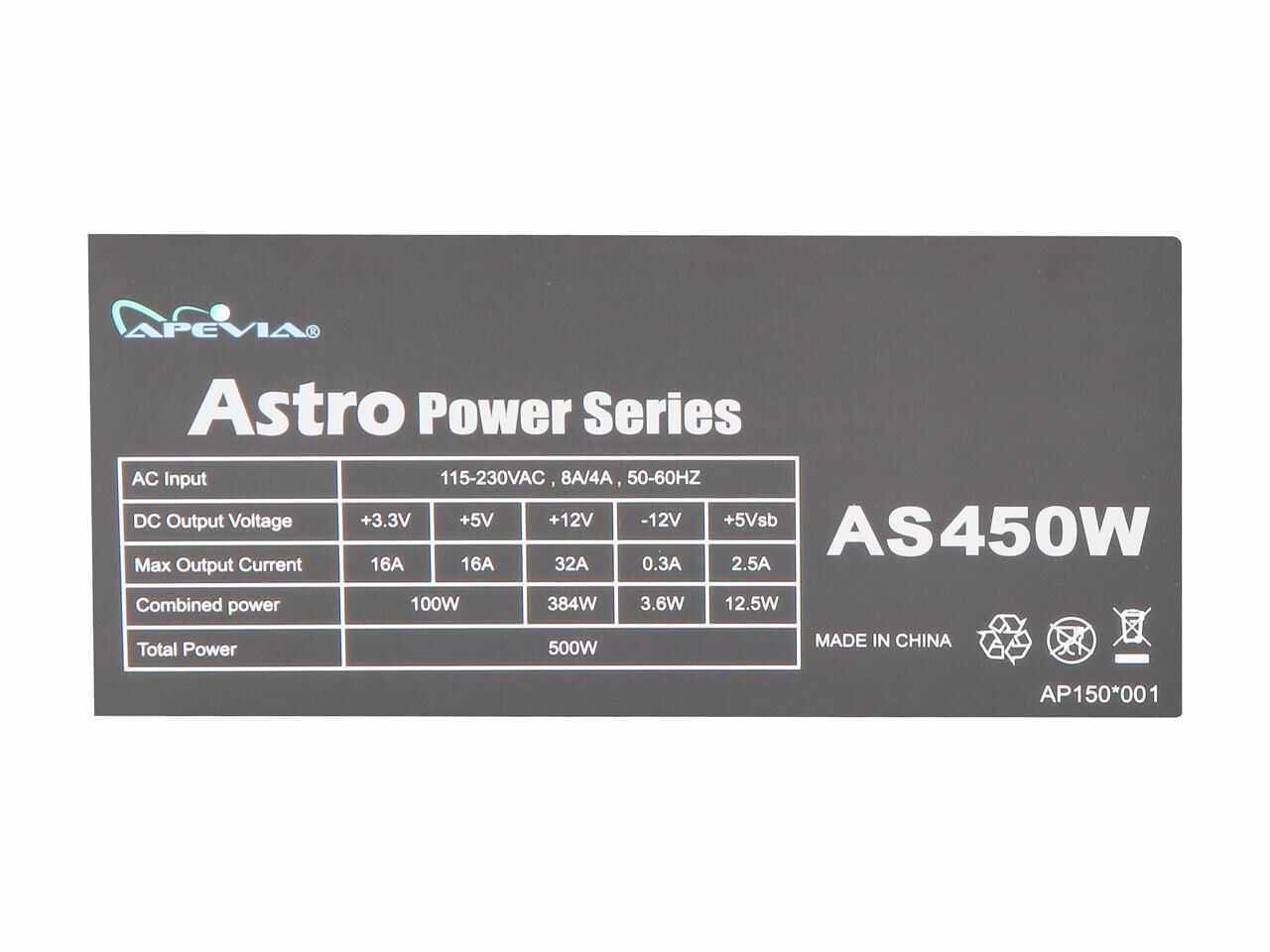

| Output |
+3.3V@16A, +5V@16A, +12V@32A, [email protected], [email protected] |

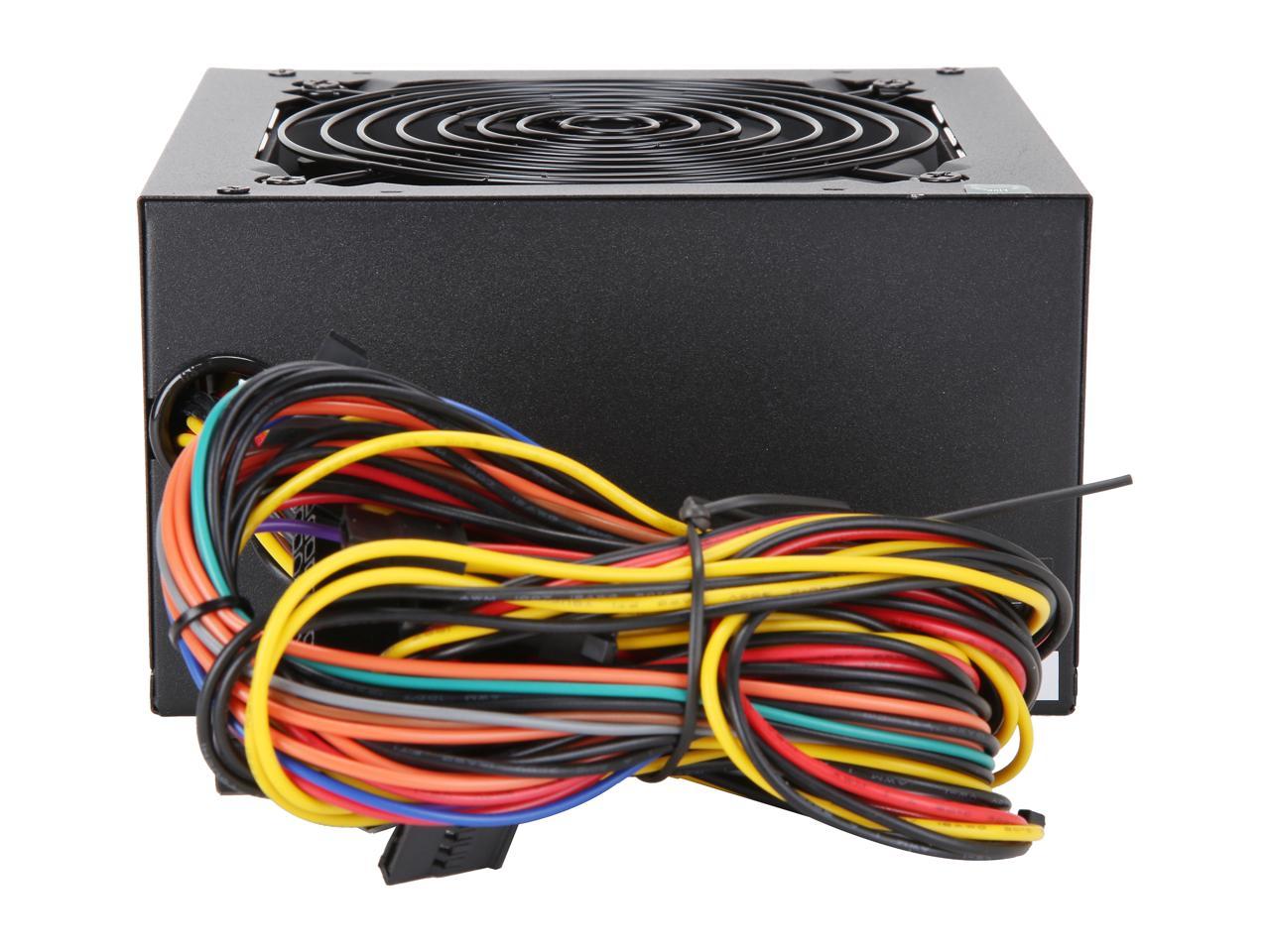

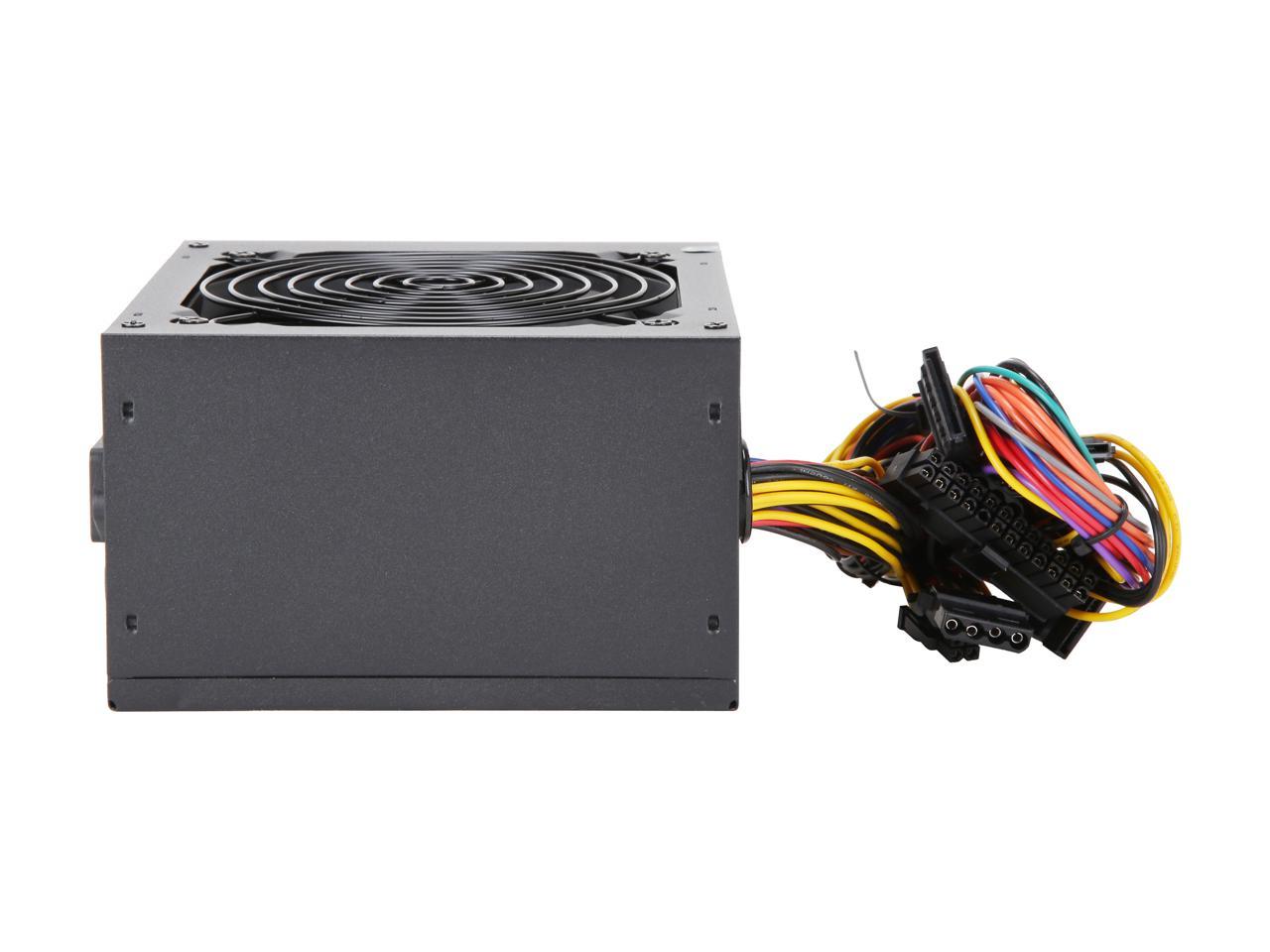

| Connectors |
1 x 20/24pin Main Power
1 x 4pin P4
3 x SATA
3 x Peripheral
1 x Floppy |
Features
| Features |
Connectors:1 x 20/24pin Main Power, 1 x 4pin 12V, 3 x SATA, 3 x Peripheral, 1 x Floppy

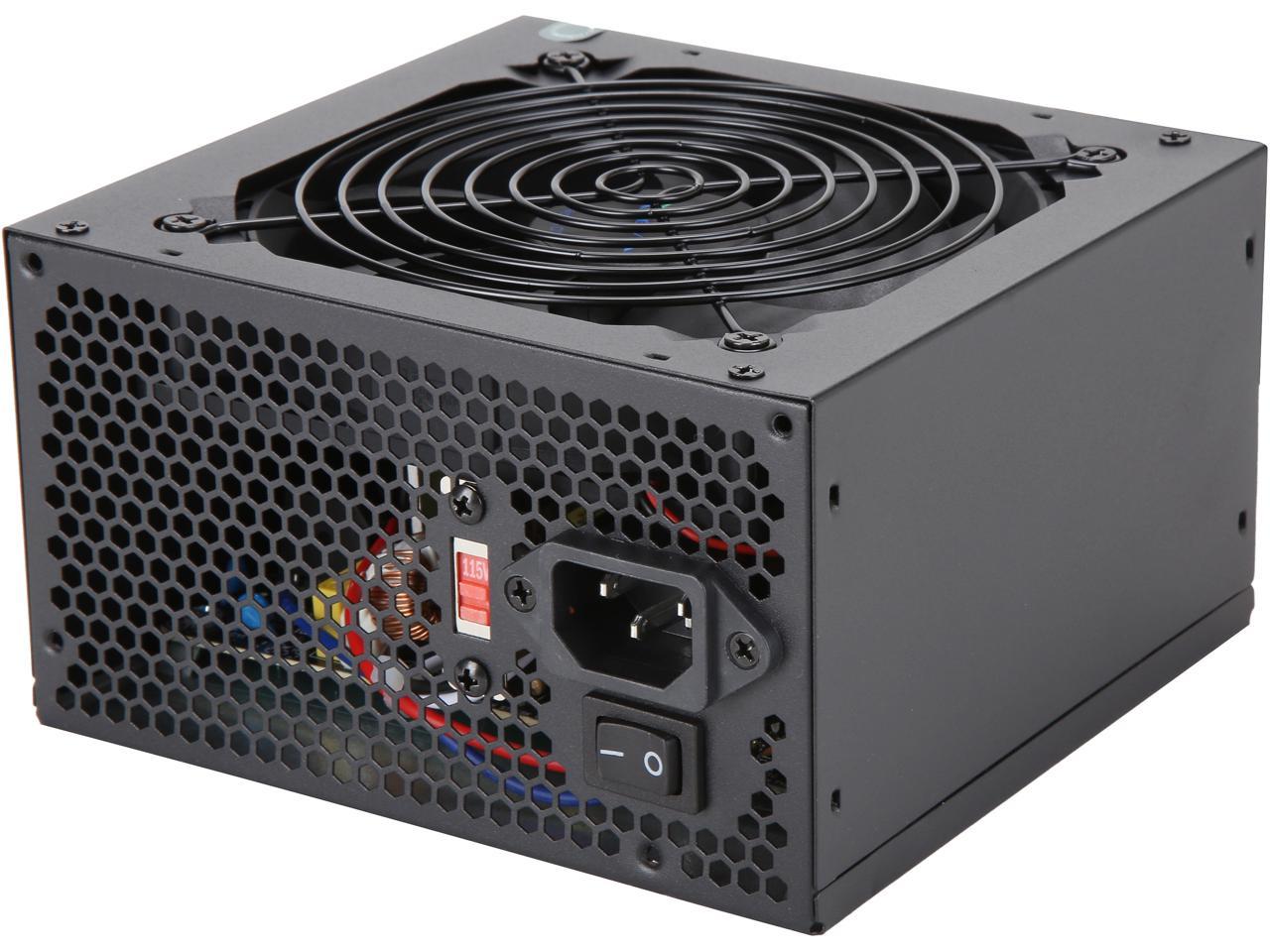

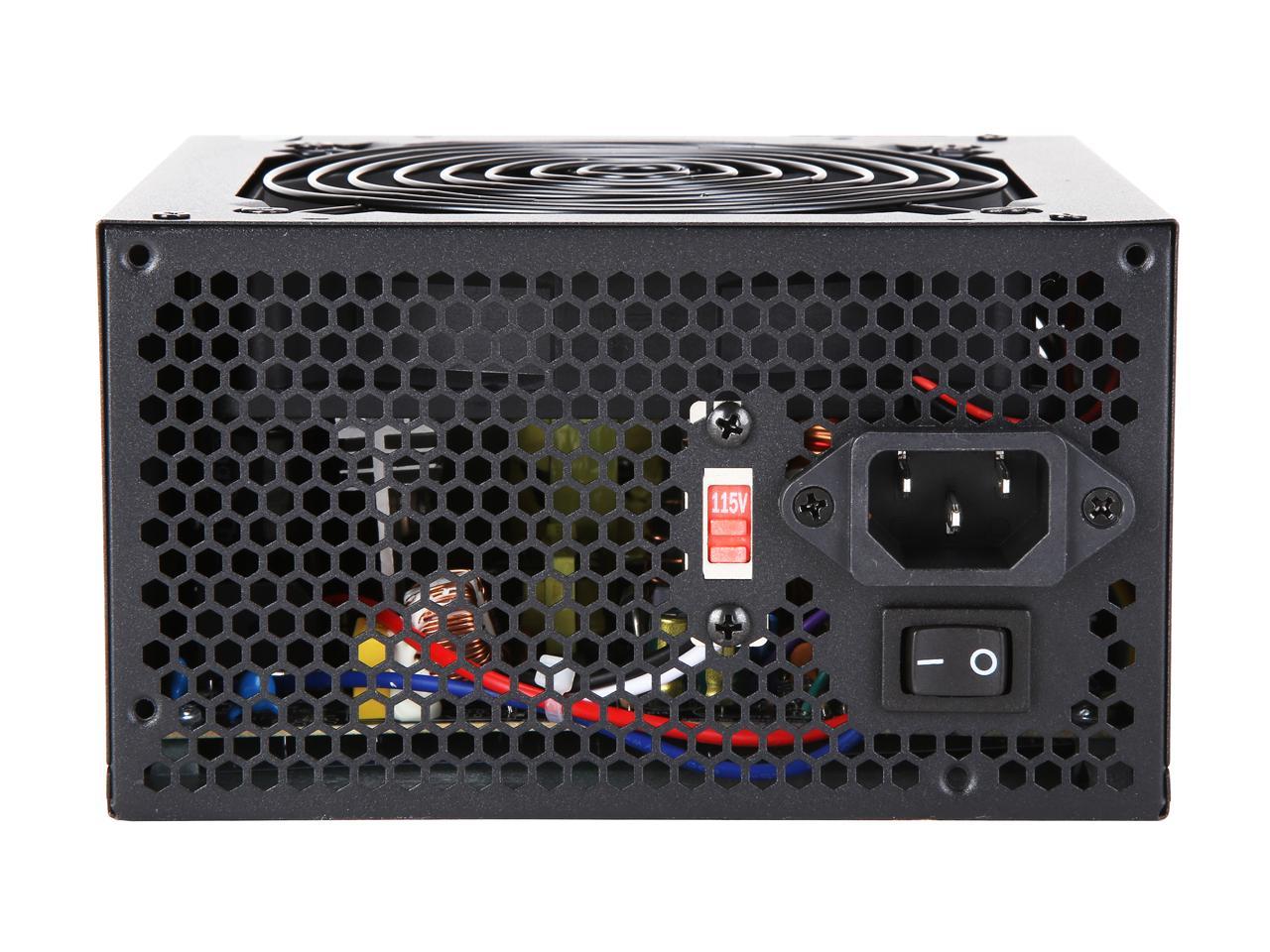

Auto-Thermally Controlled Black 120mm Fan. 115/230V Switch
5% Tolerance of 5V, 3.3V & 12V Output
Short-Circuit/Over-Current/Over-Voltage/Over-Power/Under-Voltage/Over-Temperature Protections |
Dimension & Weight

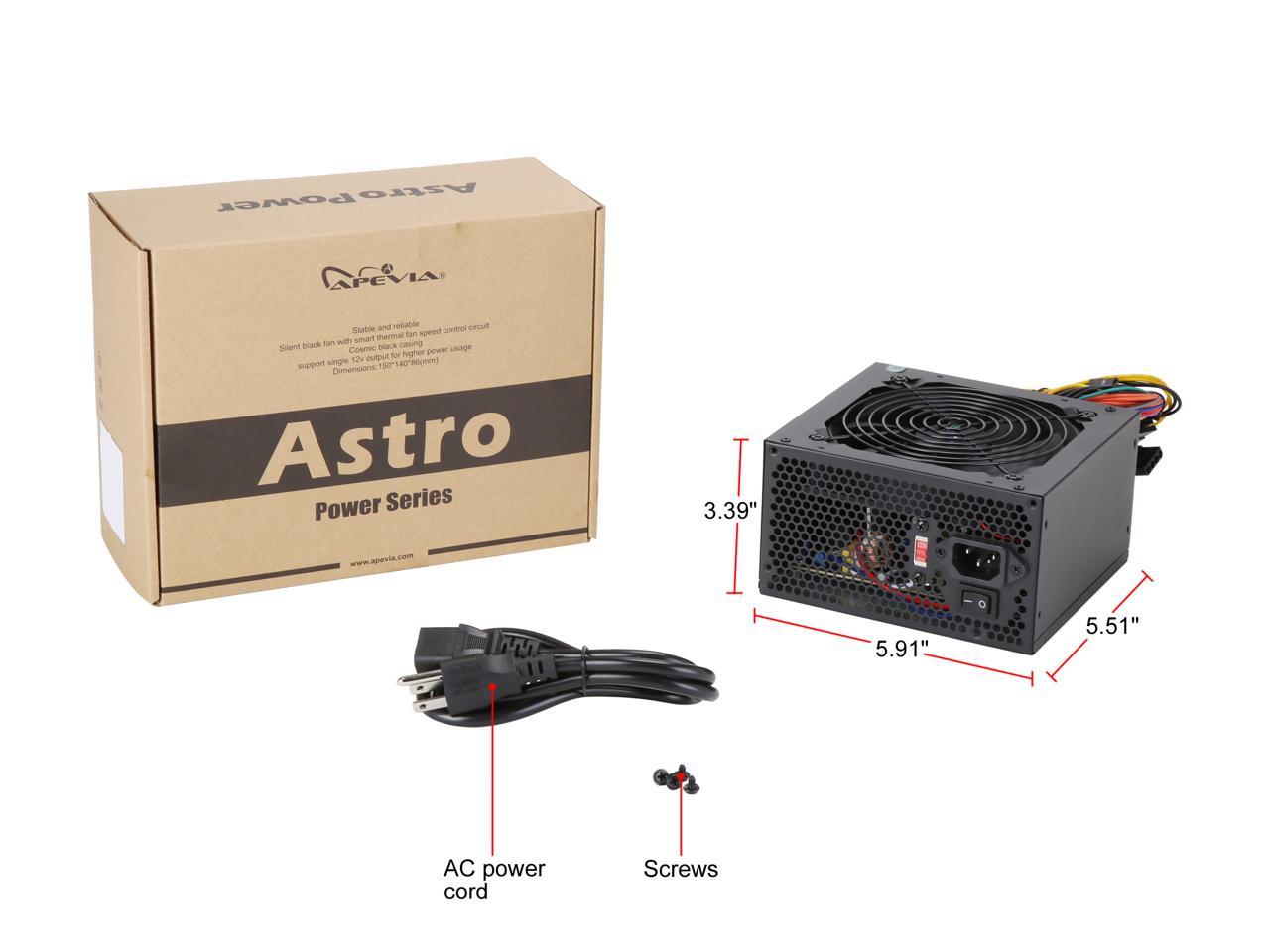

| Dimensions |
3.39" x 5.51" x 5.91" |
| Weight |
3.0 lbs. |
Additional Information
| Date First Available |
February 19, 2022 |
