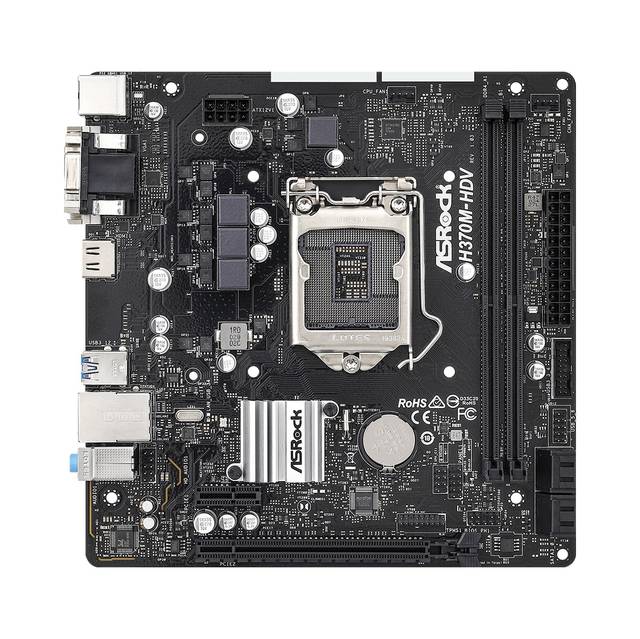

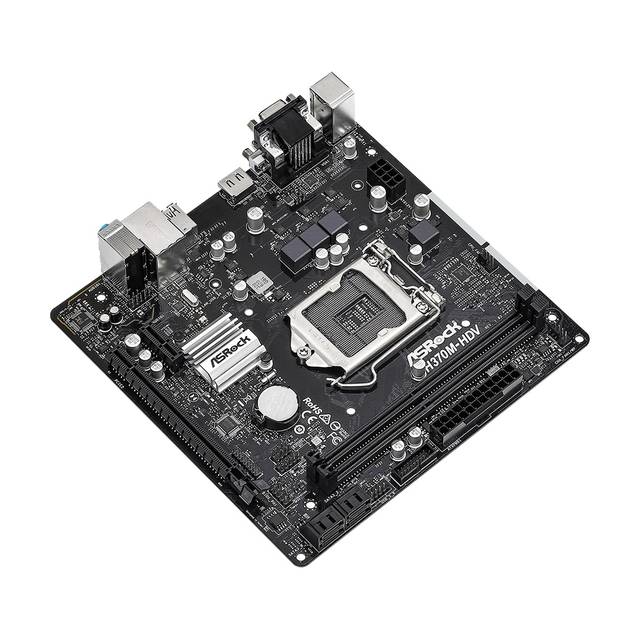

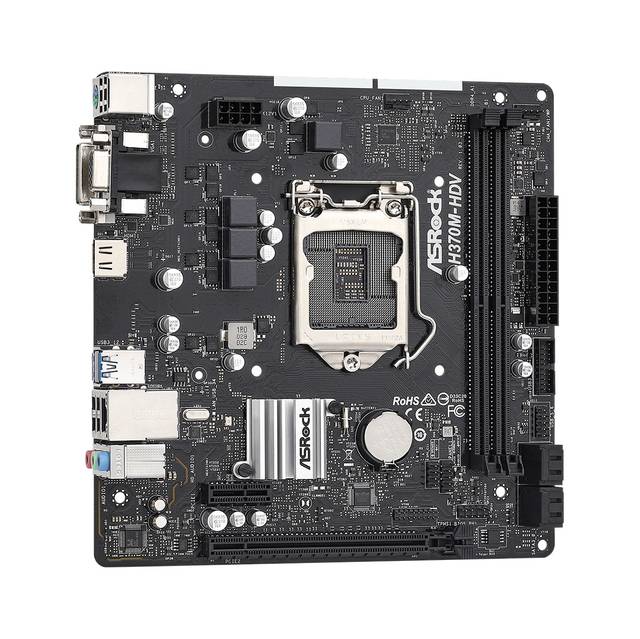

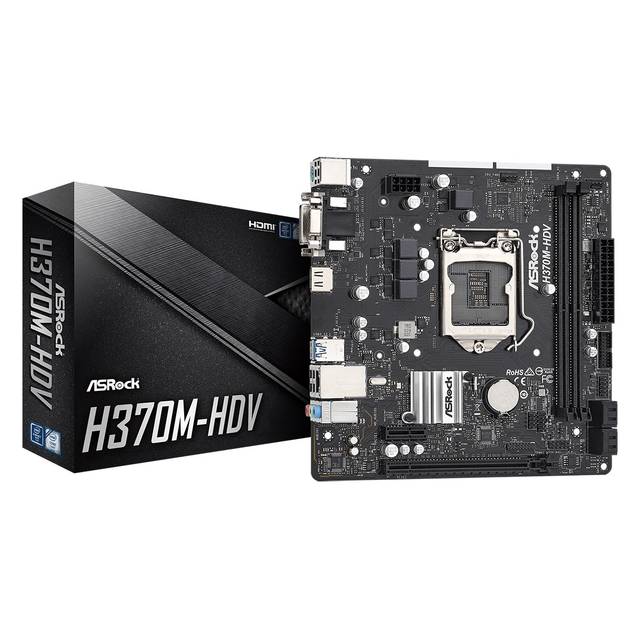

Mfr Part Number: H370M-HDV
-
Unique Feature:
-
CPU:
-
Chipset: Intel H370
-
Memory:
-
Dual Channel DDR4 Memory Technology
-
2 x DDR4 DIMM Slots
-
Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
-
Max. capacity of system memory: 64GB
-
Supports Intel Extreme Memory Profile (XMP) 2.0
-
15 Gold Contact in DIMM Slots
-
BIOS:
-
128Mb AMI UEFI Legal BIOS with multilingual GUI support
-
ACPI 6.0 Compliant wake up events
-
SMBIOS 2.7 Support
-
DRAM, PCH 1.05V Voltage Multi-adjustment
-
Graphics:
-
Supports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
-
DirectX 12
-
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
-
Three graphics output options: D-Sub, DVI-D and HDMI
-
Supports Triple Monitor
-
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
-
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
-
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
-
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
-
Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
-
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
-
Audio:
-
LAN:
-
Slots:
-
Storage: 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug
-
Connector:
-
1 x TPM Header
-
1 x Chassis Intrusion and Speaker Header
-
1 x CPU Fan Connector (4-pin)
-
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
-
1 x 24 pin ATX Power Connector
-
1 x 8 pin 12V Power Connector
-
1 x Front Panel Audio Connector
-
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
-
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
-

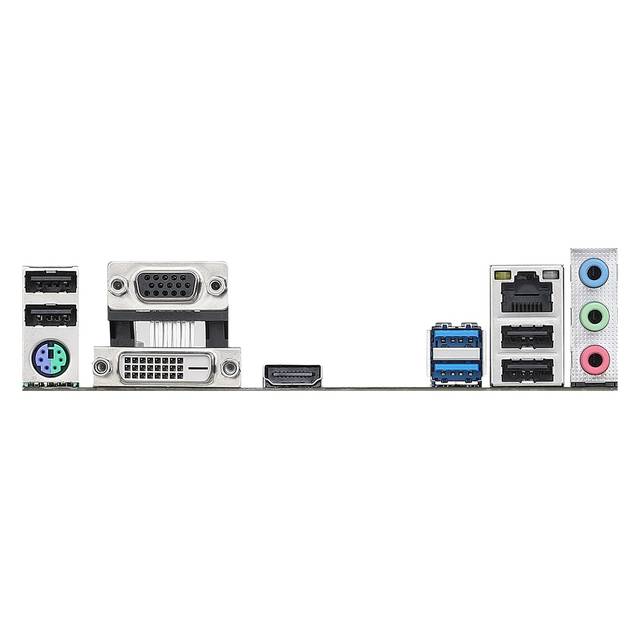

Rear Panel I/O:
-
1 x PS/2 Mouse/Keyboard Port
-
1 x D-Sub Port
-
1 x DVI-D Port
-
1 x HDMI Port
-
4 x USB 2.0 Ports (Supports ESD Protection)
-
2 x USB 3.2 Gen1 Ports
-
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-
HD Audio Jacks: Line in / Front Speaker / Microphone
-
Software and UEFI:
-
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
-
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
-
Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories:
-
Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
-
Hardware Monitor:
-
Temperature Sensing: CPU, Chassis/Water Pump Fans
-
Fan Tachometer: CPU, Chassis/Water Pump Fans
-
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
-
Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
-
CASE OPEN detection
-
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
-
Form Factor:
-
OS: Microsoft Windows 10 64-bit / 11 64-bit
-
Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
