ASRock Rack Server Motherboard SIENAD8-2L2T ATX Single Socket SP6

ATX (12in x 9.6in) Support single Socket SP6 (LGA 4844), AMD EPYC 8004 series processors Support 8 DIMM slots (2DPC/1DPC), DDR5 RDIMM Support 3 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 x16, 1 PCIe5.0 x8 Support 2 MCIO (PCIe5.0 x8) Support 2 M.2 (PCIe5.0 x4) Support 2 RJ45 (10GbE) by Intel X710-AT2 Support 2 RJ45 (1GbE) by Intel i210 Support Remote Management (IPMI)

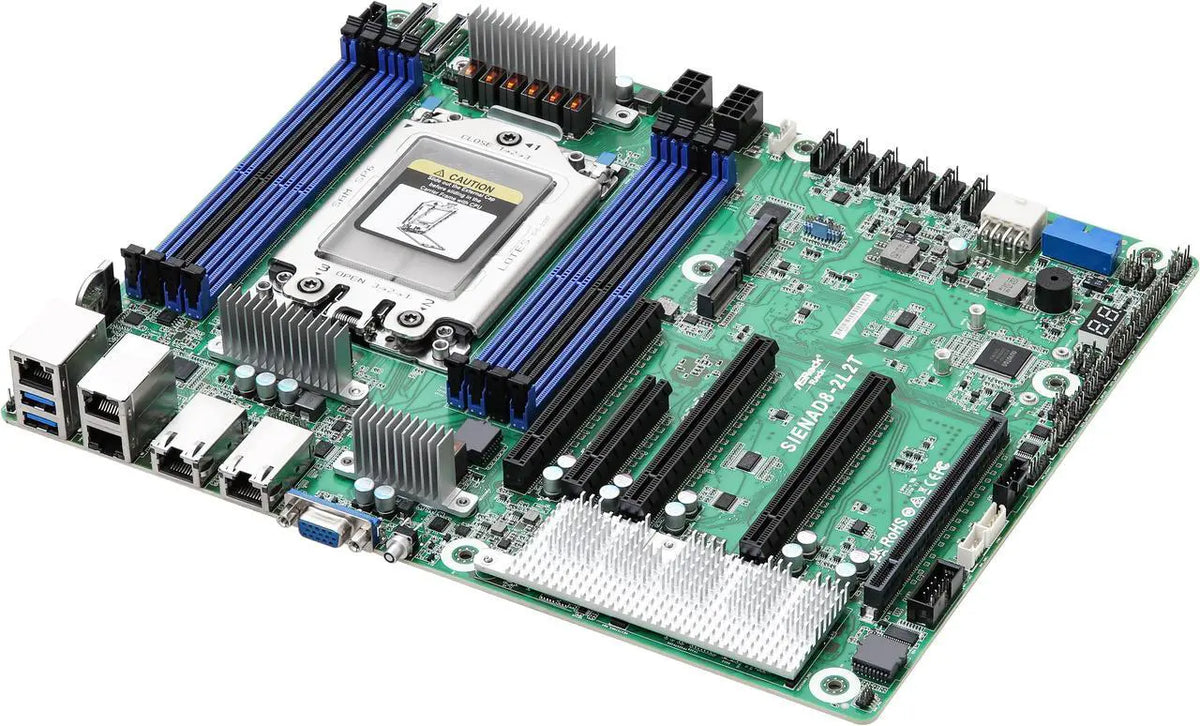

What the ASRock SIENAD8-2L2T Is

The SIENAD8-2L2T is a single-socket SP6 (LGA 4844) ATX server board designed specifically for AMD EPYC 8004 series processors, balancing strong performance with power efficiency and modern I/O.

Key hardware highlights:

• Form factor: ATX, 12" x 9.6"

• CPU Socket: Single Socket SP6 (LGA 4844) for AMD EPYC™ 8004 “Siena”

• Memory:

  • 8 × DIMM slots

  • Supports DDR5 RDIMM

• Expansion:

  • 3 × PCIe 5.0 / CXL 1.1 x16 slots

  • 1 × PCIe 5.0 x16

  • 1 × PCIe 5.0 x8

• Storage:

  • 2 × MCIO (PCIe 5.0 x8) for high-speed NVMe/U.2/U.3 backplanes

  • 2 × M.2 (PCIe 5.0 x4) for NVMe boot or cache drives

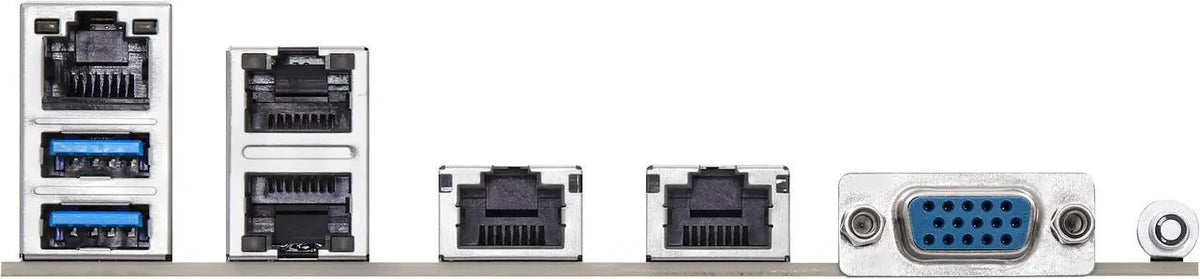

• Networking:

  • 2 × 10GbE RJ45 ports (Intel® X710-AT2)

  • 2 × 1GbE RJ45 ports (Intel® i210)

• Management & I/O:

  • Dedicated IPMI remote management with ASPEED AST2600 BMC and VGA

  • USB 3.2 Gen 1 plus internal headers for front-panel connectivity

Key Benefits

🚀 High performance, power-efficient platform

Built on AMD EPYC 8004 “Siena”, the SIENAD8-2L2T is optimized for edge and scale-out workloads that demand strong performance per watt—perfect for virtualization, containers, SD-WAN, firewalls, and storage nodes.

🔌 Extreme I/O flexibility with PCIe 5.0 & CXL

With five PCIe 5.0 slots (including three CXL-ready x16), you get huge bandwidth for:

• High-speed NICs (25/40/100GbE and beyond)

• NVMe HBAs and RAID controllers

• GPUs, DPUs, AI accelerators, and FPGAs

You’re investing in a platform built for next-gen expansion.

📦 Dense, ultra-fast storage options

The combination of 2 × MCIO PCIe 5.0 x8 and 2 × M.2 PCIe 5.0 x4 makes this board ideal for:

• All-NVMe storage servers

• Cache-accelerated file or backup servers

• Hyperconverged infrastructure (HCI) nodes

Use M.2 for OS/cache and MCIO for NVMe backplanes to achieve extremely high IOPS and low latency.

🌐 Onboard 10GbE + 1GbE networking

Dual 10GbE plus dual 1GbE give you a flexible network setup out of the box:

• 10GbE for high-throughput data paths

• 1GbE for management, backup, or segregated traffic

No need for a basic add-in NIC just to deploy.

🧠 DDR5 RDIMM for bandwidth-heavy workloads

Eight DDR5 RDIMM slots let you build high-capacity, high-bandwidth memory configurations, ideal for:

• Virtualization hosts (VMware, Hyper-V, Proxmox, etc.)

• In-memory caching and databases

• Microservices and heavily parallel workloads

🛠 Enterprise-grade remote management

With integrated IPMI and ASPEED AST2600 BMC, you get:

• KVM over IP (remote console)

• Remote power on/off and resets

• Hardware sensor monitoring (temps, voltages, fans)

Perfect for remote sites and edge deployments where you can’t always be on-site.

Who Is the SIENAD8-2L2T For?

This motherboard is an excellent fit for:

• System integrators & OEMs building custom network/security/storage appliances

• SMBs and enterprises needing compact edge servers or micro–data center nodes

• Service providers / MSPs deploying virtualization or HCI clusters at customer sites

• Telco, ISP, and industrial environments that demand reliable, power-efficient EPYC platforms in a standard ATX chassis

If you want PCIe 5.0, onboard 10GbE, and a future-proof EPYC 8004 base in a familiar ATX form factor, this board hits the sweet spot.

Feature Highlights

• ASRock Rack SIENAD8-2L2T ATX server motherboard for AMD EPYC™ 8004 “Siena” processors

• Single Socket SP6 (LGA 4844) with 8 × DDR5 RDIMM slots for high-bandwidth memory

• 5 × PCIe 5.0 expansion slots (3 × x16 CXL 1.1, 1 × x16, 1 × x8) for GPUs, NICs, and NVMe adapters

• 2 × MCIO (PCIe 5.0 x8) + 2 × M.2 (PCIe 5.0 x4) for ultra-fast NVMe storage

• 2 × 10GbE + 2 × 1GbE onboard networking for flexible connectivity

• Integrated IPMI with ASPEED AST2600 BMC for full remote server management

• Ideal for edge computing, virtualization, software-defined storage, and telco/industrial servers

FAQ – ASRock Rack SIENAD8-2L2T

1. Which processors are compatible with the SIENAD8-2L2T?
It supports AMD EPYC™ 8004 series processors using the SP6 (LGA 4844) socket, also known as the “Siena” family, designed for efficient edge and scale-out deployments.

2. How much memory can this motherboard support?
The board includes 8 × DDR5 RDIMM slots. Maximum capacity depends on your EPYC CPU and DIMM sizes, but it is designed for high-capacity server memory configurations suitable for virtualization and data-intensive workloads.

3. What networking options are built-in?
The SIENAD8-2L2T features:

• 2 × 10GbE RJ45 ports (Intel X710-AT2)

• 2 × 1GbE RJ45 ports (Intel i210)

This lets you separate data, management, and backup traffic without extra NICs for most deployments.

4. Does the board support remote management and IPMI?
Yes. It includes a dedicated IPMI port and an ASPEED AST2600 BMC that provide KVM over IP, remote power control, and full hardware monitoring—standard enterprise-grade remote management capabilities.

5. What type of chassis can I use with this motherboard?
The SIENAD8-2L2T uses a standard ATX (12" x 9.6") form factor. It will fit most ATX-compatible tower or rackmount server chassis, provided the case offers adequate cooling for an EPYC 8004 CPU and any PCIe 5.0 expansion cards you plan to install.

1. ATX (12" x 9.6")
2. Single Socket SP6 (LGA 4844), supports AMD EPYC™ 8004 series processors
3. 8 DIMM slots (2DPC/1DPC), supports DDR5 RDIMM
4. 3 PCIe5.0 / CXL1.1 x16, 1 PCIe5.0 x16, 1 PCIe5.0 x8
5. 2 MCIO (PCIe5.0 x8)
6. 2 M.2 (PCIe5.0 x4)
7. 2 RJ45 (10GbE) by Intel^® X710-AT2
8. 2 RJ45 (1GbE) by Intel^® i210
9. Remote Management (IPMI)
