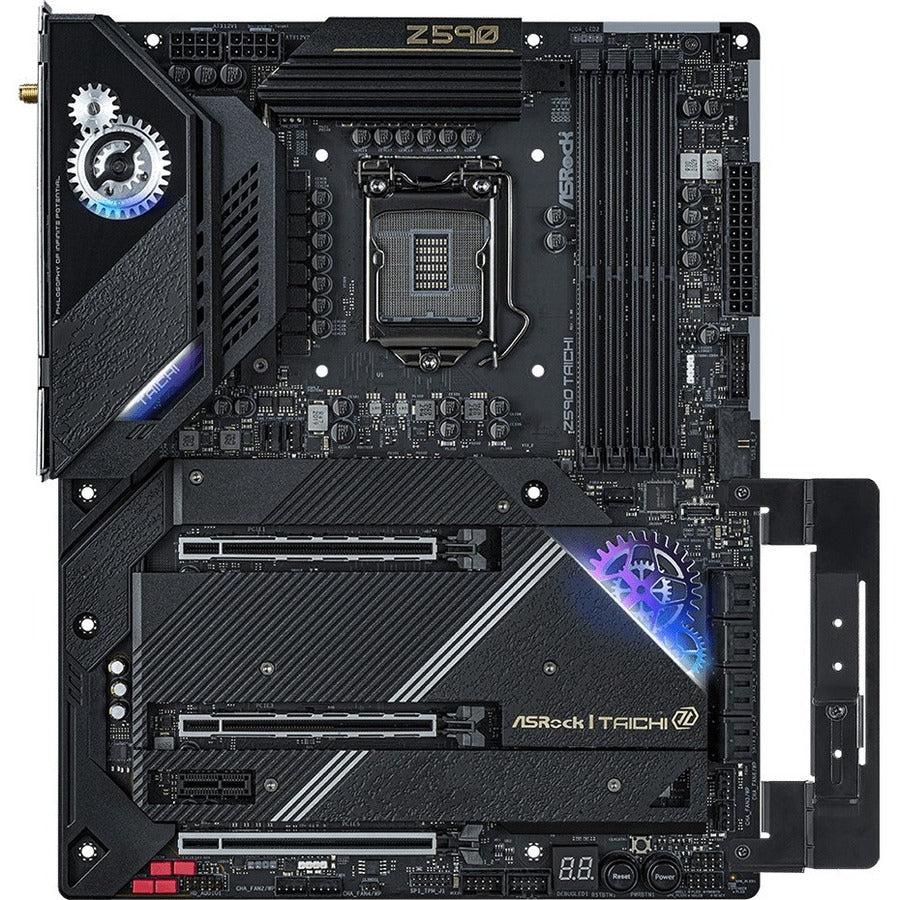

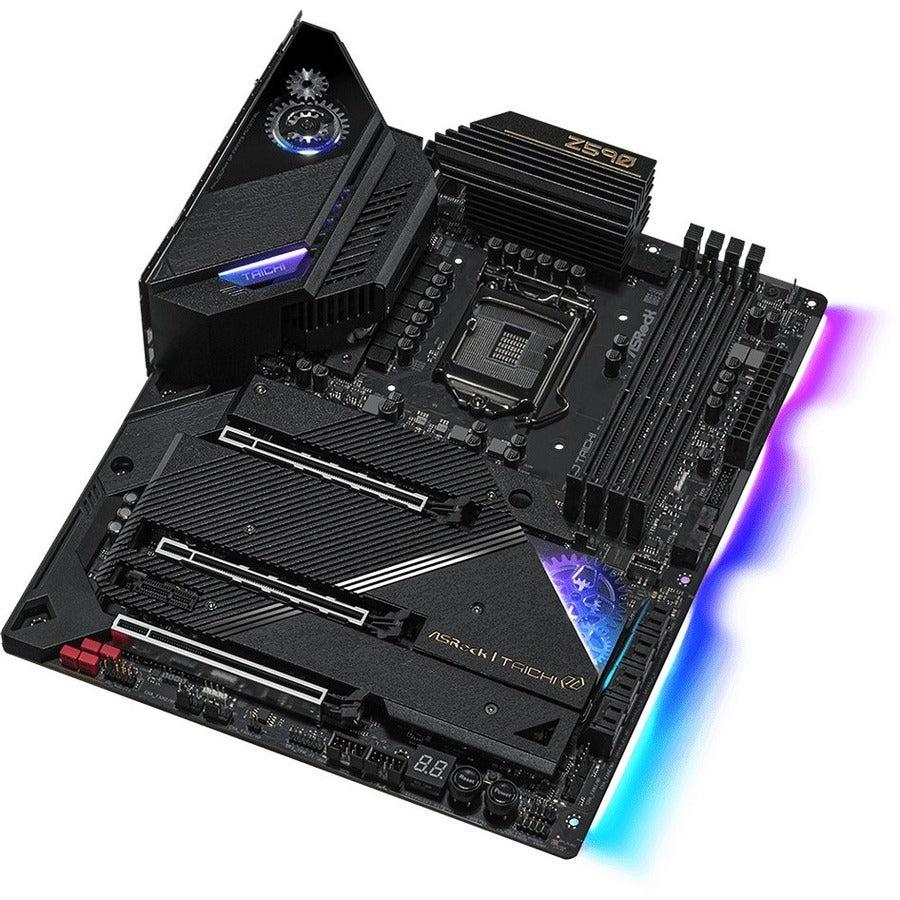

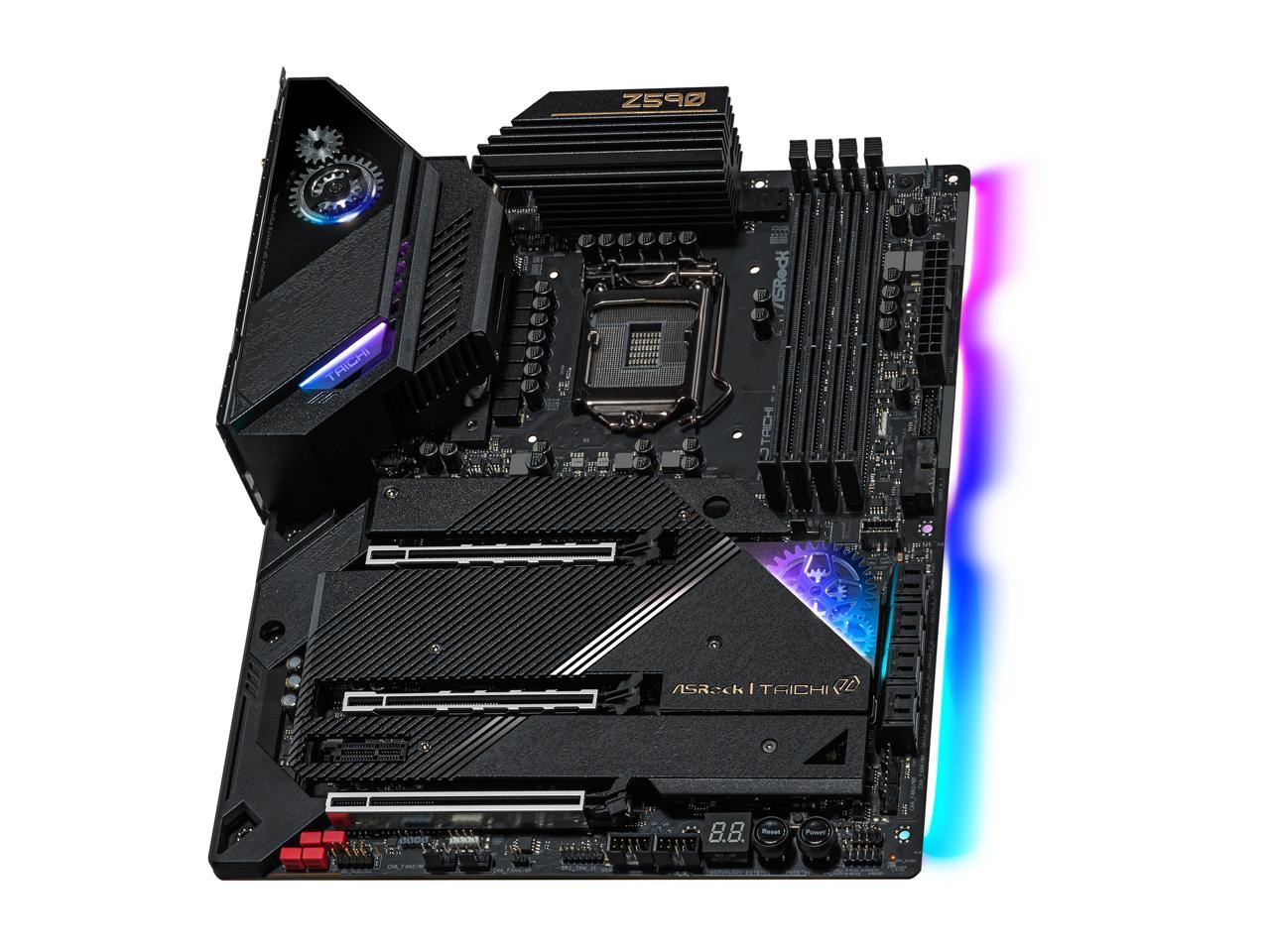

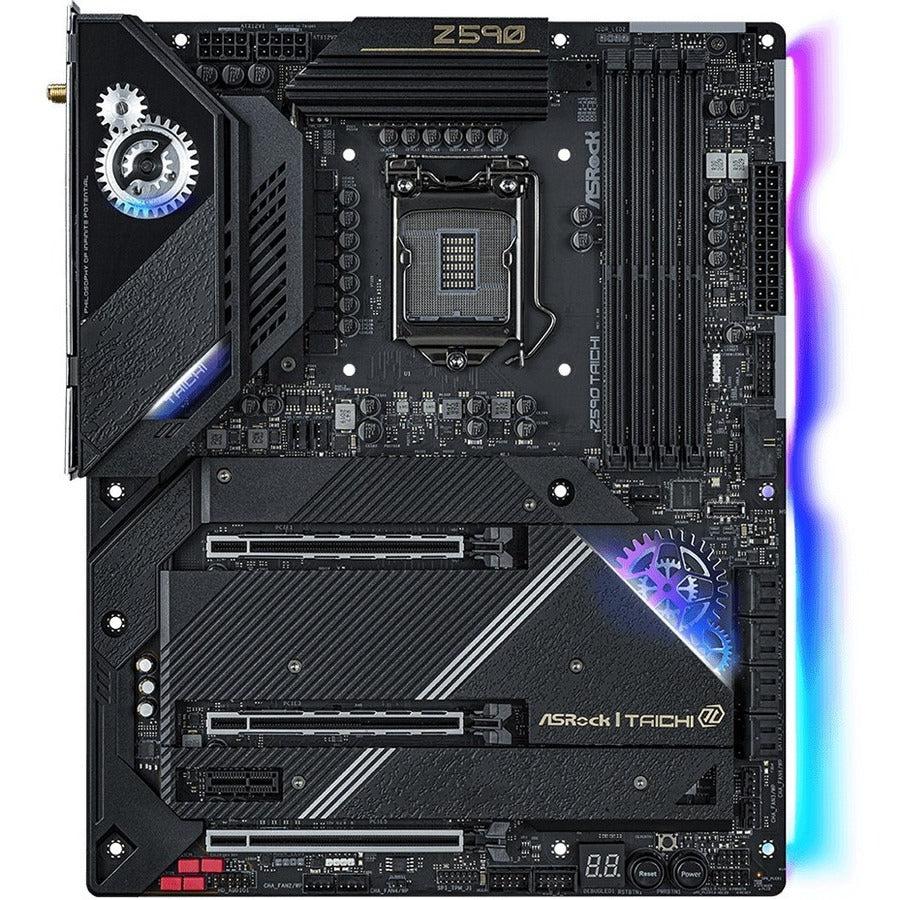

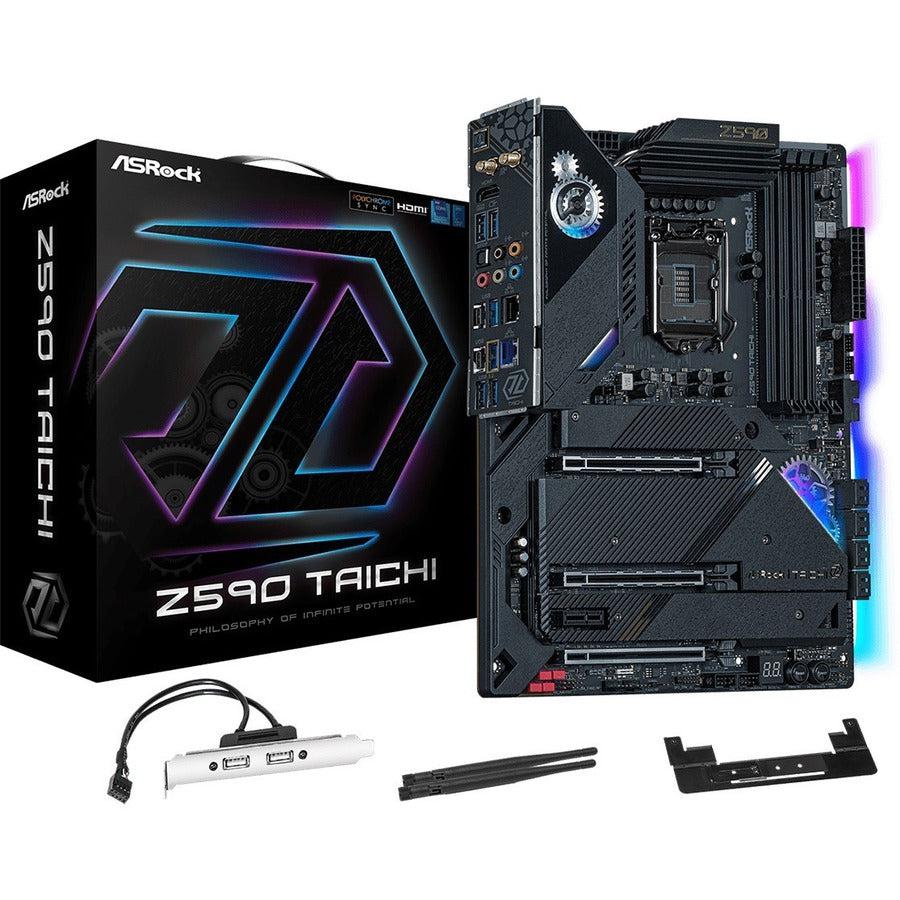

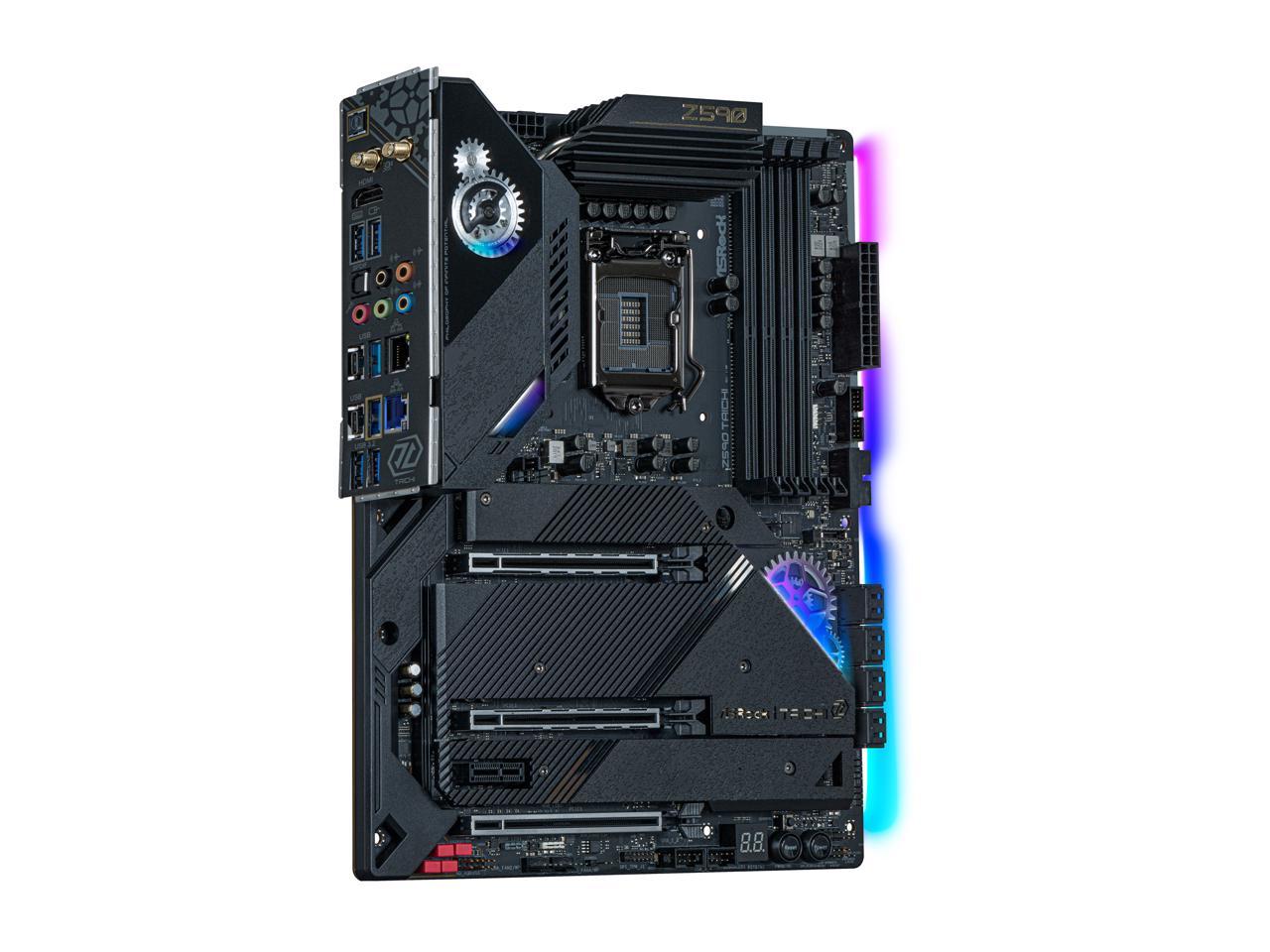

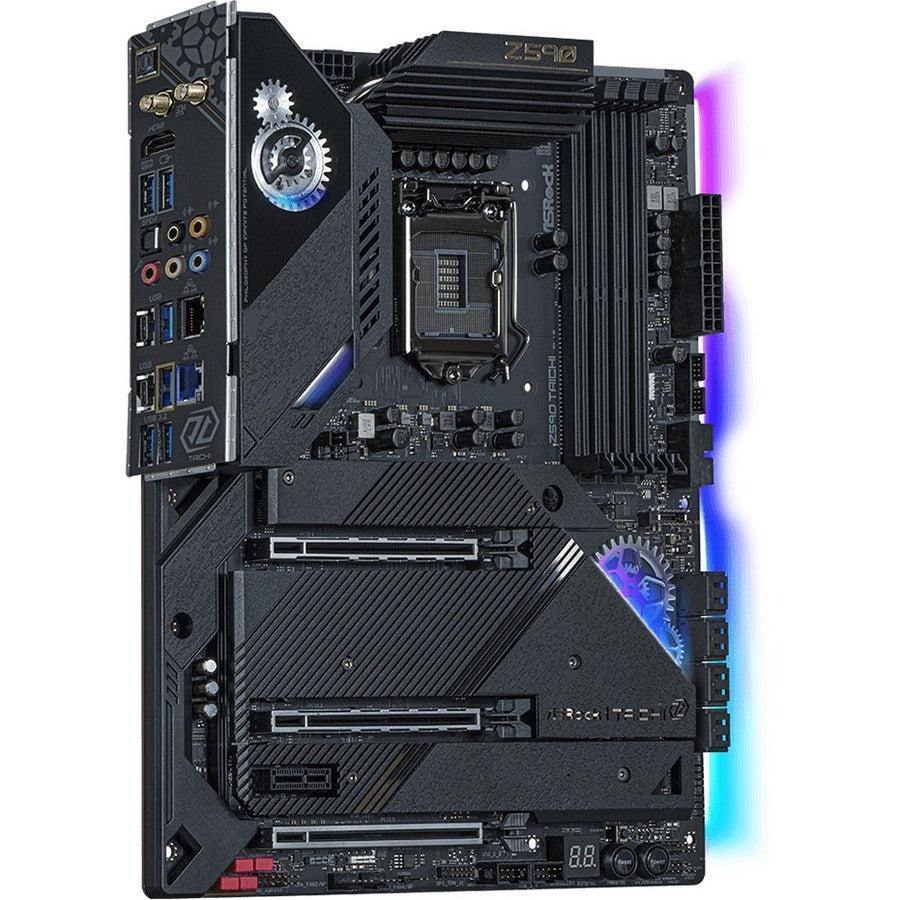

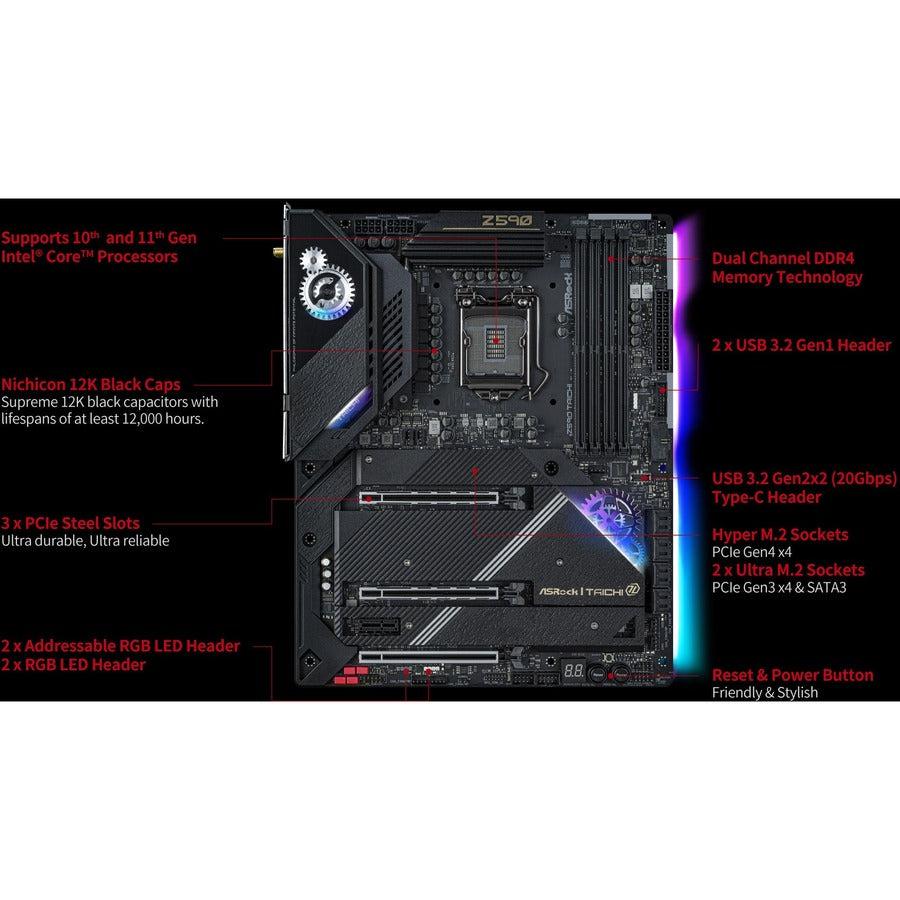

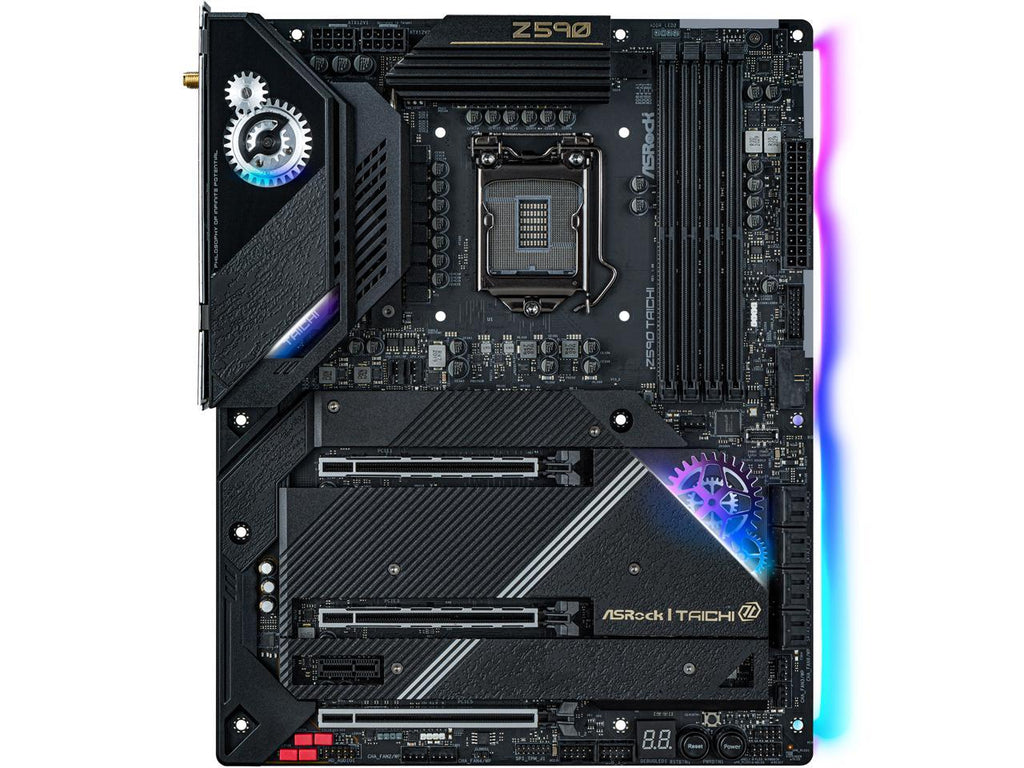

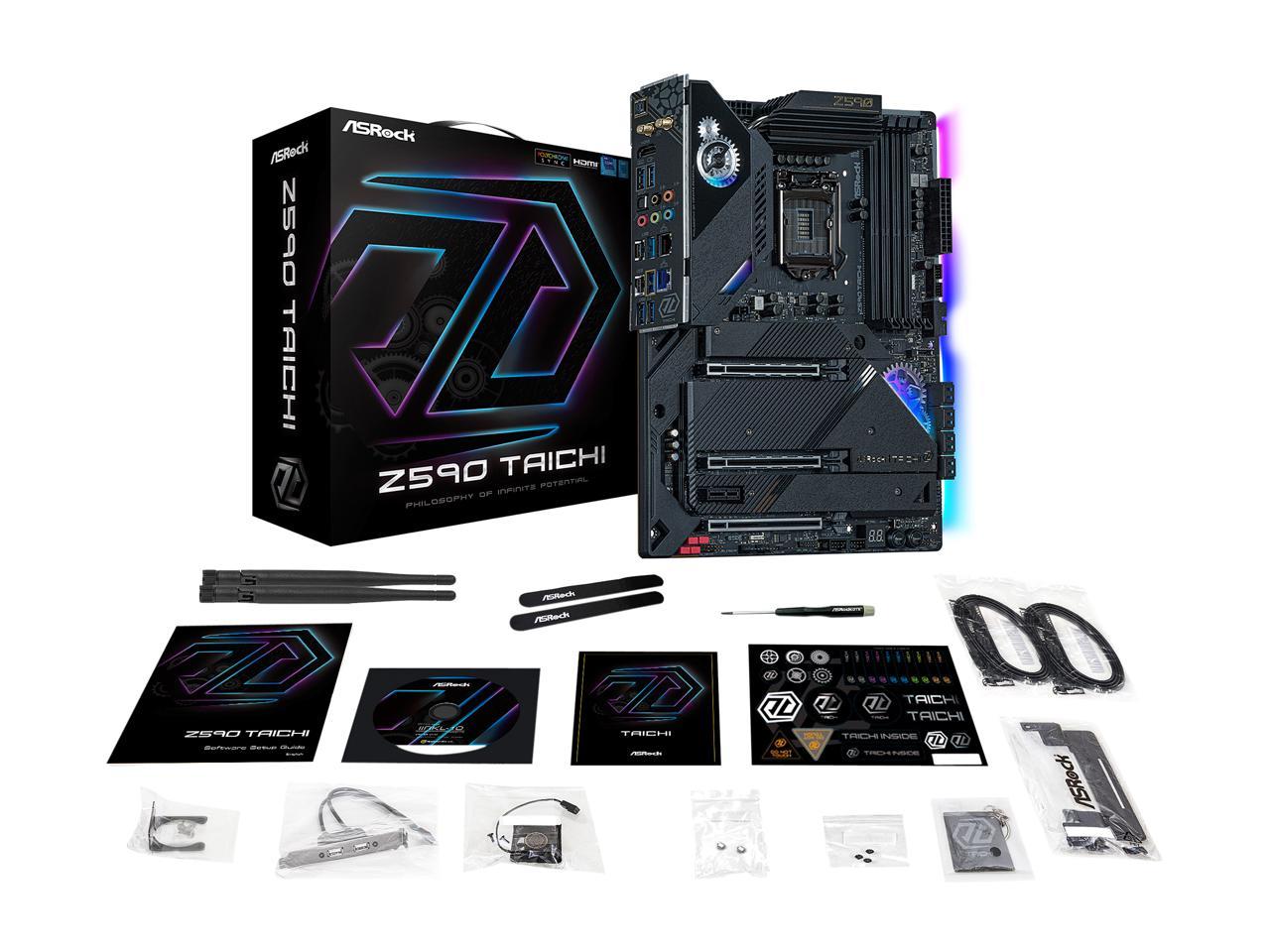

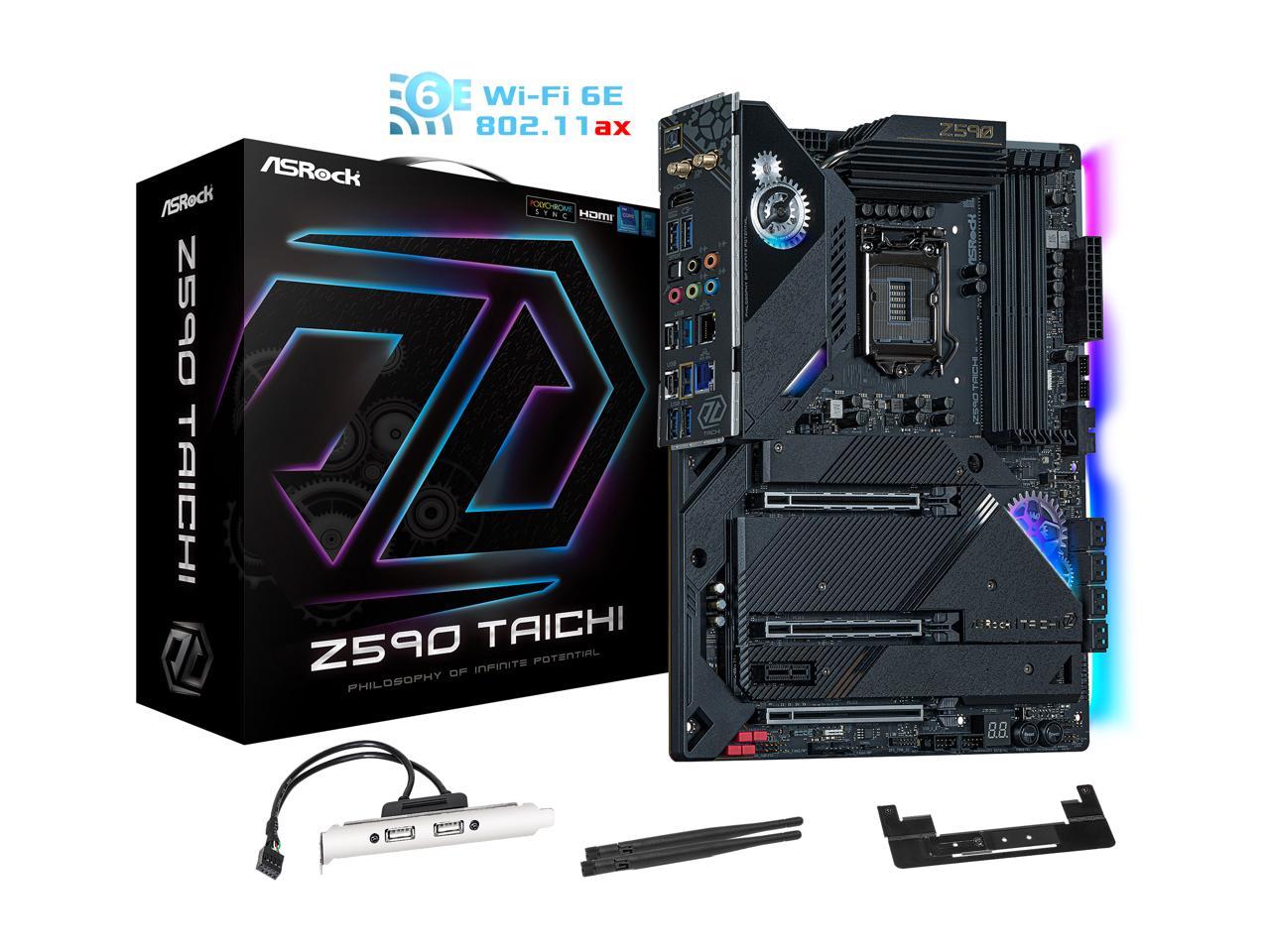

Name: Asrock Z590 Taichi Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard
Brand: ASRock
SKU: Z590 TAICHI
Price: 670.99 USD
Availability: OutOfStock

Asrock Z590 Taichi Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email sales@tecisoft.com.

Intel Z590
Supports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)

**Model**
Brand	ASRock
Model	Z590 TAICHI

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors
Supported CPU Technologies	Turbo Boost Technology 3.0

**Chipsets**
Chipset	Intel Z590

**Onboard Video**
Onboard Video Chipset	11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Three graphics output options: 1 x HDMI and 2 x Intel Thunderbolt 4 Supports Triple Monitor Supports Intel Thunderbolt 4 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and Intel Thunderbolt 4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and Intel Thunderbolt 4 Ports** * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4.

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported	128GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	CPU Direct Source LAN Off (Default Setting): 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE2); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE2) / Gen3x4 (PCIE4))* 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE2); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE2) / Gen3x4 (PCIE4))* CPU Direct Source LAN On: 11th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x8 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x4 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x4 (PCIE3) / Gen3x4 (PCIE4))* 10th Gen Intel Core Processors - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x8 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x4 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x4 (PCIE3) / Gen3x4 (PCIE4))* * Supports NVMe SSD as boot disks
PCI Express x1	1 x PCI Express 3.0 x1 Slot
Other Slots	1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE1)

**Storage Devices**
SATA 6Gb/s	6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug* * M2_2, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will be disabled. * M2_3, SATA3_4, SATA3_5 and PCIE4 share lanes. If either one of them is in use, the others will be disabled. Please refer to the following link to configure a PCIE SSD RAID on M2_3 slot and other M.2 slots. FAQ Link: https://www.asrock.com/mb/Intel/Z590%20Taichi/index.asp#FAQ.
M.2	1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32Gb/s) (with 10th Gen Intel Core Processors) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) Supports Intel Optane Technology (M2_2 and M2_3 only) Supports NVMe SSD as boot disks Supports ASRock U.2 Kit
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	Realtek ALC1220
Audio Channels	7.1 Channels

**Onboard LAN**
LAN Chipset	Killer E3100G
Second LAN Chipset	Intel I219V
Max LAN Speed	10/100/1000/2500Mbps + 10/100/1000Mbps
Wireless LAN	Killer AX1675x 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports MU-MIMO Supports Killer LAN Software Supports Killer DoubleShot Pro * Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows Update and software update once available. The update is expected to be in the middle of 2021.
Bluetooth	Supports Bluetooth 5.2 + High speed class II

**Rear Panel Ports**

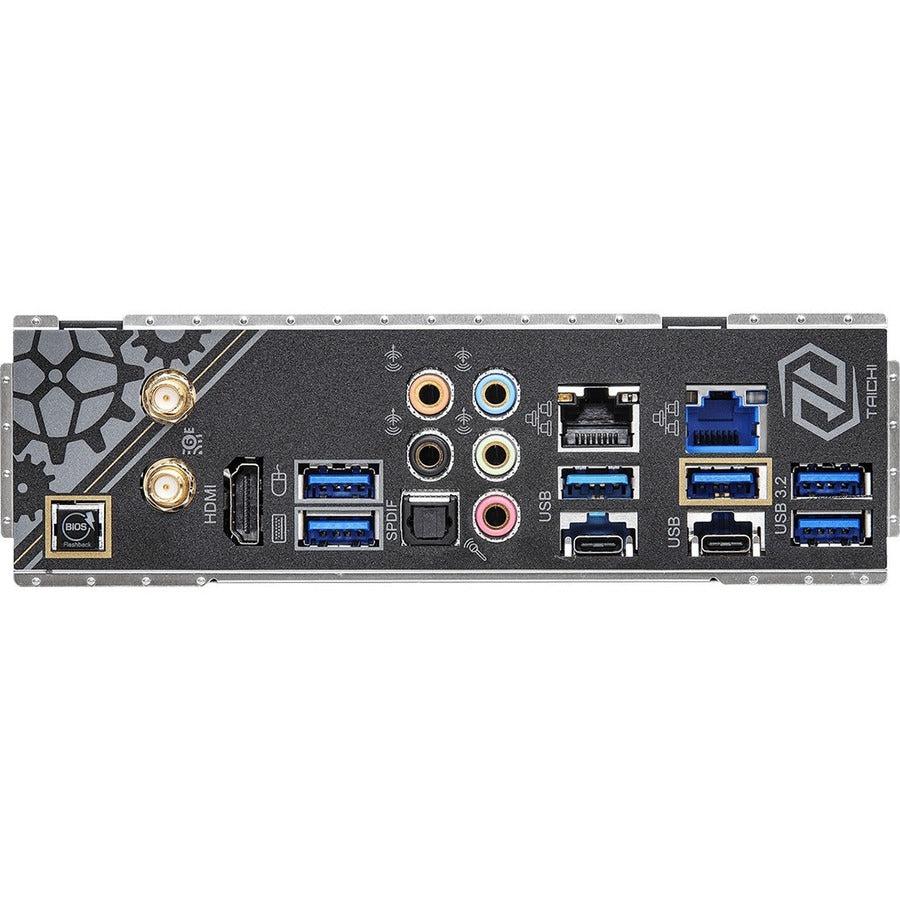

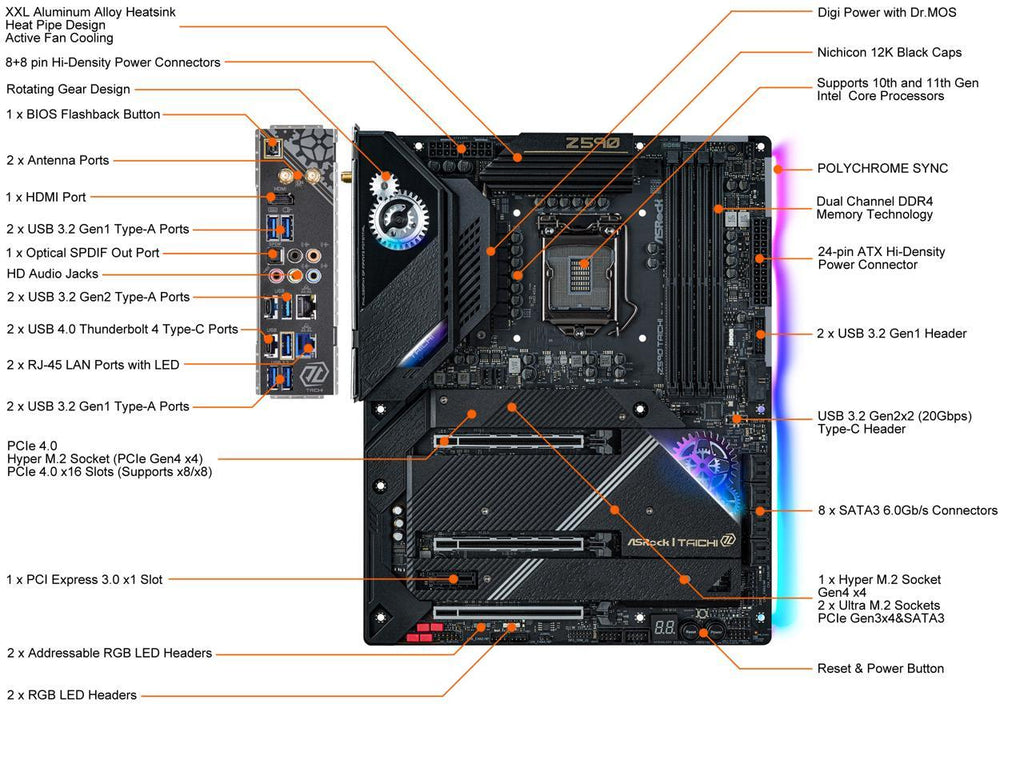

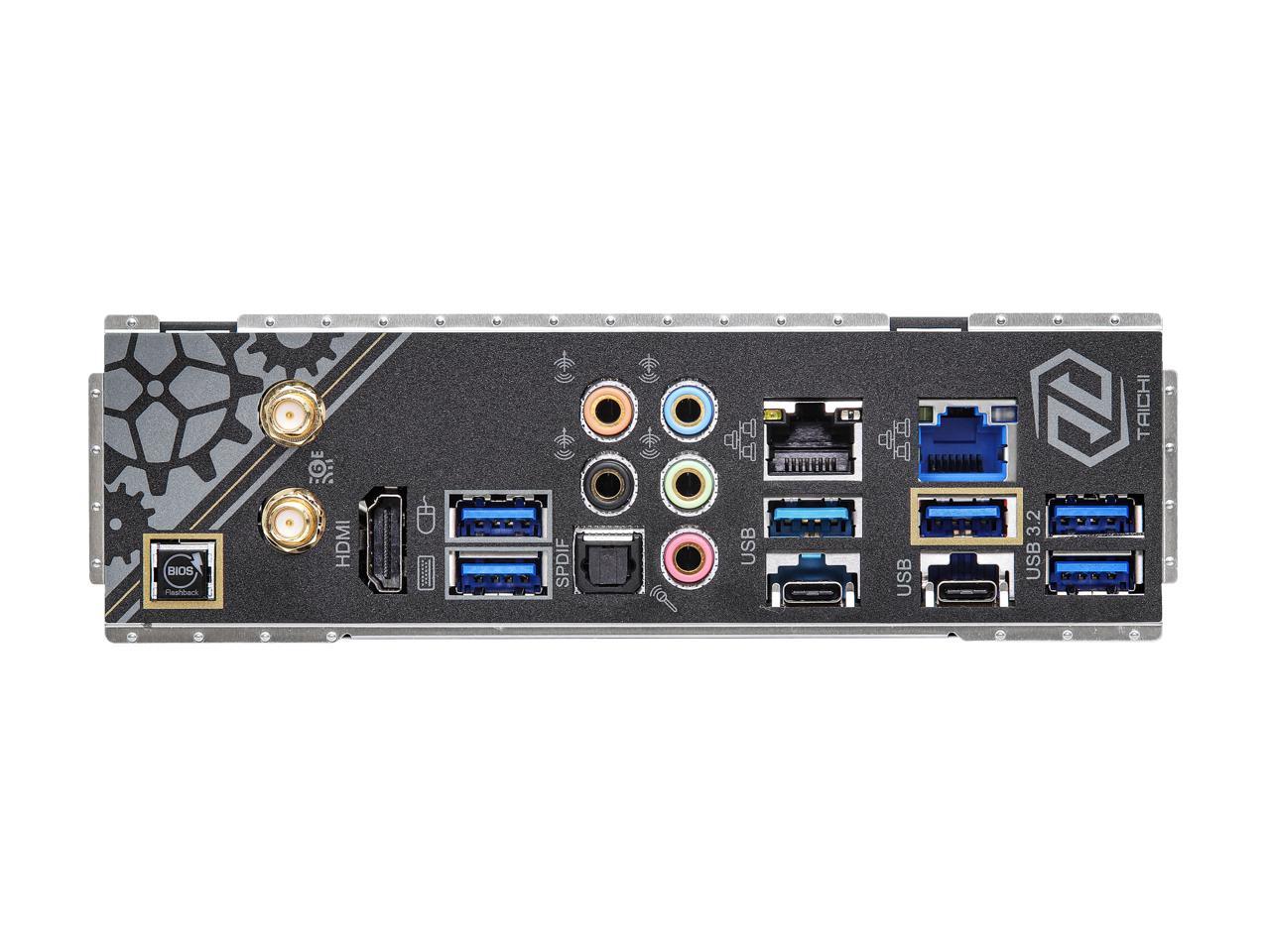

Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (ReDriver) (Supports ESD Protection) 2 x USB 4.0 Thunderbolt 4 Type-C Port (40Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)* 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)** 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) 1 x BIOS Flashback Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Supports USB PD 2.0 up to 9V@3A (27W) / 5V@3A (15W) charging. USB3_5_6 is from Intel Z590; USB3_1 is from ASMedia ASM1042A; USB3_2, USB3_3 and USB3_4 are from ASMedia ASM1074 hub. Ultra USB Power is supported on USB3_3 port. ** ACPI wake-up function is not supported on USB3_3 port.

**Internal I/O Connectors**
Onboard USB	1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	Z590 TAICHI
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	Z590 Taichi
Product Name	Z590 Taichi Desktop Motherboard
Product Type	Desktop Motherboard
UPC	4710483933943

Chipset

Chipset Manufacturer	Intel

Network & Communication

Wireless LAN Standard	IEEE 802.11 a/b/g/n/ax
Bluetooth	Yes

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	6
Number of USB 3.2 Gen 1 Ports	4
Number of Thunderbolt 4 Ports	2

Width	12"
Depth	9.6"
