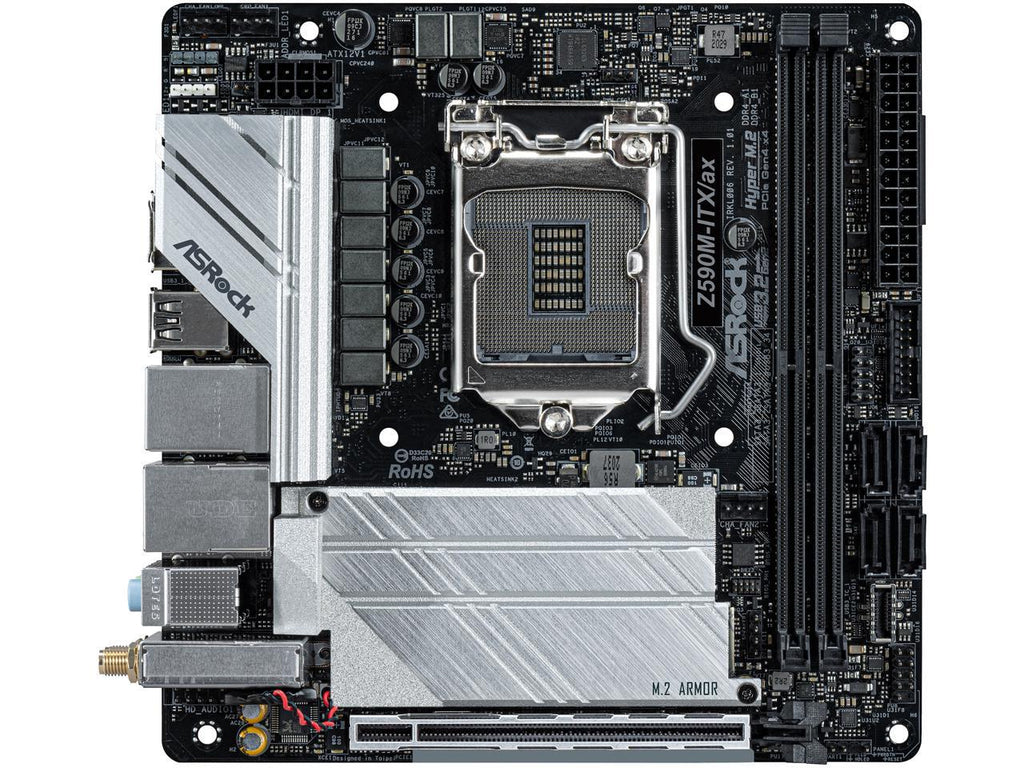

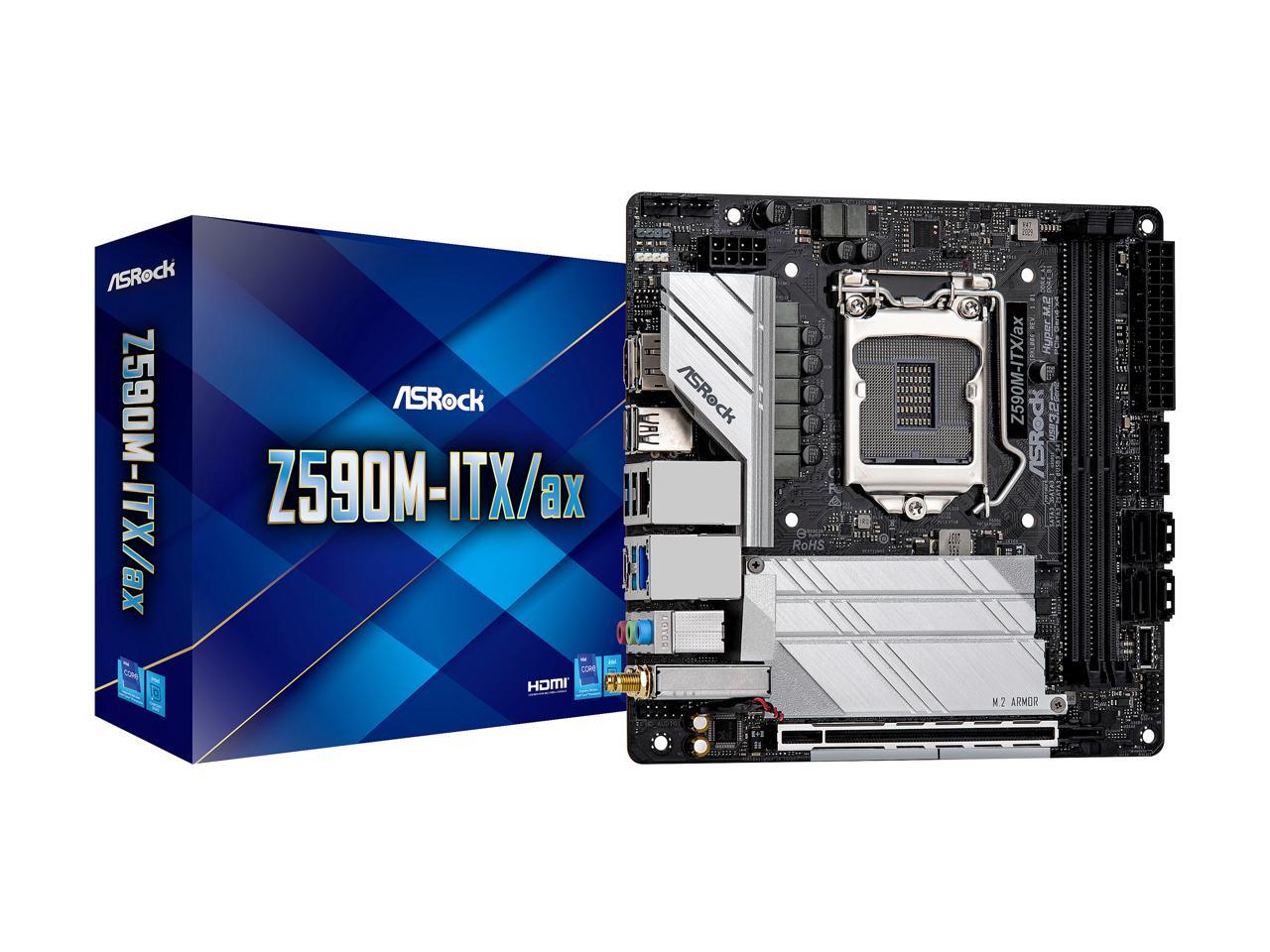

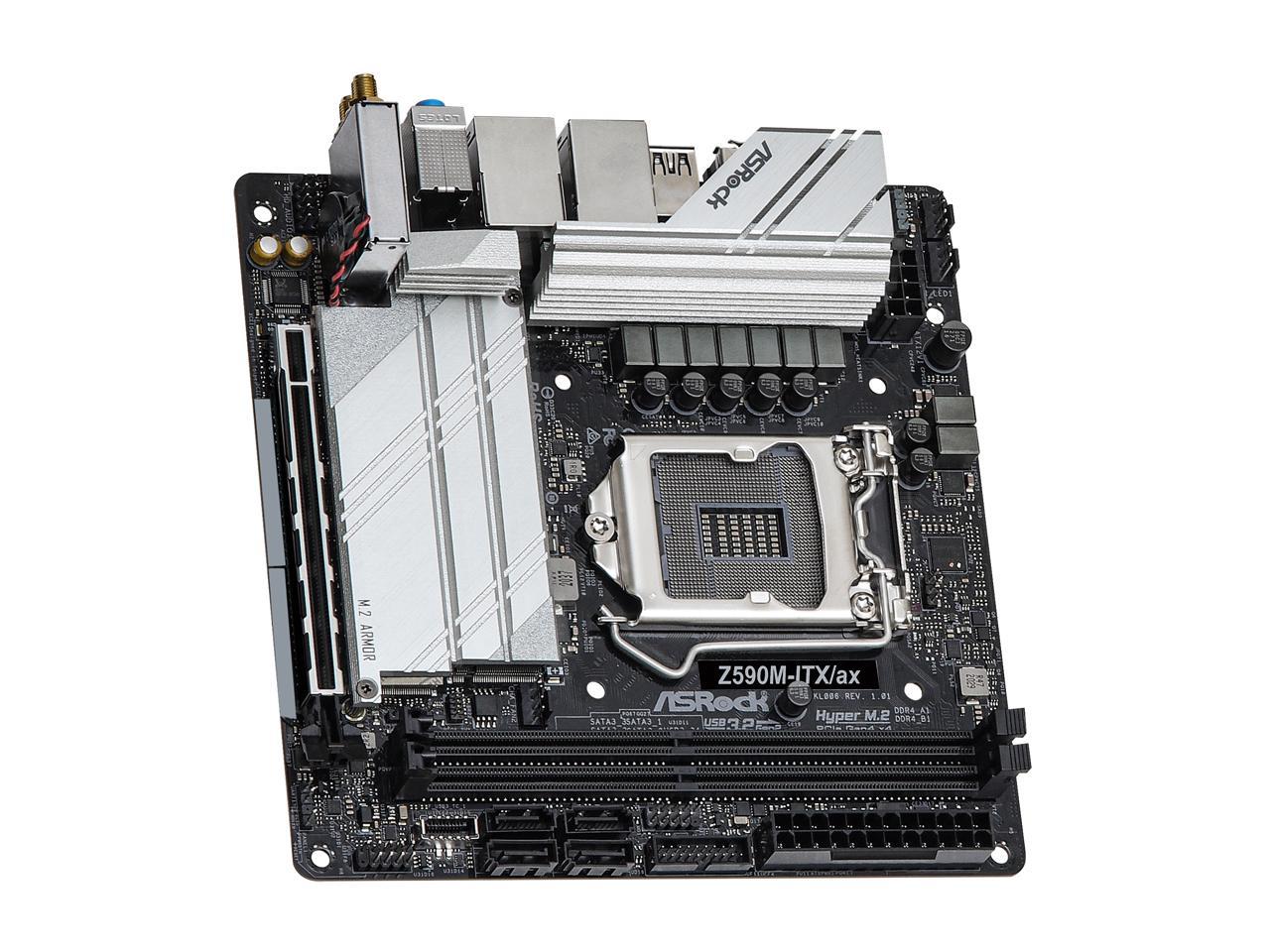

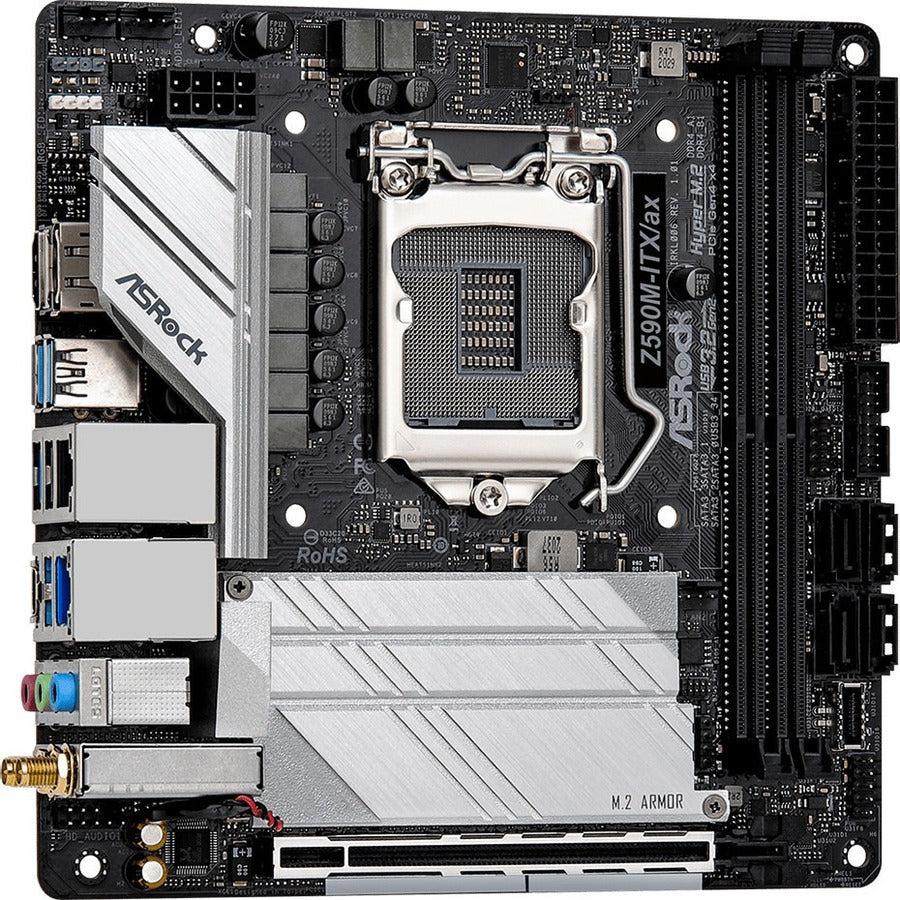

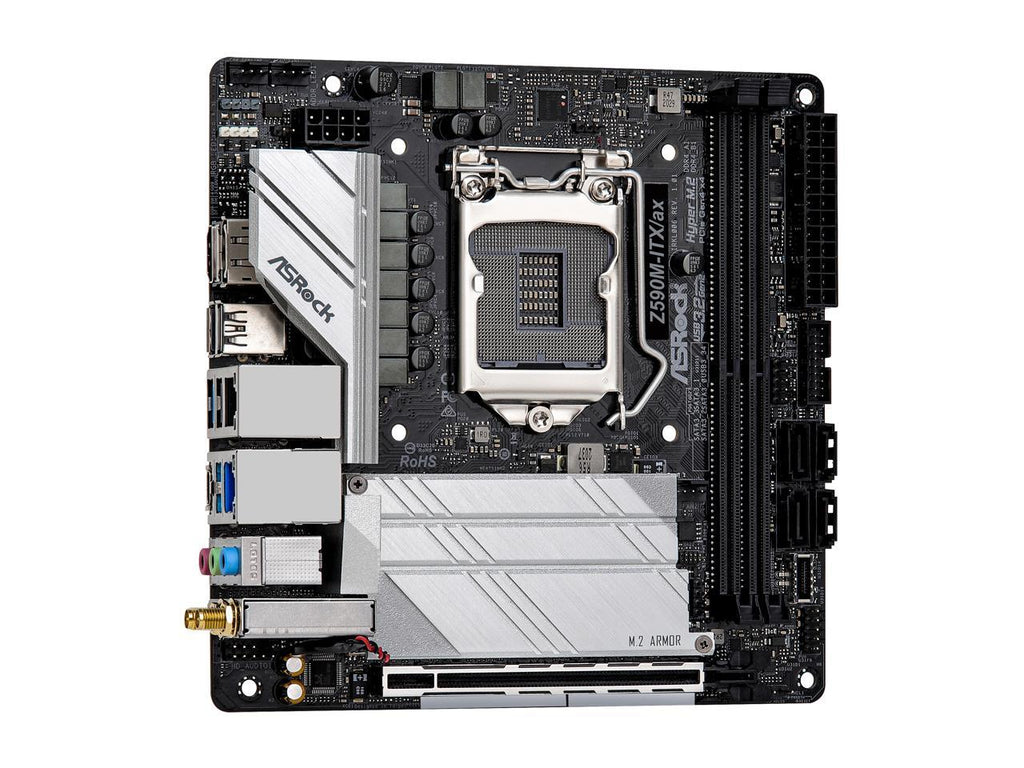

Name: Asrock Z590M-Itx/Ax Lga 1200 Intel Z590 Sata 6Gb/S Mini Itx Intel Motherboard
Brand: ASRock
SKU: Z590M-ITX/AX
Price: 318.61 USD
Availability: OutOfStock

Asrock Z590M-Itx/Ax Lga 1200 Intel Z590 Sata 6Gb/S Mini Itx Intel Motherboard

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Intel Z590
Supports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5066+(OC)
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)

**Model**
Brand	ASRock
Model	Z590M-ITX/AX

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors
Supported CPU Technologies	Turbo Boost Technology 3.0

**Chipsets**
Chipset	Intel Z590

**Onboard Video**
Onboard Video Chipset	11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports** * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4.

**Memory**
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5066+(OC)* 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666. * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported	64GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

**Expansion Slots**
PCI Express 4.0 x16	11th Gen Intel Core Processors - 1 x PCI Express 4.0 x16 Slot* 10th Gen Intel Core Processors - 1 x PCI Express 3.0 x16 Slot* * Supports PCIe riser cards to extend one x16 slot to two x8 slots * Supports NVMe SSD as boot disks
Other Slots	1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)

**Storage Devices**
SATA 6Gb/s	4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2	1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)* 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports Intel Optane Technology * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

**Onboard LAN**
LAN Chipset	Dragon RTL8125BG
Second LAN Chipset	Intel I219V
Max LAN Speed	10/100/1000/2500Mbps + 10/100/1000Mbps
Wireless LAN	Intel 802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ax Supports Dual-Band 2x2 160MHz with extended 6GHz band support* 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports MU-MIMO * Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows Update and software update once available. The update is expected to be in the middle of 2021.
Bluetooth	Supports Bluetooth 5.2 + High speed class II

**Rear Panel Ports**

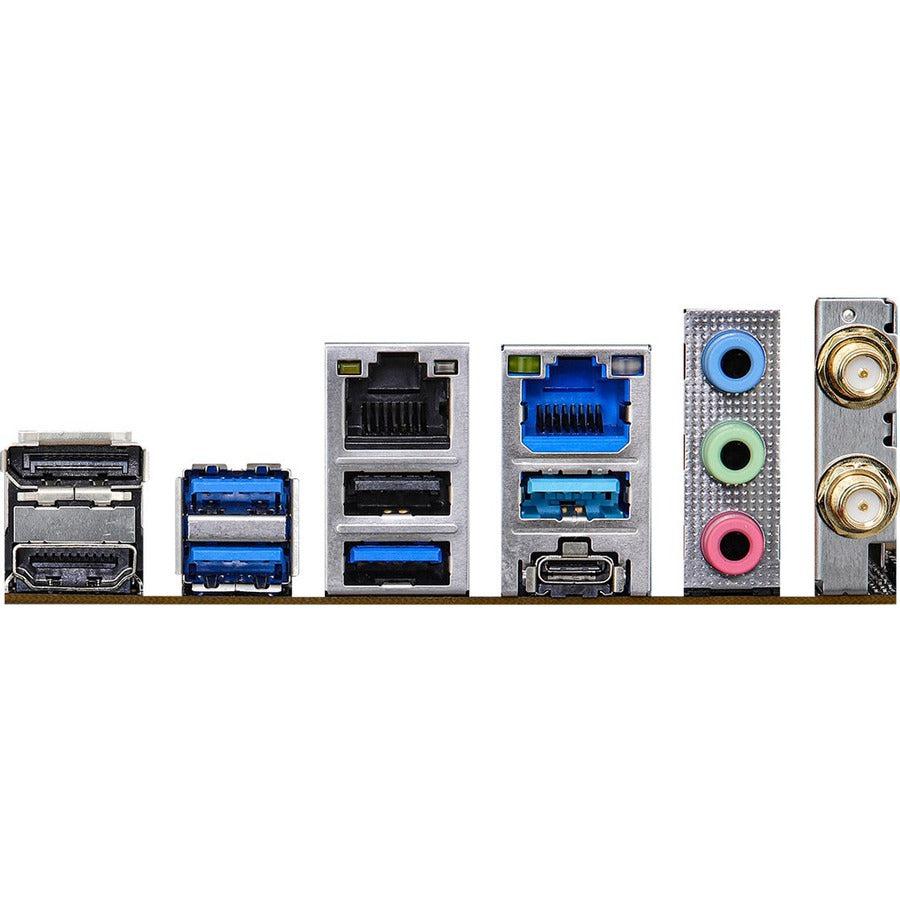

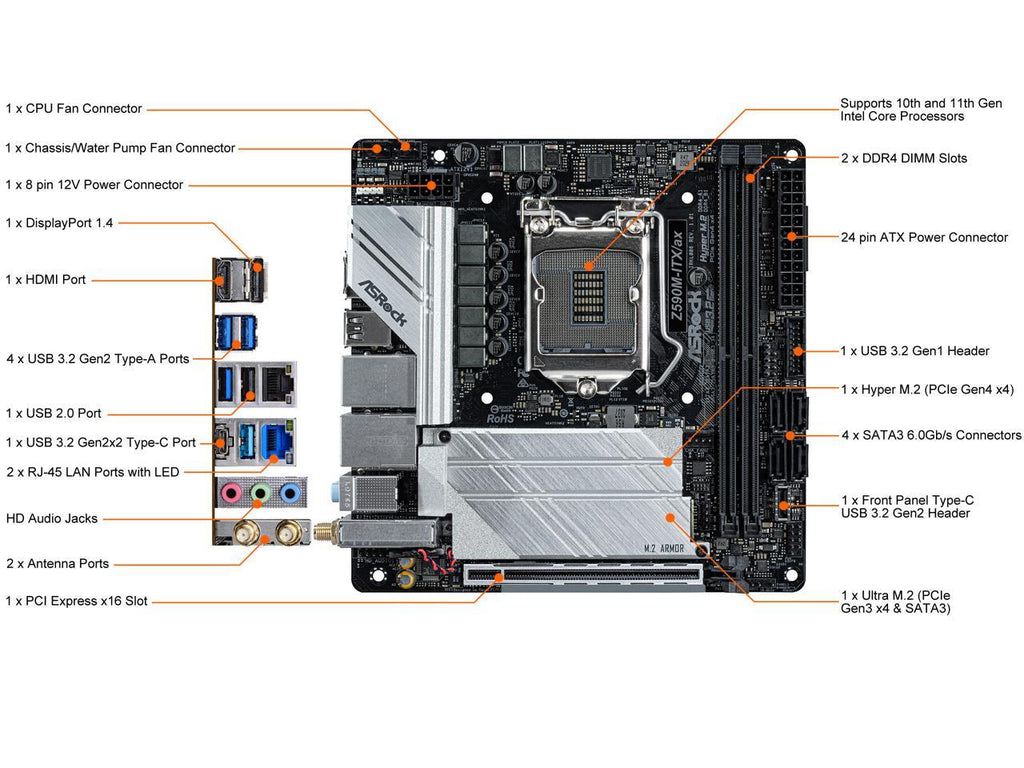

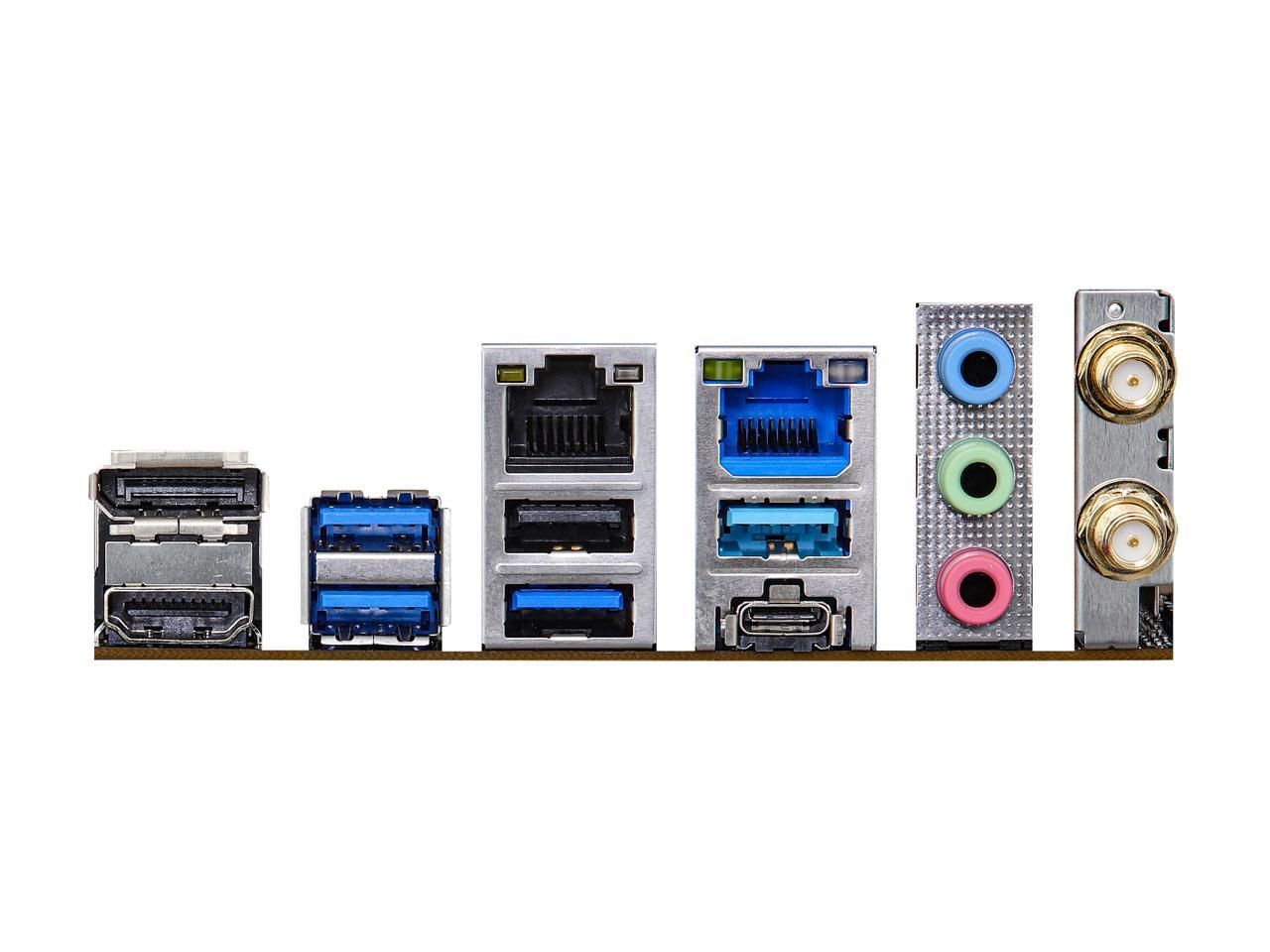

Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2x2 Type-C Port (20Gb/s) (Supports ESD Protection) 4 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection) 1 x USB 2.0 Port (Supports ESD Protection) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

**Internal I/O Connectors**
Onboard USB	1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
Other Connectors	1 x RGB LED Header* 1 x Addressable LED Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis Fan Connector (4-pin)** 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector * Support in total up to 12V/3A, 36W LED Strip. Support in total up to 5V/3A, 15W LED Strip. * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

**Physical Spec**
Form Factor	Mini ITX
LED Lighting	RGB
Dimensions (W x L)	170.18 mm x 170.18 mm
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector (Hi-Density Power Connector)

**Windows Compatibility**
Windows 11	Supported

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	Z590M-ITX/AX
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	Z590M-ITX/ax
Product Name	Z590M-ITX/ax Desktop Motherboard
Product Type	Desktop Motherboard
UPC	4710483933868

Chipset

Chipset Manufacturer	Intel

Network & Communication

Wireless LAN Standard	IEEE 802.11 a/b/g/n/ax
Bluetooth	Yes

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	6

Width	6.7"
Depth	6.7"
