Name: Asus Amd Am4 Rog Strix X570-F Gaming Atx Motherboard With Pcie 4.0, Dual M.2, Sata 6Gb/S, Usb 3.2 Gen 2
Brand: ASUS
SKU: STRIX X570-F GAMING
Price: 382.79 USD
Availability: InStock

Asus Amd Am4 Rog Strix X570-F Gaming Atx Motherboard With Pcie 4.0, Dual M.2, Sata 6Gb/S, Usb 3.2 Gen 2

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email sales@tecisoft.com.

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU

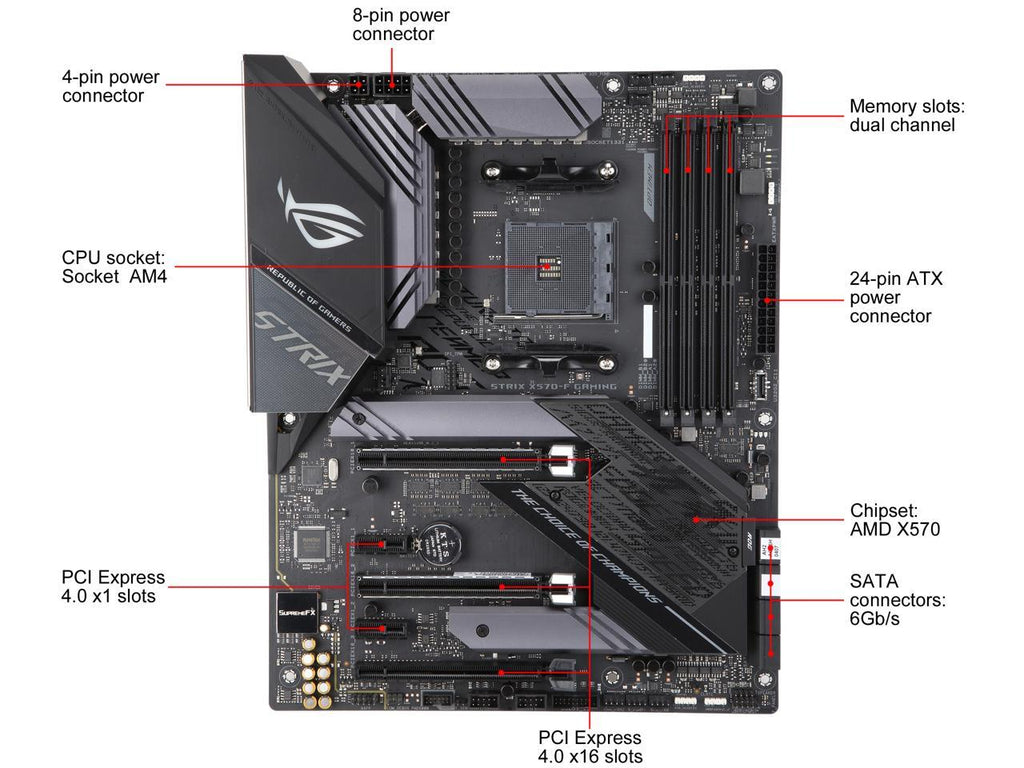

AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 headers
Comprehensive cooling: Active PCH heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks and a water pump + header
Gaming connectivity: Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
Gaming networking: Intel Gigabit Ethernet, ASUS LANGuard and GameFirst
5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig
Gaming audio: High fidelity audio with SupremeFX S1220A, DTS Sound Unbound and Sonic Studio III to draw you deeper into the action

**Model**
Brand	ASUS
Series	ROG
Model	STRIX X570-F GAMING

**Supported CPU**
CPU Socket Type	AM4
CPU Type	BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

**Chipsets**
Chipset	AMD X570

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Gen AMD Ryzen Processors DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory * 2nd Gen AMD Ryzen Processors DDR4 3600(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory * 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors DDR4 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	3rd Gen AMD Ryzen Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) * * PCIeX16_3 slot shares bandwidth with PCIeX1_2.
PCI Express x1	2 x PCIe 4.0 x1

**Storage Devices**
SATA 6Gb/s	8 x SATA 6Gb/s
M.2	3rd Gen AMD Ryzen Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset: 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID	0/1/10

**Onboard Video**
Onboard Video Chipset	Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

**Onboard Audio**
Audio Chipset	SupremeFX High Definition Audio CODEC S1220A
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Intel i211AT
Max LAN Speed	10/100/1000Mbps

**Rear Panel Ports**

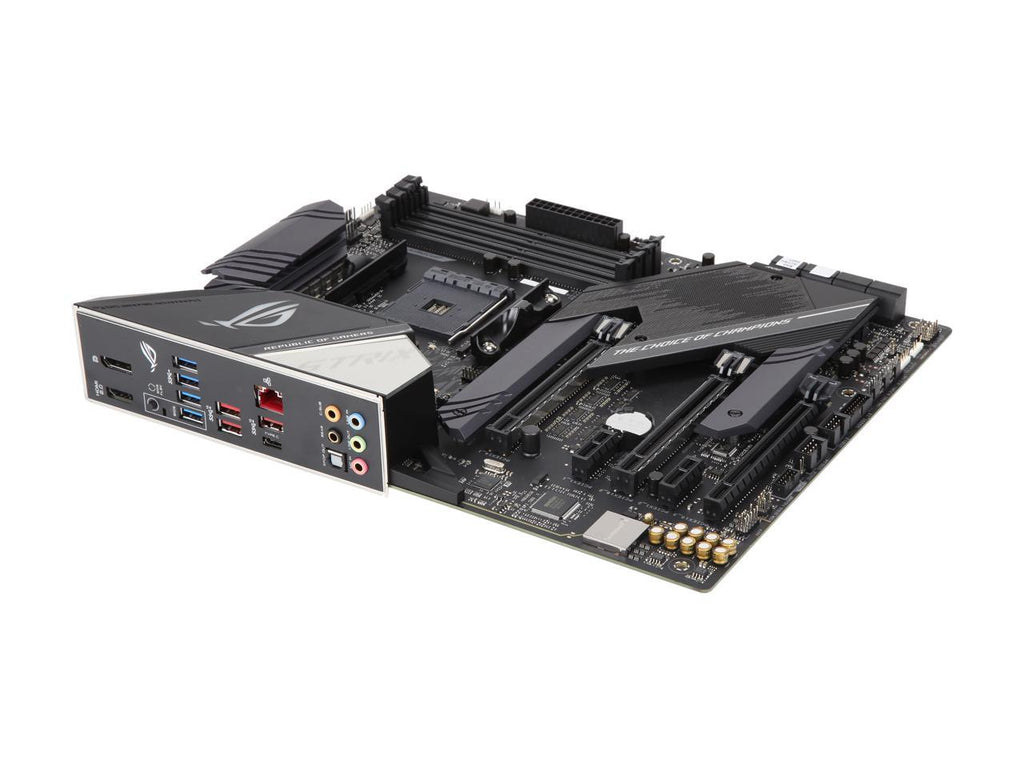

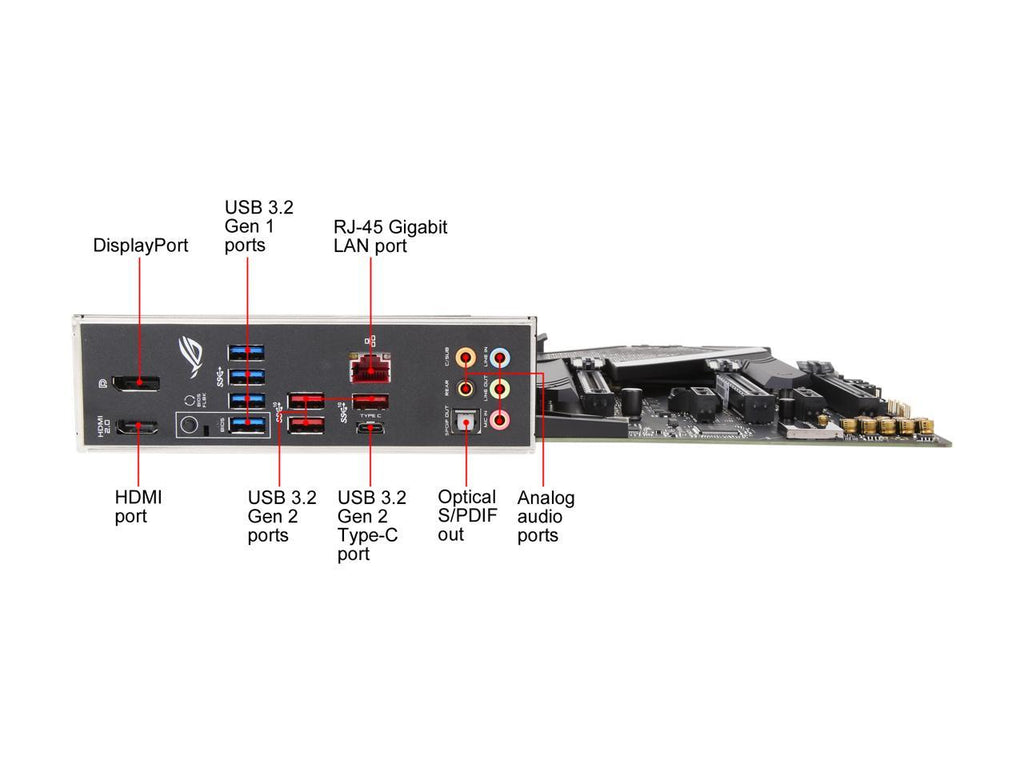

Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x USB BIOS Flashback Button(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port

**Internal I/O Connectors**
Onboard USB	1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

**Features**
Features	Multi-GPU Support: 3rd and 2nd Gen AMD Ryzen Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology ROG Exclusive Features: ROG Exclusive Software - RAMCache III - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III - Overwolf Special Features: 5-Way Optimization by Dual Intelligent Processors 5 - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages TPU - Auto Tuning, TurboV, GPU Boost Gamer's Guardian: - DRAM Overcurrent Protection - Stainless Steel Back I/O - Highly Durable Components - DIGI+ VRM - SafeSlot - ESD Guards on LAN, Audio, and USB ports ASUS EPU: - EPU AURA: - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features: - USB BIOS Flashback - AI Suite 3 - Ai Charger - ASUS NODE: hardware control interface - BIOS Flashback Button ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM Gaming Aesthetics: - AURA-RGB Lighting BIOS: 256MB Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 Manageability: WOL, PXE Support Disc: Overwolf Anti-virus software (OEM version) WinRAR Operating System: Windows 10 64-bit

**Packaging**

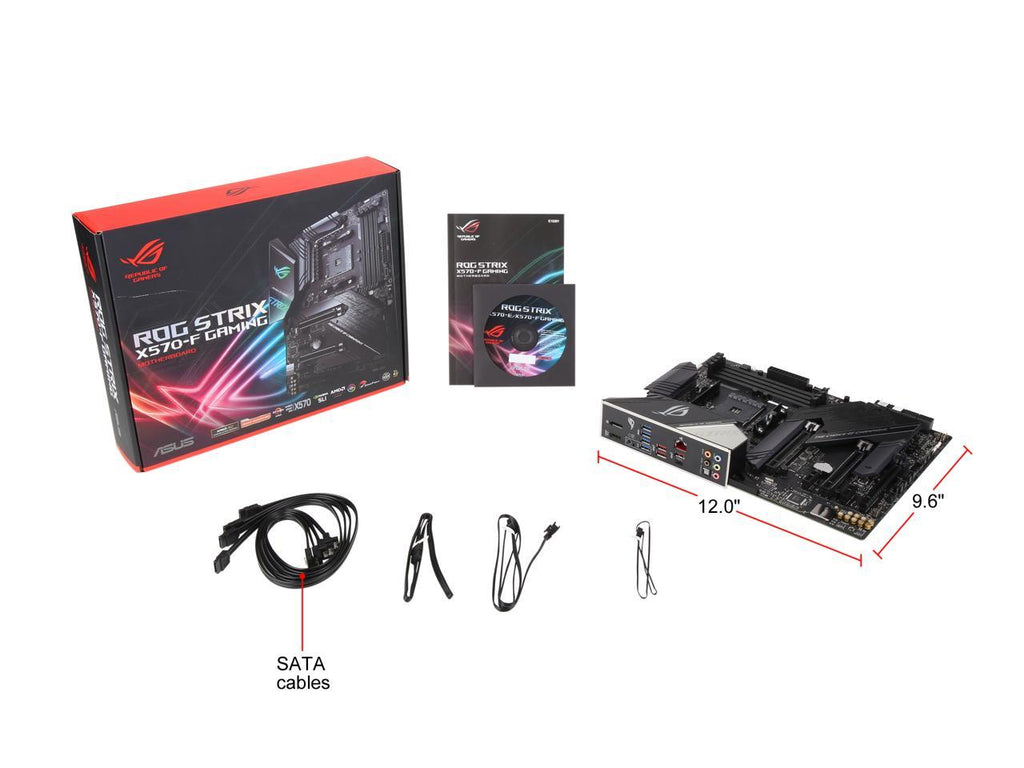

Package Contents	Accessories: User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Strix door hanger 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x Thermistor cable(s) 1 x ROG Thank you card

General Information

UPC	192876378953
