ASUS

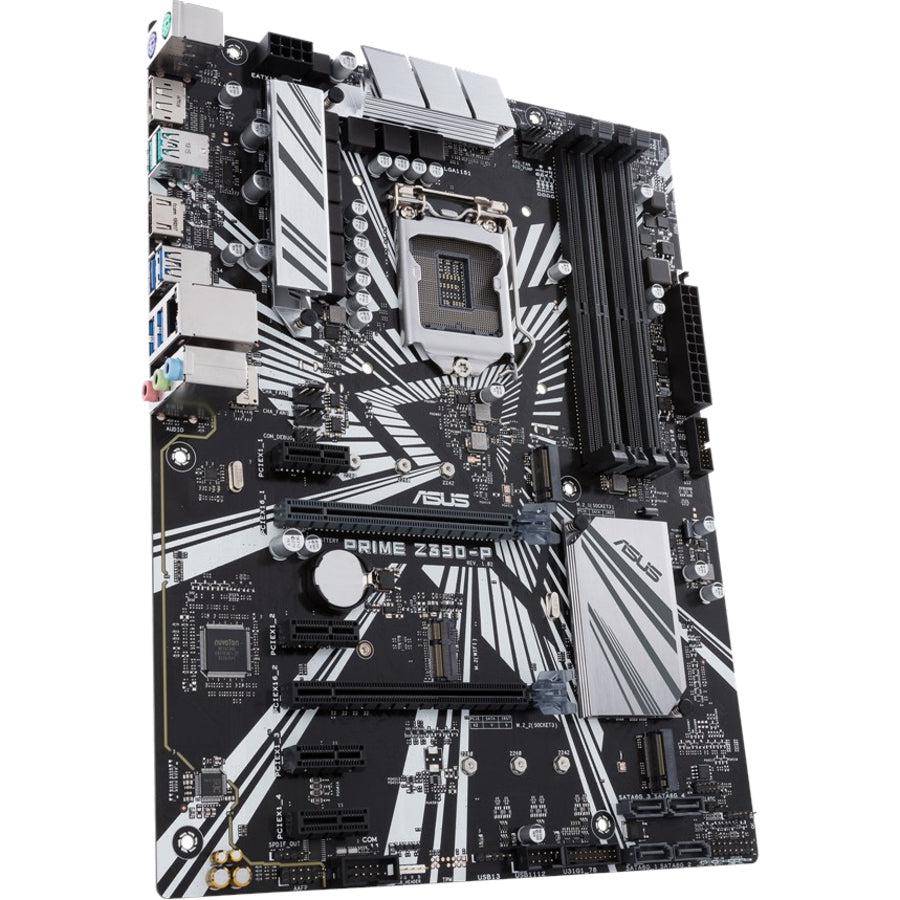

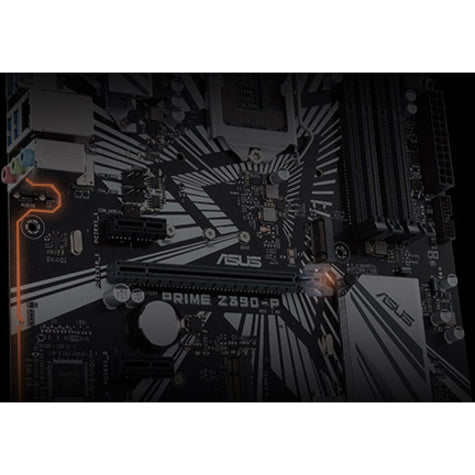

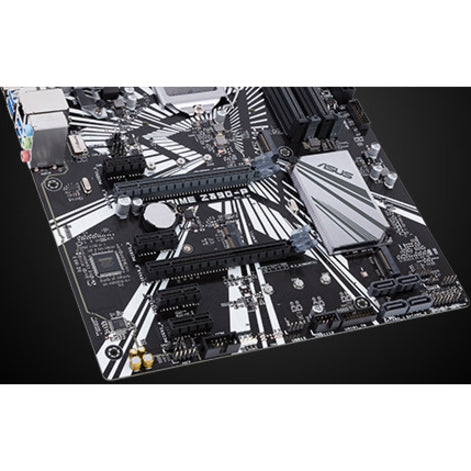

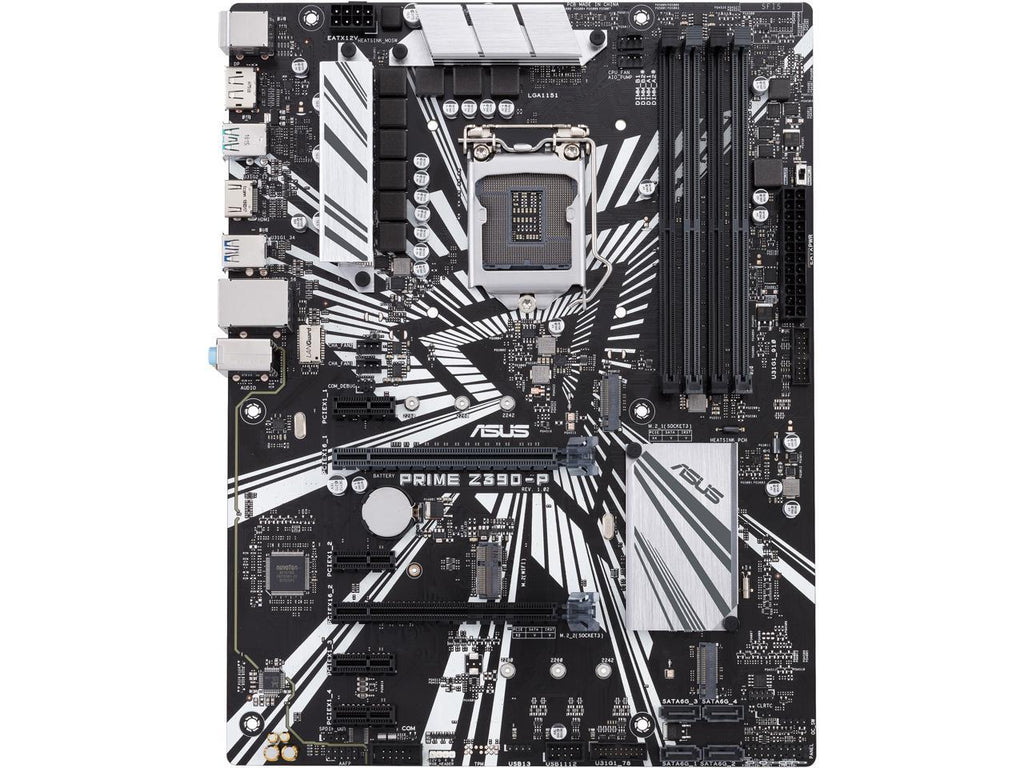

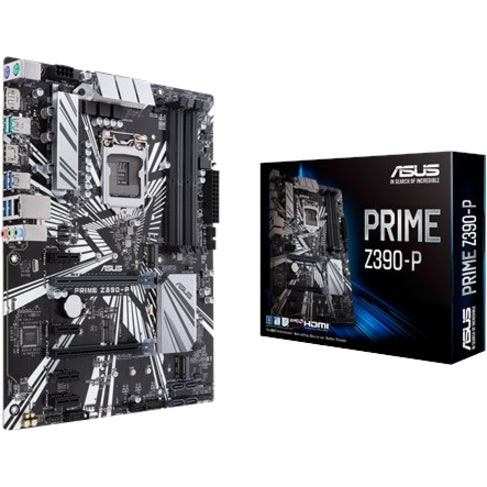

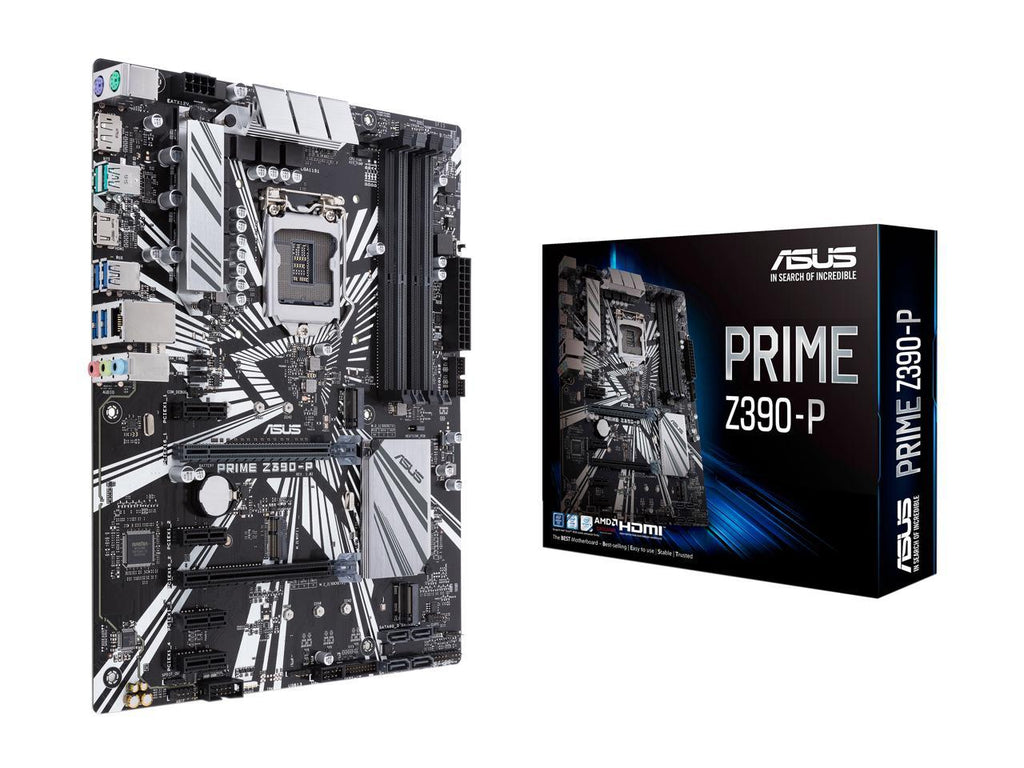

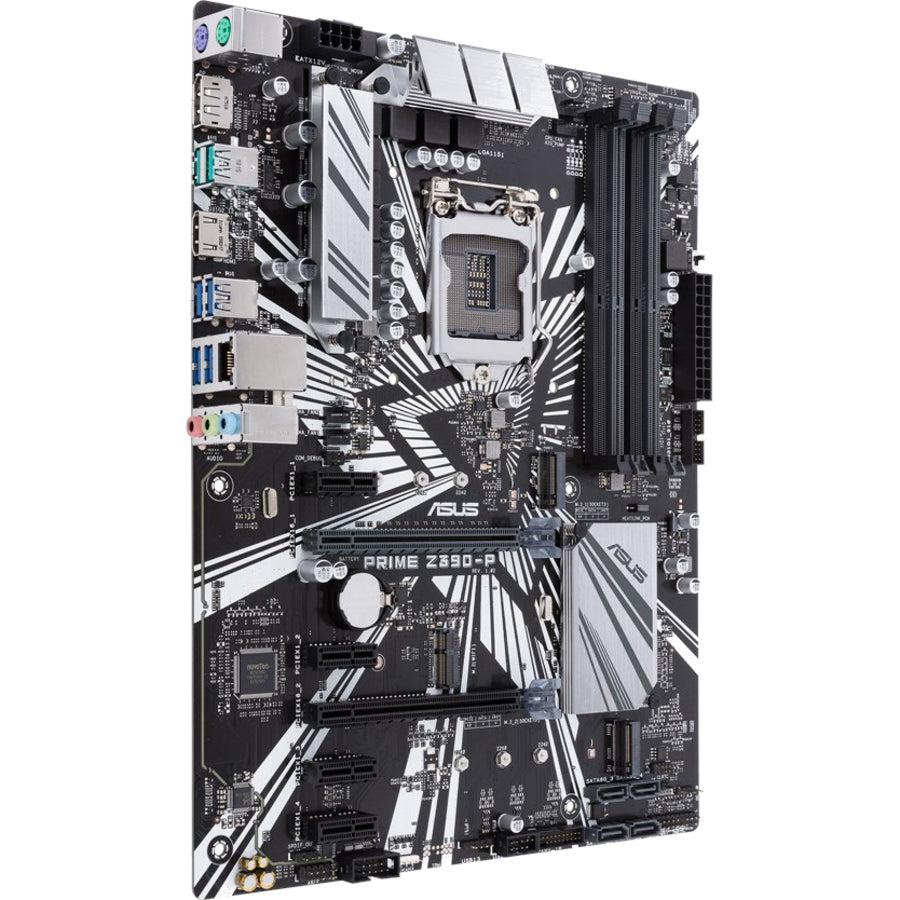

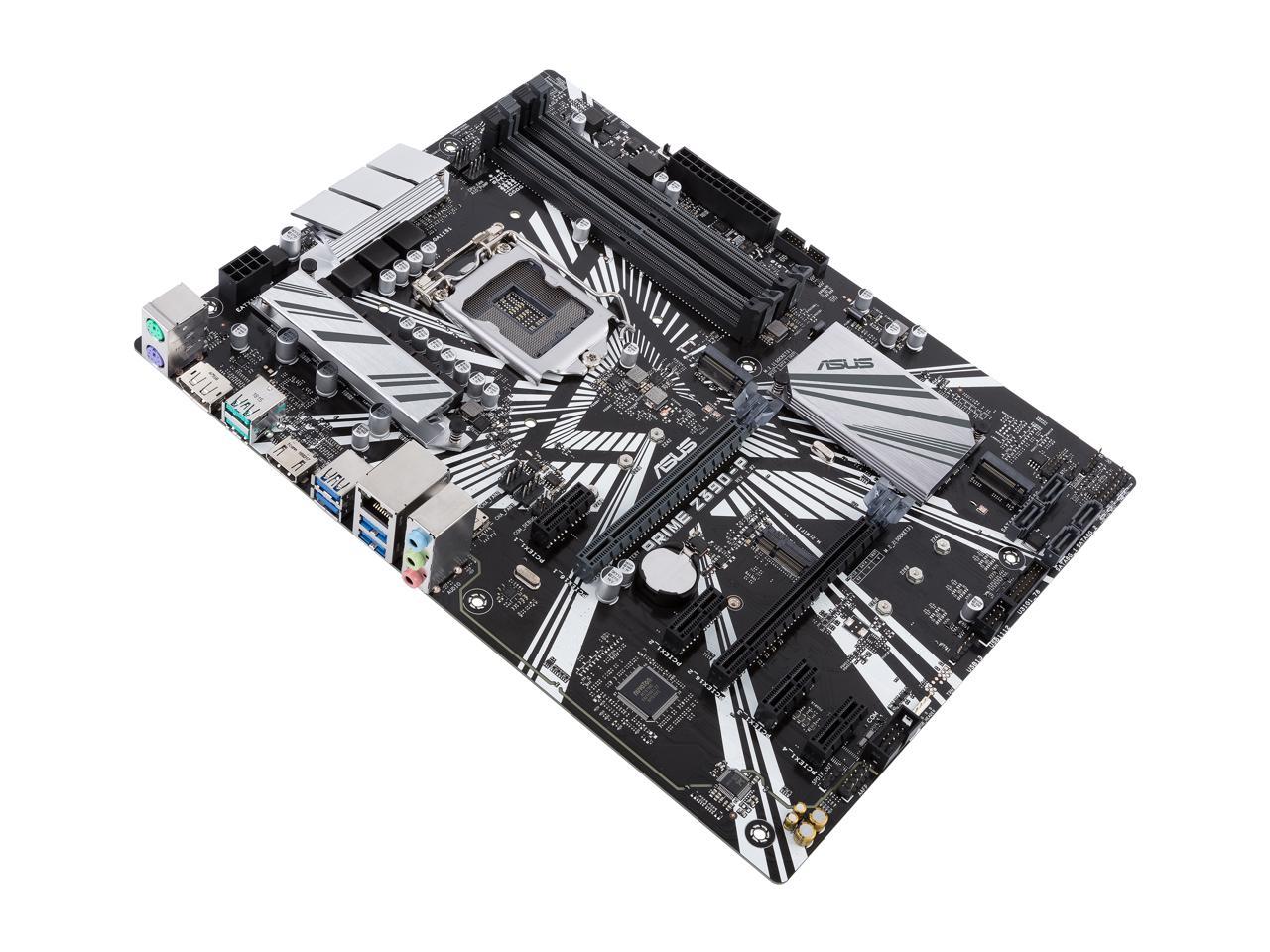

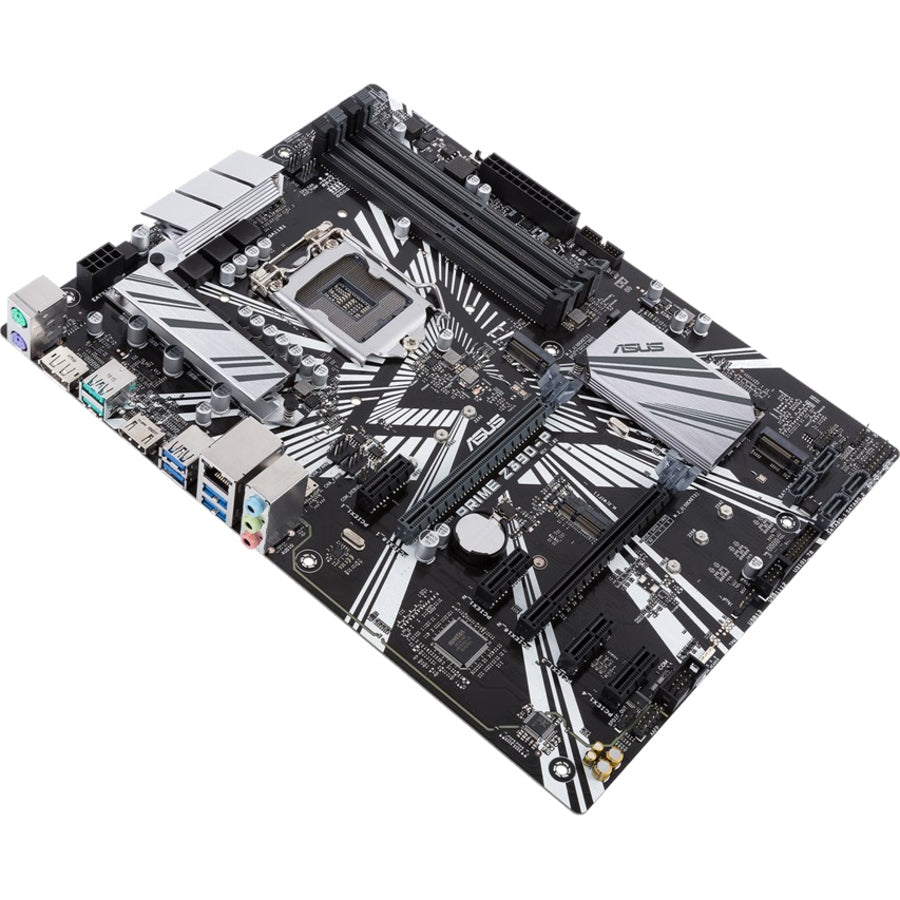

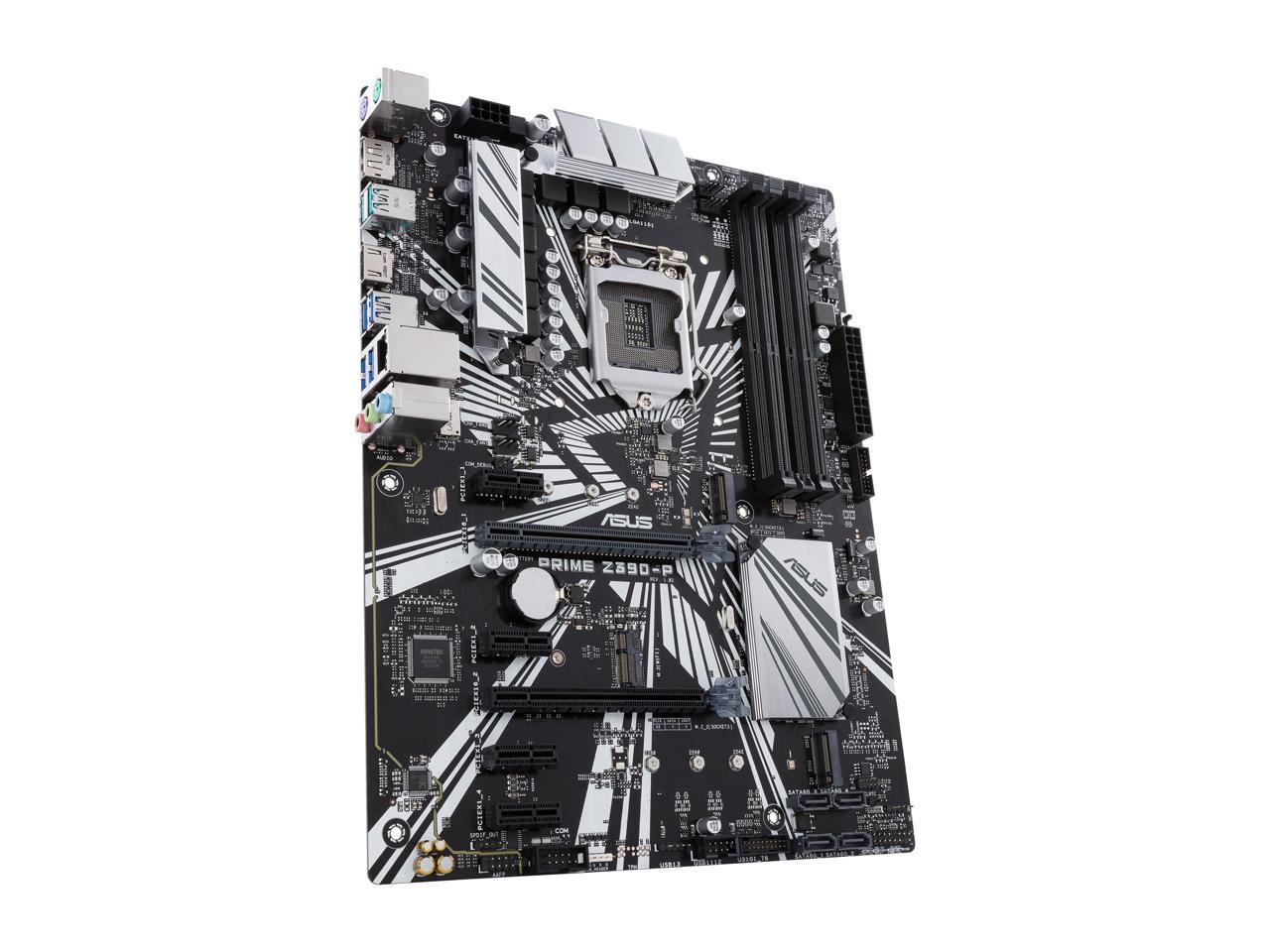

Asus Prime Z390-P Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard

Asus Prime Z390-P Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard

SKU:Prime Z390-P

Regular price $319.99
Regular price Sale price $319.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with M.2, USB 3.1 Gen2 and ASUS OptiMem II for better DRAM overclocking stability
        • 5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
        • FanXpert 4 with AIO Pump Header delivers advanced fan control for dynamic system cooling
        • Unique SafeSlot Core fortified PCIe slots prevent damage caused by heavyweight GPUs
        • 8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec
        ASUS Prime Z390-P LGA1151 (Intel 8th and 9th Gen) DDR4 DP HDMI M.2 Z390 ATX Motherboard with USB 3.1 Gen2


        • Designed for 9th and 8th generation Intel® Coreâ„¢ processors to maximize connectivity and speed with M.2, USB 3.1 Gen2 and ASUS OptiMem II for better DRAM overclocking stability
        • 5X Protection III Hardware-level safeguards with SafeSlot Core, LANGuard and Overvoltage Protection provide component longevity and reliability
        • FanXpert 4 with AIO Pump Header delivers advanced fan control for dynamic system cooling
        • Patent-pending SafeSlot Core fortified PCIe slots prevent damage caused by heavyweight GPUs
        • 8-channel HD Gaming Audio featuring Realtek ALC887 high definition audio codec
        Model
        Brand ASUS
        Model Prime Z390-P
        Supported CPU

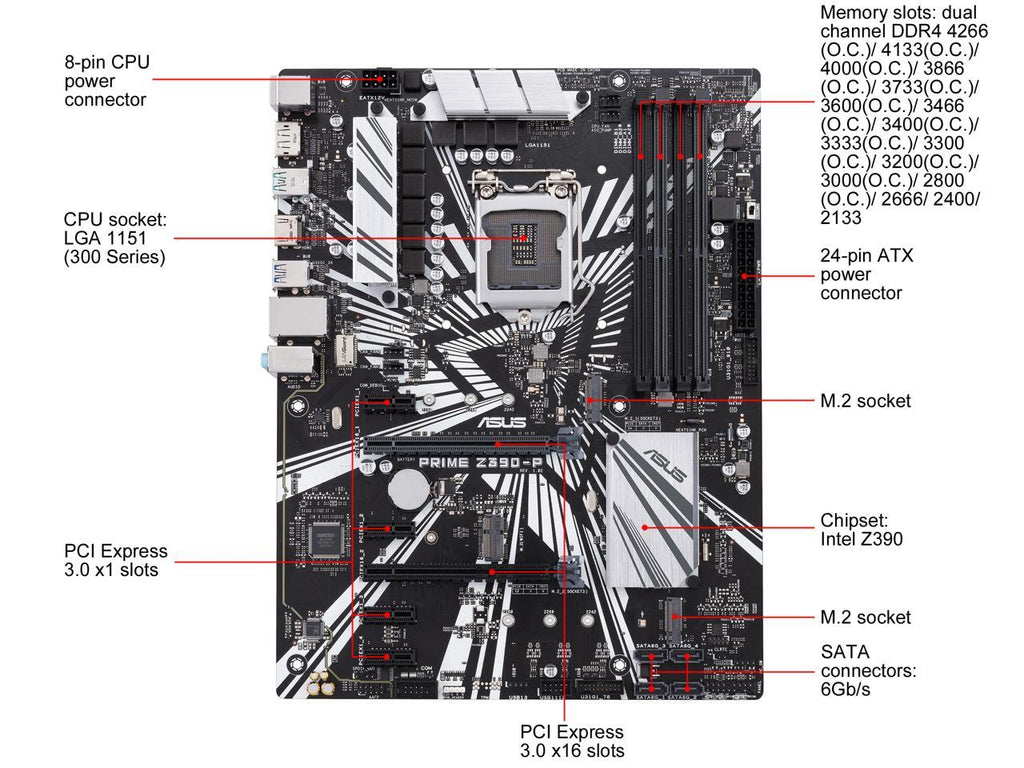

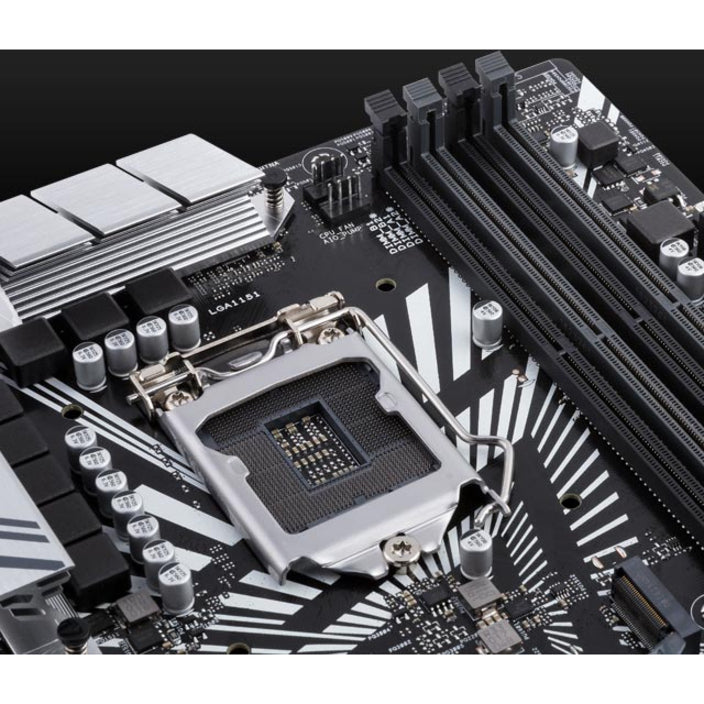

        CPU Socket Type  LGA 1151 (300 Series)
        CPU Type Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
        * Not backward compatible with older generation of LGA 1151 CPUs
        ** Refer to www.asus.com for Intel CPU support list
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0
        * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
        Chipsets
        Chipset  Intel Z390
        Onboard Video
        Onboard Video Chipset  Integrated Graphics Processor - Intel UHD Graphics support
        Multi-VGA output support: HDMI/DisplayPort ports
        - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
        - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
        Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
        DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
        * The maximum memory frequency supported varies by processor
        ** Refer to www.asus.com for the Memory QVL (Qualified Vendors List)
        Maximum Memory Supported 64GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
        1 x PCIe 3.0/2.0 x16 (max at x4 mode)
        * For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
        PCI Express x1 4 x PCI Express 3.0/2.0 x1 slots
        Other Slots 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT and Intel CNVi (Integrated Wi-Fi/BT) module*
        * The Wi-Fi/BT module is purchased separately
        Storage Devices
        SATA 6Gb/s  4 x SATA 6.0Gb/s ports (gray)
        M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*
        1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)

        * When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  Realtek ALC887
        Audio Channels  8 Channels
        * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
        Onboard LAN
        LAN Chipset Realtek RTL8111H
        Max LAN Speed 10/100/1000Mbps

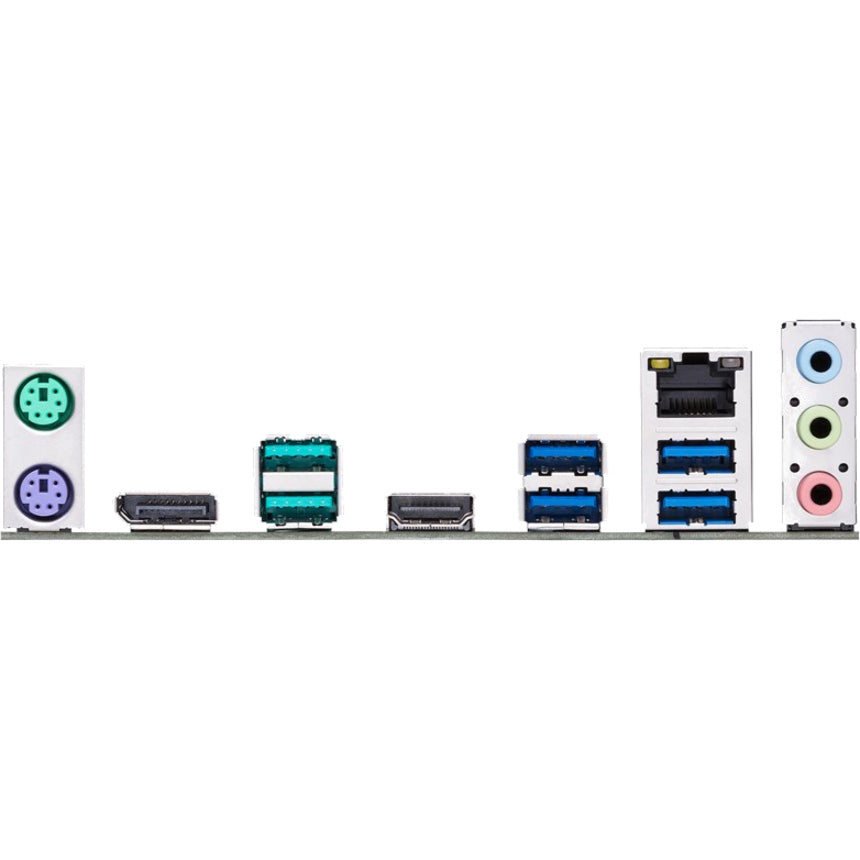

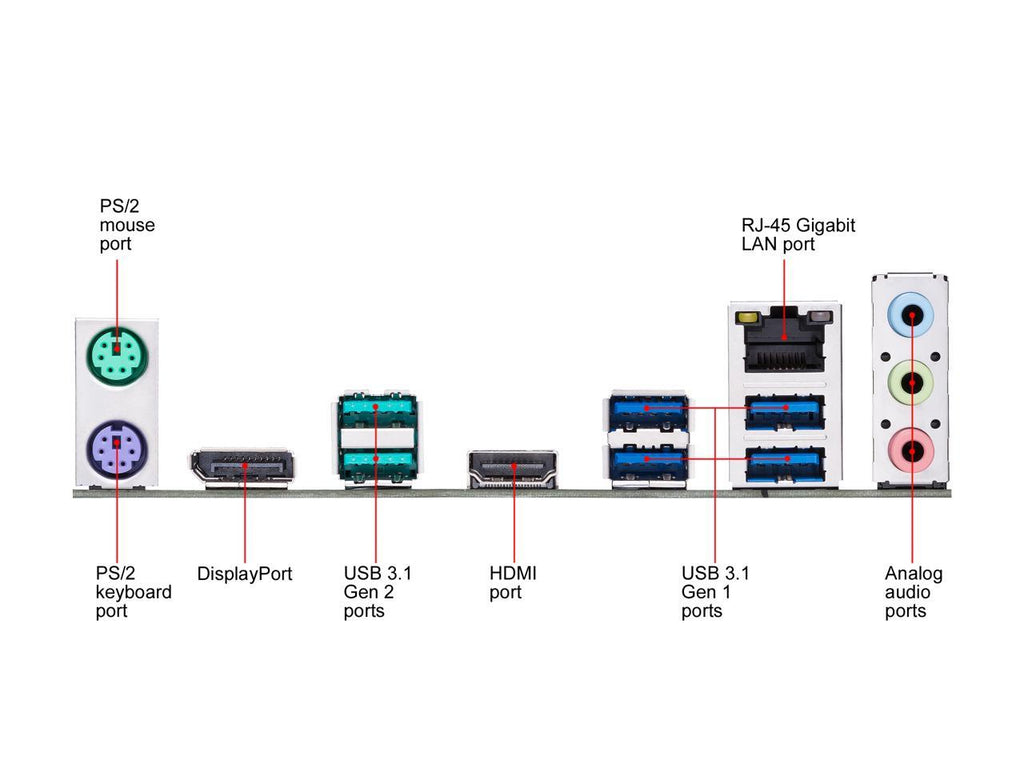

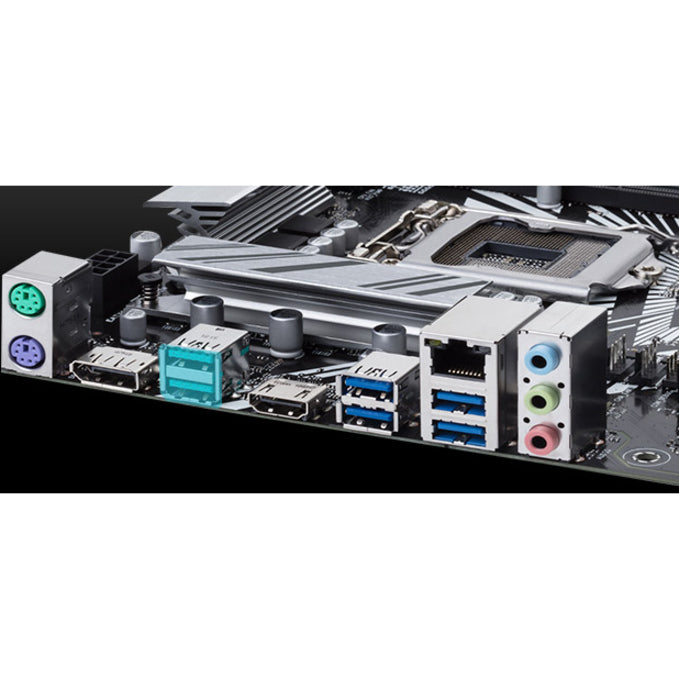

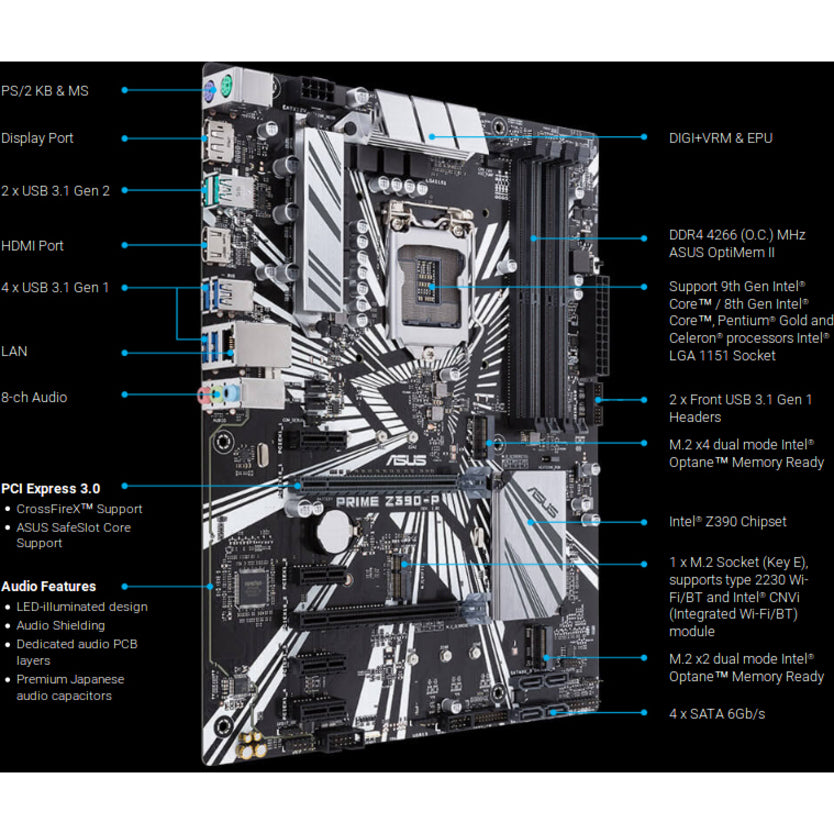

        Rear Panel Ports
        Back I/O Ports 1 x PS/2 keyboard (purple)
        1 x PS/2 mouse (green)
        1 x DisplayPort
        1 x HDMI
        1 x LAN (RJ45) port(s)
        2 x USB 3.1 Gen 2 Type-A
        4 x USB 3.1 Gen 1 Type-A
        3 x 8-channel Audio I/O
        Internal I/O Connectors
        Onboard USB 2 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
        1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
        1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
        Other Connectors 1 x Lighting Control RGB Strip Header(s)
        1 x COM port(s) connector(s)
        1 x CPU Fan connector(s)
        2 x Chassis Fan connector(s)
        1 x AIO_PUMP connector
        1 x S/PDIF out header(s)
        1 x Front panel audio connector(s) (AAFP)
        1 x MemOK! II switch(es)
        1 x Clear CMOS jumper(s)
        1 x System panel connector
        Physical Spec
        Form Factor ATX
        Dimensions (W x L) 304.80 mm x 233.68 mm
        Power Pin 1 x 24-pin EATX Power connector
        1 x 8-pin EATX 12V Power connector
        Windows Compatibility
        Windows 11 Supported
        Features
        Features Multi-GPU Support:
        Supports AMD CrossFireX Technology

        Special Features:
        Fan Xpert4
        - Advanced fan and liquid controls for ultimate cooling and quietness
        ASUS 5X Protection III:
        - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
        - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
        - ASUS Overvoltage Protection: World-class circuit-protecting power design
        - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
        - ASUS DIGI+ VRM: Premium components provide better power efficiency
        ASUS Optimem II:
        - Optimem (Improved DDR4 stability)
        ASUS EPU:
        - EPU
        ASUS Exclusive Features:
        - AI Suite 3
        - Ai Charger
        ASUS Quiet Thermal Solution:
        - Stylish Fanless Design Heat-sink solution & MOS Heatsink
        - ASUS Fan Xpert 4
        ASUS EZ DIY:
        - ASUS O.C. Tuner
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        ASUS Q-Design:
        - ASUS Q-Slot
        - ASUS Q-DIMM
        Overclocking Protection:
        - ASUS C.P.R. (CPU Parameter Recall)
        M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
        MemOK! II
        - Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
        Q-Installer
        - Auto download driver and software. Friendly for first PC builder

        BIOS:
        128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

        Support Disc:
        Drivers
        ASUS Utilities
        ASUS EZ Update
        Anti-virus software (OEM version)

        Operating System:
        Windows 10 64-bit

        Management Solution:
        WOL by PME, PXE

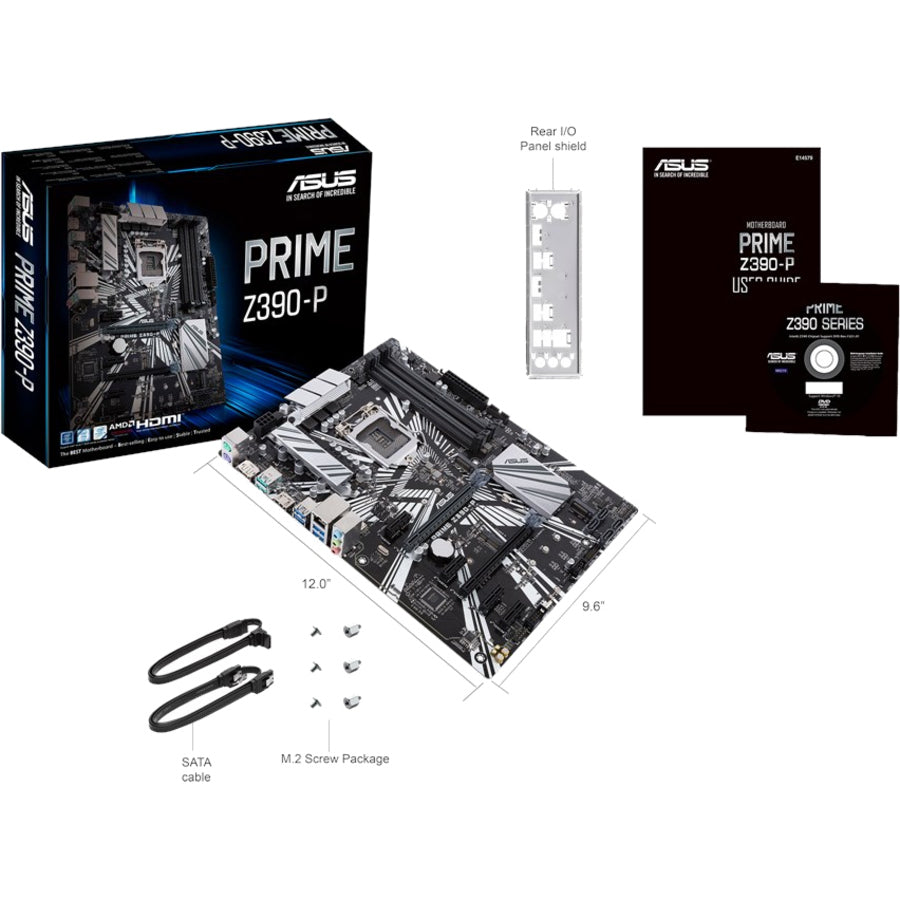

        Packaging

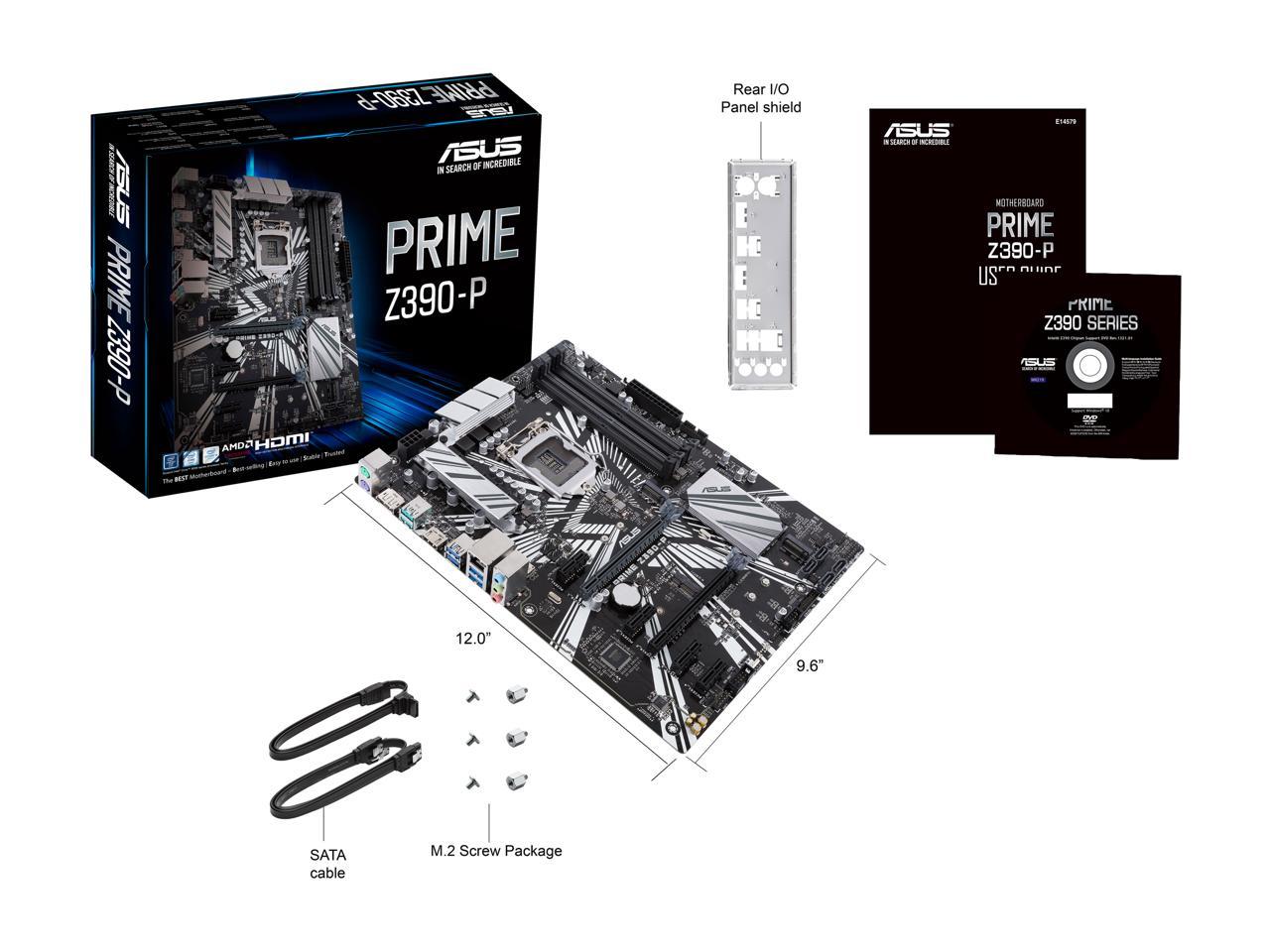

        Package Contents Accessories:
        User's manual

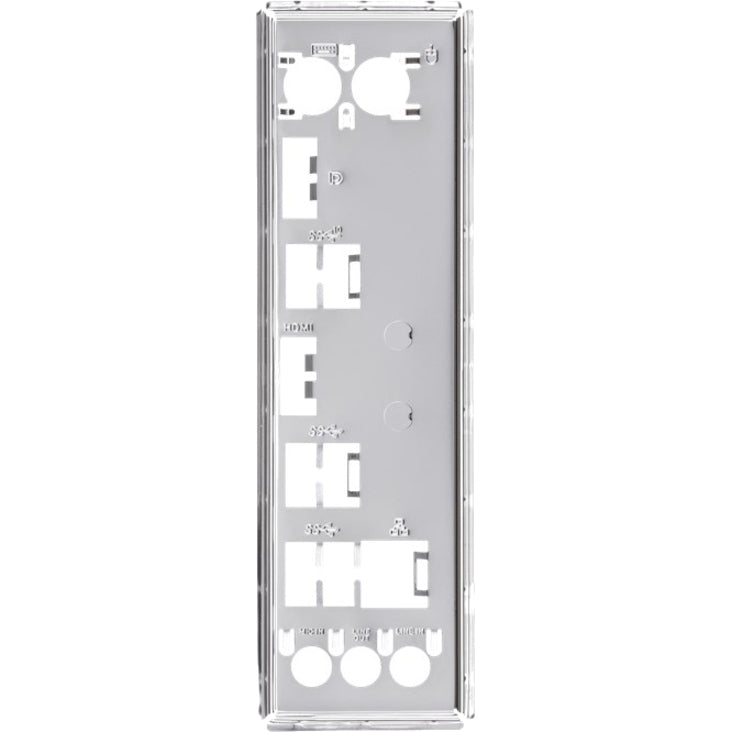

        I/O Shield
        2 x SATA 6Gb/s cable(s)
        2 x M.2 Screw Package
        1 x SCD

        Specifications :

        General Information

        Manufacturer ASUS Computer International
        Manufacturer Part Number Prime Z390-P
        Manufacturer Website Address http://usa.asus.com
        Brand Name Asus
        Product Line Prime
        Product Model Z390-P
        Product Name Prime Z390-P Desktop Motherboard
        Product Type Desktop Motherboard
        UPC 192876128497

        Chipset

        Chipset ManufacturerIntel

        Interfaces/Ports

        HDMIYes
        Total Number of USB Ports6
        Width12"
        Depth9.2"

        Miscellaneous

        Package Contents
        • Prime Z390-P Desktop Motherboard
        • User's Manual
        • I/O Shield
        • 2 x SATA 6Gb/s cable(s)
        • 2 x M.2 Screw Package
        • 1 x SCD
        Environmentally FriendlyYes

        Warranty

        Limited Warranty3 Year
