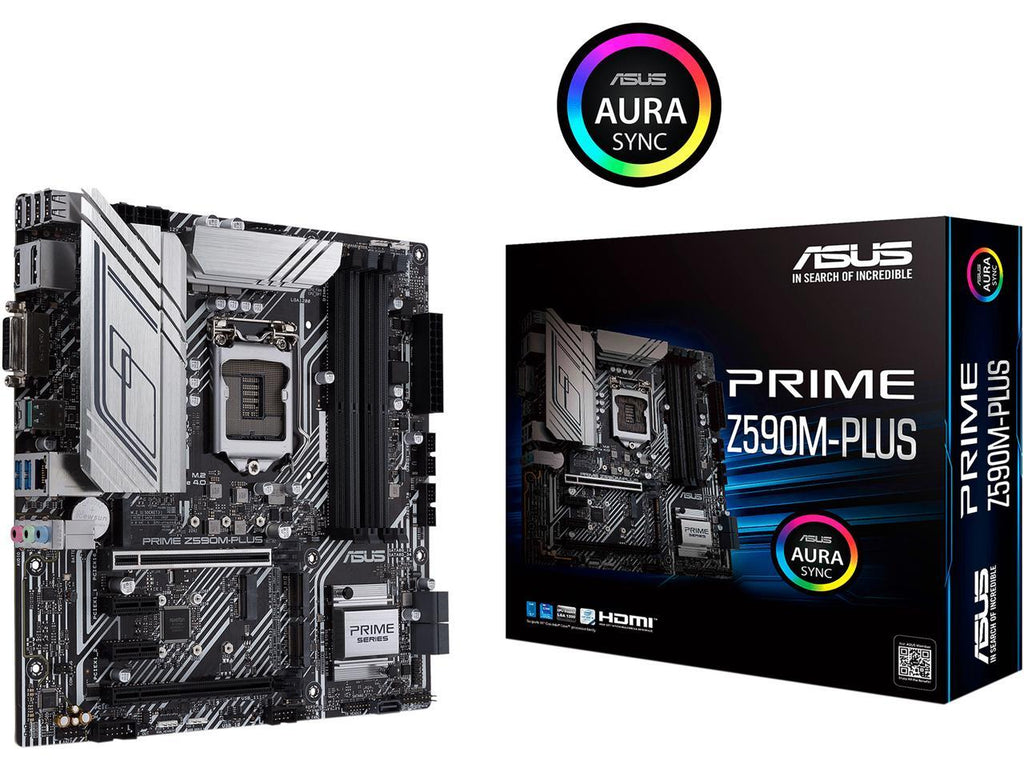

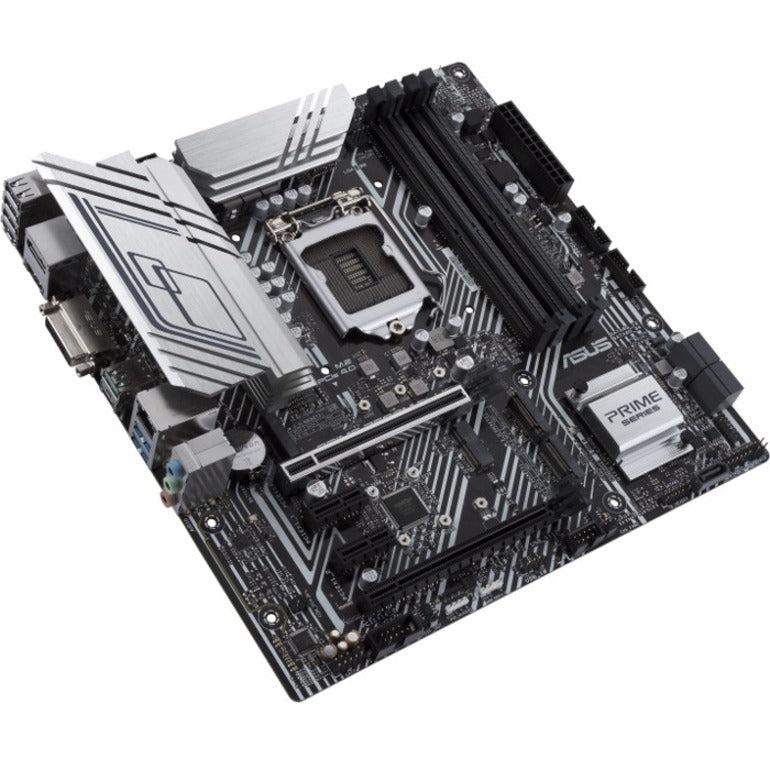

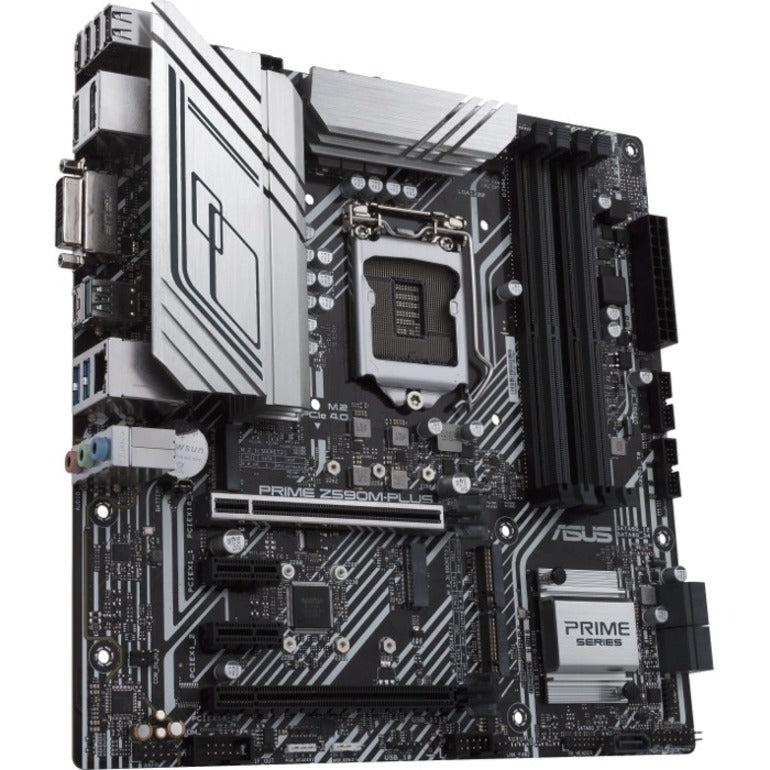

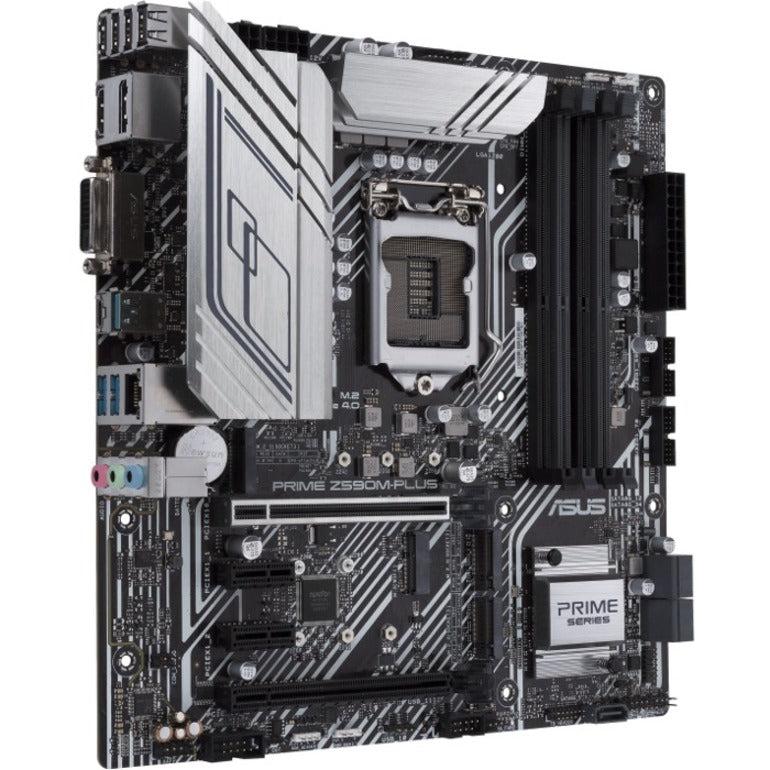

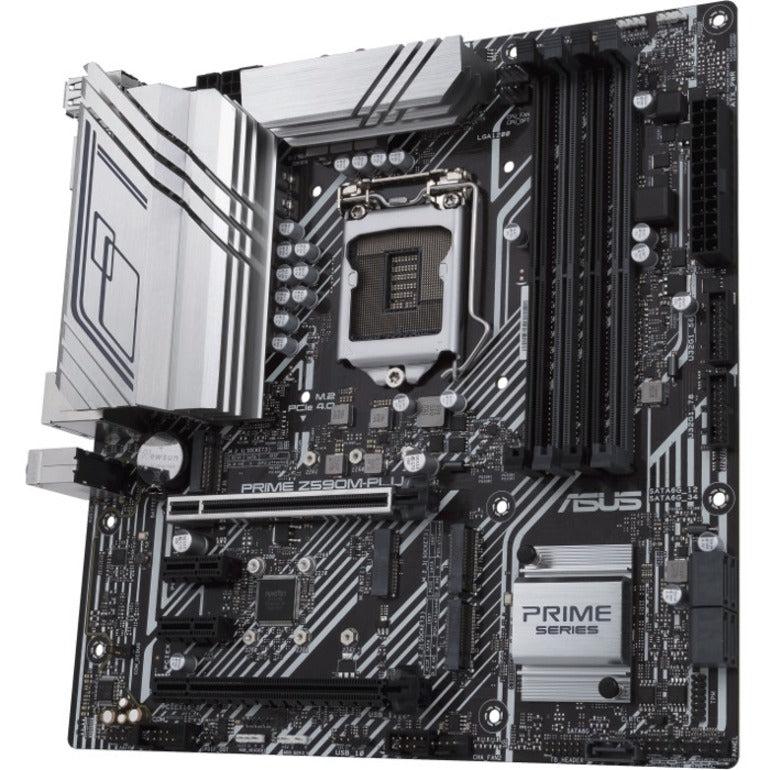

Name: Asus Prime Z590M-Plus Lga 1200 Intel Z590 Sata 6Gb/S Micro Atx Intel Motherboard
Brand: ASUS
SKU: PRIME Z590M-PLUS
Price: 208.99 USD
Availability: OutOfStock

Asus Prime Z590M-Plus Lga 1200 Intel Z590 Sata 6Gb/S Micro Atx Intel Motherboard

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Intel Z590
Supports 11th Gen / 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors
DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133

**Model**
Brand	ASUS
Model	PRIME Z590M-PLUS

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Supports 11th Gen / 10th Gen Intel Core Processors* Supports Intel Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

**Chipsets**
Chipset	Intel Z590

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic

**Memory**

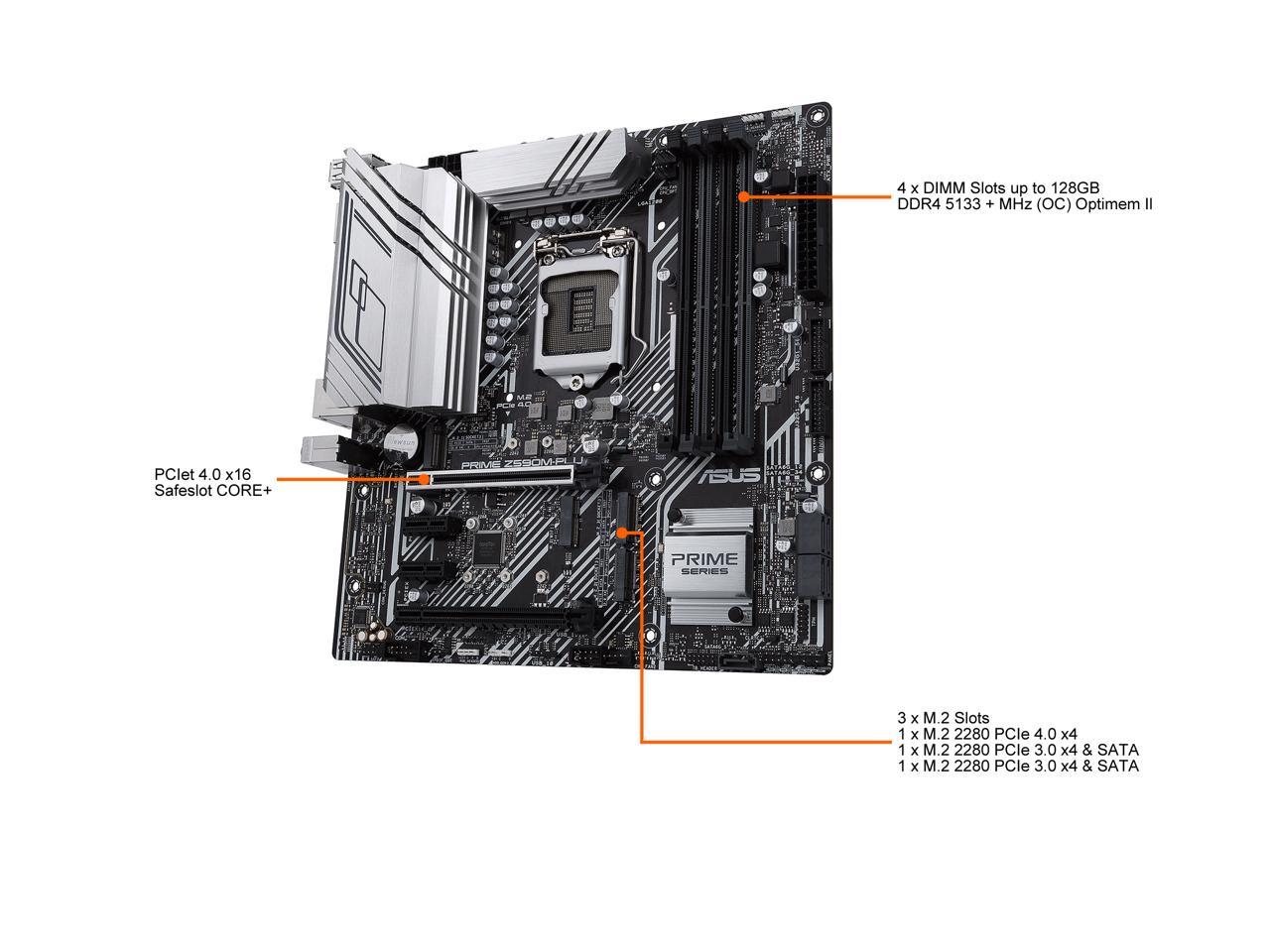

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133* * 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	1 x PCIe 4.0/3.0 x16 slot * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCIe 3.0 x1

**Storage Devices**
SATA 6Gb/s	5 x SATA 6Gb/s
M.2	Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_1 port cannot be used.
Intel Optane Ready	Yes

**Onboard Audio**
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

**Onboard LAN**
LAN Chipset	Intel I219-V
Max LAN Speed	10/100/1000Mbps

**Rear Panel Ports**

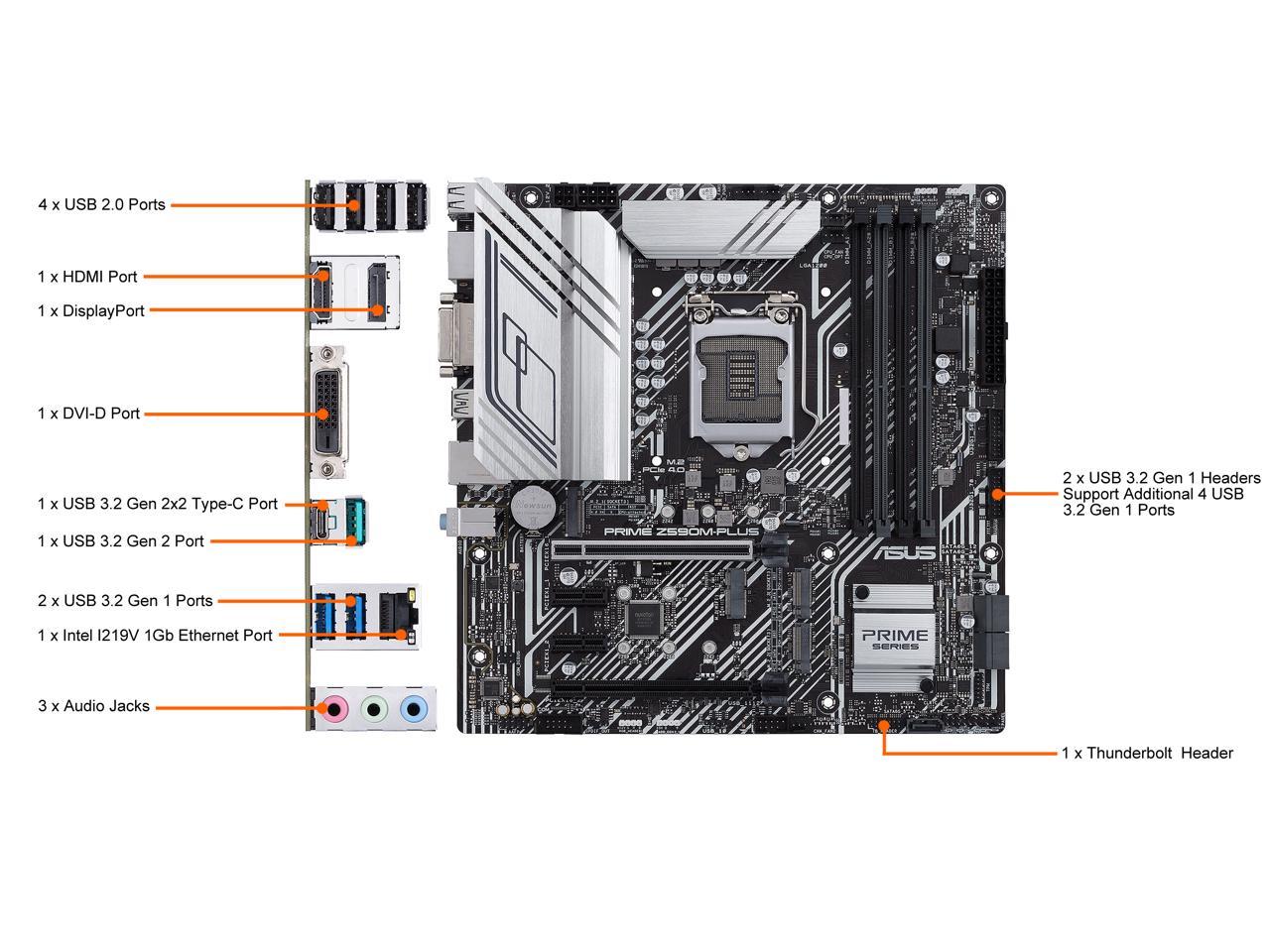

Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x DVI-D port 1 x HDMI port 1 x Intel I219V 1Gb Ethernet 3 x Audio jacks

**Internal I/O Connectors**
Onboard USB	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports

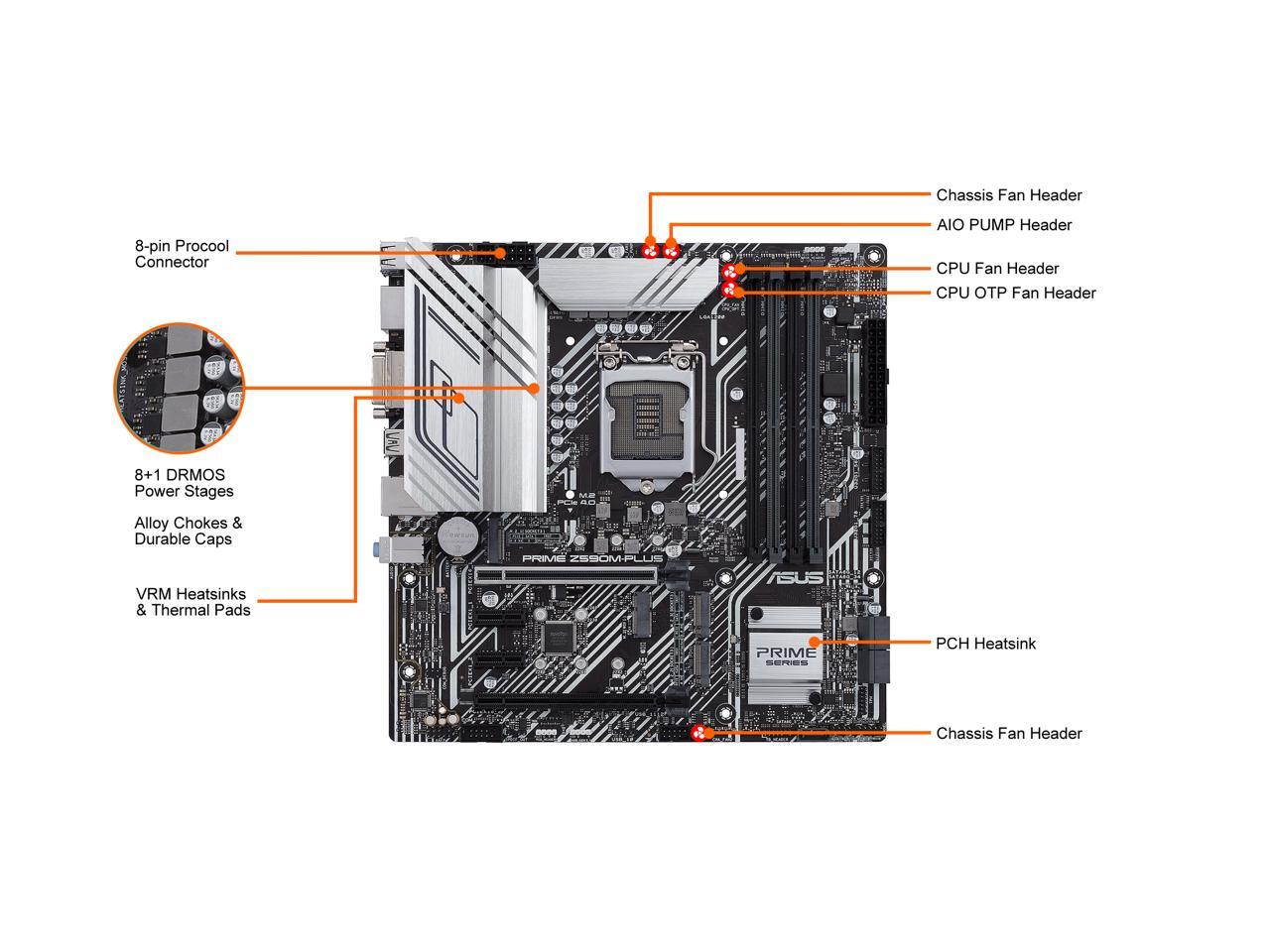

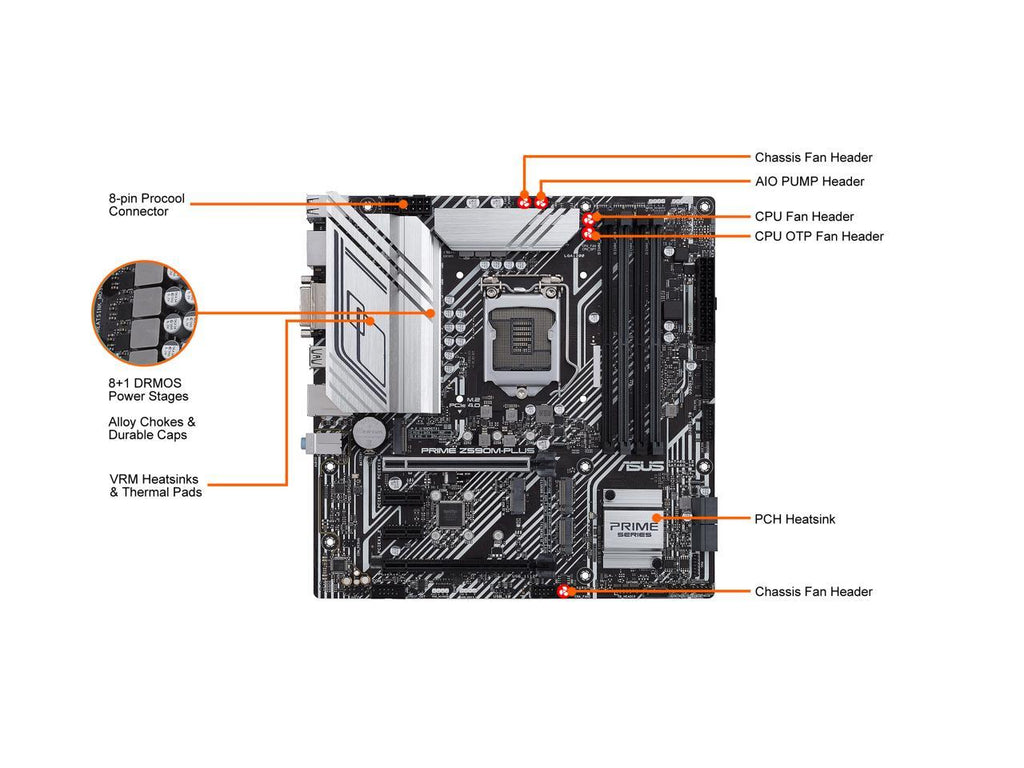

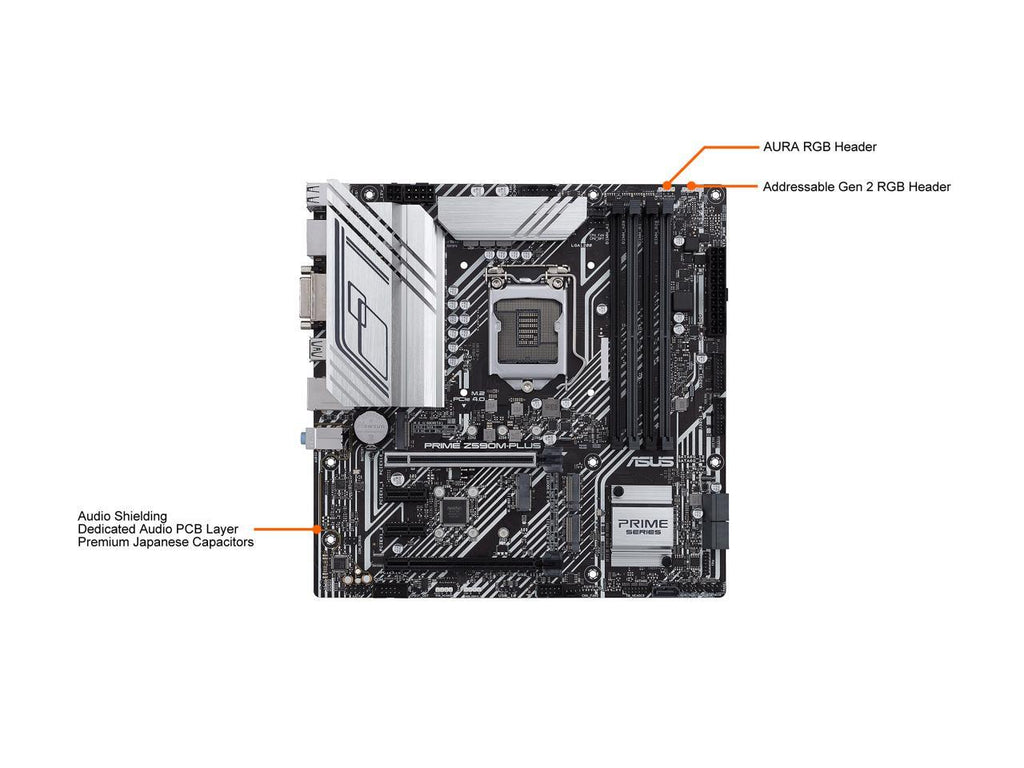

Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

**Physical Spec**
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

**Windows Compatibility**
Windows 11	Supported

**Features**
Features	Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - Procool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger Norton Anti-virus software (Free Trial version) DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 192 (128+64) MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 - 64-bit

**Packaging**
Package Contents	Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	PRIME Z590M-PLUS
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Line	Prime
Product Model	Z590M-PLUS
Product Name	Prime Z590M-PLUS Desktop Motherboard
Product Type	Desktop Motherboard
UPC	195553103367

Chipset

Chipset Manufacturer	Intel

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Ports	2

Width	9.6"
Depth	9.6"

Miscellaneous

Package Contents	Prime Z590M-PLUS Desktop Motherboard 2 x SATA 6Gb/s Cables 1 x I/O Shield 2 x M.2 SSD Screw Packages 1 x Support DVD 1 x User manual
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year
