Description
- AMD WRX80
- AMD Ryzen Threadripper Pro Processors
- DDR4 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory

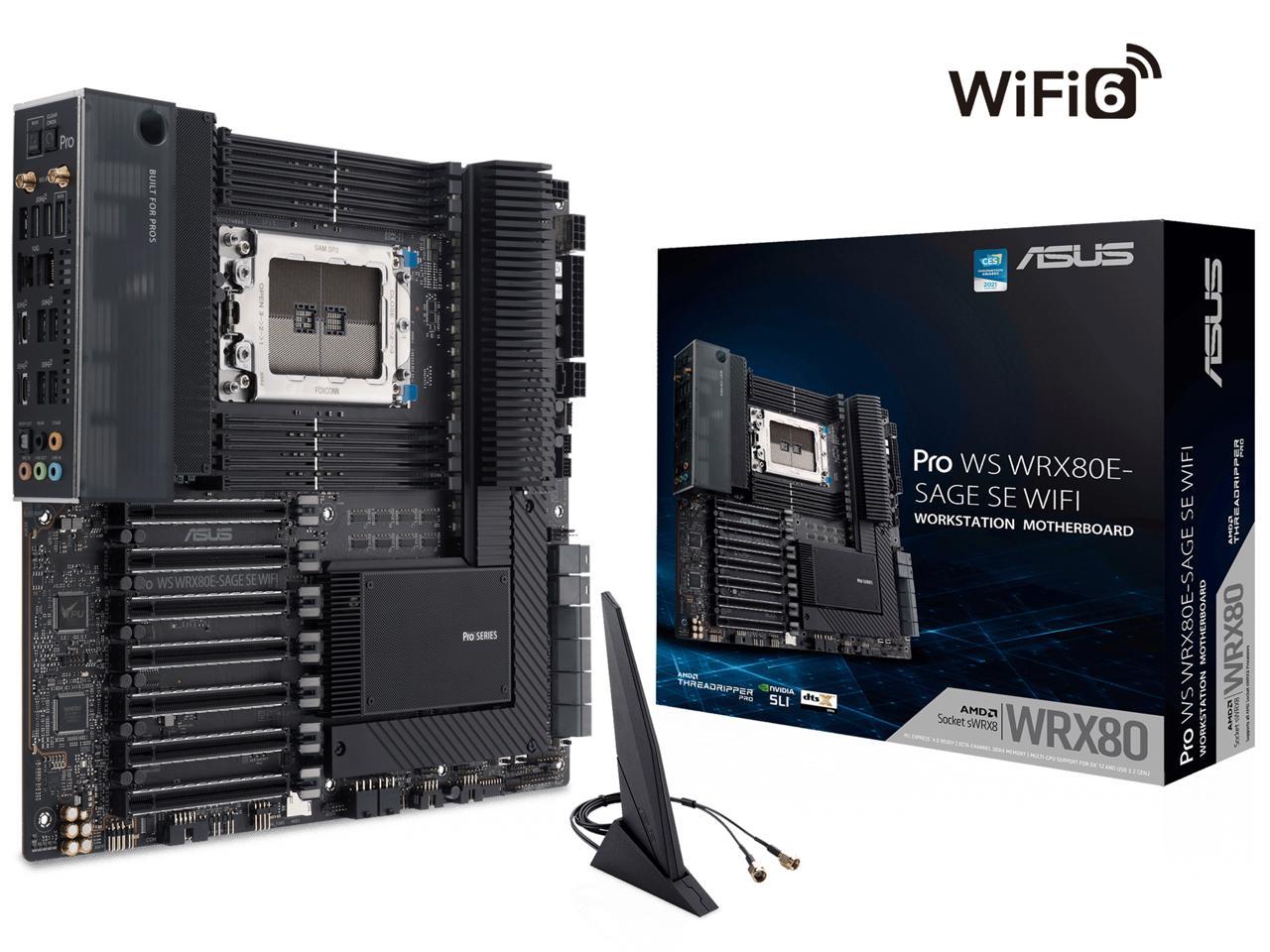

AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages
- AMD sWRX8 socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors
- Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10 Gb Ethernet
- ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
- Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
- Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security
Ultimate power for professional productivity
ASUS Pro WS WRX80E-SAGE SE Wi-Fi is engineered to unleash the incredible power of the latest AMD® Ryzen® Threadripper™ Pro series processors and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards.

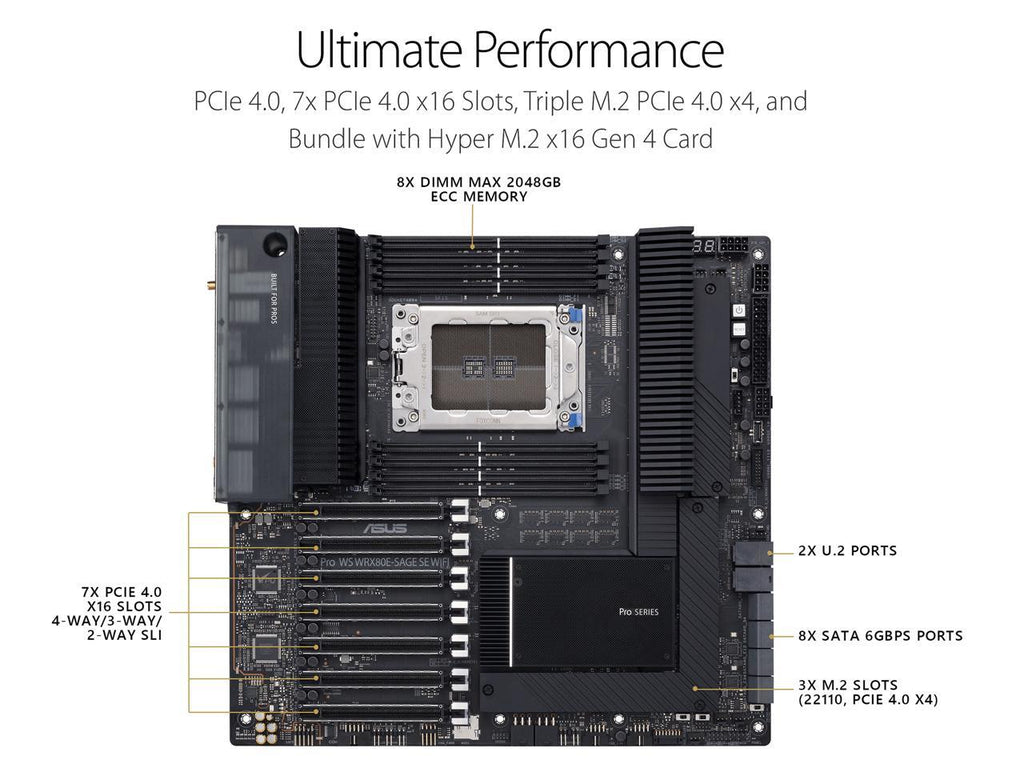

- BIOS Flashback and Clear CMOS
- Inter® Wi-Fi 6 AX200
- 8 x USB 3.2 Gen 2 Type-A
- Inter® X550-AT2 dual 10 G Ethernet
- 1 x USB 3.2 Gen 2 Type-C® port
- 1 x USB 3.2 Gen 2x2 Type-C® port
- 7 x PCI Express 4.0 safeslots
- 7 x Full x16 slots
- 4-way/3-way/2-way SLI
- Crystal Sound 3
Realtek W4080 USB Audio
DTS:X® Ultra - iKVM related headers and switches
- 2 x PCIe 6-pin power connectors
- 4 x USB 2.0 ports
- SOC and dual LAN heatsink
- 8-DIMM, 8-ch, max. 2048 GB, DDR4
ECC and non-ECC R-DIMM,
U-DIMM and 3DS R-DIMM - 2 x ProCool II connectors
- 16 power stages and VRM heatsink
- AMD Socket sWRX8 for AND Ryzen™
Threadripper™ PRO Series Processors
- 1 x PCIe 8-pin power connector
- 1 x USB 3.2 Gen 2 Type-C® connector
- 2 x Front USB 3.2 Gen 1 ports
- 2 x U.2 ports
- AMD WRX80 chipset
- 8 x SATA 6 Gbps ports
- 3 x M.2 slots
(22110, PCIe 4.0 x 4 & SATA)
FUNCTION-FIRST
AESTHETICS
Low-profile professionalism
With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE Wi-Fi presents a professional, low-profile look for content creators.
Multi-GPU support
Pro WS WRX80E-SAGE SE Wi-Fi features seven PCIe® 4.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling and simulation, and rendering applications.

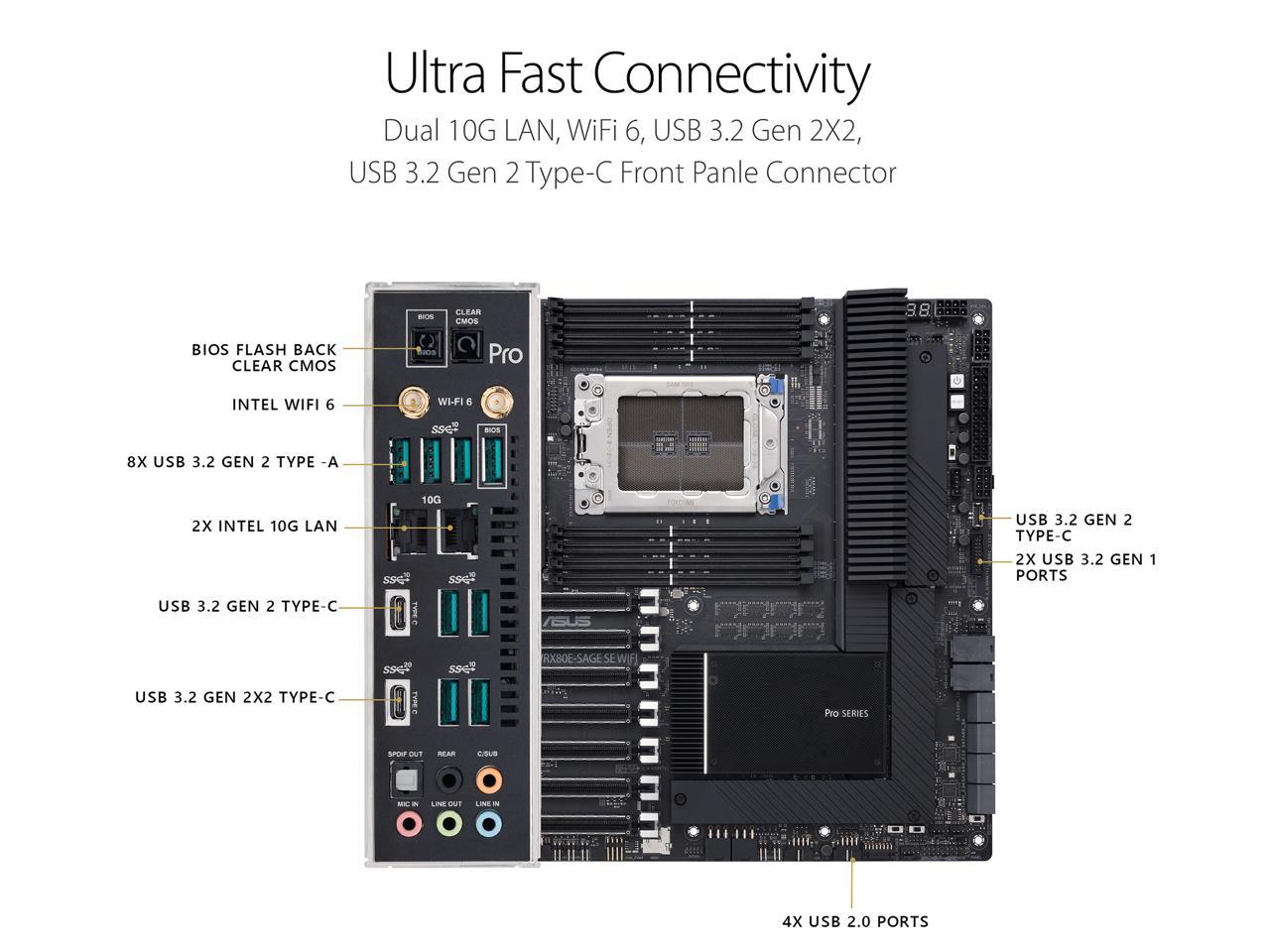

ULTRAFAST CONNECTIVITY
TO POWER CREATIVITY
Intel® dual 10G Ethernet
Featuring dual onboard 10G LAN ports powered by the cutting-edge Intel® X550-AT2 Ethernet controller, Pro WS WRX80E-SAGE SE Wi-Fi makes short work of multi-terabyte transfers from your creativities and provides server-grade connectivity with low-latency.
USB 3.2 Gen 2 x 2 Type-C
The latest USB standard doubles transfer bandwidth by opening another USB 3.2 Gen 2 lane to achieve its maximum throughput of up to 20 Gbps. In addition to blazingly fast data-transfer speeds, USB 3.2 offers easy connectivity and ultimate flexibility via USB-C ports.
Front-panel connector
The front panel USB 3.2 Gen 2 connector is ready for next-gen PC cases and devices.
3 M.2 PCIe 4.0
Pro WS WRX80E-SAGE SE WI-FI includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads.
More storage
With NVMe RAID support for Ryzen™ Threadripper™ PRO processors, unused CPU PCIe® 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput — up to 8x faster than individual PCIe® 3.0 x4 SSDs. RAID can also be configured with PCIe® 3.0 SSDs.

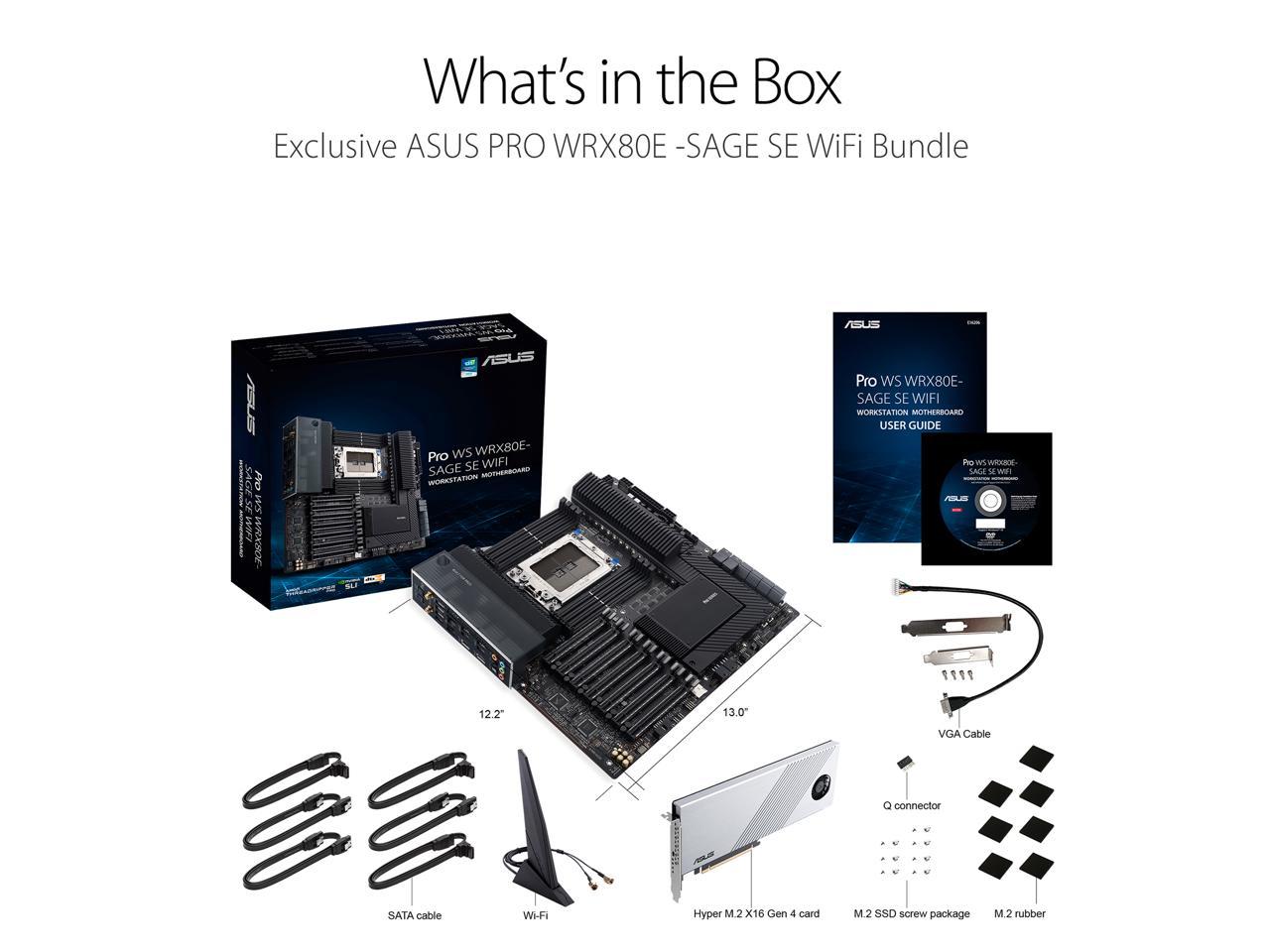

*With included ASUS Hyper M.2 x16 Gen 4 card. RAID is limited to a maximum of 10 NVMe SSDs on the AMD WRX80 platform.
*With included ASUS Hyper M.2 x16 Gen 4 card. RAID is limited to a maximum of 10 NVMe SSDs on the AMD WRX80 platform.
ECC memory support
AMD Ryzen™ Threadripper™ PRO processors offer unrivaled memory bandwidth and supports 8 memory channels, up to 2048 GB. It supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure your creativity consistency and stability.
Intel® Wi-Fi 6
The Intel® Wi-Fi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS Wi-Fi 6 routers to fully experience the networking potential of Wi-Fi 6.
*Actual speed varies and depends on networking conditions.
*Actual speed varies and depends on networking conditions.
ULTRAFAST CONNECTIVITY DELIVERY
CREATIVITY
SERVER-GRADE REMOTE
MANAGEMENT

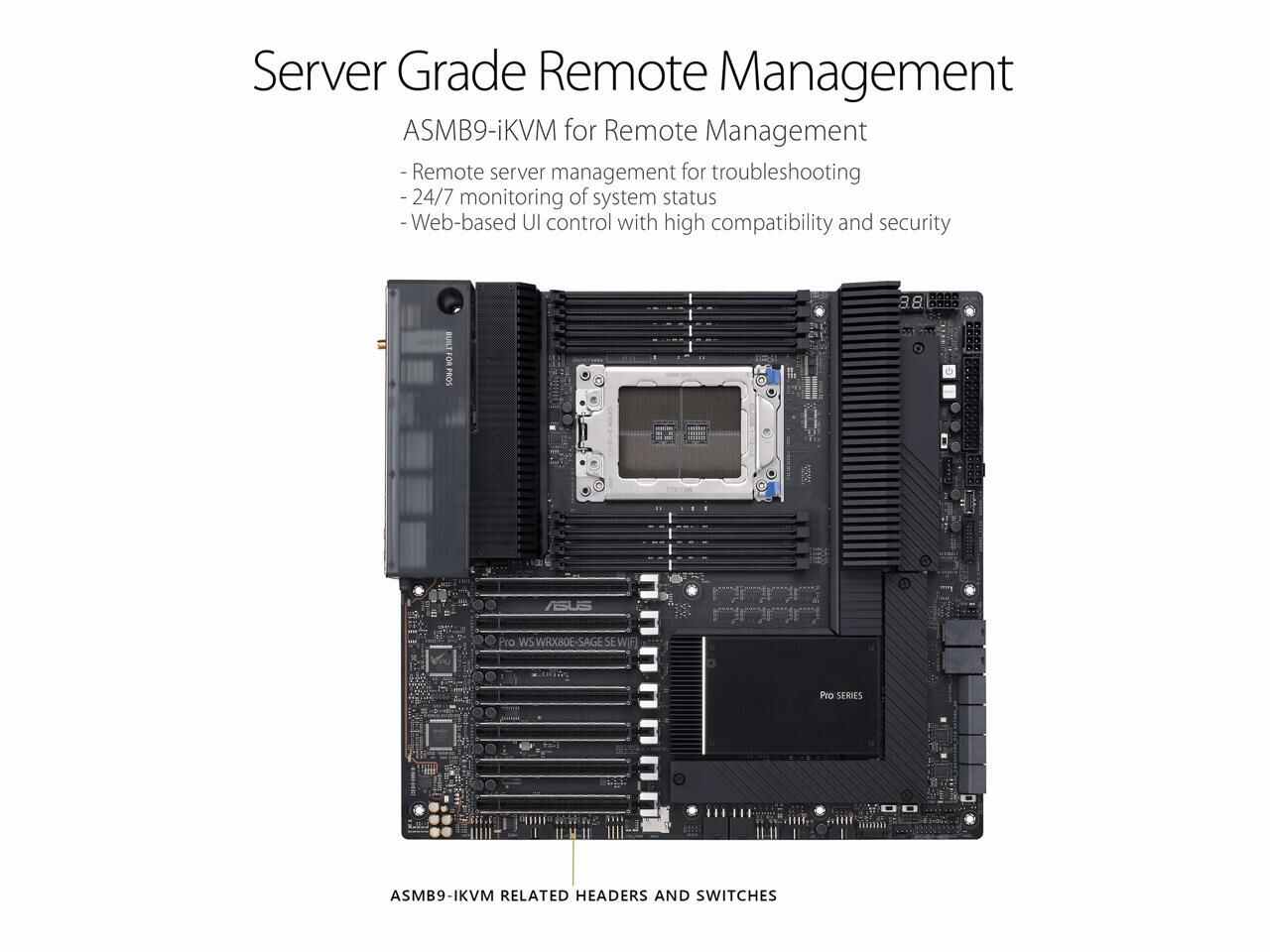

ASMB9-iKVM for remote management
An integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses an Intel X550 dual 10 Gigabit Ethernet controller, with one port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions — such as resetting or power cycling a system.

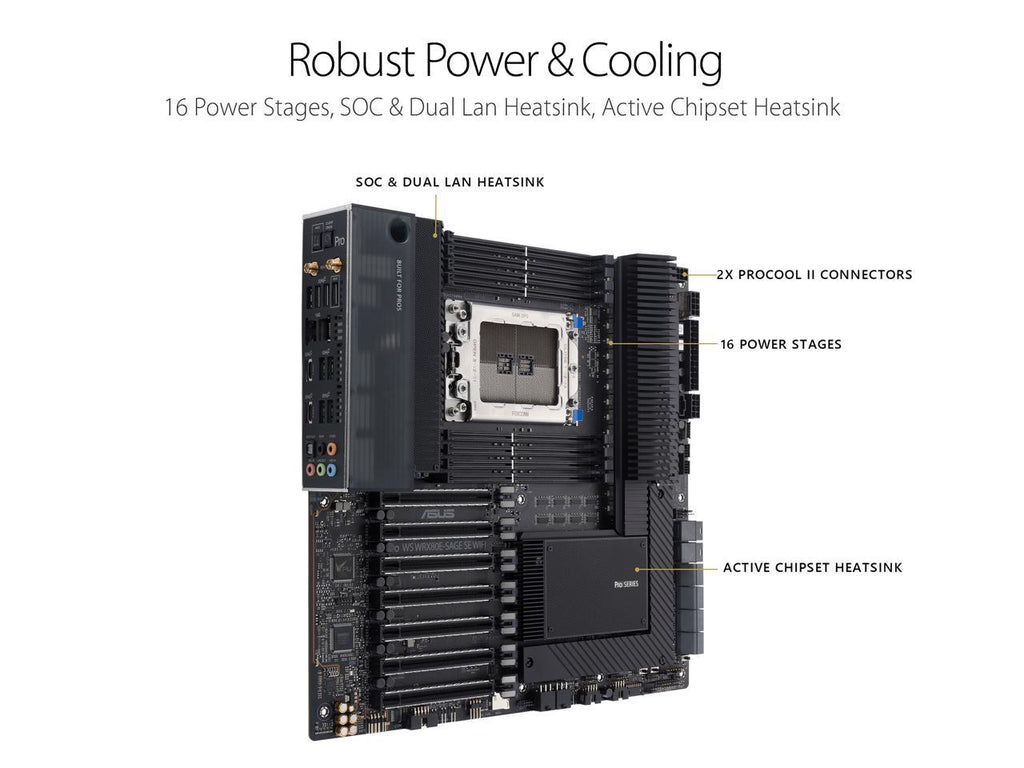

THOROUGH THERMAL
DESIGN
16 Power stages
Pro WS WRX80E-SAGE SE Wi-Fi’s VRM is comprised of 16 power stages, delivering the power and efficiency that the latest AMD processors demand.
6-pin Power connectors
Two additional PCIe 6-pin power connectors can add power output stability when creators use many graphic cards onboard.
SOC and DRAM heatsink
Since mass and airflow are critically important, VRM heatsink is manufactured with skived, high aspect ratio thin fins. An SOC heatsink uses a semi-passive fan to draw heat away from the dual 10G LAN.
Actively cooled heatsink
The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.*L10 bearing life is a standard metric that specifies the number of hours that 90% of the bearing are expected to continue successfully operating, as a minimum.
M.2 heatsinks
Three M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads.
DIY FRIENDLY
Side-mounted connectors
Unique side-mounted connectors on the front-panel of the chassis keep cables away from the graphics cards and provide cleaner routing, easier management and a streamlined installation process.
Pre-mounted I/O shield
The patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board.
BIOS Flashback™
Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.
WORK WITH FUN
Immersive Audio experience
The Realtek ALC4080 audio codec features high quality 120 dB SNR stereo playback output and 113 dB SNR recording input to offer pristine audio quality and is supported by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity. Additionally, DTS:X Ultra technology enables louder, immersive 3D spatial audio.
Power pre-regulator
Reduces power-input noise to ensure consistent performance.
Separate layer for left and right tracks
Ensures minimal crosstalk between audio paths.
Audio shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
De-pop circuit
Reduces start-up popping noise to all audio outputs.
Integrated amplifier
Capable of driving high-impedance headphones, without rolling-off high or low frequencies.
Premium Japanese-made audio capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.
TRUSTED STABILITY
FOR RELIABILITY
Solid compatibility validation
Pro WS WRX80E-SAGE SE Wi-Fi has been extensively tested and validated under various environments and applications for compatibility and reliability.520+
DDR4 compatibility
Industry-leading DDR4 memory compatibility for best flexibility and reassurance.
1000+
Compatible devices
Compatibility with a range of CPUs, memory modules, graphics cards and more.
8000+
Validation hours
Extensive testing with latest components for enhanced reliability, compatibility and safety.
Protect your graphics card
SafeSlot is a PCIe® slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability.
24/7 reliability
Optimized for around-the-clock operations, Pro WS WRX80E-SAGE SE Wi-Fi is tested under temperatures of up to 45 °C and humidity of up to 80% in order to ensure it can thrive in different environments.
168 hr
Aging time
45 °C
Temperature
80%
Relative humidity
