Name: Asus Rog Maximus Xi Hero Call Of Duty Special Edition Z390 Gaming Motherboard Lga1151
Brand: ASUS
SKU: ROG Maximus XI Hero (Wi-Fi) CE
Price: 901.99 USD
Availability: OutOfStock

Asus Rog Maximus Xi Hero Call Of Duty Special Edition Z390 Gaming Motherboard Lga1151

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

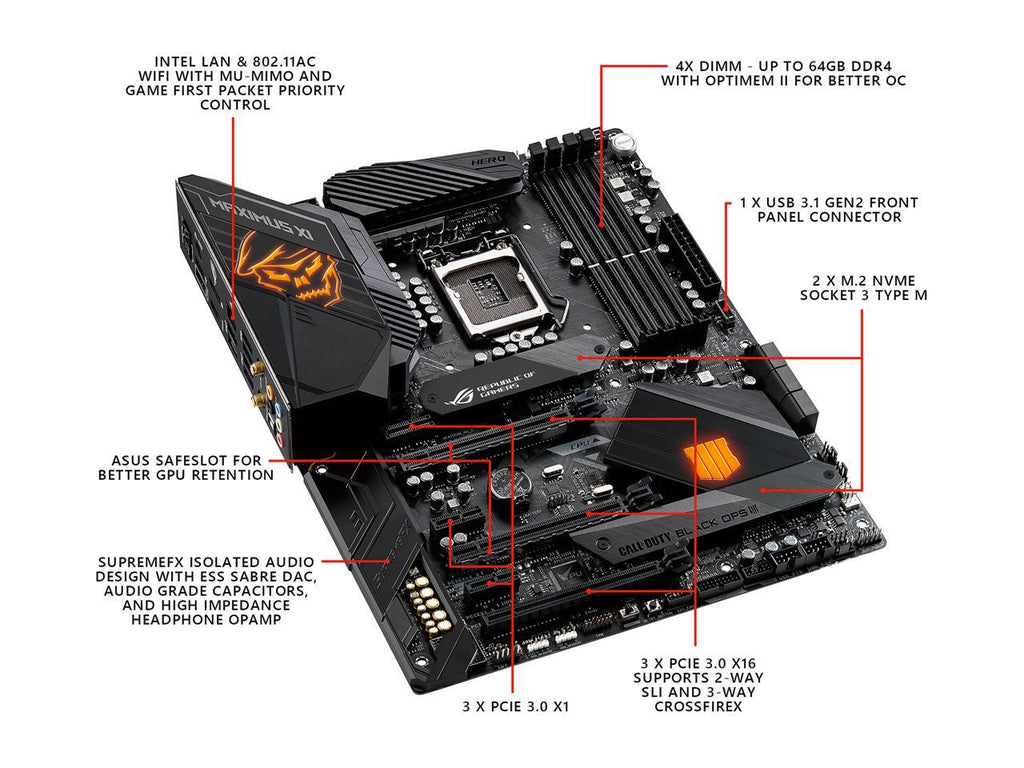

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, onboard 802.11 ac Wi-Fi and ASUS OptiMem II for better DRAM overclocking stability
Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling

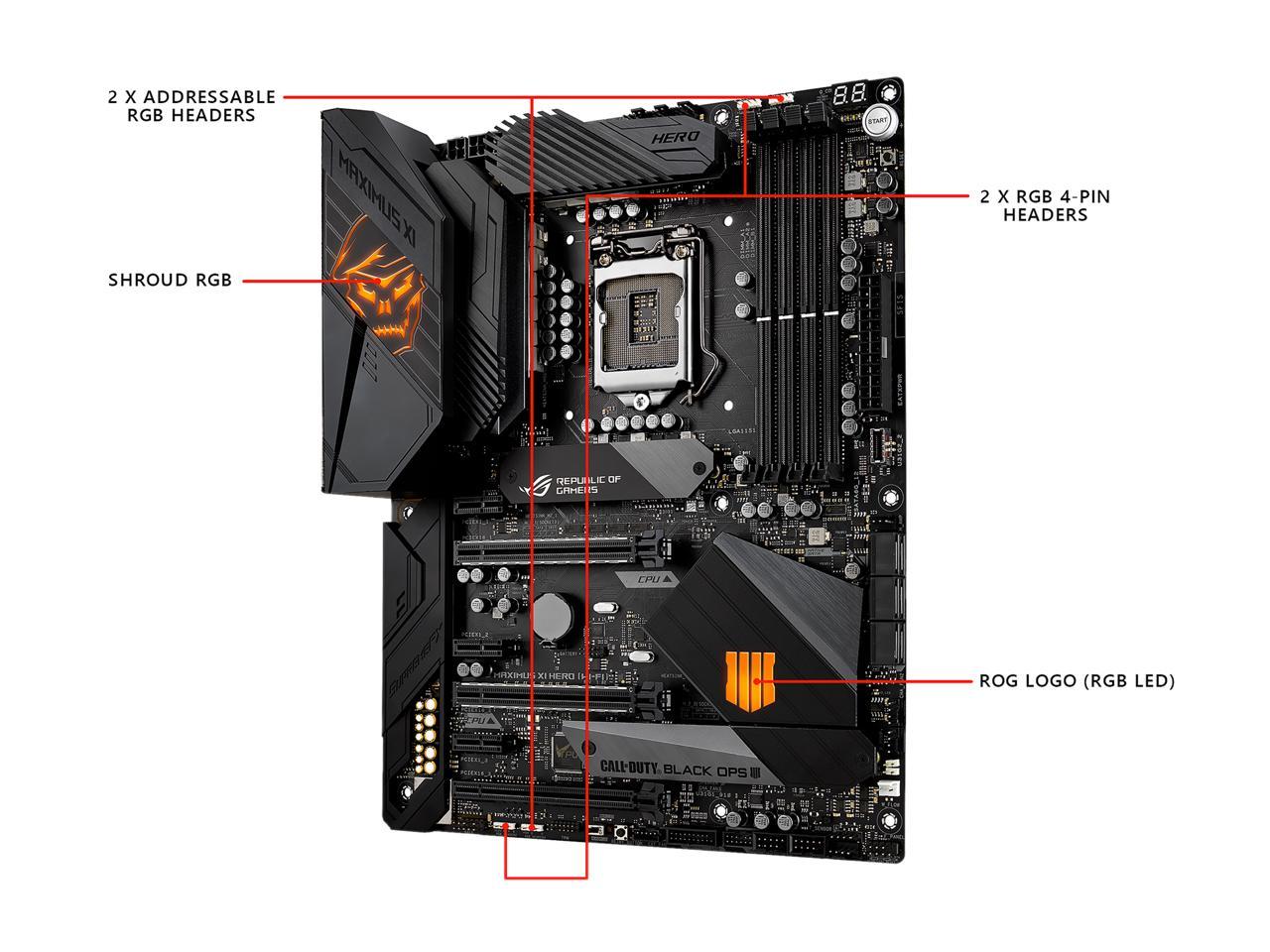

Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

**Model**
Brand	ASUS
Series	ROG
Model	Maximus XI Hero (Wi-Fi) CE

**Supported CPU**
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 for 9th/8th Gen Intel Core, Pentium Gold and Celeron processors * Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

**Chipsets**
Chipset	Intel Z390

**Onboard Video**
Onboard Video Chipset	Integrated Graphics Processor- Intel UHD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) 1 x PCIe 3.0 x16 (x4 mode) 1 1 The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6. The PCIe x16_3 runs x2 mode by default.
PCI Express x1	3 x PCIe 3.0 x1

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)2 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) 2 When the M.2_1 Socket 3 is operating in SATA mode, SATA6G_2 port will be disabled.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels	8 Channels *3 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Intel I219-V
Max LAN Speed	10/100/1000Mbps
Wireless LAN	Intel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth	Bluetooth 5.0

**Rear Panel Ports**

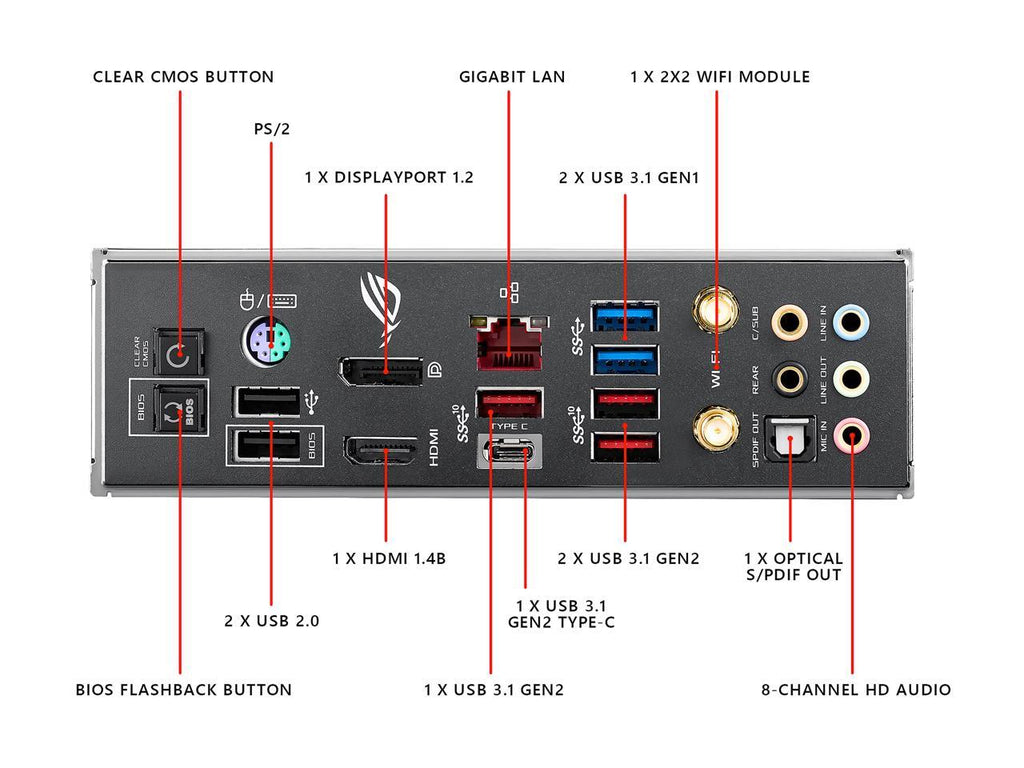

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 (1 x Type-C + 3 x Type-A) 2 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks

**Internal I/O Connectors**
Onboard USB	1 x USB 3.1 Gen 2 front panel connector 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x TPM connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Reset button(s) 1 x ReTry button 1 x System panel connector 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x 4-pin ATX 12V Power connector(s)

**Features**

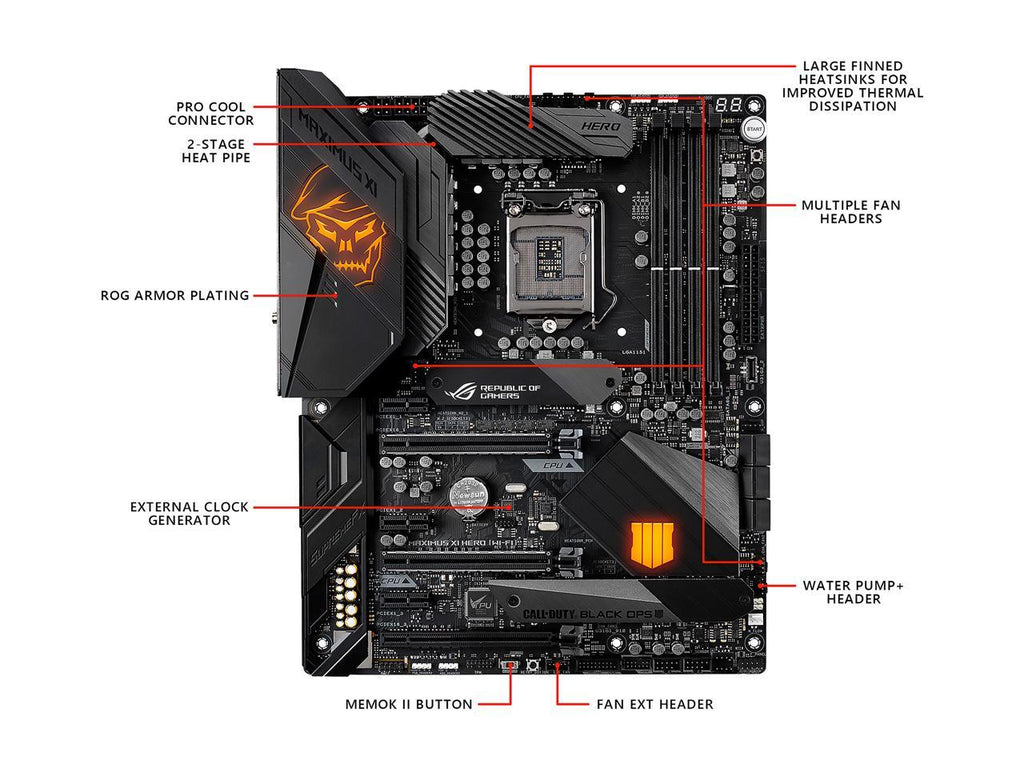

Features	Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, onboard 802.11 ac Wi-Fi and ASUS OptiMem II for better DRAM overclocking stability Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling Twin 8-phase power design and improved VRM cooling solution provides better cooling than previous generation platforms Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products Includes Call of Duty: Black Ops 4 ASUS code for game bundle redemption

**Packaging**
Package Contents	Accessories: User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x SLI HB BRIDGE (2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s)

General Information

UPC	192876133866
