Name: Asus Rog Maximus Xii Hero (Wi-Fi) Lga 1200 (Intel 10Th Gen) Intel Z490 (Wifi 6) Sata 6Gb/S Atx Intel
Brand: ASUS
SKU: ROG MAXIMUS 12 HEROW
Price: 662.07 USD
Availability: InStock

Asus Rog Maximus Xii Hero (Wi-Fi) Lga 1200 (Intel 10Th Gen) Intel Z490 (Wifi 6) Sata 6Gb/S Atx Intel

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email [email protected].

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

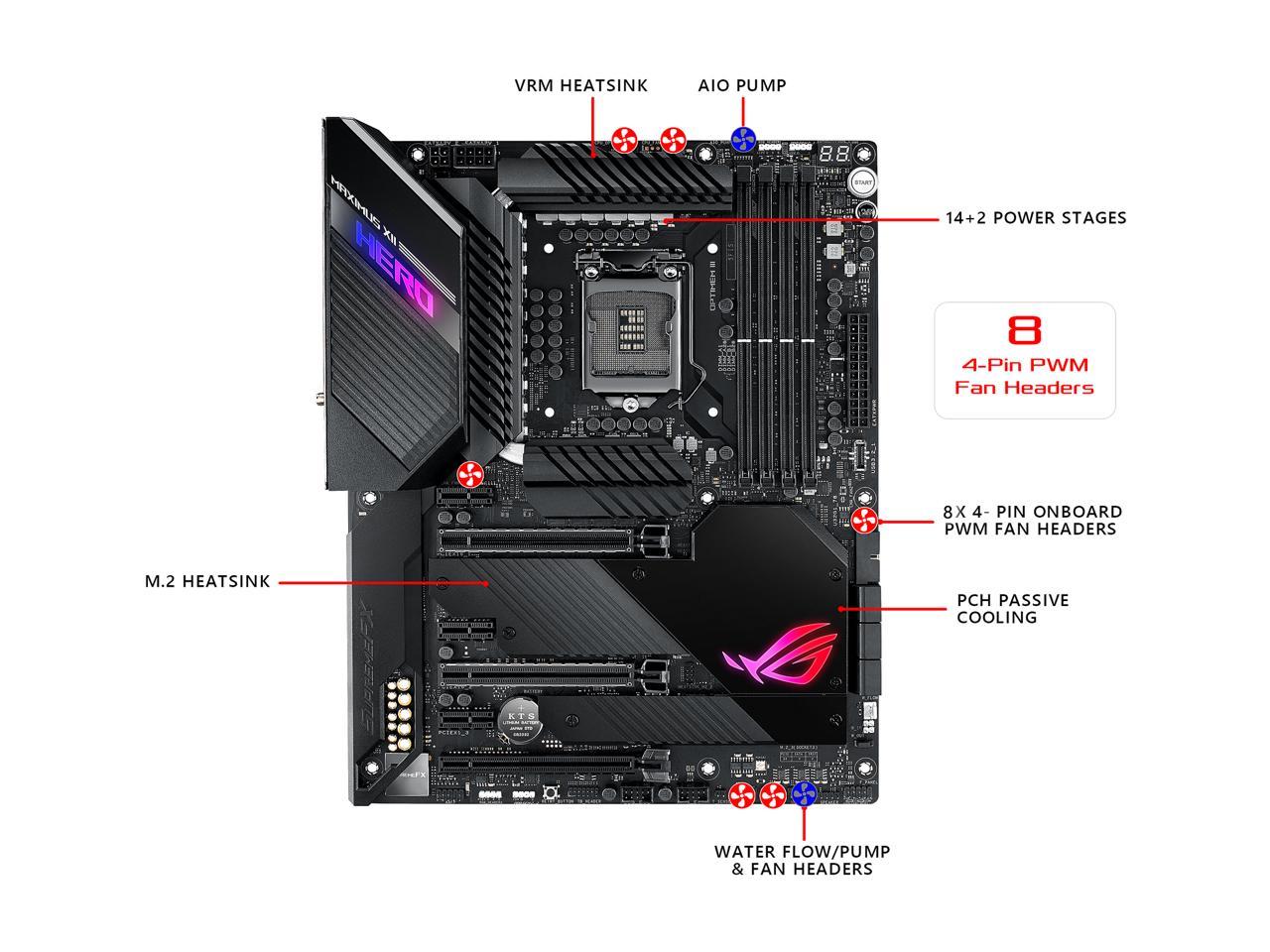

Robust Power Solution: 14+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power even when push the CPU performance to the limit
Optimized Thermal Design: Except comprehensive heatsink, heatpipe and fan headers, features low-noise AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta
Fastest Gaming Connectivity: Dual Ethernet with 5Gb and gigabit Ethernet, LANGaurd, 3 M.2, USB 3.2 Gen 2, and Intel WiFi 6 AX201 (802.11 ax)
Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220 codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

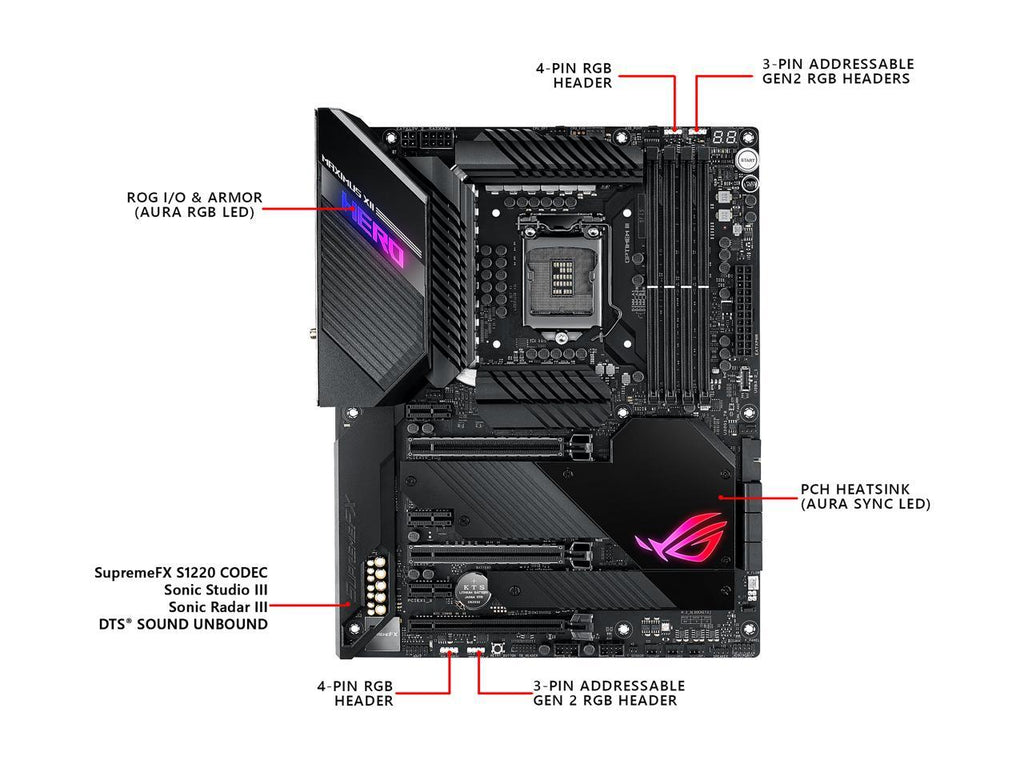

Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
DIY Friendly Design: Pre-mounted I/O Shield ESD Guards

**Model**
Brand	ASUS
Series	ROG
Model	MAXIMUS XII HERO (WI-FI)

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

**Chipsets**
Chipset	Intel Z490

**Memory**

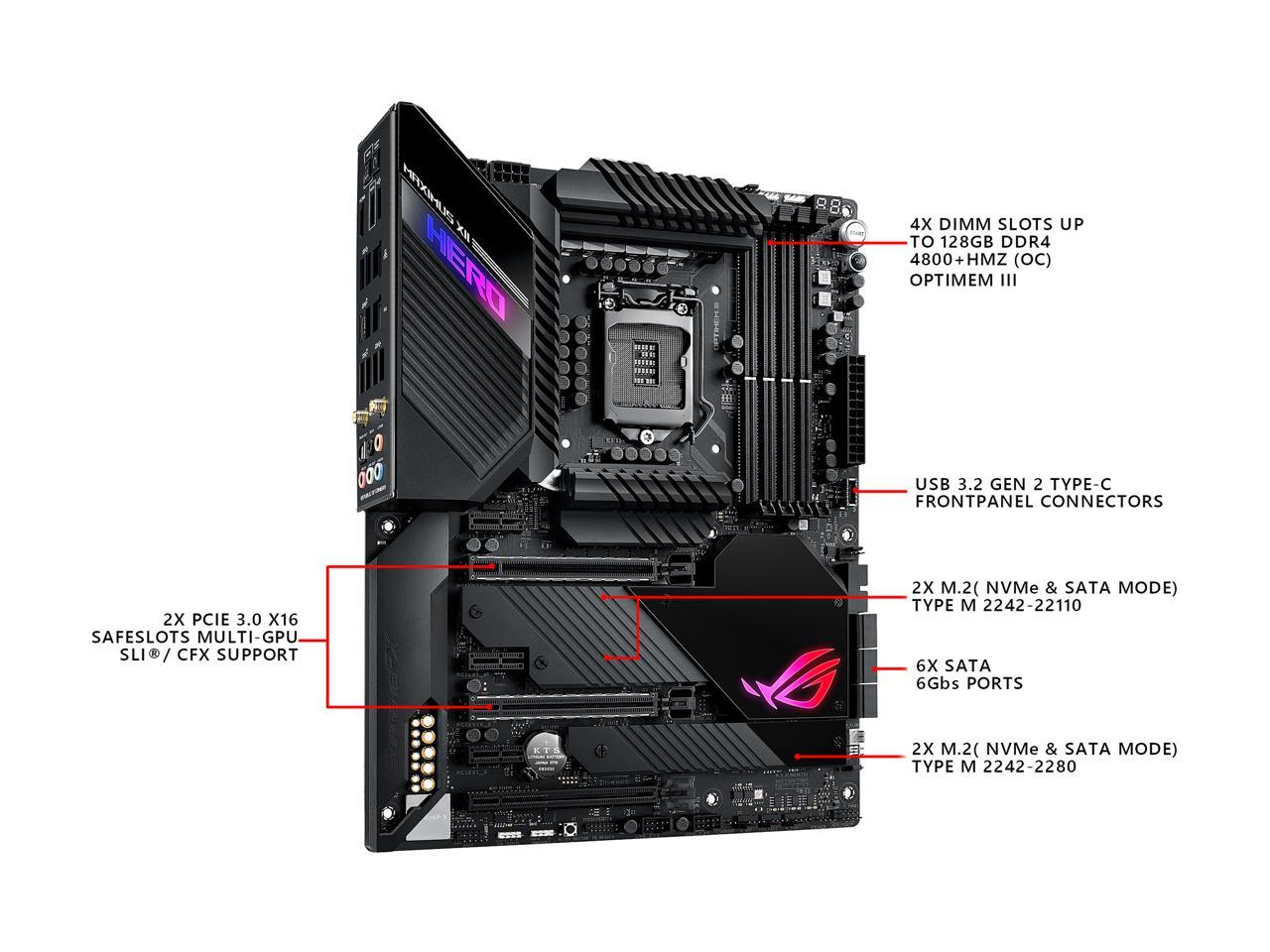

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	Intel 10th Gen Processors* 2 x PCIe 3.0 x16 slots (support x16 or x8/x8 modes) Intel Z490 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)** * Support PCIe bifurcation for RAID on CPU function. ** The PCIEX16_3 shares bandwidth wih M.2_2. The PCIEX16_3 will be disabled when M.2_2 runs x4 mode.
PCI Express x1	3 x PCIe 3.0 x1 slots

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)* M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA mode)** * M.2_2 shares bandwidth with PCIEX16_3. When M.2_2 runs x4 mode, PCIEX16_3 will be disabled. When M.2_2 runs x2 mode, PCIEX16_3 runs x1 mode. ** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is populated SATA6G_56 will be disabled.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Aquantia AQC111C
Second LAN Chipset	Intel I219V
Max LAN Speed	5Gbps + 10/100/1000Mbps
Wireless LAN	Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Support 2.4/5GHz Dual-Band Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface
Bluetooth	Bluetooth v5.1* * BT 5.1 function will be ready in Windows 10 build 19041 or later.

**Rear Panel Ports**
Back I/O Ports	1 x ASUS Wi-Fi Module 1 x Clear CMOS button 5 x Gold-plated audio jacks 1 x HDMI 1.4b port 1 x Intel I219V 1Gb Ethernet 1 x Marvell AQtion AQC111C 5Gb Ethernet 1 x Optical S/PDIF out 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB BIOS FlashBack button

**Internal I/O Connectors**
Onboard USB	1 x USB 3.2 Gen 2 front panel connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-Pin CPU fan header 1 x 4-Pin CPU OPT fan header 1 x 4-Pin AIO Pump header 3 x 4-Pin Chassis fan headers 1 x 4-Pin H_AMP fan header 1 x W_PUMP+ header 1 x 2-pin Water in header 1 x 2-pin Water out header 1 x 3-pin Water flow header Miscellaneous 2 x AURA addressable Gen 2 headers 2 x AURA RGB headers 1 x FlexKey button 1 x Front panel audio header (AAFP) 1 x ReTry button 1 x Speaker header 1 x Start button 1 x 10-1 System panel header 1 x Thermal sensor header 1 x Thunderbolt header

**Physical Spec**

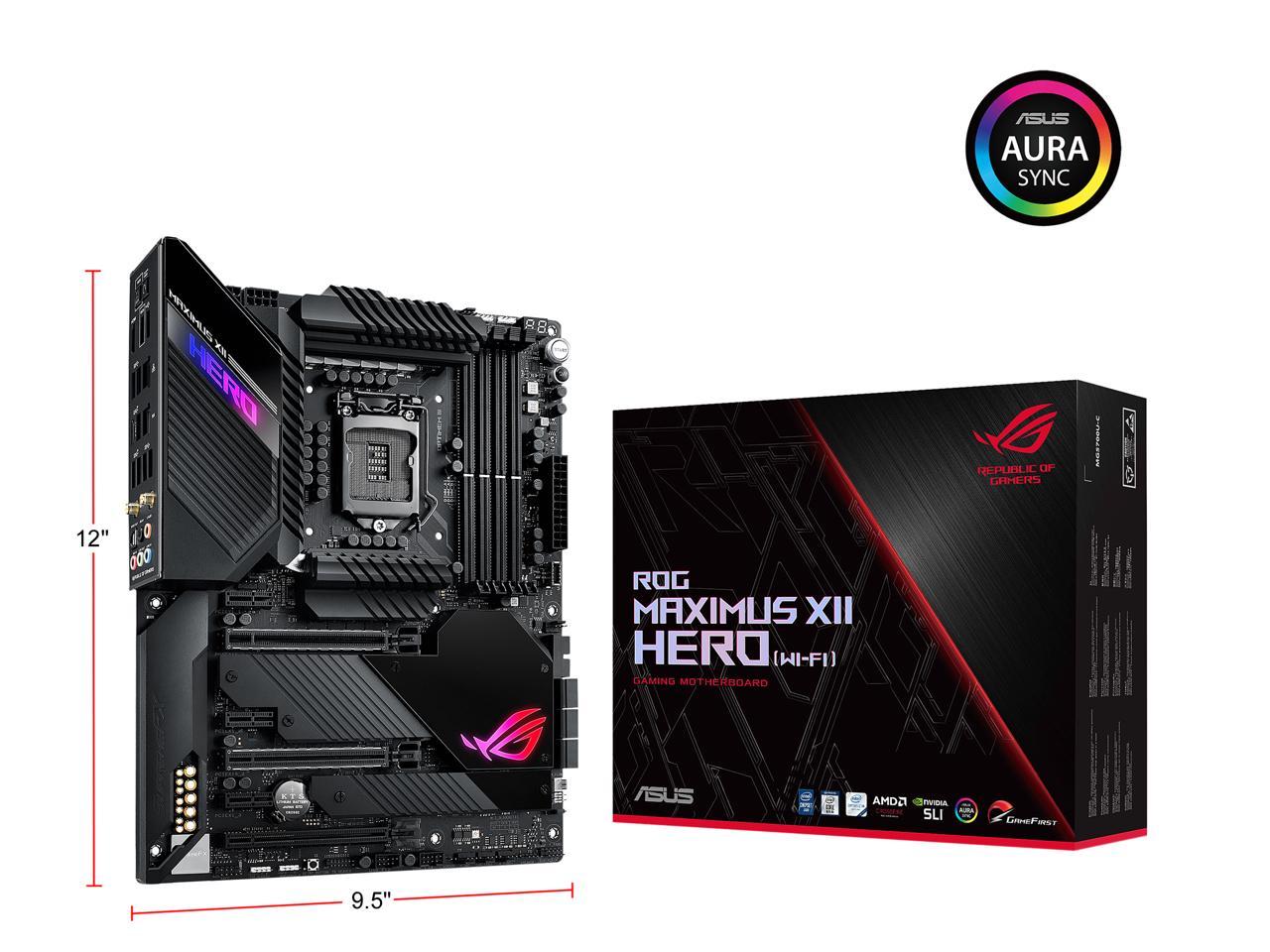

Form Factor	ATX
LED Lighting	RGB
Power Pin	1 x 24-pin main power connector 1 x 8-pin +12V power connector 1 x 4-pin +12V power connector

**Features**
Features	Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way/2-Way CrossFireX Technology Special Features: ROG Extreme OC kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - ASUS Q-Code - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink cover ASUS EZ DIY - BIOS Flashback button - Clear CMOS button - Procool II - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB headers Software Features: ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey BIOS: 256MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 - 64-bit

**Packaging**

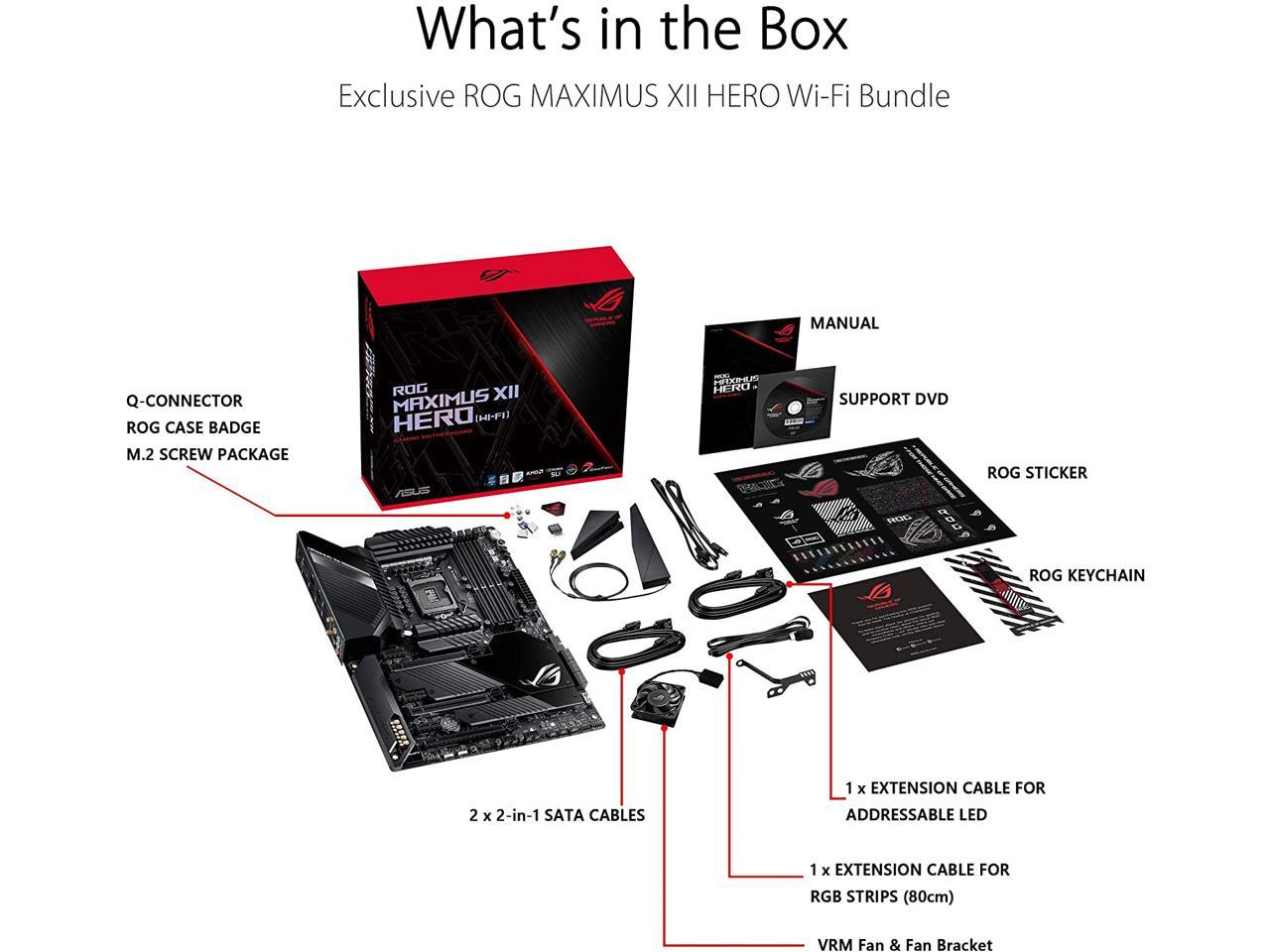

Package Contents	Accessories: Cables 1 x Addressable RGB extension cable 1 x RGB extension cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Fan bracket 1 x ROG assistant fan (40mm) Miscellaneous 2 x M.2 Rubber Packages 2 x M.2 SSD screw packages 1 x Q-connector 1 x ROG key chain 1 x ROG logo plate sticker 1 x ROG stickers 1 x ROG thank you card 1 x ASUS 2x2 dual band Wi-Fi moving antennas Installation Media 1 x Support DVD Documentation 1 x User manual

General Information

UPC	192876664100
