Description
- AMD AM4 Socket: Compatible to 3rd/2nd/1st Gen AMD Ryzen CPUs
- Robust Power Design: 8+4 DrMOS power stages with high-quality alloy chokes and durable capacitors provide reliable power for the last AMD high-count-core CPUs
- Optimized Thermal Solution: Extended VRM and PCH heatsinks, M.2 heatsinks, multiple hybrid fan headers and fan speed management with Fan Xpert utility
- Best Gaming Connectivity: Supports HDMI 2.0b(4K@60HZ) and DisplayPort 1.2 output, featuring dual M.2 slots (NVMe SSD), 2 x PCIe 3.0 x16 Slot, USB 3.2 Gen 2 Type-A port and USB 3.2 Gen 1 Type-A & Type-C ports
- Industry-leading Gaming Audio & AI Noise Canceling Microphone Technology: High fidelity audio from a SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III draws you deeper into the action. Communicate clearly with ASUS AI Noise Cancelling Mic technology
- DIY Friendly: With BIOS Flashback and ASUS exclusive UEFI BIOS, 256MB BIOS Flash ROM and Pre-mount I/O shroud
AMD AM4 B450 Gaming ATX motherboard with DDR4 4400 MHz support, AI Noise-Canceling Microphone, M.2 with heatsink, USB 3.2 Gen 2, SATA 6 Gbps and Aura Sync RGB lighting
- AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors
- Robust power solution: 8+4 discrete MOS with high-quality alloy chokes and durable capacitors
- Gaming-optimized connectivity: Dual M.2, USB 3.2 Gen 2, plus HDMI® 2.0 and DisplayPort™ 1.2 output support
- Smooth networking: M.2 socket with E-key and Intel® Gigabit Ethernet with ASUS LANGuard
- Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec and Sonic Studio III for immersive sound

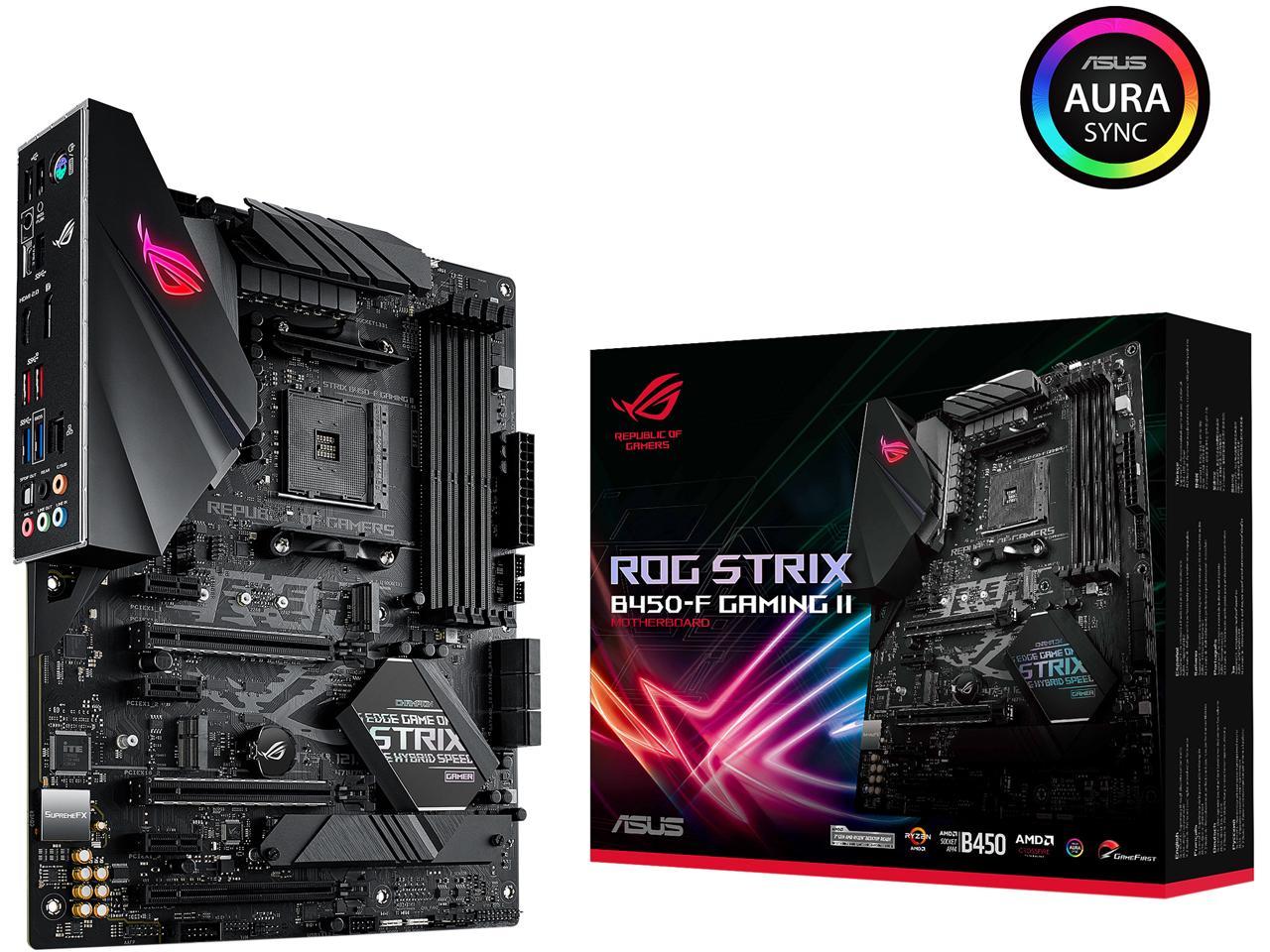

ROG Strix B450-F Gaming II delivers all the essentials needed for a well-balanced build. Designed to handle the latest 3rd Gen AMD Ryzen™ processors, ROG Strix B450-F Gaming II features amped-up power delivery, optimized thermal design and more stable DDR4 memory. BIOS FlashBack™ makes upgrading easy to give any dream build a head start, and intuitive ROG software ensures a superior gaming experience.
Spec Overview

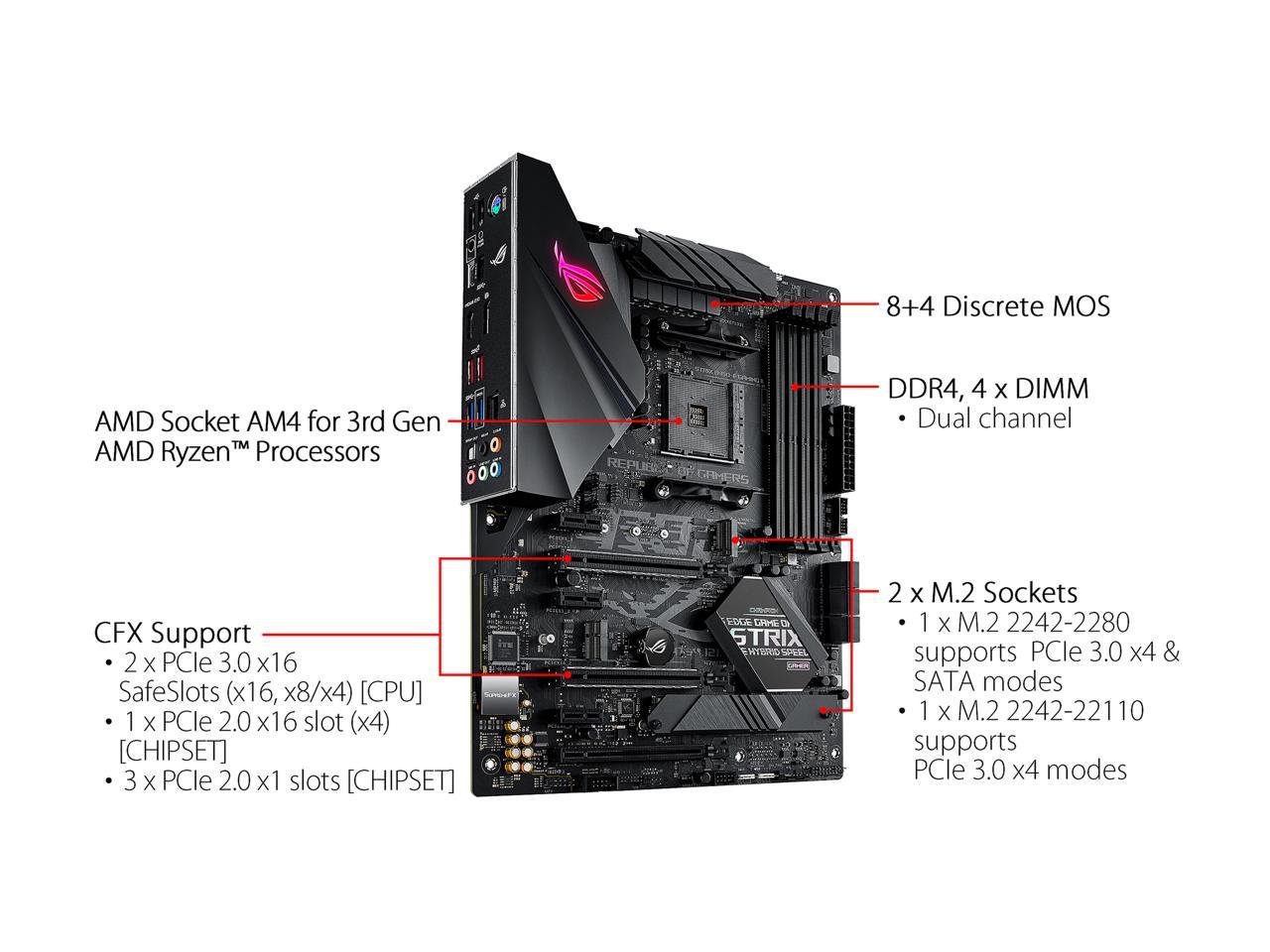

Performance
Built for Performance Gaming
Built for Performance Gaming
- AMD Socket AM4 for 3rd Gen
AMD Ryzen™ Processors -
CFX Support
- 2 x PCIe 3.0 x16 SafeSlots (x16, x8/x4) [CPU]
- 1 x PCIe 2.0 x16 slot (x4) [CHIPSET]
- 3 x PCIe 2.0 x1 slots [CHIPSET]
- 8+4 Discrete MOS
-
DDR4, 4 x DIMM
- Dual Channel
-
2 x M.2 Sockets
- 1 x M.2 2242-2280 supports PCIe 3.0 x4 & SATA modes
- 1 x M.2 2242-22110 supports PCIe 3.0 x4 mode

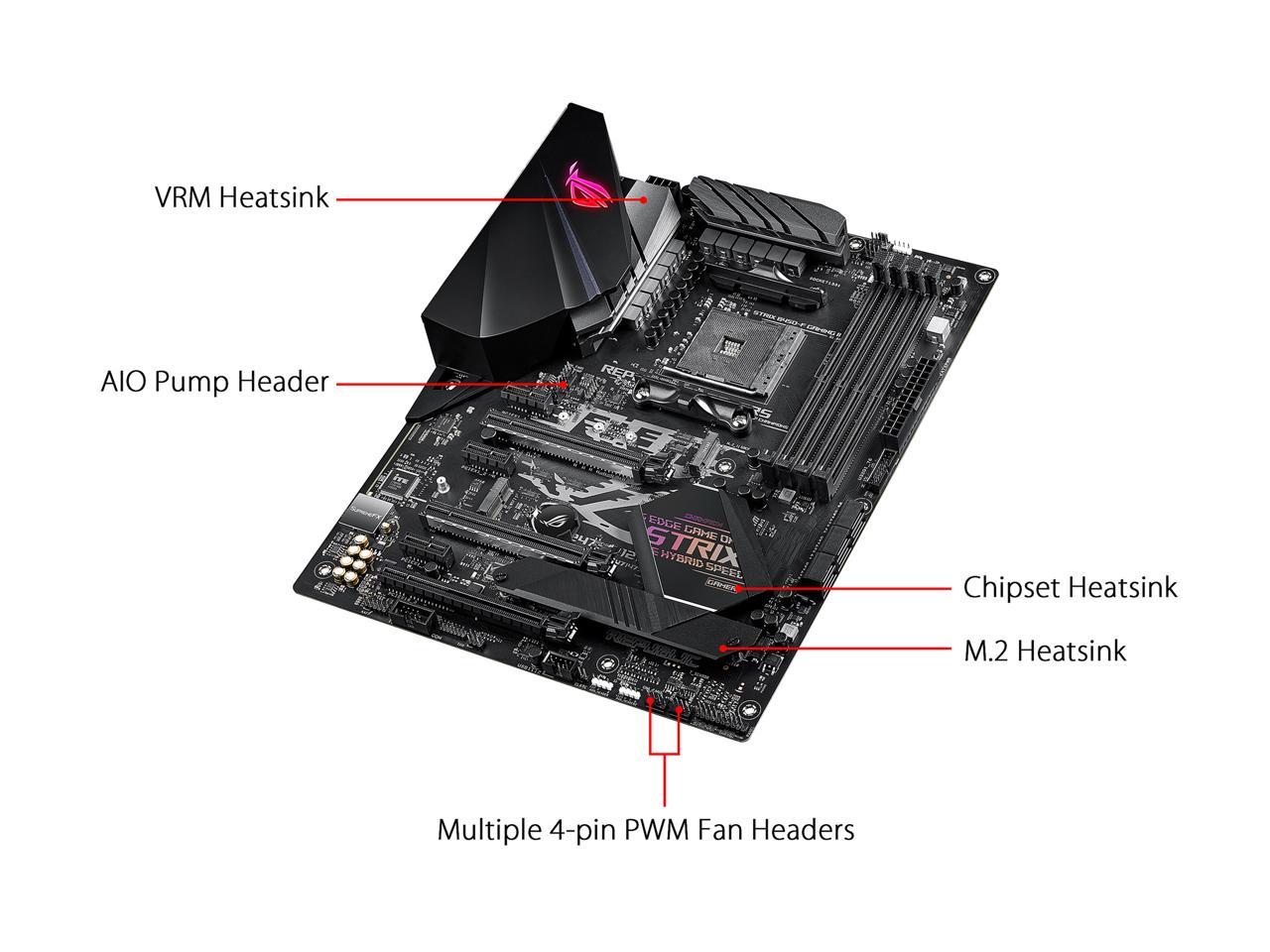

Cooling
Comprehensive Cooling
Comprehensive Cooling
- VRM Heatsinks
- AIO Pump Header
- Chipset Heatsink
- M.2 Heatsink
- Multiple 4-pin PWM Fan Headers

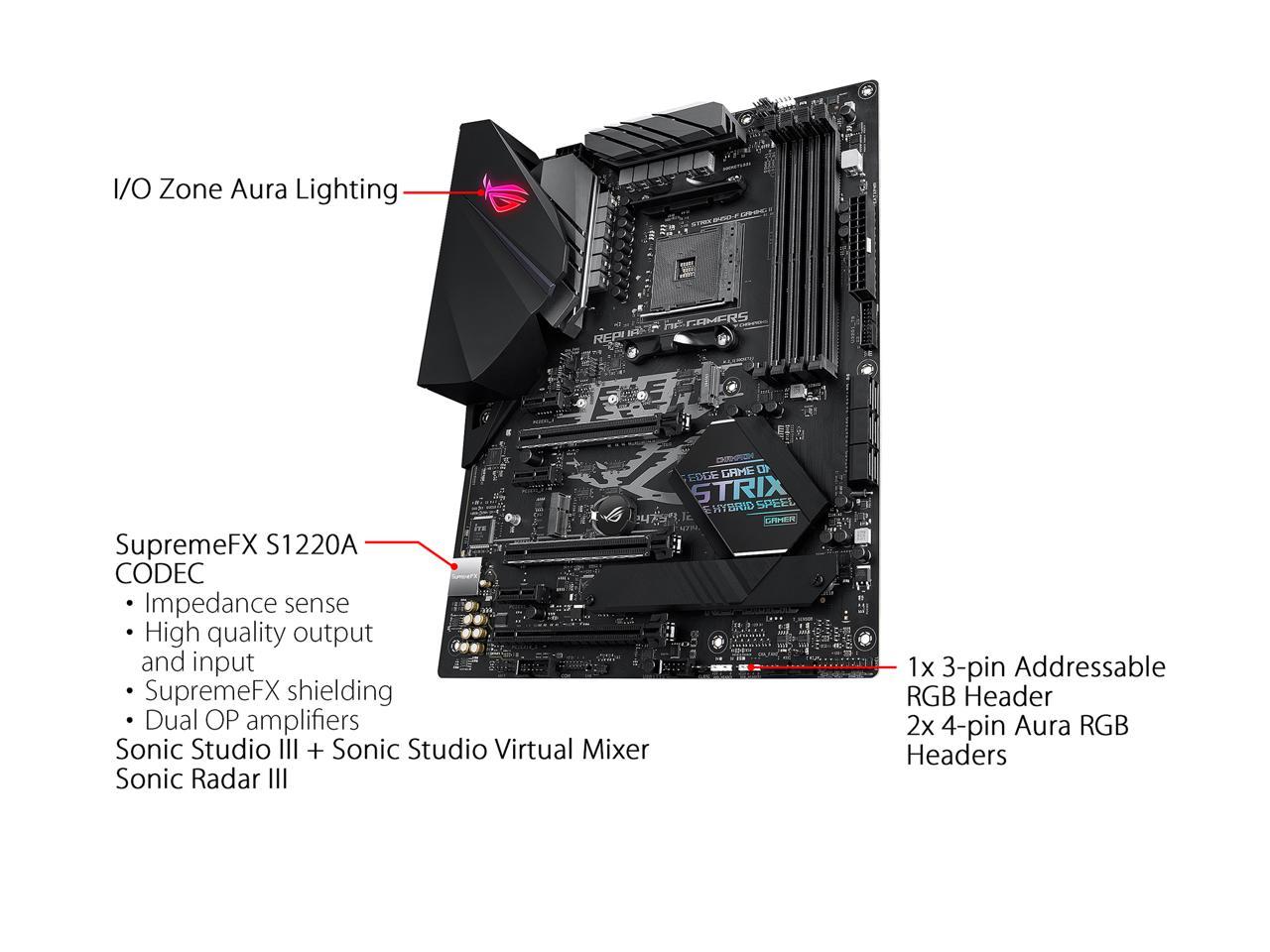

Gaming Immersion
Total Gaming Immersion
Total Gaming Immersion
- I/O Zone Aura Lighting
-
SupremeFX S1220A CODEC
- Impedance sense
- High quality output and input
- SupremeFX shielding
- Dual OP amplifiers
-
1 x 3-pin Addressable RGB Header
2 x 4-pin Aura RGB Headers

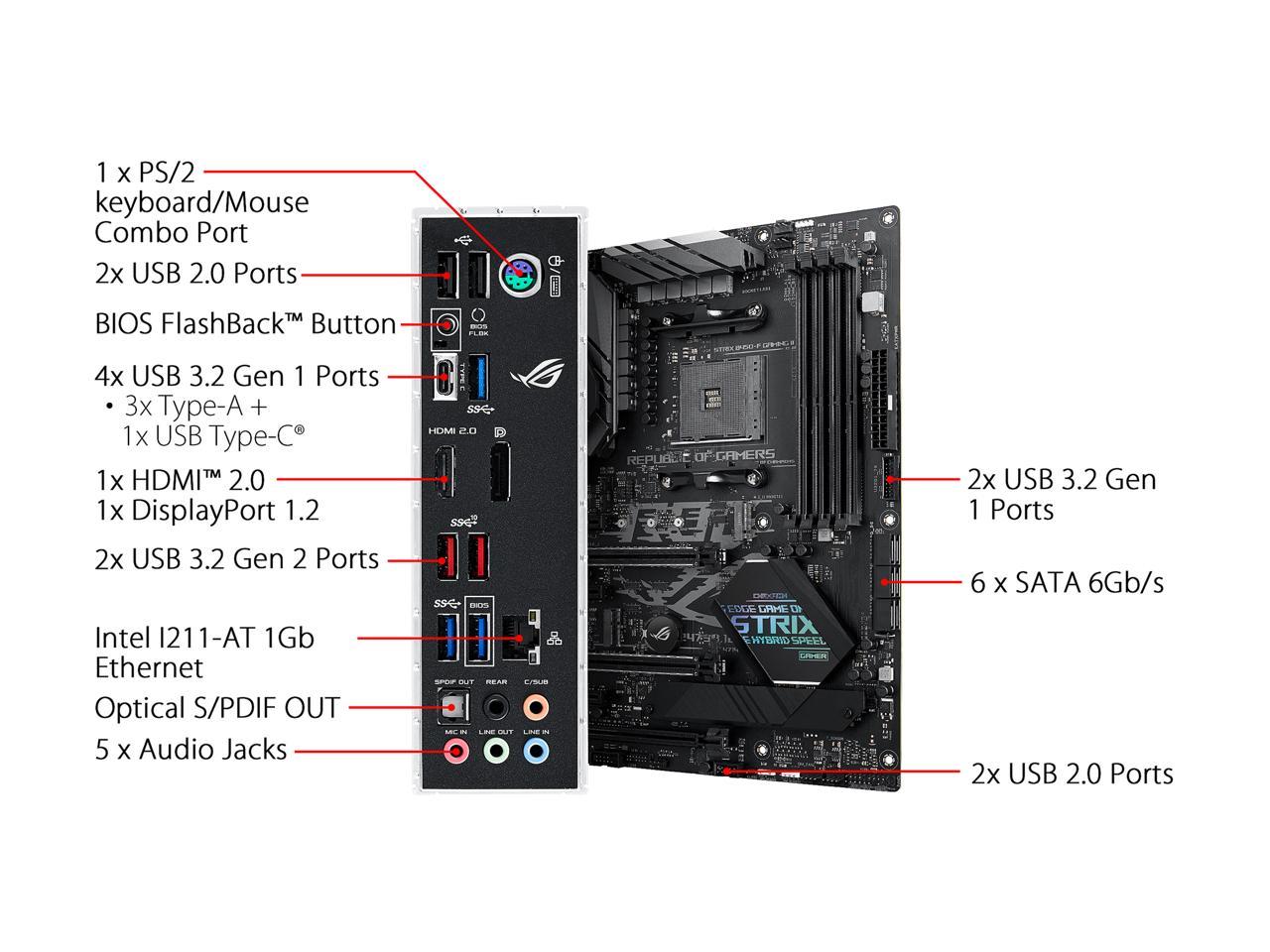

Connectivity
Full Connectivity
Full Connectivity
- 1 x PS/2 Keyboard/
Mouse Combo Port - 2 x USB 2.0 Ports
- BIOS FlashBack™ Button
-
4 x USB 3.2 Gen 1 Ports
- 3 x Type-A + 1 x USB Type-C®
- 1 x HDMI ™ 2.0
1 x DisplayPort 1.2 - 2 x USB 3.2 Gen 2 Ports
- Intel® I211-AT 1 Gb Ethernet
- Optical S/PDIF OUT
- 5 x Audio Jacks
- 2 x USB 3.2 Gen 1 Ports
- 6 x SATA 6 Gb/s
- 2x USB 2.0 Ports
AMPED PERFORMANCE
With a robust power design to drive multi-core Ryzen processors, plus cooling, storage, connectivity and audio options for a wide range of hardware, ROG Strix B450-F Gaming II offers gamers everything they need for a budget or high-performance build.
With a robust power design to drive multi-core Ryzen processors, plus cooling, storage, connectivity and audio options for a wide range of hardware, ROG Strix B450-F Gaming II offers gamers everything they need for a budget or high-performance build.
Power
Power Design
Digital power control and an array of discrete MOS ensure ROG Strix B450-F Gaming II has the muscle to control the latest AMD CPUs.
Digital power control and an array of discrete MOS ensure ROG Strix B450-F Gaming II has the muscle to control the latest AMD CPUs.
Alloy Choke and Capacitor
Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard.
Cooling
VRM Thermal Design
The ROG Strix B450-F Gaming II uses new alloy chokes that deliver better efficiency, and high-quality thermal pads to help transfer heat from the VRM array to a sink that has ample surface area for the latest processors. And to ensure critical components always make optimal contact, there's a backplate on the rear of the board that helps balance MOSFET temperatures while providing structural reinforcement.
The ROG Strix B450-F Gaming II uses new alloy chokes that deliver better efficiency, and high-quality thermal pads to help transfer heat from the VRM array to a sink that has ample surface area for the latest processors. And to ensure critical components always make optimal contact, there's a backplate on the rear of the board that helps balance MOSFET temperatures while providing structural reinforcement.
M.2 Heatsink
An integrated heatsink keeps the M.2 SSD at optimum operating temperature for consistent performance and reliability.
An integrated heatsink keeps the M.2 SSD at optimum operating temperature for consistent performance and reliability.
Cooler by Design
ROG Strix B450 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.
ROG Strix B450 series features the most comprehensive cooling options ever, configurable via Fan Xpert 4 or the UEFI BIOS.
CPU
CPU Fan Header
A dedicated pair of PWM/DC fan headers for CPU coolers
A dedicated pair of PWM/DC fan headers for CPU coolers
AIO Pump Fan Header
A dedicated PWM/DC header for self-contained water-cooling setups
A dedicated PWM/DC header for self-contained water-cooling setups
Chassis
4-pin PWM/DC Fan Header
All onboard headers support auto-detection of PWM or DC fans
All onboard headers support auto-detection of PWM or DC fans
Storage & Memory
Dual PCIe 3.0 x4 M.2
Dual PCIe® 3.0x4 M.2 slots provide NVM Express™ SSD RAID support for an incredible performance boost. Create a RAID configuration with up to three PCI Express® 3.0 storage devices via two M.2 slots and a PCIe x16 slot to enjoy incredible data-transfer speeds.
Dual PCIe® 3.0x4 M.2 slots provide NVM Express™ SSD RAID support for an incredible performance boost. Create a RAID configuration with up to three PCI Express® 3.0 storage devices via two M.2 slots and a PCIe x16 slot to enjoy incredible data-transfer speeds.
DDR4 OC 4400MHz
Tuned to take full advantage of Ryzen's capabilities, and ready for the latest memory kits, ROG Strix B450 Gaming Series motherboards are built specifically for high-performance gaming rigs. Maximize frame rates with a high-bandwidth memory kit or leverage a host of tuning options to extract peak performance potential from a modest setup.
Tuned to take full advantage of Ryzen's capabilities, and ready for the latest memory kits, ROG Strix B450 Gaming Series motherboards are built specifically for high-performance gaming rigs. Maximize frame rates with a high-bandwidth memory kit or leverage a host of tuning options to extract peak performance potential from a modest setup.
Networking
Intel® Gigabit Ethernet
Intel Ethernet Controller I211-AT ensures fast and smooth data exchanges. It reduces CPU overhead and increases TCP and UDP throughput, leaving more processing power for gaming.
Intel Ethernet Controller I211-AT ensures fast and smooth data exchanges. It reduces CPU overhead and increases TCP and UDP throughput, leaving more processing power for gaming.
M.2 Socket with E Key
Integrated with Intel® Wireless AC/AX technology, the M.2 socket offers PCIe support for a faster and more cost-effective WiFi and Bluetooth® 5.1 solution*.
*Bluetooth 5.1 will be ready in Windows 10 build 19041 or later.
Integrated with Intel® Wireless AC/AX technology, the M.2 socket offers PCIe support for a faster and more cost-effective WiFi and Bluetooth® 5.1 solution*.
*Bluetooth 5.1 will be ready in Windows 10 build 19041 or later.
LANGuard
Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.
Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.
LANGuard
Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.
Featuring advanced signal-coupling technology and high-tolerance components, LANGuard provides consistent Ethernet performance and greater protection against static electricity and power surges.
- EMI Cover
- Surface-mounted capacitors
Audio
SupremeFX
Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B450-F Gaming II. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.
Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B450-F Gaming II. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets.
Exceptional RMAA Performance
ASUS exclusive S1220A
113dB
Standard ALC1220
108dB
113dB
Standard ALC1220
108dB
Premium Nichicon™ audio capacitors
Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.
Fine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.
AI Noise-Canceling Microphone
AI noise-canceling microphone software is exclusively featured on ROG Strix motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.
AI noise-canceling microphone software is exclusively featured on ROG Strix motherboards and supports 3.5 mm, USB, or Bluetooth headsets. The utility leverages a massive deep-learning database to preserve the sound of your voice while eliminating distracting keyboard clatter, mouse clicks, and other forms of environmental noise. And it only places a slight load on the CPU, ensuring minimal impact on gaming performance.
3DMark - FPS (2560x1440)
*Testing configuration: CPU: AMD Ryzen 5 3600x; Motherboard: ROG STRIX B550-I GAMING; Graphics card: NVIDIA RTX 2060-06G; DRAM: Hynix 2666 16 GB; Power: Seasonic 430 W; HDD: Seagate M.2 NVME 2 TB; Cooling: Enermax T.B.APOLLISH; Voice Communication App: Discord (In-app noise canceling effects disabled) ; Background noise: Keyboard typing, mouse clicking, people talking, and music playing
*Actual performance varies by configuration
*Actual performance varies by configuration
Hear the difference
.jpg)
0:18
.jpg)
0:18
AI OFF
AI ON
Background noise
Other human voice
Human speech
BUILD SMART
Packed with intuitive software and DIY-friendly options for convenient setup and use, cyberpunk inspired aesthetics, plus a diverse ecosystem of components, ROG Strix B450-F Gaming II is the key to any outstanding gaming build.
Packed with intuitive software and DIY-friendly options for convenient setup and use, cyberpunk inspired aesthetics, plus a diverse ecosystem of components, ROG Strix B450-F Gaming II is the key to any outstanding gaming build.
Optimization
5-Way Optimization
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics.
Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics.
EPU guidance
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans. ROG Strix B450-F Gaming II also features 256 MB BIOS Flash ROM for future proof compatibility.
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans. ROG Strix B450-F Gaming II also features 256 MB BIOS Flash ROM for future proof compatibility.
Advanced Mode
When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.
When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T
Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.
GPU Post
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs to factory-fresh condition.
Last Modified Log
Track the latest changes and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
Search Function
Quickly and easily find the option or setting you're looking for.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T
Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.
GPU Post
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs to factory-fresh condition.
Last Modified Log
Track the latest changes and save preferred profiles onto a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
Search Function
Quickly and easily find the option or setting you're looking for.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan Control
Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75° C.
EZ Mode
Designed to simplify setup, EZ mode presents all the vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
Designed to simplify setup, EZ mode presents all the vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
Intuitive graphical fan controls
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA Information
Easily display SATA port details for device identification.
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA Information
Easily display SATA port details for device identification.
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
DIY Friendly
Pre-mounted I/O Shield
Patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.
Patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard.
BIOS FlashBack™
Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.
Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present.
Q-LEDs
Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.
Four onboard LEDs indicate power status, and any problem with the CPU, memory, graphics card or boot device for quick diagnosis.
SafeSlot
The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.
The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.
ID Design
Cyber-inspired Looks
ROG Strix B450-F Gaming II embodies the unique Strix gaming spirit with its stylish cut across the I/O shroud, its cyberpunk-inspired ROG eye logo across the PCB plate, and futuristic cybertext highlights.
ROG Strix B450-F Gaming II embodies the unique Strix gaming spirit with its stylish cut across the I/O shroud, its cyberpunk-inspired ROG eye logo across the PCB plate, and futuristic cybertext highlights.
Aura Sync
OUTSHINE THE COMPETITION
ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.
ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs as well as lighting strips connected to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Static
Breathing
Strobing
Rainbow
Color cycle
Starry night
Music
Smart
Certified Compatibility
ROG Strix motherboards undergo an extensive certification program to ensure the very best compatibility with the widest range of components and devices. For a smooth build process, refer to our list of guaranteed-compatible components. To help with memory upgrades, the list also includes a dedicated Qualified Vendor list (QVL).
ROG Strix motherboards undergo an extensive certification program to ensure the very best compatibility with the widest range of components and devices. For a smooth build process, refer to our list of guaranteed-compatible components. To help with memory upgrades, the list also includes a dedicated Qualified Vendor list (QVL).
ROG GIVES YOU MORE
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
Personalized Sound
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
General Information
| UPC | 192876924068 |
|---|
