Async Rs-232/422/485 Extender - Fiber, Terminal Block To Single-Mode Sc, Gsa, Ta

Description :

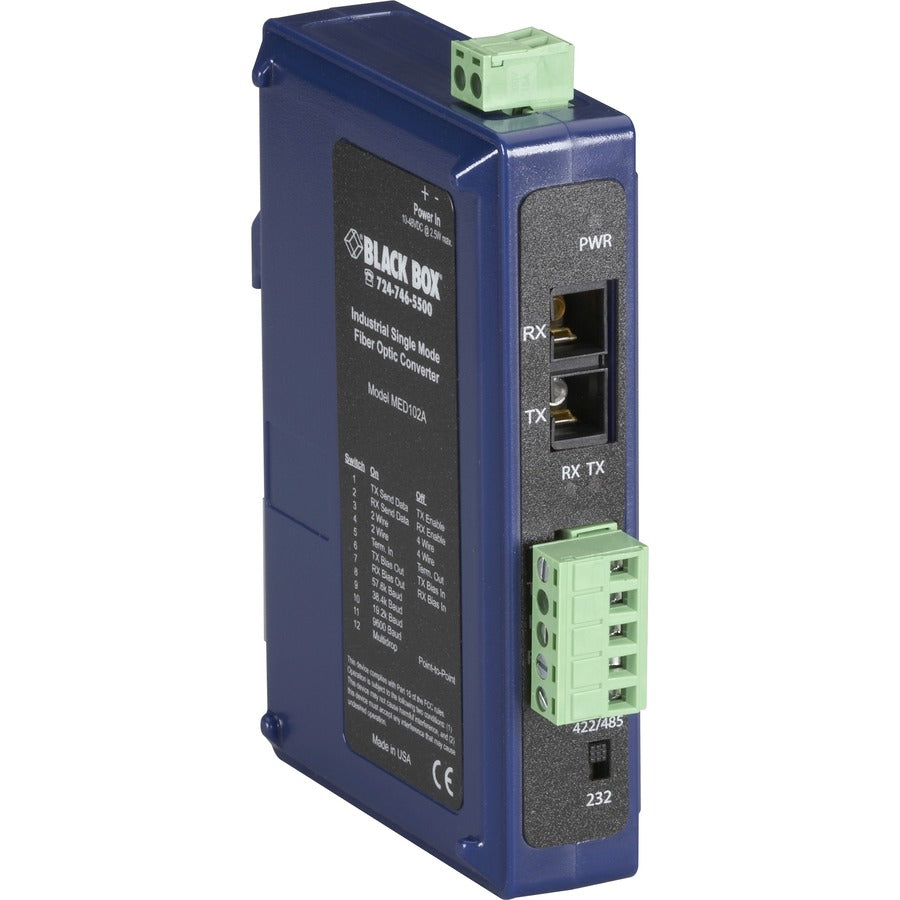

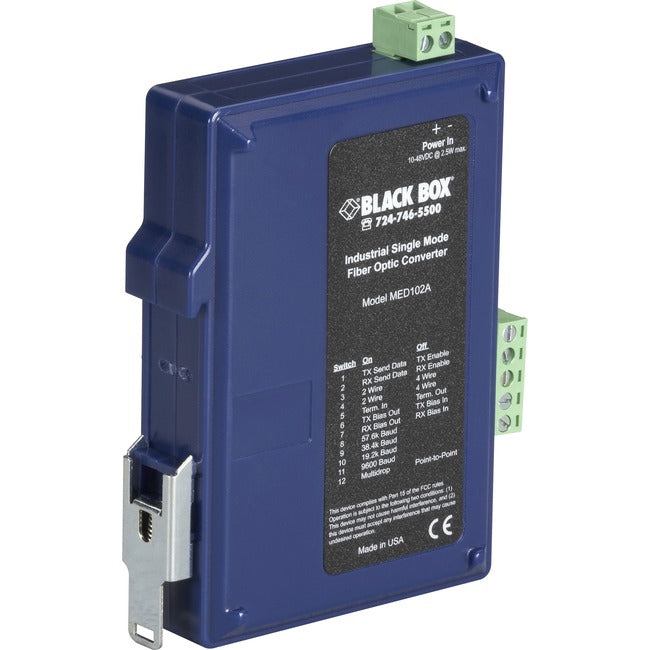

Black Box Industrial DIN Rail RS-232/RS-422/RS-485 Fiber Driver, Single-Mode

The MED102A is our premium serial to single-mode fiber optic converter. It provides versatile connections between asychronous full- or half-duplex serial equipment using duplex single-mode fiber optic cable. The converter can also be set up in a multi-drop configuration to allow one serial device to communicate with multiple devices on a fiber ring. It supports mixed standards, which allows you to replace other converters and isolators and add the EMI/RFI protection inherent to fiber optic communications.

• Indicator LEDS monitor signal and power


• Data-derived or RTS transmit/receive switching (RS-485)


• Extended ambient operating range -40 to +176° F (-40 to +80° C)


• Ideal for fiber applications that use different interface protocols.


• Communicate signals in a point-to-point or ring topology.

Product Type: Transceiver/Media Converter
Product Condition: New
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Rail-mountable
Manufacturer: Black Box Corporation
Product Name: Industrial DIN Rail RS-232/RS-422/RS-485 Fiber Driver, Single-Mode
Manufacturer Part Number: MED102A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 5 Year
Weight (Approximate): 8 oz
