Async Rs-232 To Rs-485 Interface Converter - Db9 Female To Rj-45 , Gsa, Taa

Description :

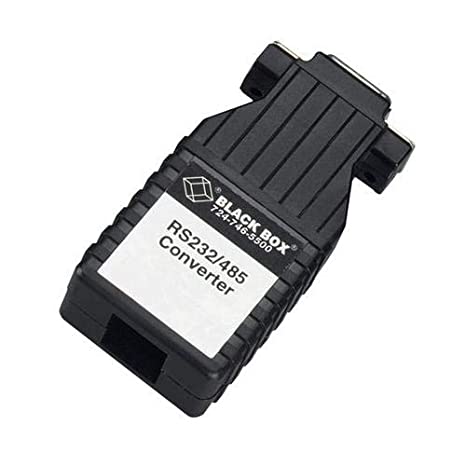

Black Box IC624A-F RS-232/485 Converter

• The RS-232 connector is DB9F; the RS-485 connector is RJ-45; other connectors are available (see Related Items).
• Built-in silicon avalanche diode surge protection against data loss and equipment damage from transient surges.
• You can also "fine tune" impedance and "echo" characteristics for your individual application.
• For configuration, the converter features two internal 4-position DIP switches.

• The RS485 driver is automatically enabled during each spacing state on the RS232 side.


• Up to 32 RS485 devices can be attached to create a large multi-drop network


• async (data leads) only.


• Operates 2-wire half-duplex or 4-wire half- or full-duplex.


• Operates in point to point or multipoint applications


• Transmit data up to 115 kbps or at distancesup to 4000 ft.

Product Type: Transceiver/Media Converter
Product Condition: New
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: External
Manufacturer: Black Box Corporation
Product Model: IC624A-F
Product Name: IC624A-F RS-232/485 Converter
Manufacturer Part Number: IC624A-F
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
