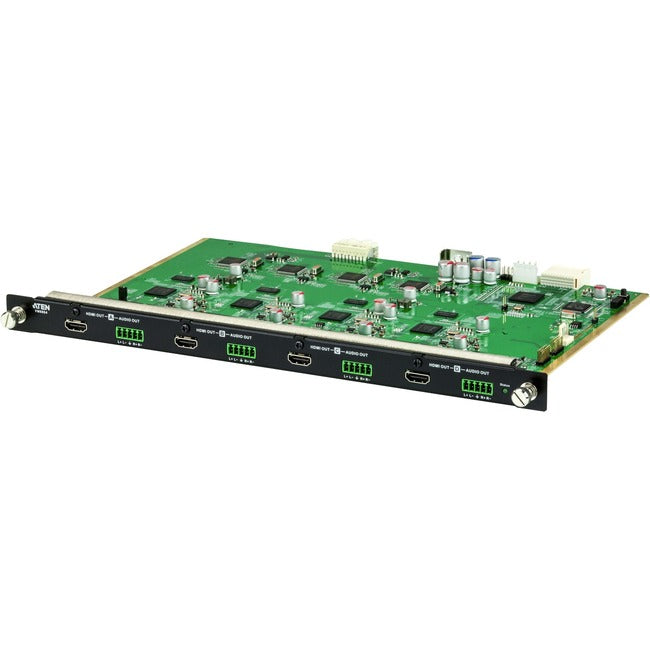

ATEN 4-Port HDMI Output Board with Scaler
The VM8804 4-Port HDMI Output Board offers an easy way to route any of audio/video sources to any of 4 displays, in combination with an ATEN Modular Matrix Switch.
The VM8804 supports Seamless Switch™ technology that provides video switching in real-time, a built in scaler that handles different video resolutions, and EDID Expert technology for fast smooth switching between displays, giving you the perfect viewing experience. The VM8804 also supports HDMI audio can be extracted and stereo audio that can be embedded.
Features
- 4-port HDMI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
- Superior video quality - HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
- HDMI (3D, Deep Color); HDCP 1.4 Compatible
- Seamless Switch™- provides continuous video streams, realtime switching and stable signal transmission*
- Built-in scaler on each output port to support the scaling function for different video Resolutions
- Consumer Electronics Control (CEC) support
- EDID Expert - selects optimum EDID settings for smooth power-up and the highest quality display
- Built-in EDID wizard - provides an easy way to customized EDID settings
- Hot-swappable design for easy integration of I/O boards
- Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
- Audio-enabled
- Seamless Switch™- provides continuous video streams, real-time switching and stable signal transmission
- Built-in scaler on each output port to support the scaling function for different video resolutions
- HDMI (3D, Deep Color); HDCP 1.4 Compatible
Product Type: HDMI Output Board
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Material: Metal
Country Of Origin: Taiwan
Brand Name: ATEN
Compatibility:
Active Optical Cable:
- VE7835
- VE7834
- VE7833
- VE7832
Modular Matrix Switch:
HDBase T:
- Extender VE811
- Reciever VE811R
- Transmitter VE811T
- Extender with POH VE1812
4-Port 4K DisplayPort Input Board VM7904
Manufacturer: ATEN Technology Inc
Product Model: VM8804
Product Name: 4-Port HDMI Output Board with Scaler
Application/Usage: Switch
Manufacturer Part Number: VM8804
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:
- 4-Port HDMI Output Board with Scaler
- 4x Terminal Blocks
- 1x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 1.28 lb
