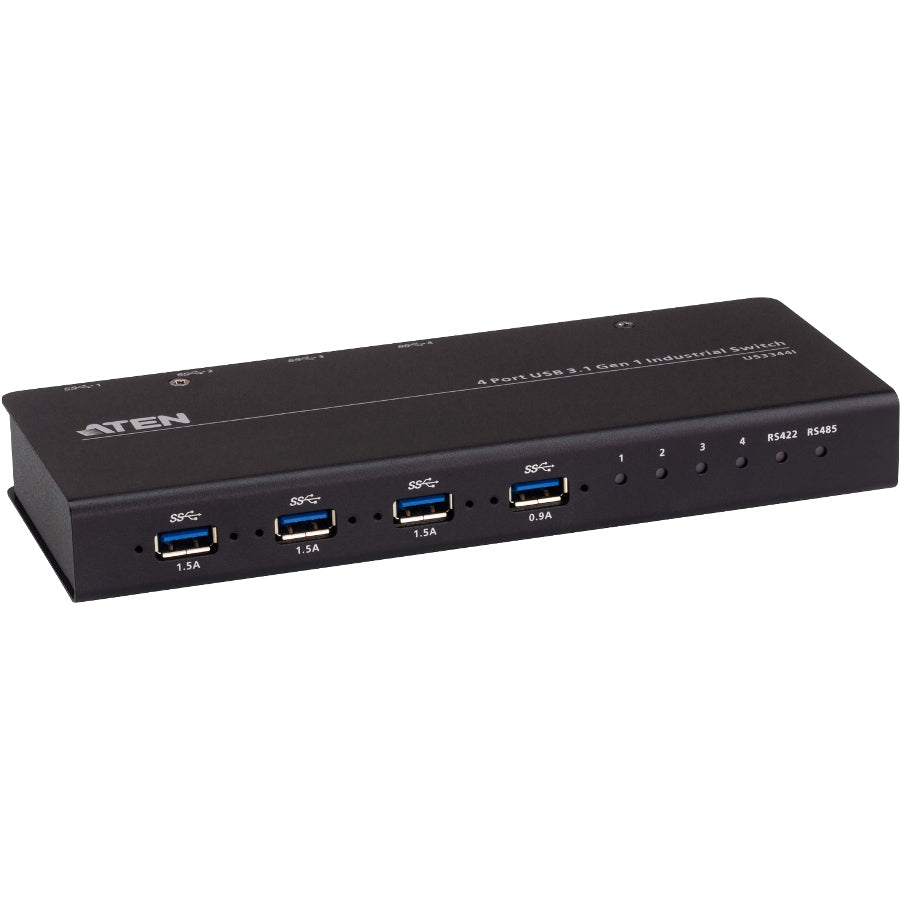

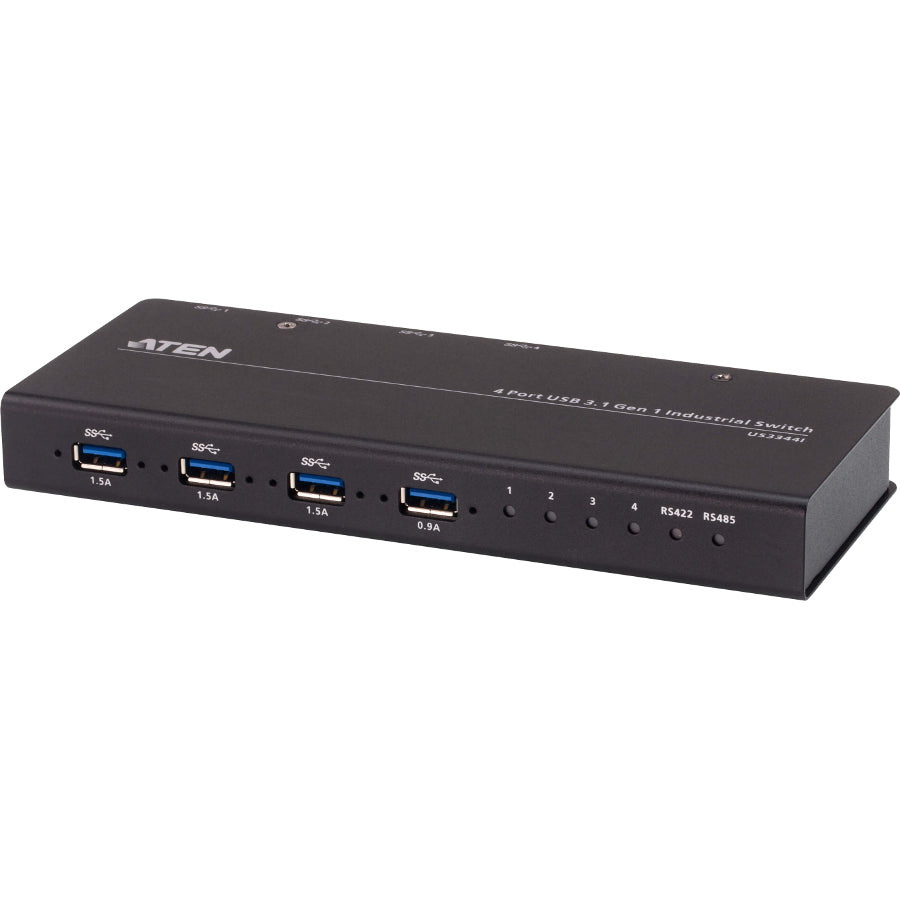

ATEN 4 x 4 USB 3.1 Gen 1 Industrial Hub Switch
The US3344I is a 4-port USB3.1 Gen1 Industrial Switch that enables 4 computers to share the use USB3.1 Gen1 devices, such as keyboard, mouse and other peripheral devices. The peripheral focus can be given to a computer manually by using pushbutton on the switch.
It eliminates the cost the implement the complicate redundant systems and equipments for each computer. The US3344I chassis and rack mountable design is suitable for industrial environment. For extra convenience, it features an external remote control port that can simplify cabling layout via traditional RS-422/RS-485 signals.
The US3344I allows for a neat and tidy installation -The USB cables are bundled to save the extra cost of purchasing USB cables.
- Enables four computers to share USB peripheral up to four devices
- Supports USB 3.1 Gen1 specification, maximum data transfer rates up to 5Gbps
- Multiplatform support - Windows, Mac and Linux

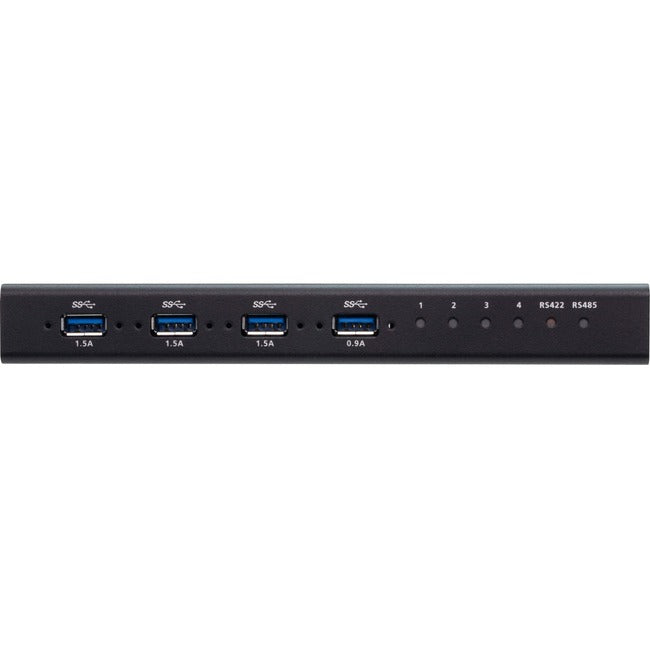

- LED indicators display port focus
- Metal mechanical cassis with wall mountable designs
- Support aftermarket USB M2 screw locking cable

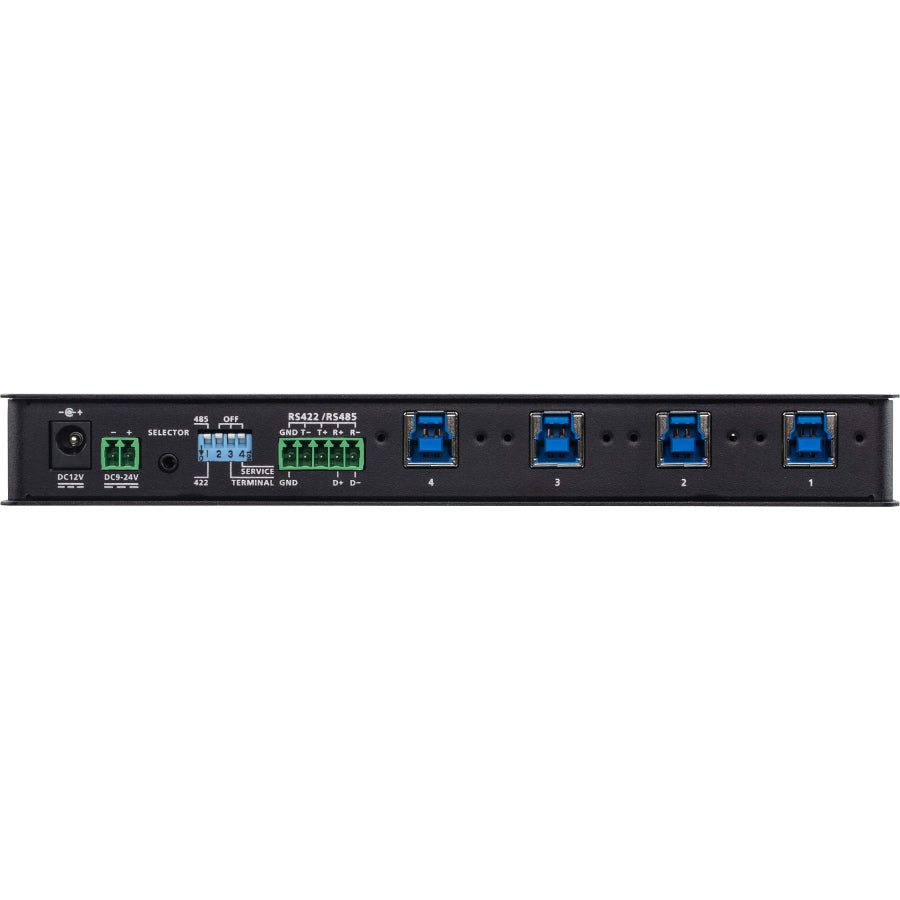

- Support port selection via remote controller or RS-422/RS-485 link through 5-pin terminal block
- Hot pluggable
- Support DC 9-24V power input by terminal block
- Support Battery Charging V1.2 and over current protection
Product Type: USB Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: ATEN
Length: 7.9"
Manufacturer: ATEN Technology, Inc
Product Name: 4 x 4 USB 3.1 Gen 1 Industrial Hub Switch
Manufacturer Part Number: US3344I
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Platform Supported: Linux
Package Contents:
- 4 x 4 USB 3.1 Gen 1 Industrial Hub Switch
- 2 x USB 3.1 Gen 1 Type-B to Type-A Cable 1.2M
- 2 x USB 3.1 Gen 1 Type-B to Type-A Cable 1.8M
- 1 x Remote Port Selector
- 1 x Mounting Kit
- 1 x Terminal Block Adapter Set (an RS-422/RS-485 and a DC terminal block adapter)
- 1 x User Instructions
Weight (Approximate): 1.12 lb
