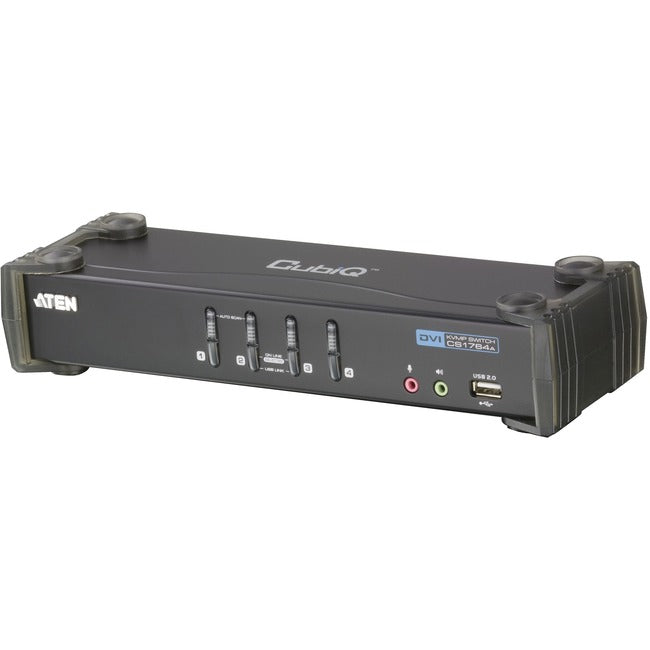

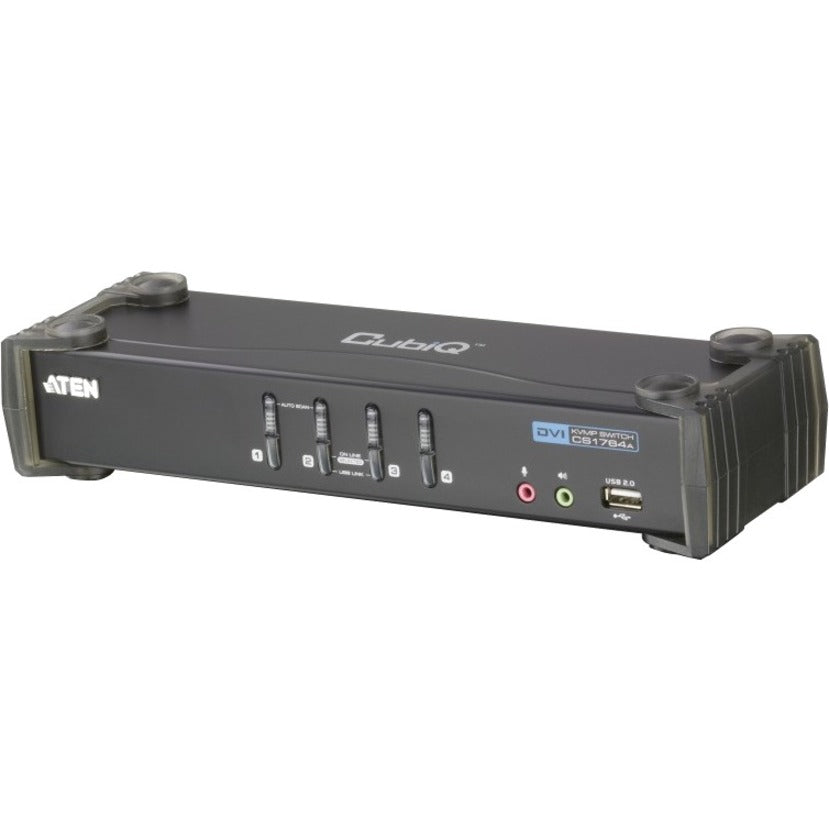

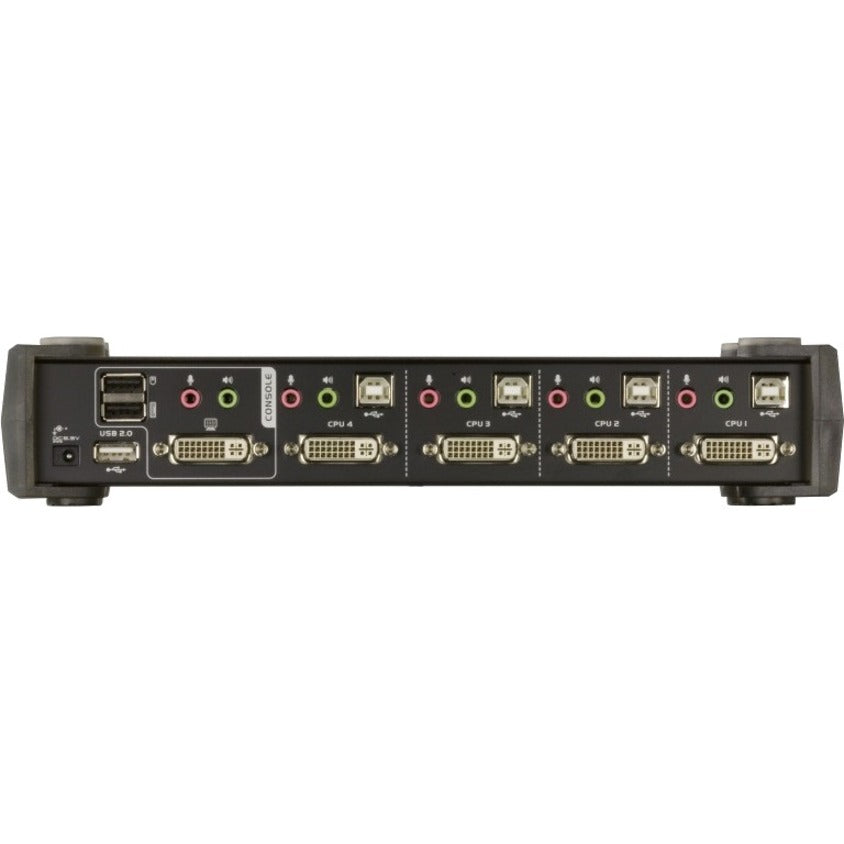

This ATEN 4-port USB DVI KVMP switch is perfect for creative professionals and power users who need multimedia desktop switching with high-resolution DVI support. Our ATEN CS1764A delivers:
-
4-port switching capability with simultaneous keyboard, video, mouse, and peripheral control
-
DVI digital video supporting resolutions up to 1920 x 1200 for crisp display quality
-
USB 2.0 hub functionality enabling shared peripheral access across connected computers
-
Integrated audio switching for complete multimedia workstation management
Key Features
-
DVI-I video connectivity supporting both digital and analog display signals
-
USB 2.0 hub with 2 ports for sharing peripherals between computers
- Optimized for audio switching with microphone and speaker support
- Consistent hotkey switching and push-button port selection
-
KVMP technology providing keyboard, video, mouse, and peripheral control
Technical Specifications
| Manufacturer |
ATEN Technology Inc |
| Model Number |
CS1764A |
| Type |
4-Port USB DVI Audio KVMP Switch |
| Video Support |
DVI-I up to 1920 x 1200 @ 60Hz |
| USB Hub |
USB 2.0 with 2 shared ports |
| Audio Features |
Stereo audio and microphone switching |
| Switching Methods |
Front panel buttons and hotkey commands
|
| Compatibility |
Windows, Mac, Linux systems with DVI output |
Frequently Asked Questions
Q: What makes this a KVMP switch versus a standard KVM switch?
A: This ATEN KVMP switch includes USB 2.0 hub functionality, allowing you to share USB peripherals like printers, scanners, or external drives between connected computers in addition to keyboard, video, and mouse.
Q: Does the DVI support work with modern high-resolution displays?
A: Yes, this 4-port DVI KVM switch supports resolutions up to 1920 x 1200 @ 60Hz, making it suitable for most professional monitors and ensuring crisp, clear video quality for design and multimedia work.
Q: Can I use audio equipment with all connected computers?
A: Absolutely. The audio switching feature allows you to connect speakers and a microphone that will automatically switch between computers, providing complete multimedia control for presentations, conferencing, or entertainment.
Q: How does the USB hub functionality work?
A: The integrated USB 2.0 hub provides 2 additional USB ports that are shared between all connected computers, allowing you to connect USB devices that will be available to whichever computer is currently selected.
ATEN CS1764A 4-Port USB DVI Audio KVMP Switch with USB 2.0 hub and multimedia switching. Professional desktop computer management solution.
