ATEN KL1516AiM - KVM console with KVM switch - 16 ports - PS/2, USB - 17 - rack-mountable - 1280 x 1024 @ 75 Hz - VGA - 1U"

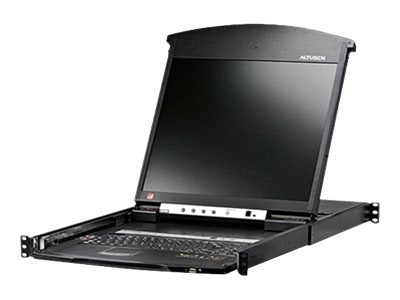

The KL1516Ai dual rail LCD KVM Switch is a control unit that allows secure access up to 16 computers from a single KVM (keyboard, video, and mouse) console. It consists of an integrated LCD monitor, keyboard, and touchpad in a 1 U rack-mountable retractable sliding housing.
The LCD and keyboard/touchpad modules slide independently of each other. To maximize space in your data center, the keyboard/touchpad module slides back to " hideaway " when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity.
The KL1516Ai features IP-based connectivity that allows local and remote operators to monitor and access the computers on your installation. Because it uses TCP/IP for its communications protocol, the KL1516Ai can be accessed from any computer on the LAN, WAN, or Internet - whether that computer is located down the hall, down the street, or halfway around the world.

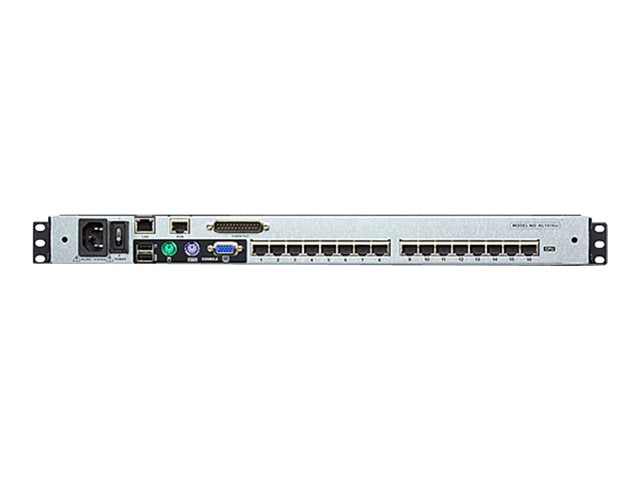

For added convenience, ports for an external keyboard, monitor, and mouse are provided on the rear panel - permitting you to manage the switch from a local console. There is also an external USB mouse port on the keyboard module, allowing you to use an external mouse, rather than the touchpad.
Enhanced features include a Panel Array Mode that displays the video output of up to 16 computers at the same time, and a message board that allows logged in users to conveniently and instantly communicate with one other - no matter where in the world they actually are. The KL1516Ai is an ideal solution for your server room management.
- Integrated KVM console with 17" LCD monitor in a dual rail housing
- A single console controls up to 16 computers
- One bus for remote KVM over IP access
- Space-saving RJ-45 connectors and CAT 5e/6 cabling
- KVM adapter cables designed with automatic conversion to allow flexible interface combinations to control all computer types
- Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1 U of rack space
- Dual rail - LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- LCD power button helps save energy and prolong displays' life
- End session feature - administrators can terminate any running session
- Adapter ID - stores port information allowing administrators to relocate servers to different ports, without having to reconfigure the adapters and switch
- Port Share Mode allows multiple users to gain access to a server simultaneously
- Remote power control for attached Power Over the NET devices
- Easy computer selection via pushbuttons, hotkey mode, OSD (OnScreen Display), and Browser-based GUI
- Local console, browser, and AP GUIs offer a unified multi language interface to minimize user training time and increase productivity
- Browser-based UI in pure Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
- 128-bit SSL encryption to protect password when users log in
- IP/MAC filter support for enhanced security protection
- Configurable user and group permissions for server access and control
- Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
- Message board feature allows logged in users to communicate with each other
- Mouse DynaSync - automatically synchronizes the local and remote mouse movements
- On-screen keyboard with multi language support
- BIOS-level access
What's in the Box:
- ATEN KL1516AiM
- Data cable
- Rack mounting kit
