Aten Video Extender

ATEN Video Extender

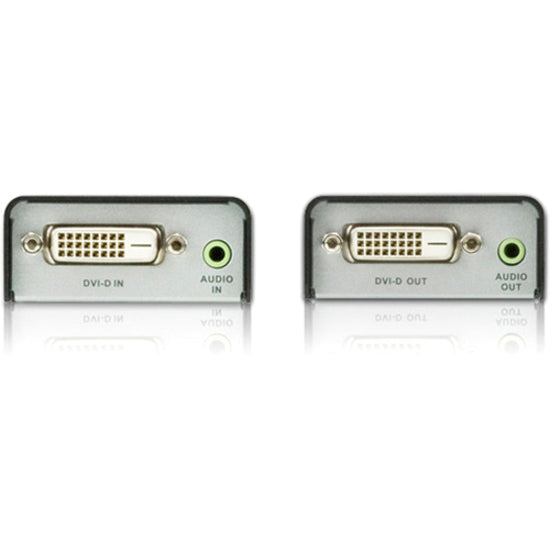

The VE600A extends DVI-D video and audio up to 200 ft at 1080i or 130 ft at 1920 x 1200 and 1080p.

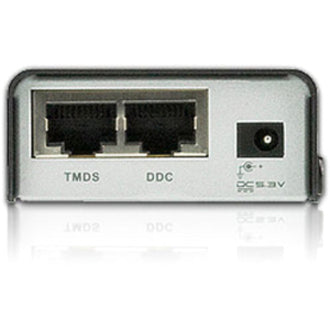

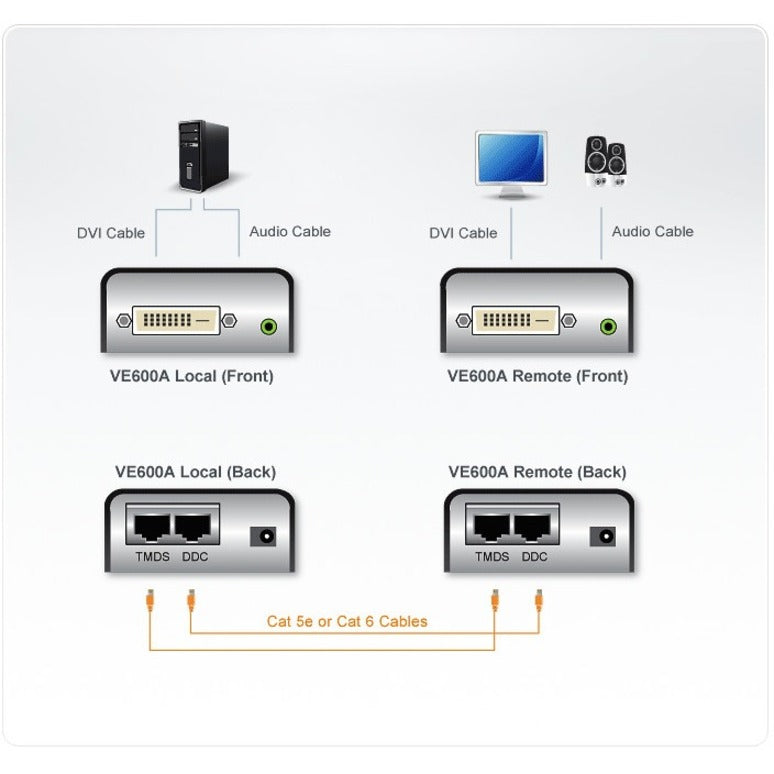

The VE 600A uses two Cat5e cables to connect the local and remote units. It will pass video and audio with one cable [TDMS], but the second cable [DDC] must be used if your installation requires EDID information.

There are no drivers or other software to install, simply connect the units to your video source and destination.

• HDCP Compatible


• Rack mountable


• Supports widescreen formats


• Audio enabled


• Adjustable EQ compensation control


• Superior video quality - up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m)


• Long distance transmission - up to 60 m


• Uses Cat 5e cable to connect the local and remote units


• Extends the distance between DVI source and DVI display device

Product Type: Video Extender Transmitter/Receiver
Transmitter Height: 1"
Transmitter Width: 2.20"
Transmitter Weight (Approximate): 1 lb
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Model: VE600A
Product Name: Video Extender
Manufacturer Part Number: VE600A
Manufacturer Website Address: http://www.aten.com/us/en/
Package Contents:

• Video Extender


• 2 x Power Adapters


• 1 x Rack Mount Kit


• 1 x User Guide


• 2 x Grounding Wire
