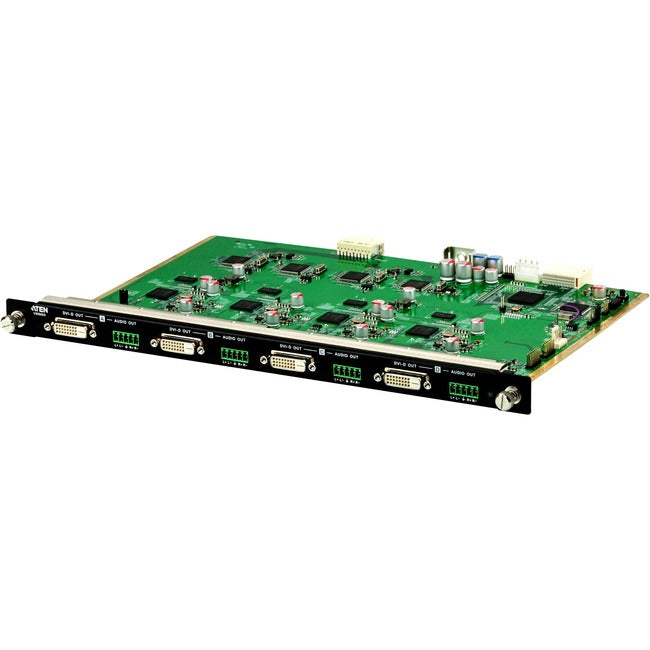

ATEN VM8604 4-Port DVI Output Board with Scaler
The VM8604 4-Port DVI Output Board is offers an easy way to route any of 4 audio/video sources to any of 4 displays, when used in combination with ATEN's Modular Matrix Switch.
The VM8604 supports Seamless Switch™ technology that provides video switching in realtime, a built in scaler that handles different video resolutions, and EDID Expert technology for smooth switching between displays, giving you the perfect viewing experience.
- Audio-enabled
- Hot-swappable design for easy integration of I/O boards
- EDID Expert - selects optimum EDID settings for smooth power-up and the highest quality display
- Built-in EDID wizard - provides an easy way to customized EDID settings
- Built-in scaler on each output port to support the scaling function for different video resolutions
- HDCP 1.4 Compatible
- Seamless Switch™- provides continuous video streams, real-time switching and stable signal transmission
- Superior video quality - up to 1920 x 1200 @ 60Hz
- 4-port DVI Output Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Product Material: Metal
Brand Name: VanCryst
Compatibility:
ATEN Matrix Switches:
- VM1600
- VM3200
- VM3250
- VM1600A
Aten Kvm Switches: Aten DVI Cables: - 2L-7D02V
- 2L-7D03DD
- 2L-7D05DD
- 2L-7D10DD
Aten VE601 DVI HDBaseT-Lite Video Extender
Length: 13.9"
Manufacturer: ATEN Technology Inc
Product Name: 4-Port DVI Output Board with Scaler
Application/Usage: Cable
Manufacturer Part Number: VM8604
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 1x VM8604 4-Port DVI Output Board with Scaler
- 4x Terminal Block Connectors
- 1x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 1.21 lb
Product Type: DVI Output Board
