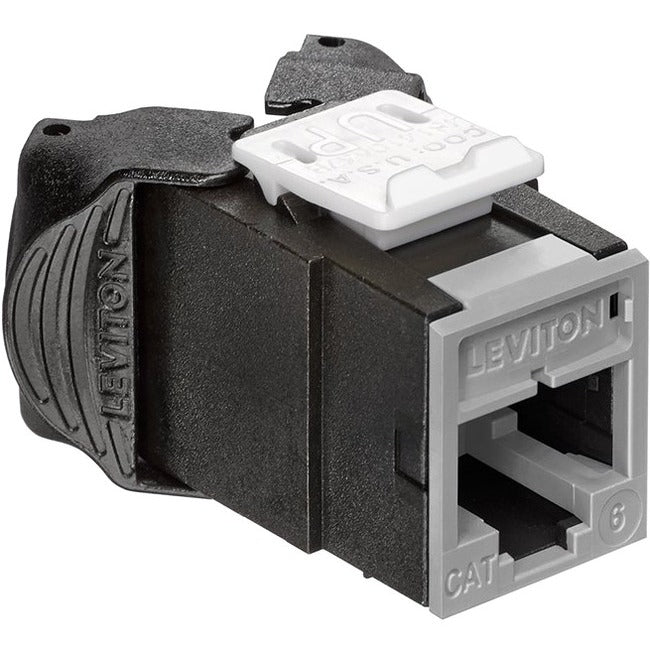

Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connector, Grey
APPLICATION
Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connectors support 1000BASE-T networks. The connector is part of a complete Atlas-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The connector supports emerging technologies and will easily adapt to network trends.
SPECIFICATION
The connector shall meet or exceed all requirements for channel- and component-level performance as described in ANSI/TIA-568-C.2 for Category 6 standards, as well as Class E requirements described in ISO/IEC 11801. The connector shall comply with all National Electrical Codes, be compliant with ANSI/TIA-1096-A, be UL listed, and be independently verified. The connector body shall be made of die-cast zinc and all plastic components shall be made of high-impact, fire-retardant plastic rated UL 94V-0. The connector shall support tool-free termination/ re-termination and shall not require a specialized termination tool. The connector wiring shall be universal to accommodate T568A and T568B wiring schemes. The connector shall be available in 13 colors; more than established by the ANSI/TIA-606 standard. The connector shall be supplied with interchangeable icons, and be offered with internal shutter and standard styles. It shall support Power over Ethernet up to 100 watts.
- Tine geometry prevents arcing damage where plug and connector make contact
- Connector with internal shutter protects against dust and debris
- Connector supplied with interchangeable icons (voice, data, A/V, and blank, color coded to match the connector face), for easy identification and tracking of data, voice, or other functions
- Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
- Robust IDCs can withstand 20 re-termination cycles and connector contacts are tested for 750 plug-mating cycles to ensure system longevity
- Short connector design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
- Unique design supports tool-free termination/re-termination and requires no specialized termination tool
- For Power over Ethernet, RFT maintains contact force between plug and connector, preventing arcing from intermittent disconnects
- Patented Retention Force Technology (RFT) protects against tine damage and increases system longevity
- Independently tested and guaranteed to exceed all component,permanent link, and channel margins
Product Type: Network Connector
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Product Color: Gray
Product Material: Copper
Country Of Origin: United States
Brand Name: Leviton
Manufacturer: Leviton Mfg. Company, Inc
Product Name: Atlas-X1 Cat 6 Component-Rated UTP QuickPort Connector, Grey
Product Line: Atlas-X1
Manufacturer Part Number: 61UJK-RG6
Manufacturer Website Address: http://www.leviton.com
