AtlasIED IP-SDMF Speaker System - Neutral White - TAA Compliant
The AtlasIED IPX series IP-SDMF indoor wall mount IP speaker with display and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.
AtlasIED IP-SDMF registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.
When used within a Cisco Environment, these same IP speakers from AtlasIED can join Cisco's Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco's SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and speakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).
IP-SDMF IP speakers with display and flasher provide equality "effective communication".
"Under Title II of the ADA, all state and local governments are required to take steps to ensure that their communications with people with disabilities are as effective as communications with others."
What does it mean for communication to be "effective"? Simply put, "effective communication" means that whatever is written or spoken must be as clear and understandable to people with disabilities as it is for people who do not have disabilities.
Where 3rd party notification applications are not required, the IP-SDMF speakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.
Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.
Features
IP-SDMF indoor speakers are fitted with an 8" (205mm) coaxial speaker that is optimized for voice intelligibility.
The grills for the IP-SDMF IP speakers are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

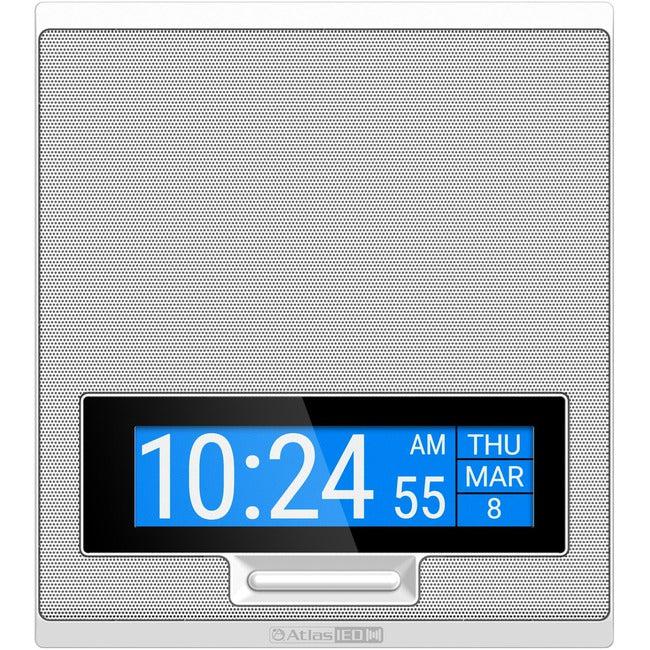

While in Standby, the IP-SDMF displays time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the IP-SDMF display changes from time to visual notifications by Scrolling text content over the high-resolution LCD digital readout.
The LED flashers located below the display can be used to alert room occupants of an incoming audio message as well as scrolling text message in accordance with ADA compliance.
All Atlas IP speakers consist of a factory assembled speaker, grill, and PCB amp/control board that is securely mounted to the rear of the grill.
- Dynamic or Static IP Address
- IEEE802.3 10/100Base-T Ethernet
- IEEE 802.1q Tagging
- IEEE 802.3aT Compliant
- VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.722 Wideband Audio (64 kbit/s)
- Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
- Auto Registration: SLP for InformaCast or DHCP Option 72 for Revolution or GCK
- Static Configuration: HTTP GUI for Static Configuration or Cisco SRST
Product Type: Speaker System
Taa Compliant: Yes
Product Color: Neutral White
Brand Name: AtlasIED
Manufacturer: AtlasIED
Product Model: IP-SDMF
Product Name: IP-SDMF Speaker System
Mount Type: Wall Mountable
Manufacturer Part Number: IP-SDMF
Manufacturer Website Address: http://www.atlassound.com
Limited Warranty: 1 Year
Weight (Approximate): 4.23 lb
