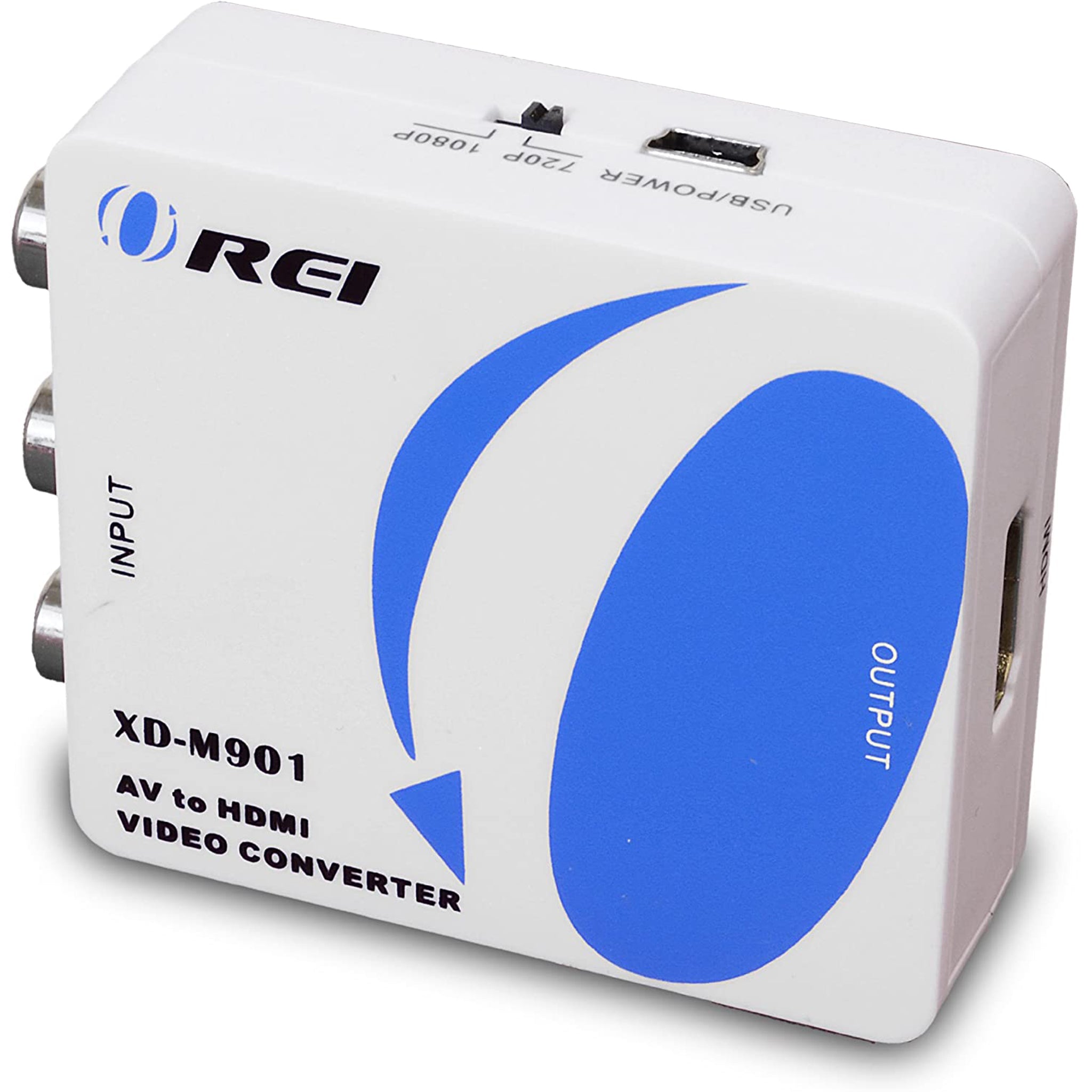

Name: AV Composite RCA to HDMI Video Converter: PAL - NTSC (XD-M901)
Brand: OREI
SKU: XD-M901
Price: 19.99 USD
Availability: OutOfStock

AV Composite RCA to HDMI Video Converter: PAL - NTSC (XD-M901)

Roll over image to zoom in Click on image to zoom

Buying in volume? Bulk discounts and deal registrations are available. Contact us or email sales@tecisoft.com.

OREI XD-M901: PAL-NTSC RCA to HDMI Video Converter

LCD or PLASMA TV: Take your NTSC (American) HDTV to an overseas PAL country. Using the high definition quality conversion of the Orei XDM901 you can convert PAL TV signals to NTSC HDTV for viewing on your existing NTSC LCD or Plasma HDTV. Eliminating the need to buy a new multi-system TV set. Local PAL TV tuner like a Cable Box or Satellite Receiver is required. This converter does not tune channels. International travel and relocation: You can use your video equipment with it while traveling or relocating to a country using a different TV system. You can install it on ships, planes and for many industrial and business applications. Camcorders: Use your PAL HD camcorder in the USA. You can also convert movies from your camcorder. Game Systems: Use your Hi Definition PAL game system like Wii, PS2, PS3, XBOX, XBOX 360, etc... on a NTSC TV. Satellite, Over the air broadcast or Cable TV conversion

[shortdes]

Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input
Supports HDMI 1080p or 720p output
Provide advanced signal processing with great precision, colors, resolutions, and details

[/shortdes] [tab]

AUDIO AND VIDEO

INPUT PORTS:	1xRCA
OUTPUT PORTS:	1xHDMI

COMPLIANCES

HDMI Compliance	HDMI 1.3
HDCP Compliance	HDCP 1.4

VIDEO OUTPUT

Video Bandwidth:	148.5MHz
Video Resolutions:	Up to 1080p@60Hz
Color Space:	RGB
Color Depth:	8BIT

SUPPORTED RESOLUTIONS

Composite Input:	PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N
Output Resolutions:	1080p@60Hz, 720p@60Hz

SIGNALS

TMDS Signal:	3.3V

DDC Signal:	5V

SUPPORTS SCREEN FLIP, DOWNSCALER FUNCTION

Screen Flip Function:	No
Downscaler Function:	No

DIMENSIONS & WEIGHT

Height:	20mm
Width:	55mm
Depth:	66mm
Weight:	40g

PROTECTION

Operation Temperature:	32 - 104°F / 0 - 40°C
Storage temperature:	-4 - 140°F / -20 - 60°C
Relative Humidity:	20~90% RH (non-condensing)
ESD Protection:	Human body model:+/-8 kV (air-gap discharge) +/- 4 kV (contact discharge)

POWER

Power Consumption (Max):	2.05W
Power Supply:	USB cable

PHYSICAL PROPERTIES

Color:	White
Housing:	Plastic

PACKAGE CONTENTS

1x Video Converter

1x USB cable

1x User Manual

WARRANTY

1-Year Manufacturer's Warranty

[/tab]

General Information

UPC	887476367000

AV Composite RCA to HDMI Video Converter: PAL - NTSC (XD-M901)
