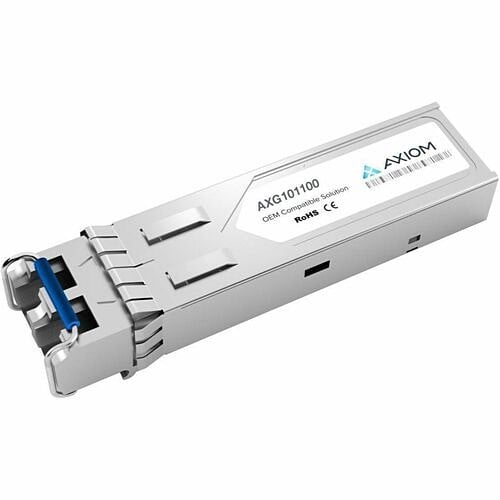

AXIOM 1000BASE-LH SFP Transceiver SMF LC 10KM 1310NM
The AXIOM 1000BASE-LH SFP transceiver delivers reliable gigabit connectivity over extended single-mode fiber distances. Engineered for long-haul networking applications, this SMF LC transceiver provides 10KM transmission range at 1310NM wavelength, making it ideal for enterprise data centers, telecommunications infrastructure, and campus network expansions. Built to OEM specifications and fully compatible with industry-standard equipment, this SFP module ensures cost-effective, high-performance fiber optic connectivity without vendor lock-in.
Key Features
-
1000BASE-LH standard for long-haul single-mode fiber transmission
- 10KM transmission distance over SMF (Single-Mode Fiber)
- 1310NM wavelength for optimal fiber propagation
- LC duplex connector for secure, reliable connections
- Hot-swappable SFP form factor for easy installation
- DDM (Digital Diagnostic Monitoring) support for real-time performance tracking
- RoHS compliant and environmentally responsible design
- Full compatibility with Cisco, Dell, HP, Juniper, and other major platforms
Technical Specifications
| Specification |
Value |
| Manufacturer |
AXIOM |
| Part Number |
AXG101100 |
| Standard |
1000BASE-LH |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Connector Type |
LC Duplex |
| Transmission Distance |
10 KM |
| Wavelength |
1310 NM |
| Data Rate |
1.25 Gbps |
| Operating Temperature |
0°C to 70°C |
| Storage Temperature |
-20°C to 85°C |
| Power Consumption |
1.0W (typical) |
| Compliance |
RoHS, IEEE 802.3z |
Frequently Asked Questions
What is a 1000BASE-LH SFP transceiver used for?
A 1000BASE-LH SFP transceiver is designed for long-distance gigabit Ethernet transmission over single-mode fiber. It's commonly used in data center interconnects, metropolitan area networks (MANs), and telecommunications applications where distances exceed standard short-reach transceiver capabilities.
How far can this SMF LC transceiver transmit?
This AXIOM transceiver supports transmission distances up to 10 kilometers over single-mode fiber, making it suitable for campus networks, inter-building connections, and long-haul enterprise deployments.
Is the AXIOM 1000BASE-LH transceiver compatible with my network equipment?
Yes, this SFP transceiver is fully compatible with industry-standard gigabit Ethernet ports supporting 1000BASE-LH. It works with Cisco, Dell, HP, Juniper, and most other major networking vendors' equipment featuring SFP slots.
What does DDM support mean for this fiber optic transceiver?
Digital Diagnostic Monitoring (DDM) allows real-time monitoring of transceiver performance metrics including temperature, optical power levels, and voltage. This enables proactive network management and faster troubleshooting of connectivity issues.
