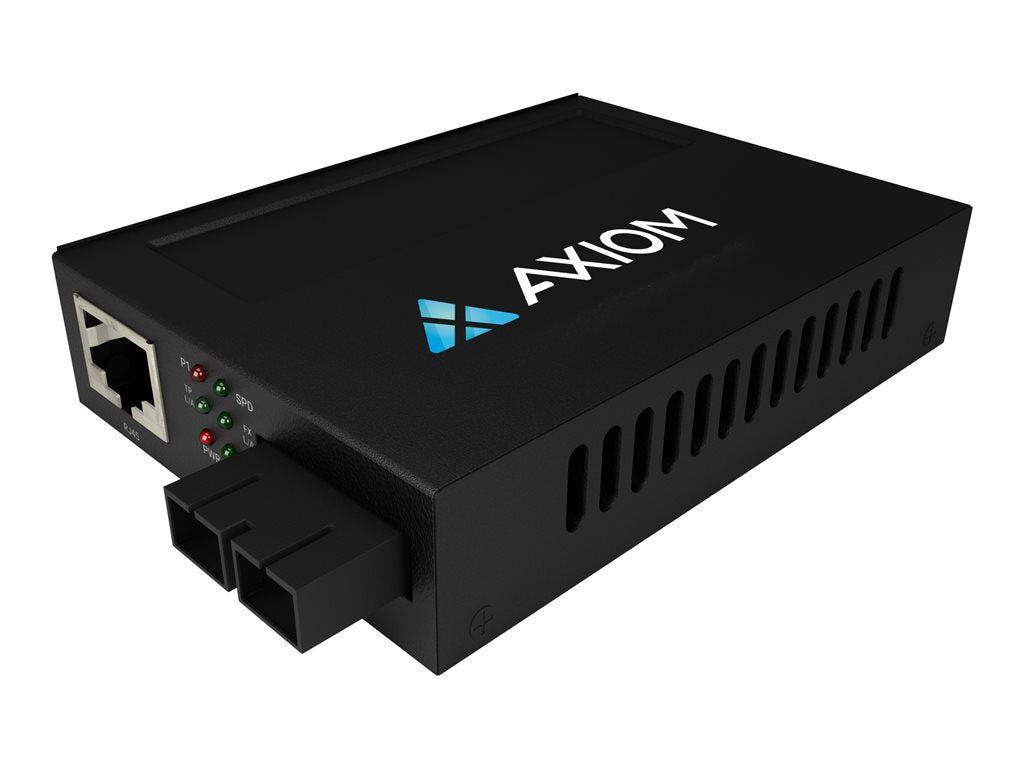

Axiom - Fiber media converter - 1GbE - over CAT 5e/6 - 10Base-T, 1000Base-LX, 1000Base-SX, 1000Base-TX, 100Base-TX - RJ-45 / SC single-mode - up to 6.2 miles - 1310 nm
-
Efficient connectivity
The Axiom repeater and transceiver offers seamless integration into existing networks with its compatibility across Ethernet 10Base-T, 100Base-TX, and 1000Base-TX, ensuring a broad range of connection options for various networking needs.
-
Robust performance
Designed to support demanding network environments, this device boasts a data transfer rate of 1 Gbps, complemented by features such as 16 KB Jumbo Frame and a 384KB packet buffer, enhancing data flow and reducing congestion.
-
Enhanced durability
Operating within a wide temperature range from 0°C to 50°C and withstanding up to 90% humidity (non-condensing), the Axiom repeater and transceiver is built to perform reliably in diverse environmental conditions.
-
Advanced networking features
With support for IEEE 802.3 standards, auto-negotiation, and flow control, this product ensures a stable and efficient network connection, while the Link Fault Pass Through function (LFP) and LED status indicators provide immediate feedback on network status.
-
Flexible power options
PoE+ compatibility allows for flexible installation options and reduces the need for additional power cables, while the external power adapter ensures consistent performance with a power consumption of only 4 W.
The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
• 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
• IEEE802.3at PoE+ PSE compatible
• Built-in AC/DC power supply
• Over-current protection
• DIP switch to set different configurations
• LFP (Link Fault Pass-through) support.
- Supports a wide range of Ethernet standards including 10Base-T, 100Base-TX, and 1000Base-TX
- 1 Gbps data transfer rate with 16 KB Jumbo Frame for efficient data handling
- Operates effectively in temperatures ranging from 0°C to 50°C and up to 90% humidity
- Features like auto-negotiation, flow control, and Link Fault Pass Through enhance network reliability
- PoE+ support and low power consumption for energy-efficient operation
