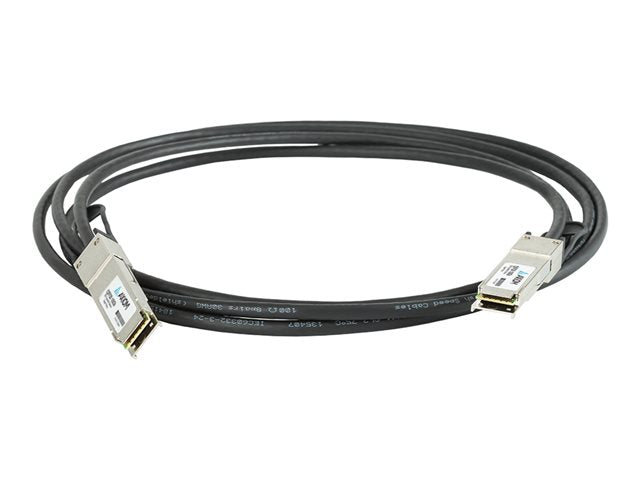

Axiom MCP1600-E002E-AX 2-Meter 100GbE DAC Cable
The Axiom MCP1600-E002E-AX is a high-performance 2-meter DAC (Direct Attach Cable) engineered for demanding data center and networking environments requiring 100GbE connectivity. This Mellanox-compatible QSFP-100G-CU2M passive copper cable delivers reliable, cost-effective short-reach interconnect solutions without the complexity or expense of active optics. Ideal for server-to-switch, switch-to-switch, and storage array connections, this DAC cable provides the performance you need with the simplicity enterprises demand.
Key Features
-
100GbE Performance — Supports full 100 Gigabit Ethernet speeds for high-bandwidth applications
-
2-Meter Passive Copper Design — Cost-effective direct attach solution with no active components or power requirements
-
Mellanox Compatible — Certified compatibility with Mellanox QSFP-100G-CU2M standard for seamless integration
-
QSFP+ Connectors — Industry-standard quad small form-factor pluggable connectors for flexible deployment
-
Short-Reach Optimization — Engineered for data center rack and cabinet distances up to 2 meters
-
Reliable Copper Construction — Durable passive copper conductors ensure consistent signal integrity
-
Low Latency — Minimal signal delay for real-time data center operations
Technical Specifications
| Specification |
Details |
| Manufacturer |
AXIOM |
| Part Number |
MCP1600-E002E-AX |
| Cable Type |
Passive Copper Direct Attach Cable (DAC) |
| Connector Type |
QSFP+ (Quad Small Form-Factor Pluggable) |
| Cable Length |
2 Meters |
| Data Rate |
100 Gigabit Ethernet (100GbE) |
| Compatibility |
Mellanox QSFP-100G-CU2M |
| Construction |
Passive Copper |
| Power Requirement |
None (Passive) |
| Operating Temperature |
0°C to 70°C |
Frequently Asked Questions
What is a DAC cable and why choose it for 100GbE?
A Direct Attach Cable (DAC) is a passive copper interconnect that connects network equipment directly without transceivers. For 100GbE short-reach applications (up to 2 meters), DAC cables offer superior cost-effectiveness compared to active optics while delivering identical performance and lower latency.
Is the Axiom MCP1600-E002E-AX compatible with non-Mellanox equipment?
While designed to Mellanox QSFP-100G-CU2M specifications, this QSFP+ DAC cable may work with other vendors' 100GbE equipment using standard QSFP+ connectors. Verify compatibility with your specific hardware before deployment.
What are the maximum distance limitations for this 2-meter DAC?
The 2-meter passive copper DAC is optimized for short-reach data center connectivity. For distances beyond 2 meters, active DAC cables or optical transceivers are recommended to maintain signal integrity.
Does this cable require power or active components?
No. The Axiom MCP1600-E002E-AX is a fully passive cable requiring no external power, active electronics, or configuration—simply connect and deploy for immediate 100GbE connectivity.
