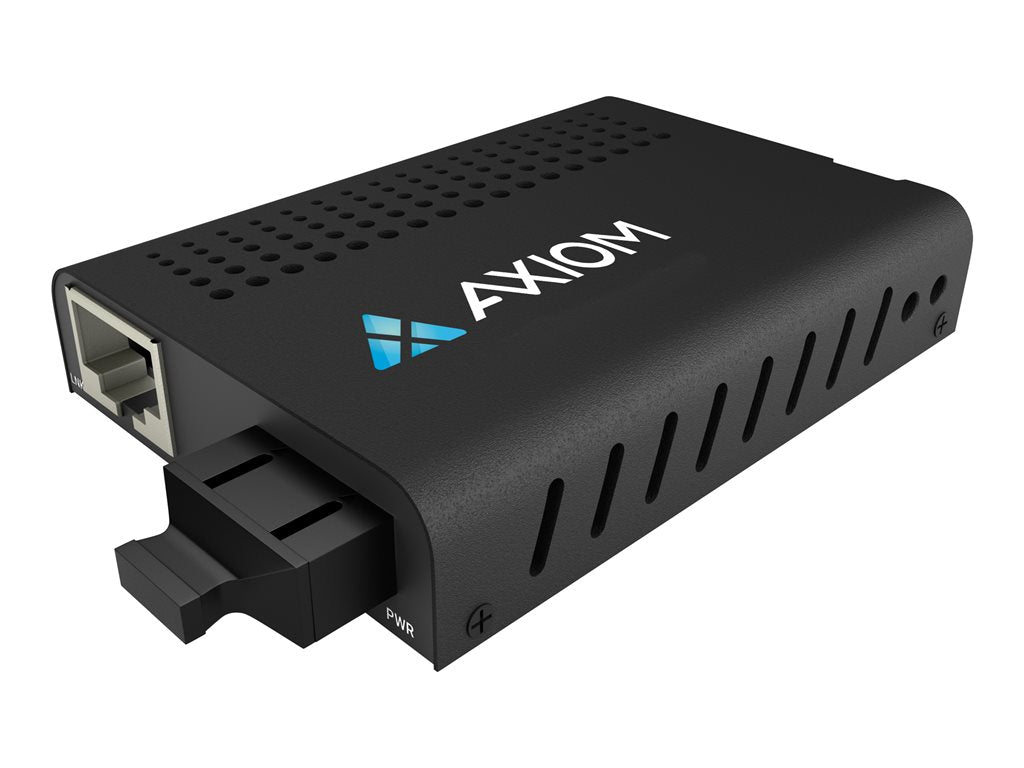

Axiom Mini - Fiber media converter - 1GbE - over CAT 5/5e/6 - 10Base-T, 1000Base-LX, 1000Base-TX, 100Base-TX, 100Base-LX - RJ-45 / SC single-mode - up to 18.6 miles - 1310 nm
-
Efficient connectivity
The Axiom Mini ensures seamless data transfer across networks with its support for multiple Ethernet standards, including 10Base-T, 100Base-TX, 1000Base-TX, 100Base-LX, and 1000Base-LX. Its compatibility with a wide range of cabling types makes it a versatile choice for enhancing network connectivity.
-
Advanced features
Equipped with automatic link restoration, LED status indicators, and a Link Fault Pass Through function (LFP), the Axiom Mini offers a reliable solution for maintaining strong network connections. The built-in DIP switch and support for both full and half duplex modes further enhance its functionality, ensuring efficient network communication.
-
High performance
With a data transfer rate of 1 Gbps and support for 16 KB Jumbo Frame and 384KB packet buffer, the Axiom Mini is designed to handle high-volume network traffic efficiently. Its ability to operate within a wide temperature range and under varying humidity conditions ensures reliable performance in diverse environments.
The Axiom Mini 10/100/1000Base-TX to 100/1000Base-FX Media Converter Series is a Gigabit Ethernet stand-alone Mini unmanaged media converter that provides cost effective, entry-level media conversion between Copper RJ45 10/100/1000Base-TX ports and 100/1000Base-FX fiber optic ports. Available with an open SFP port or its fixed connector configuration, deployments can be just plug-and-play or are fully customizable with the transceiver of your choice. With its small size, it is ideal for locations where space is limited. Choose from Multimode or Single-mode fiber connections to meet the distance requirements of your network.
• Unit and Port LEDs allow for quick status information
• Auto-Negotiation
• Full-Duplex or Half-Duplex Operation Modes
• Auto-MDI/MDIX
• Automatic Link Restoration
• Connect to legacy network equipment
• Eliminate Collision Domains
• 10/100/1000Base-TX UTP to 1000Base-FX Fiber media convertion
• Supports IEEE802.3U IEEE802.3z 1000Base-TX/FX protocols , IEEE802.3ab standards
• Available with Open SFP Port or optional built in LC/SC/ST Connections
• DIP switch to set different configurations
• Compact package size
• Supports IEEE802.3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function.
- Supports a wide range of Ethernet standards for comprehensive network compatibility
- Includes advanced features like automatic link restoration and Link Fault Pass Through (LFP)
- 1 Gbps data transfer rate with 16 KB Jumbo Frame support for efficient network traffic handling
- Operates effectively in temperatures ranging from 0°C to 50°C
- External power adapter with low power consumption of 2 W for energy-efficient operation
