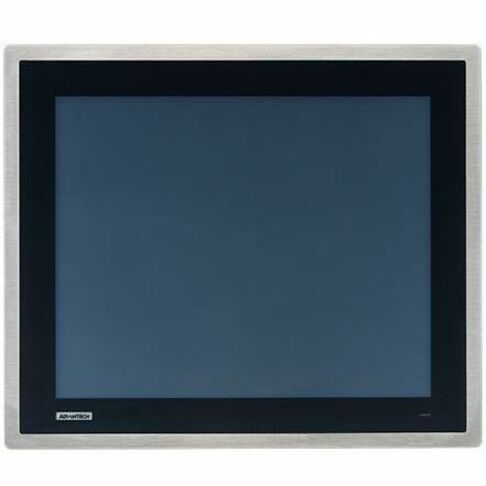

FPM-815S 15" XGA Industrial Monitor with Resistive Touch
The FPM-815S industrial monitor delivers mission-critical display performance in the harshest environments. Built for manufacturing floors, food processing facilities, and hazardous zones, this 15-inch XGA rugged display combines a 304 stainless steel front bezel with an IP66-rated true-flat panel to withstand water spray, dust ingress, and corrosive atmospheres. With resistive touch control and direct VGA/DisplayPort connectivity, the FPM-815S provides reliable visual feedback and intuitive operator interaction across extreme temperatures from -20 to 60°C.
Key Features
- 15-inch XGA (1024 x 768) resolution for clear industrial visualization
- Resistive touch control for gloved operation and reliability
- 304 stainless steel front bezel resists corrosion in hygiene-critical environments
- IP66-rated true-flat front panel protects against water jets and dust
- Direct VGA and DisplayPort connectivity for flexible integration
- Wide operating temperature range: -20 to 60°C for extreme conditions
- Rugged industrial-grade construction for 24/7 continuous operation
Technical Specifications
| Specification |
Details |
| Manufacturer |
B+B SmartWorx |
| Model |
FPM-815S-R6AE |
| Display Size |
15 inches diagonal |
| Resolution |
XGA (1024 x 768) |
| Touch Technology |
Resistive touch control |
| Front Bezel Material |
304 stainless steel |
| IP Rating |
IP66 (true-flat panel) |
| Operating Temperature |
-20 to 60°C |

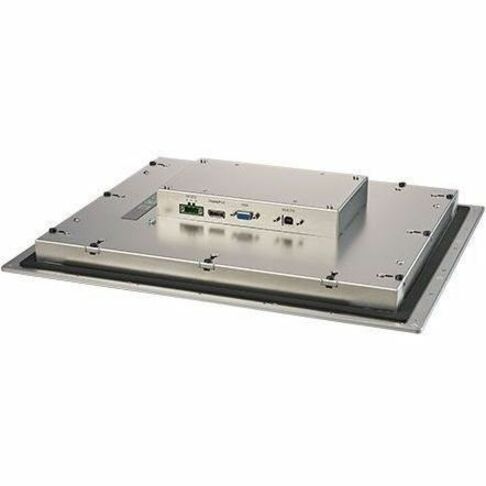

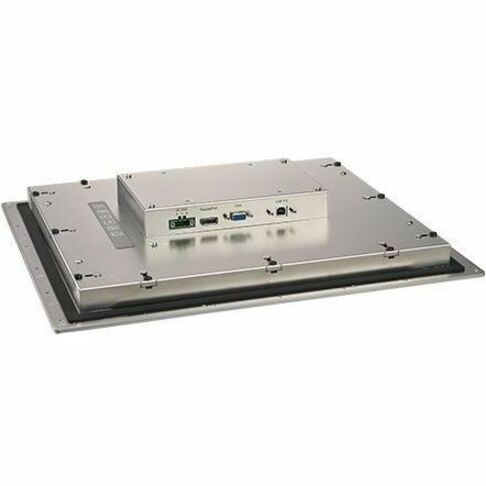

| Video Inputs |
Direct VGA, DisplayPort |
| Series |
FPM-800S |
Frequently Asked Questions
What makes the FPM-815S suitable for hazardous environments?
The stainless steel front bezel resists corrosion from chemicals and moisture, while the IP66-rated panel prevents water and dust ingress. This combination makes it ideal for food processing, pharmaceutical, and chemical manufacturing facilities where strict hygiene and durability are non-negotiable.
Can the industrial monitor operate in extreme temperatures?
Yes. The FPM-815S maintains full functionality across -20 to 60°C, making it suitable for cold storage facilities, outdoor installations, and high-heat production environments without performance degradation.
Is resistive touch compatible with gloved operation?
Resistive touch technology works reliably with gloved hands, making it ideal for operators in protective gear. This is a key advantage over capacitive touch in industrial settings.
What connectivity options does the FPM-815S provide?
The monitor features direct VGA and DisplayPort inputs, allowing flexible integration with legacy and modern industrial control systems, PLCs, and embedded computers.
