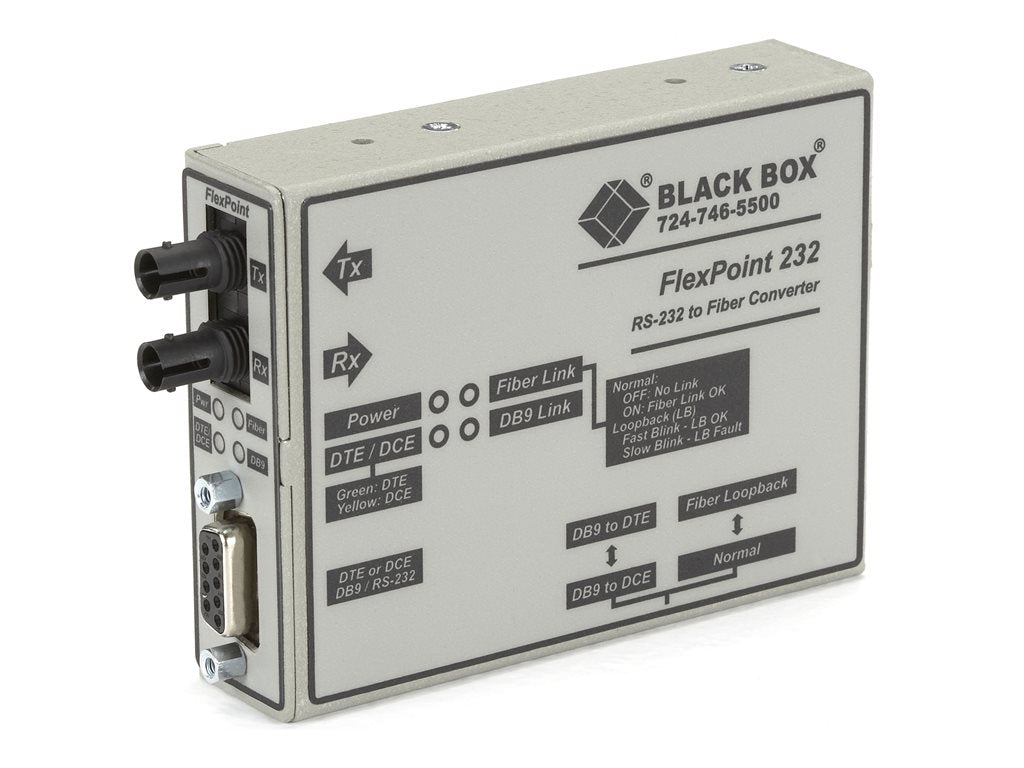

Black Box FlexPoint - Serial port extender - RS-232 - over fiber optic - fiber optic, serial RS-232 - 9 pin D-Sub (DB-9) / ST multi-mode - up to 1.6 miles
This multimode fiber extender drives data up to 1.5 mi. (2.5 km). The extender autosenses speeds up to 115.2 Kbps and works as a standalone or a hot-swappable chassis-based extender.
The extender is easy to install and includes a DC power supply. Or, you can power multiple units with the space-saving rack-mountable FlexPoint Power Chassis.
Featuring DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling, the extender supports half- and full-duplex operation.
The extender also has remote loop capability for remote fiber testing and LEDs for status monitoring.
- Full-duplex operation over MM fiber
- Data rate up to 115.2 Kbps
- Range of up to 2.5 km (1.5 miles) at 115.2 Kbps over MM fiber
- DCE/DTE switch for easy direct connection, no special cables needed
- Remote loop capability for remote fiber testing and LEDs for status monitoring
- Works as serial RS-232 fiber converter and extender
