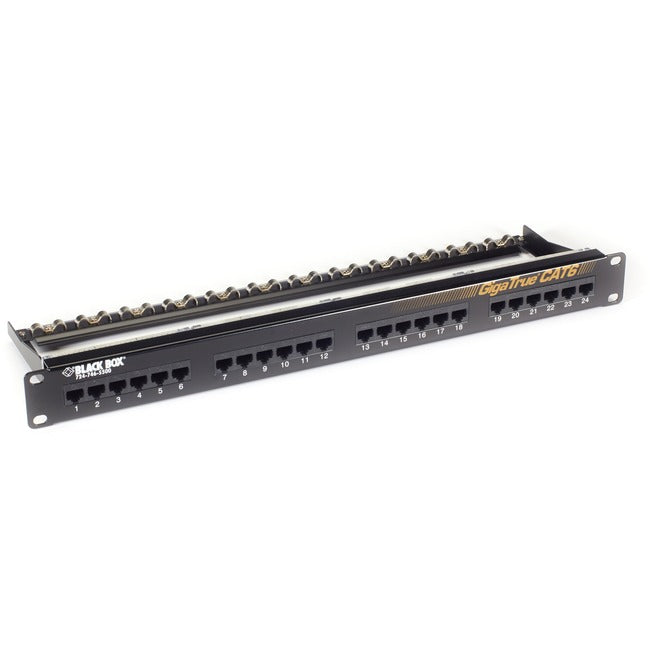

Black Box GigaTrue CAT6 Patch Panel - 1U, Unshielded, 24-Port
- Component level tested panel that provides better performance and stability in the overall channel; the panel by itself can pass CAT6.

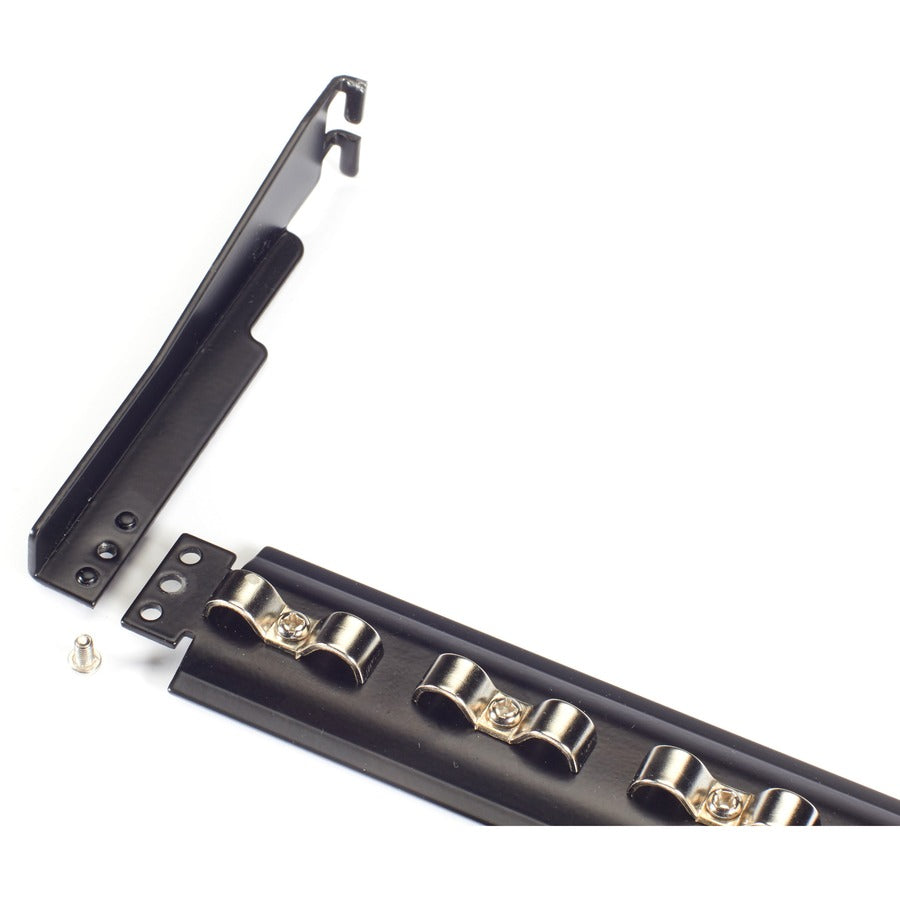

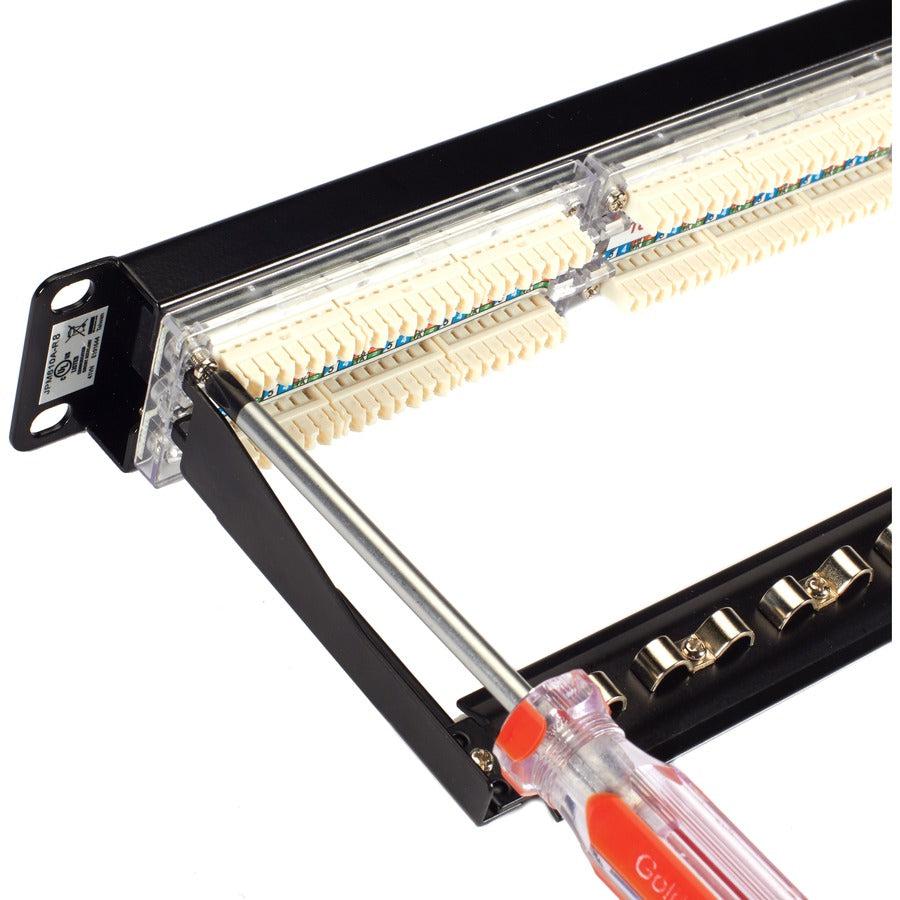

- Includes cable management bars that make organization easier.
- Meets or exceeds ANSI/TIA/EIA-568-C.2 Category 6 component performance specifications.
- Tested for NEXT, Power Sum NEXT, FEXT, Return Loss and attenuation to 250 MHz.
- Universal wiring - panel is supplied with labeling for both T568A and T568B.

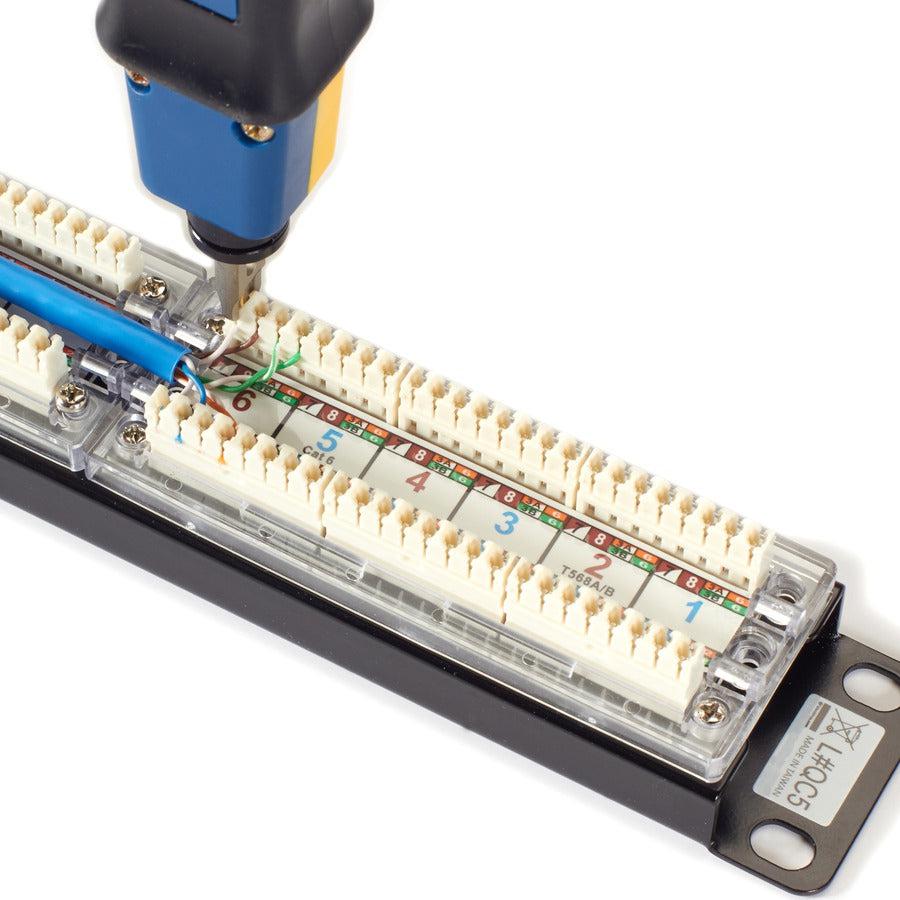

- Paired punchdown sequence enables pair twist within 1/2"" of termination.
- Redesigned IDC 110 block features peaks to make lacing cable easier.
- Rolled-edge construction provides superior panel rigidity to eliminate flex during termination.
- Includes cable ties and mounting hardware.
- Component level provides better performance and stability in the overall channel
- Includes cable management bars that make organization easier
- Designed for use in our ETL-Verified GigaTrue® channel
- Meets or exceeds ANSI/TIA/EIA-568-C CAT6 component performance
- Guaranteed for life
Product Type: Network Patch Panel
Environmentally Friendly: Yes
Environmental Certification: WEEE
Compatible Rack Unit: 1U
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: Black Box
Form Factor: Rack-mountable
Manufacturer: Black Box Corporation
Product Name: GigaTrue CAT6 Patch Panel - 1U, Unshielded, 24-Port
Product Line: GigaTrue
Manufacturer Part Number: JPM610A-R8
Manufacturer Website Address: http://www.blackbox.com
Package Contents:
- GigaTrue CAT6 Patch Panel - 1U, Unshielded, 24-Port
- Cables Ties
- 4 x 10-32
- 4 x 12-24 Cup Heads Screws
- Stuffer Caps
- 1 x Cable Support Bar
- Manual
Limited Warranty: Lifetime
Weight (Approximate): 1.50 lb
