Description

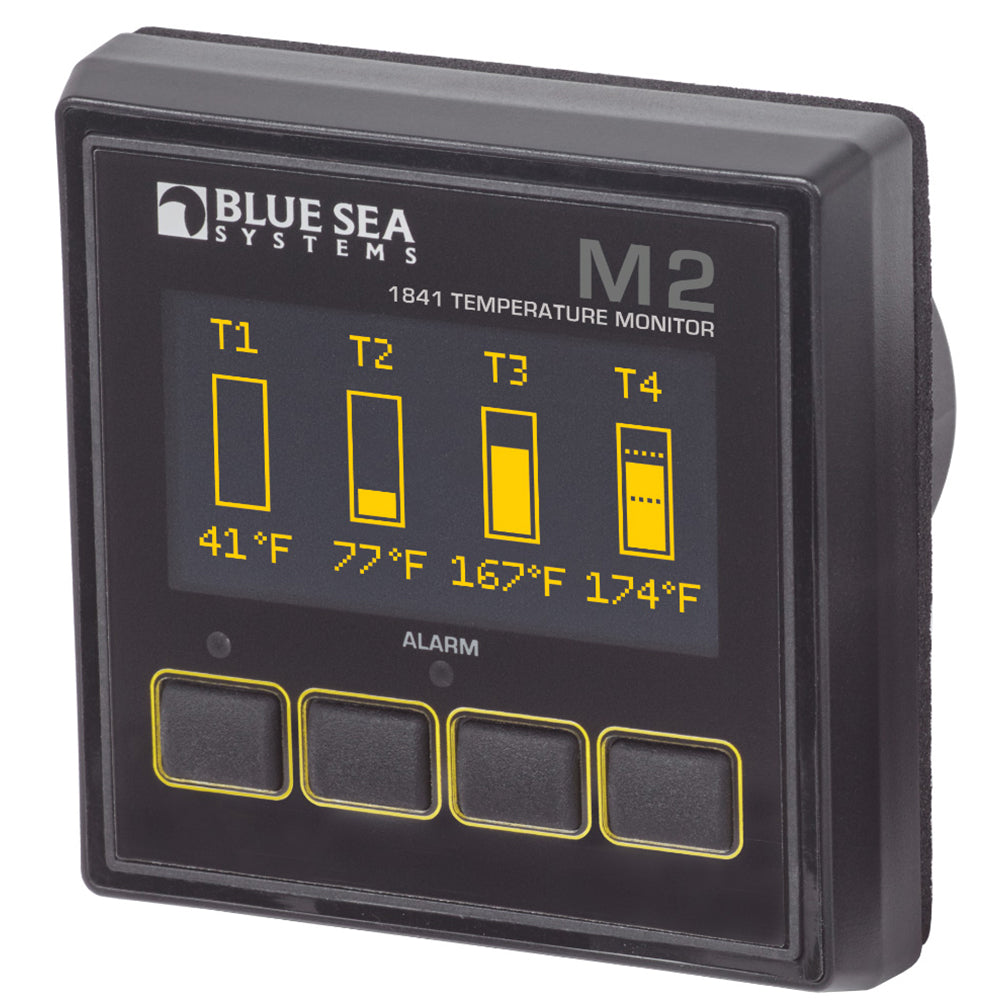

M2 OLED Temperature Monitor
The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.
Features:
Specifications:
The M2 Organic LED Digital Monitor measures essential electrical system parameters with adjustable alarms and an auto-dimming display. The M2 Monitors include a MOSFET External Circuit Relay (ECR) which can be used to control external circuits based on any value measured by the M2.
Features:
- Auto-dimming, bright Organic LED display is easy to read
- 80dB alarm on all models
- Isolated 500mA MOSFET relay
- Includes external DC Shunt or AC Current Transformer when required
- Versatile external temperature monitoring
- Monitor up to 4 temperature sensors
- Temperatures range from -40°C to 120°C (-40°F to 250°F)
- Measures in Fahrenheit or Celsius
- ABYC compliant for engine exhaust
- Waterproof temperature sensors included
Specifications:
- Meter: Temperature
- Function: Monitors Temperature
- Display Size: 55mm x 28mm
- Input Voltage: 7-70V DC
- Range: 0.3W-1.0W
- Sensor Locations: up to 4
- Temperature Range: -40°C - 120°C (-40°F - 250°F)
- Temp Sensor: 4 x PN 1821
- Weight: 0.25lb (0.11 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Installation Guide | View (pdf) |
| Video | View (video) |
General Information
| Manufacturer | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 1841 |
| Product Type | Electrical | Meters & Monitoring |
| UPC | 632085018412 |
