Description

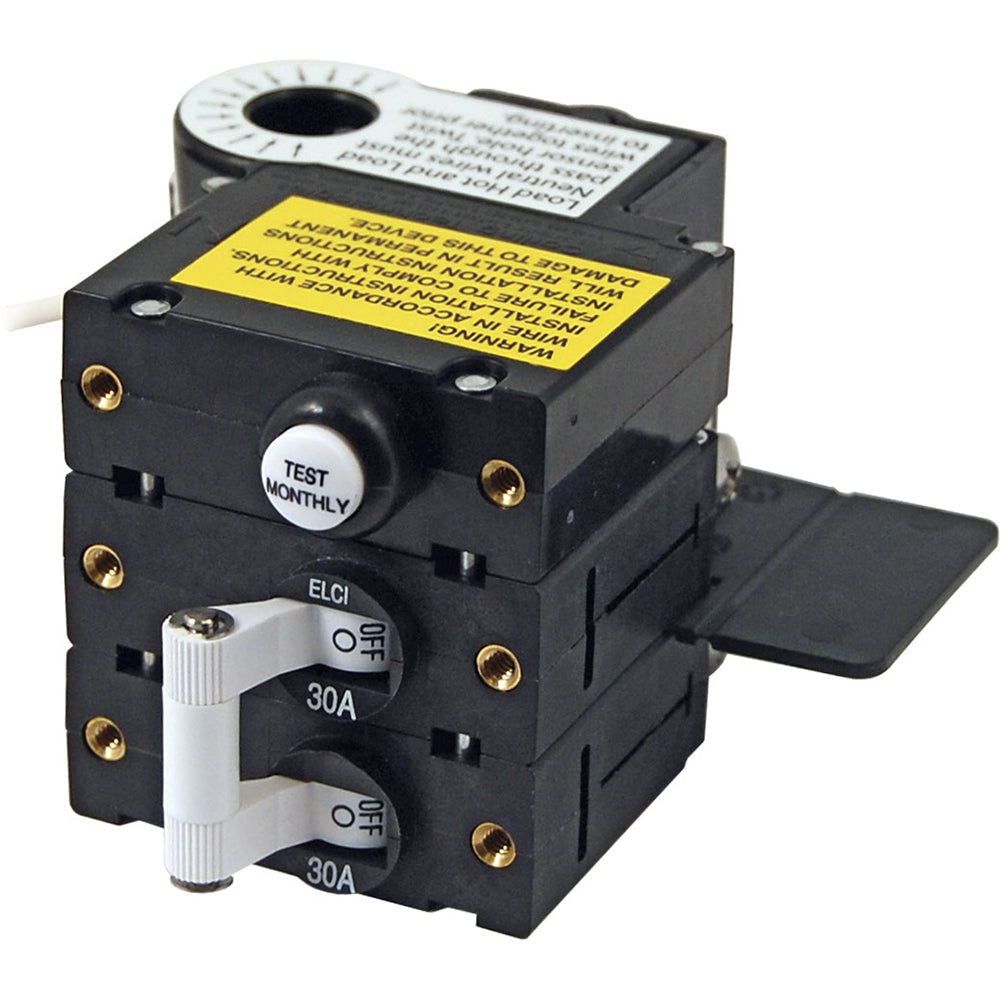

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Features:
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 30A
- Color: White
- Actuator Style: Toggle
- Poles: 2
- Ignition Protected: Yes
- Max Voltage: 240VAC/120VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 65 degrees C
- Leakage Trip Amps: 30mA
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
| Installation Guide | View (pdf) |
General Information
| Manufacturer | Blue Sea Systems |
|---|---|
| Manufacturer Part Number | 3106100 |
| Product Type | Electrical | Circuit Breakers |
| UPC | 632085310615 |
