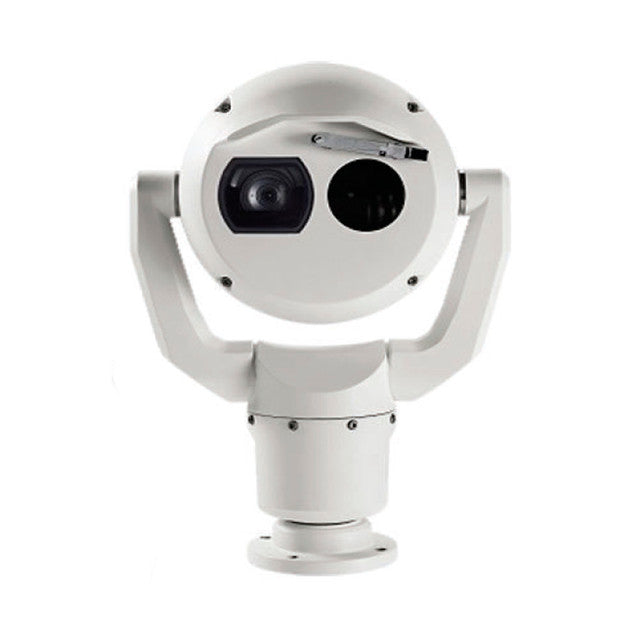

Bosch MIC IP fusion MIC-9502-Z30WVF 2.1 Megapixel Network Camera - Color, Monochrome
The MIC IP fusion 9000i camera is an advanced PTZ surveillance platform designed to provide early detection in mission-critical applications. With its dual visible/thermal imaging capabilities, the MIC IP fusion 9000i camera is the perfect choice when a robust and high-quality imaging solution is needed. The MIC camera's distinctive, ruggedized design is well suited for applications having extreme weather conditions of hot/cold temperatures, high winds, rain, fog, ice, and installations associated with shock and vibrations events such as bridges and towers. Precision engineered using Bosch's domain expertise in material and mechanical engineering, this camera offers the most advanced imaging and positioning system solution available on the market.
Functions
Exceptional imaging performance
The MIC IP fusion 9000i camera incorporates a highperformance thermal imaging core and a 1080p starlight-quality day/night visible camera integrated in the same housing. This allows the camera to deliver simultaneous thermal and visible video streams, maximizing the ability to detect and react to longrange threats.
Thermal imager
The thermal imager incorporates the latest un-cooled vanadium oxide microbolometer technology. This high sensitivity thermal imager is equipped with a fixed focal length Athermal lens that balances the field-ofview with maximizing the detection distance. MIC's thermal core seamlessly and automatically optimizes the image through the use of edge enhancement, dynamic contrast thresholding and adaptive rescaling processes. In addition, its integrated flat field correction feature provides a uniform reference so that scene components are correctly represented.
The combination of these embedded features assure the highest quality image will always be delivered. Depending on model mix, QVGA resolution (320 pixels) and VGA resolution (640 pixels) versions are available, with choice of low (<9Hz) or high (30/60Hz) frame rates. In addition, a wide variety of userselectable thermal color modes are available allowing further optimization of the thermal image.
- Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-byside
- Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/ smoke, etc.)
- Unique metadata fusion feature provides the ultimate in situation awareness
- Exceptional early detection capabilities: Object detection range up to 3550 m (11,600 ft)
- Advanced on-board Intelligent Video Analytics
Product Type: Network Camera
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Series: 9000i
Brand Name: Bosch
Manufacturer: The Bosch Group
Product Model: MIC-9502-Z30WVF
Product Name: MIC-9502-Z30WVF PTZ thermal VGA-50mm 2MP 30x 30Hz, white
Mount Type: Pole Mount
Product Line: MIC IP fusion
Manufacturer Part Number: MIC-9502-Z30WVF
Manufacturer Website Address: http://www.bosch.com
Weight (Approximate): 22.05 lb
