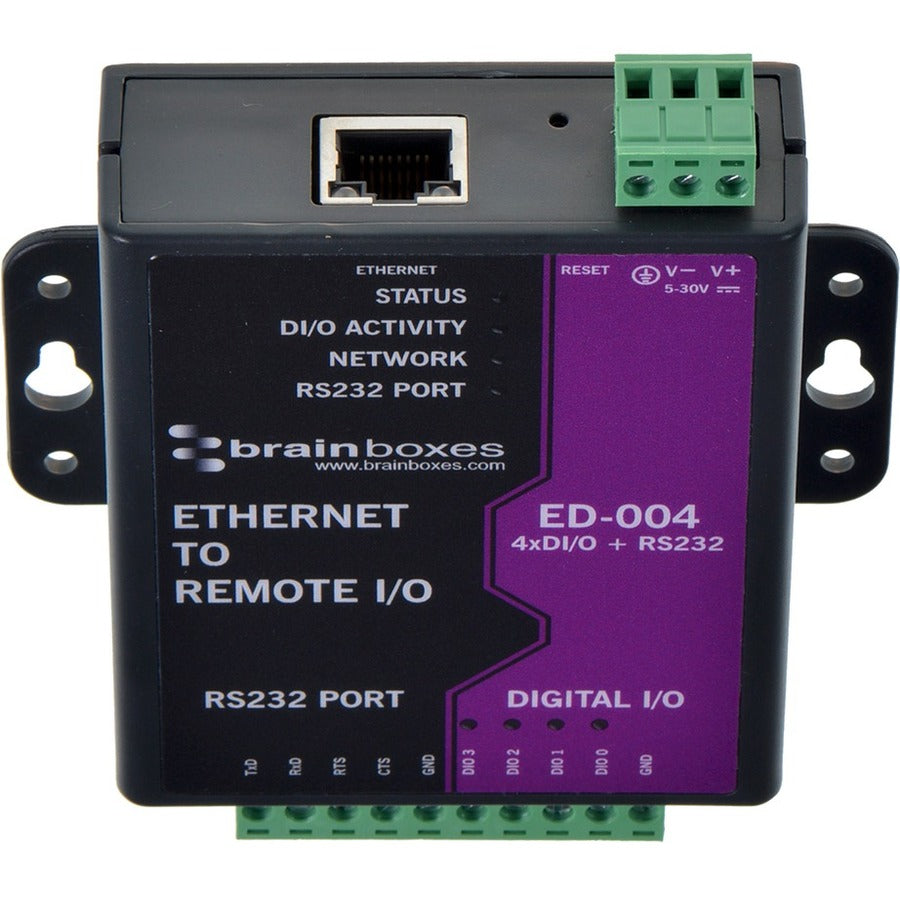

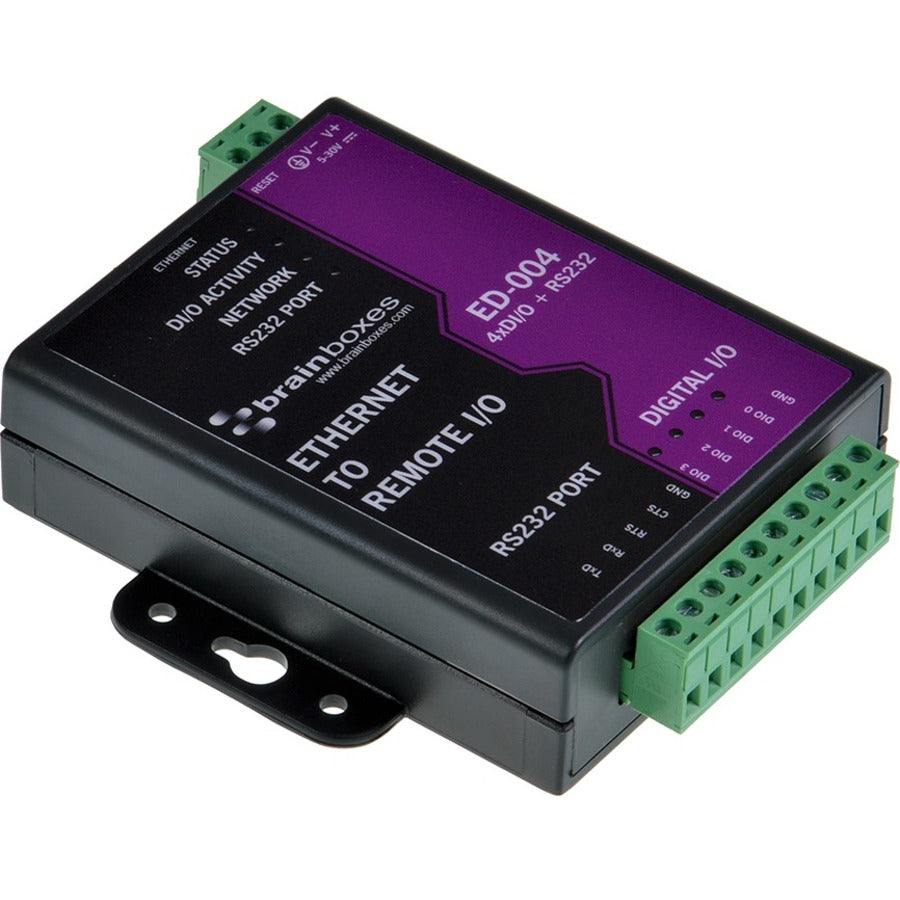

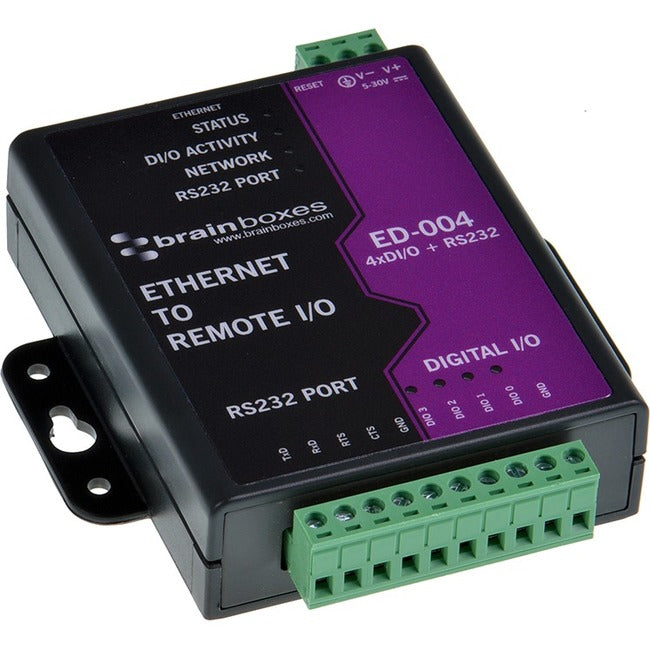

Brainboxes - Ethernet to 4 Digital IO and RS232 Serial Port
Ethernet to DIO device with Serial port: 4 digital input channels or 4 digital output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
- 0°C to +60°C Temperature range, Wall mountable
- Software APIs for Visual Basic, C# and more
- Factory floor process control and automation
- User friendly software interface, Legacy compatible
- Complete Ethernet to Serial Device Server: up to 1 MegaBaud
- 4 Digital Inputs/Outputs + RS232 Serial Port
Product Type: Ethernet To Digital IO Module
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United Kingdom
Brand Name: Brainboxes
Manufacturer: Brainboxes Limited
Product Model: ED-004
Product Name: Ethernet to 4 Digital IO and RS232 Serial Port
Manufacturer Part Number: ED-004
Manufacturer Website Address: http://www.brainboxes.com
Package Contents:
- Ethernet to 4 Digital IO and RS232 Serial Port
- Installation CD Including Manual, Microsoft Signed Drivers & Utilities
- Quick Start Guide
Limited Warranty: Lifetime
Weight (Approximate): 4.44 oz
