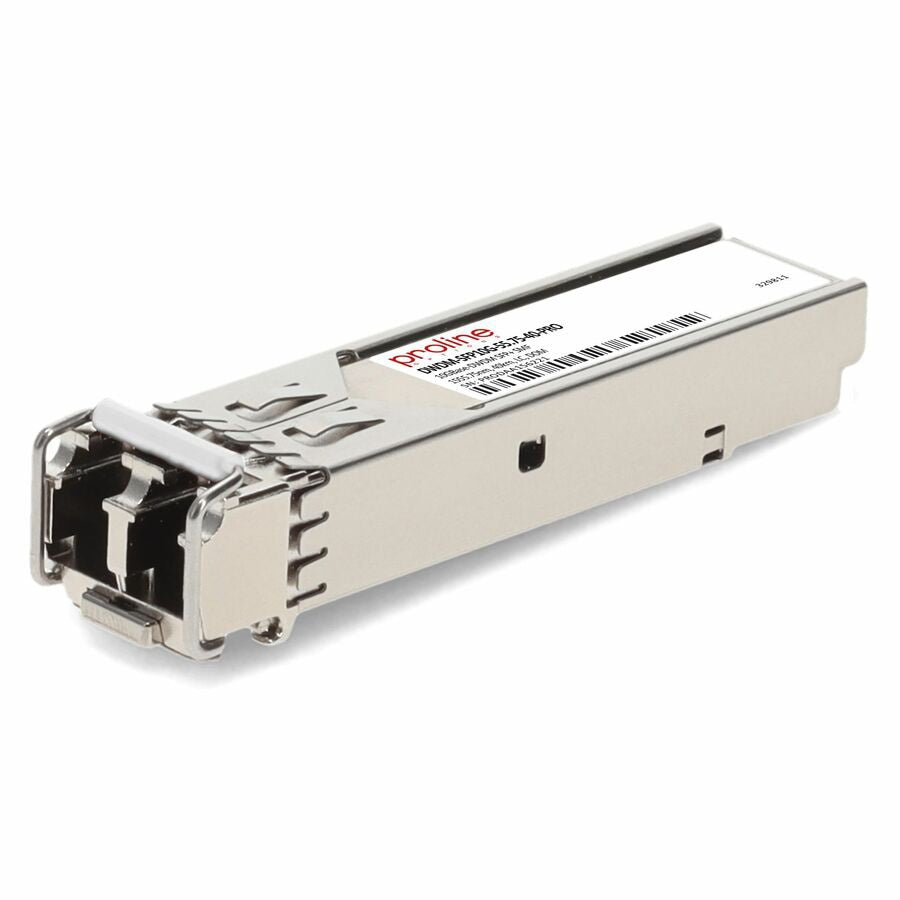

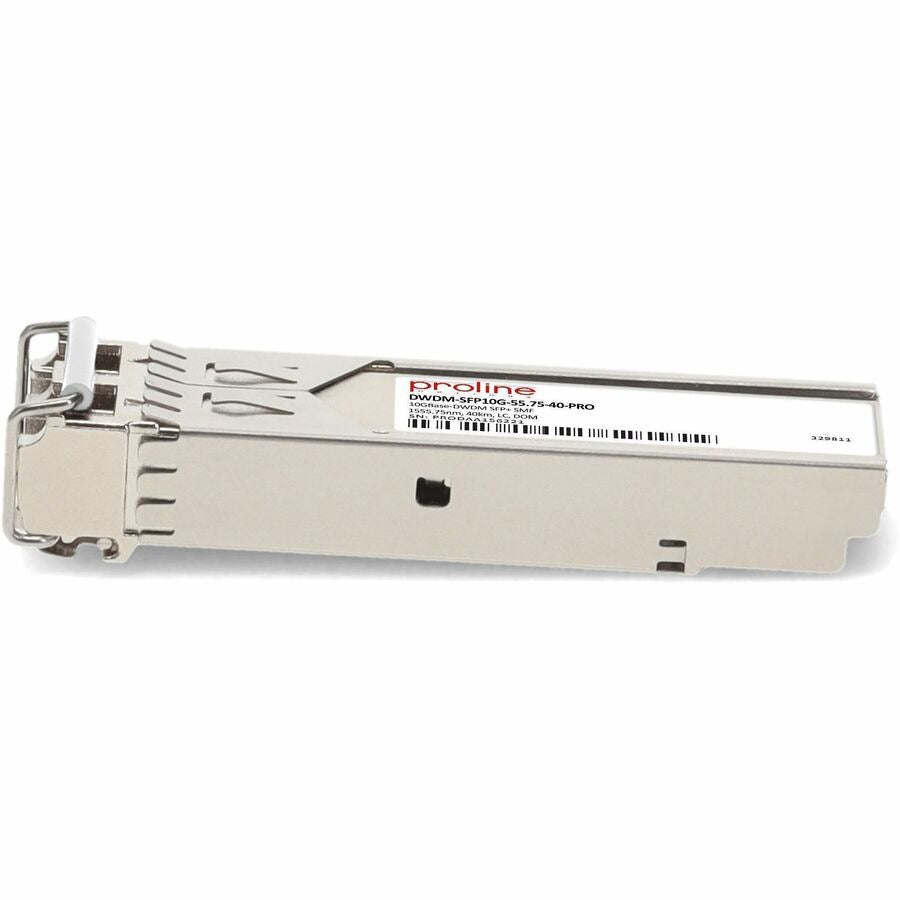

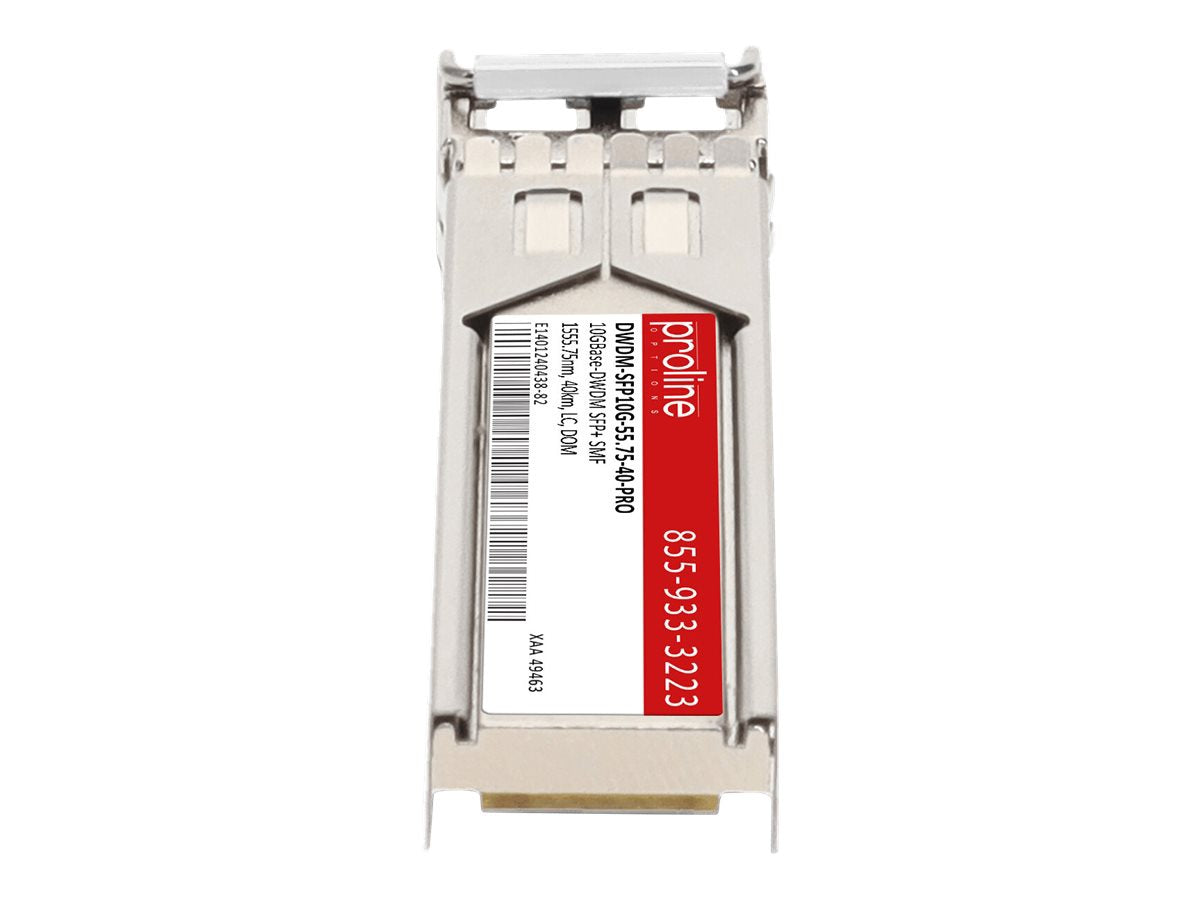

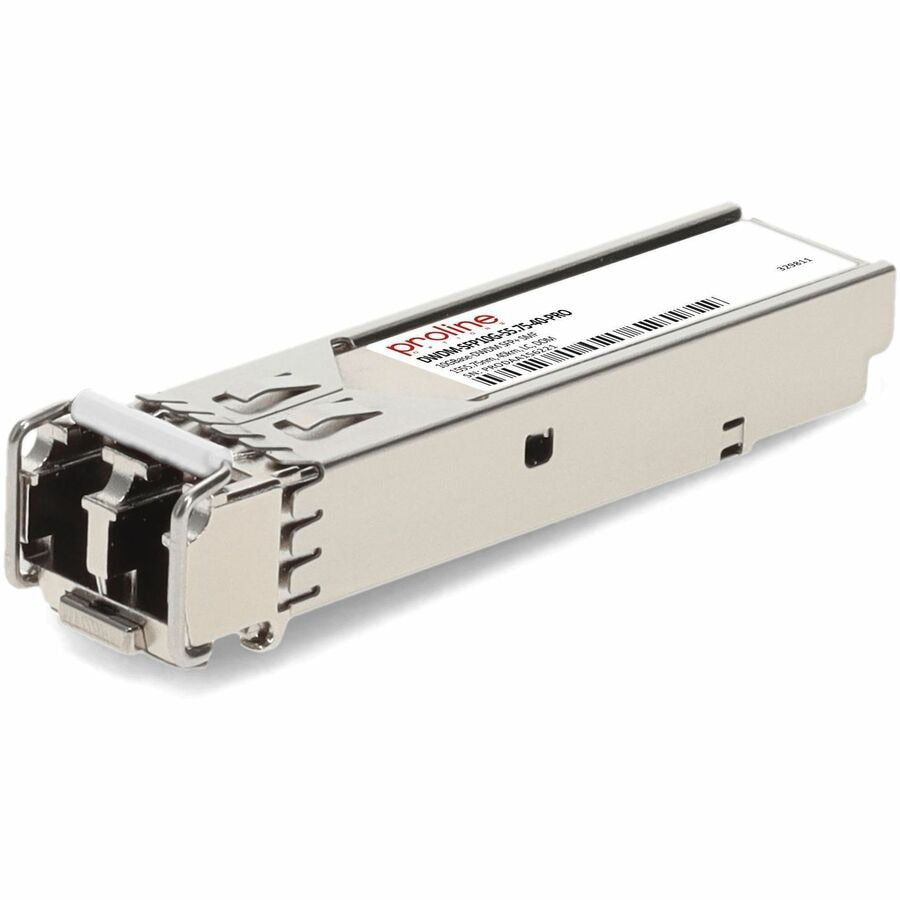

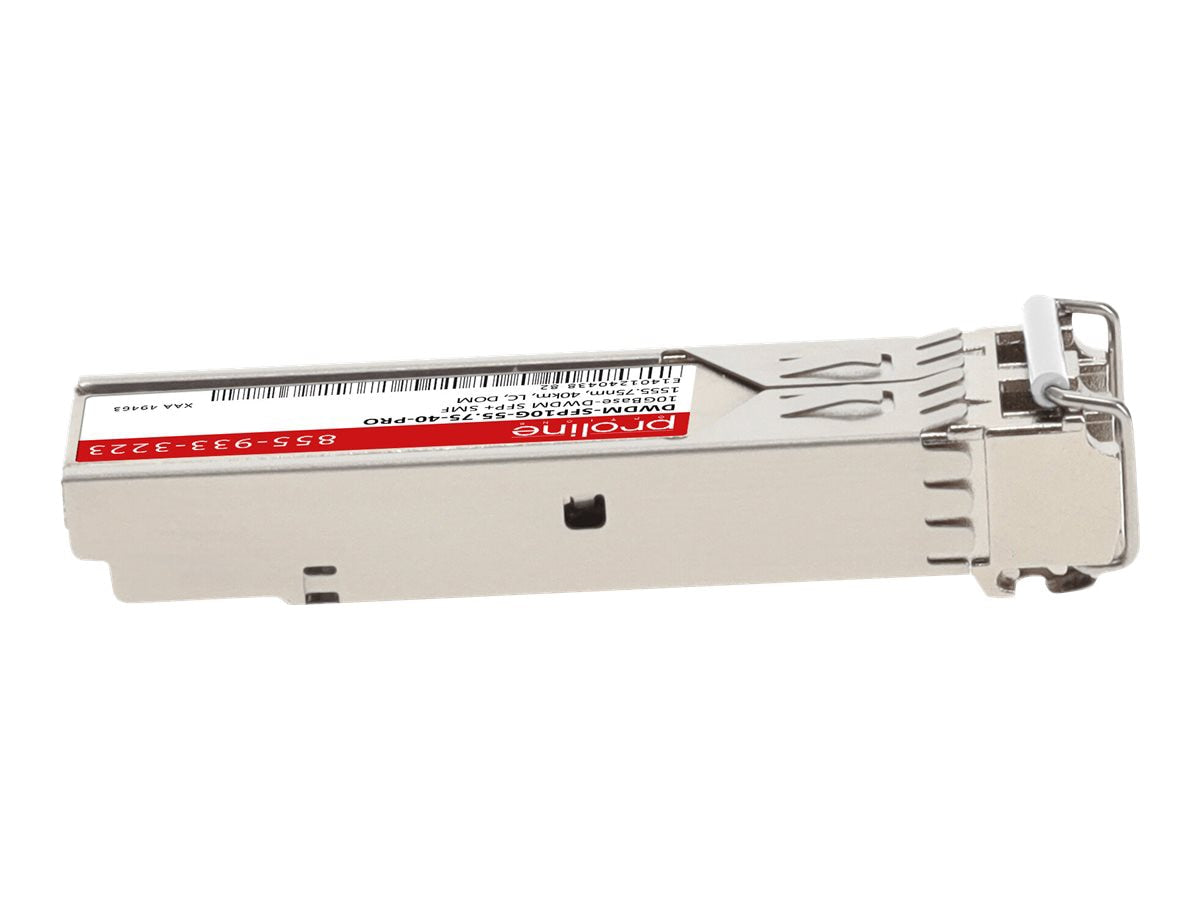

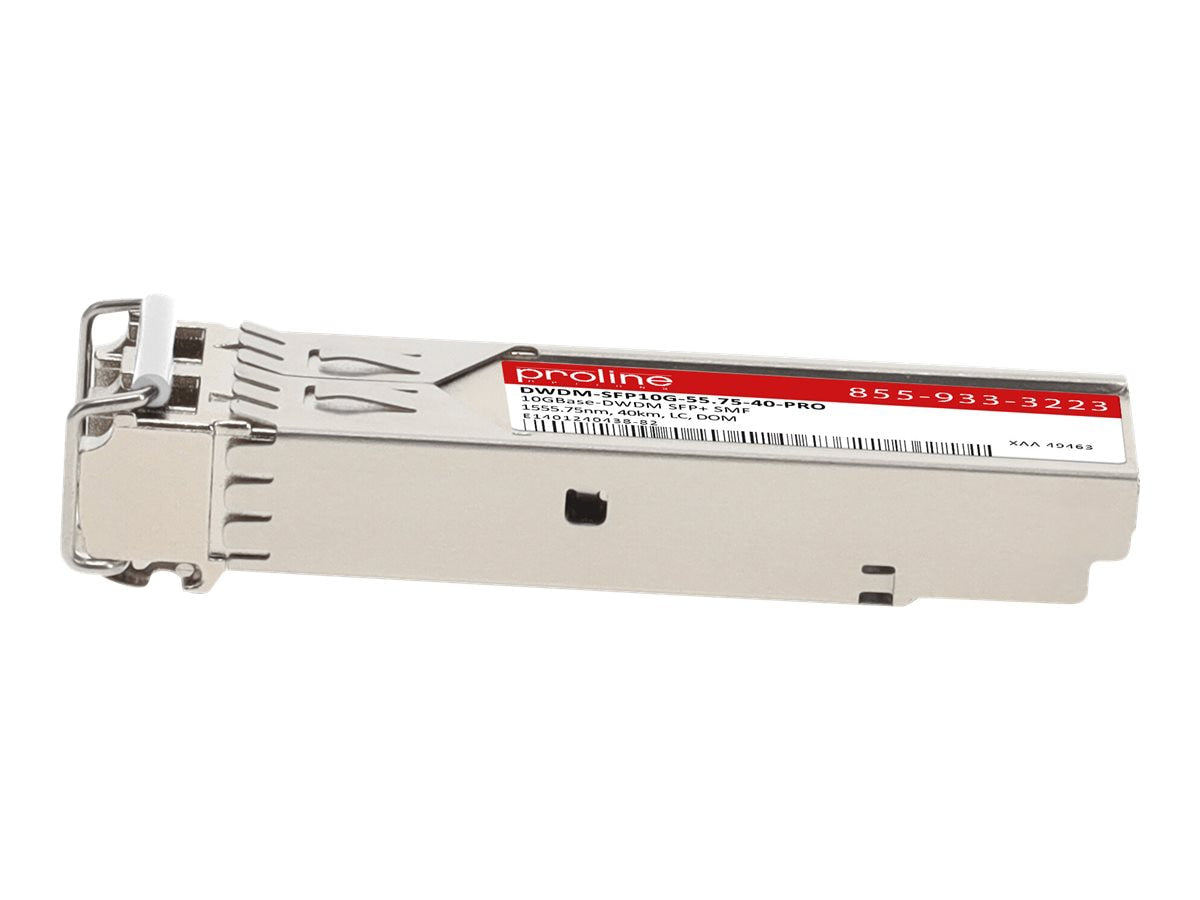

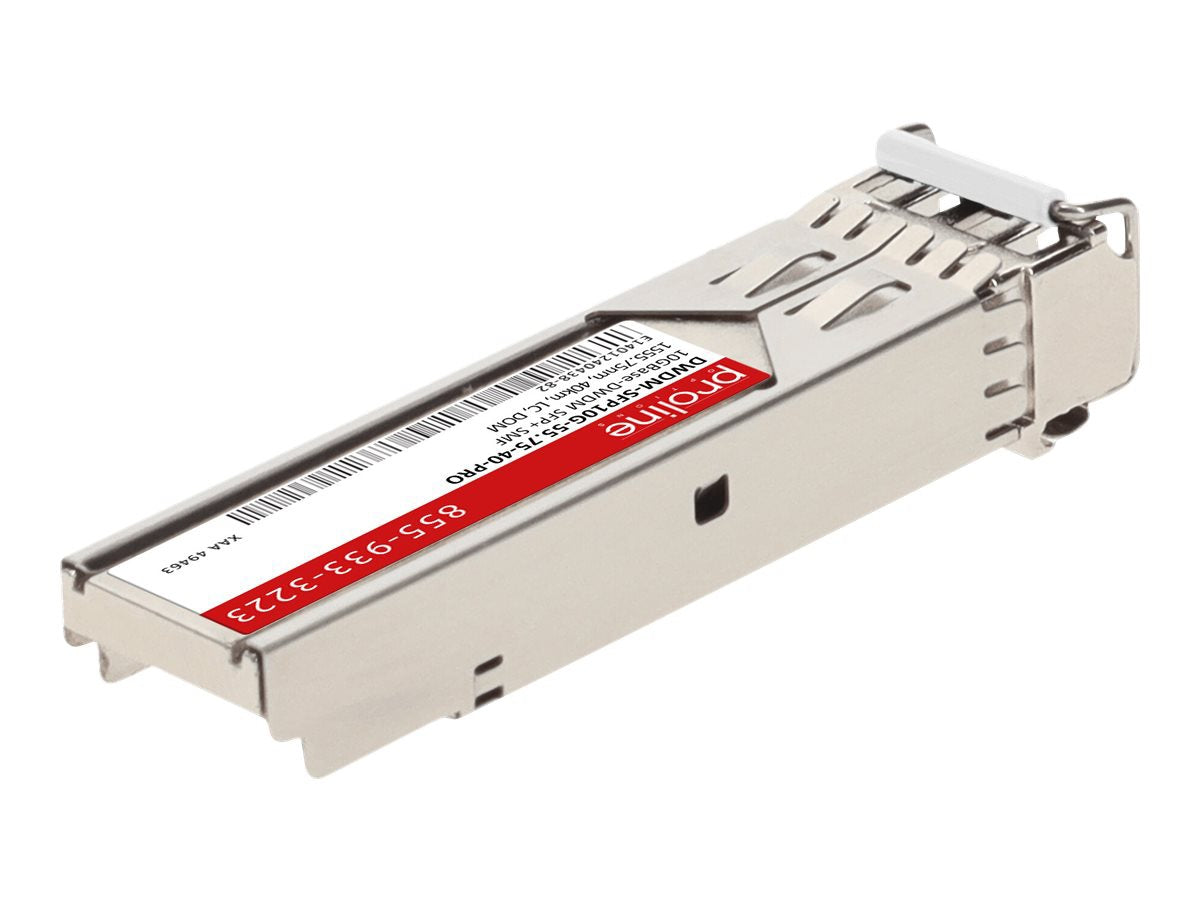

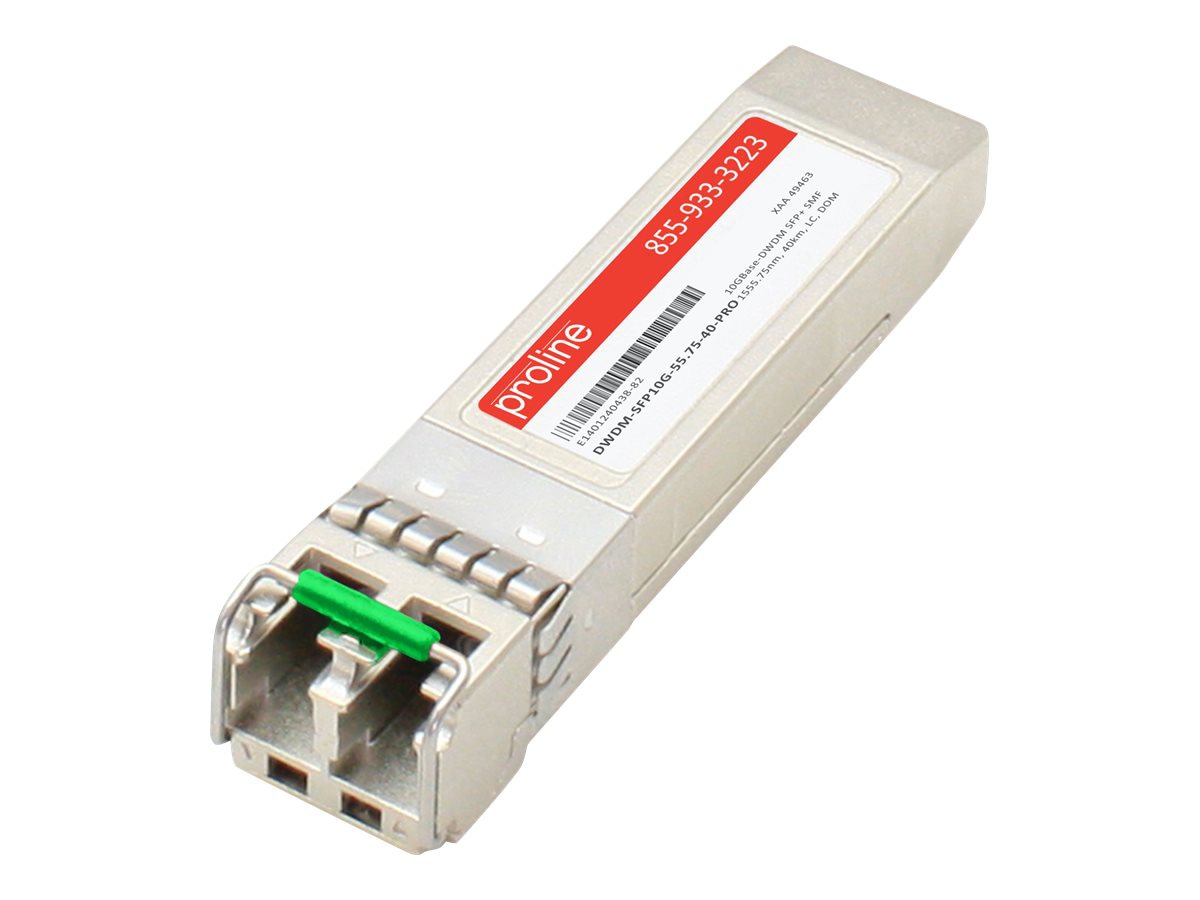

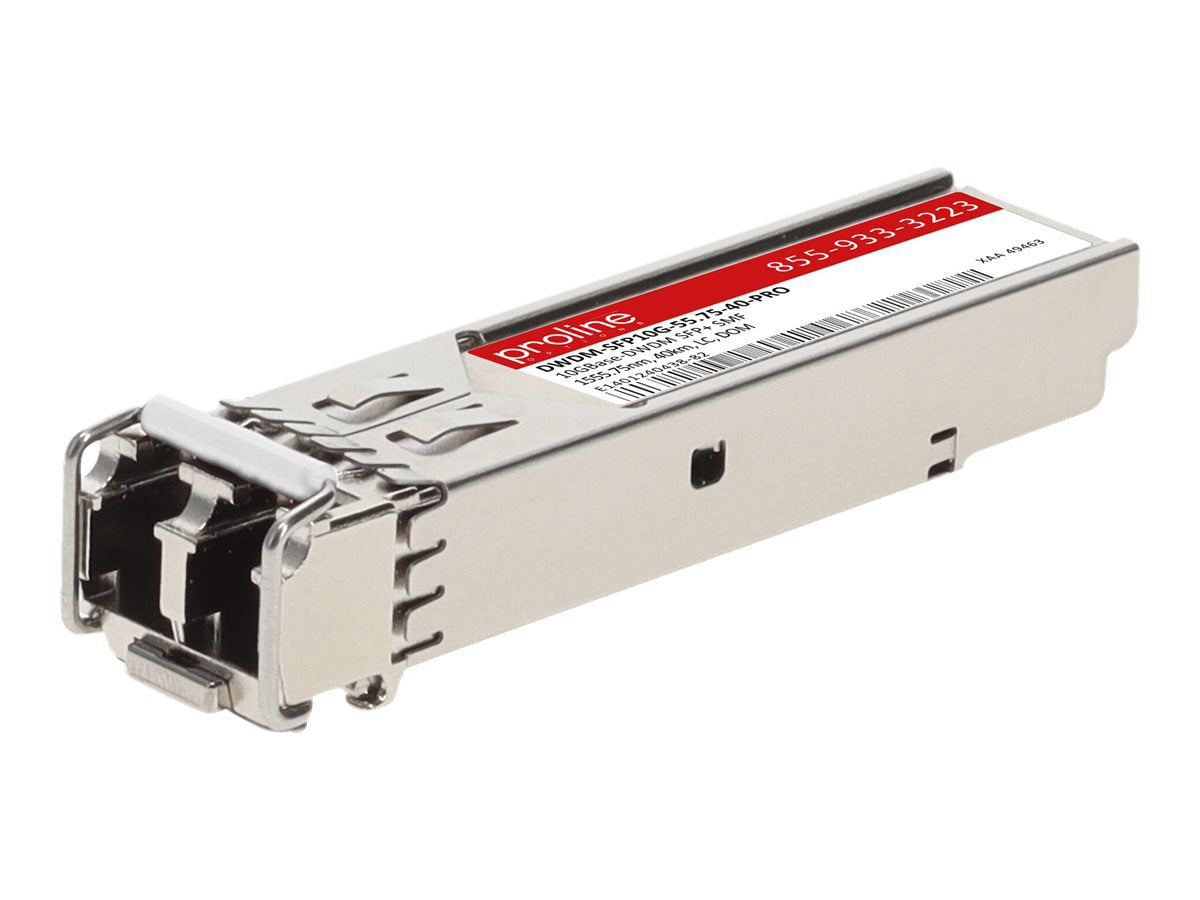

Ccx CSC-DWDMSFP10G-55.75 DWDM SFP10G 10G Transceiver Module
The Ccx CSC-DWDMSFP10G-55.75 is a high-performance DWDM SFP10G transceiver designed for enterprise-grade optical networking infrastructure. This 10G DWDM module delivers reliable dense wavelength division multiplexing capabilities, enabling service providers and data center operators to maximize bandwidth utilization across existing fiber infrastructure. Built for compatibility with industry-standard 10GBase platforms, this SFP+ transceiver supports long-distance, high-capacity optical transmission with exceptional signal integrity and thermal stability.
Key Features
- Dense Wavelength Division Multiplexing (DWDM) technology for channel optimization
- 10 Gigabit per second (10G) transmission rate
- SFP+ form factor for compact, hot-swappable deployment
- Wavelength 55.75 nm for precise ITU grid alignment
- Extended operating temperature range for data center environments
- Low power consumption with integrated thermal management
- Backward compatible with standard 10GBase optical interfaces
- Supports long-reach transmission for metropolitan and regional networks
Technical Specifications
| Specification |
Value |
| Manufacturer |
Ccx |
| Part Number |
DWDM-SFP10G-55.75-C |
| Product Model |
CSC-DWDMSFP10G-55.75TAACOMP10GBASETRANS |
| Module Type |
DWDM SFP+ Transceiver |
| Data Rate |
10 Gbps |
| Wavelength |
55.75 nm |
| Form Factor |
SFP+ (Small Form-Factor Pluggable) |
| Interface |
10GBase Compatible |
| Transmission Distance |
Long-reach optical |
| Operating Temperature |
0°C to 70°C |
| Power Consumption |
Optimized for low-power operation |
Frequently Asked Questions
What is a DWDM SFP10G transceiver used for?
A DWDM SFP10G transceiver enables multiple 10G optical signals to travel simultaneously over a single fiber strand by assigning each signal a unique wavelength. This technology maximizes fiber utilization in carrier networks, data centers, and enterprise environments without requiring additional fiber infrastructure.
Is the Ccx CSC-DWDMSFP10G-55.75 compatible with standard 10GBase equipment?
Yes, this 10G DWDM module is designed for compatibility with industry-standard 10GBase optical interfaces and supports hot-swappable SFP+ slots found in enterprise switches, routers, and optical transport systems.
What wavelength does this DWDM transceiver operate at?
The Ccx DWDM SFP10G 55.75 operates at 55.75 nm wavelength, which aligns with ITU grid standards for dense wavelength division multiplexing, ensuring compatibility with DWDM systems and optical add-drop multiplexers.
Can this transceiver be used in long-distance optical networks?
Yes, the SFP+ transceiver supports long-reach transmission capabilities, making it suitable for metropolitan area networks (MANs), regional networks, and carrier-class optical infrastructure requiring extended transmission distances.
