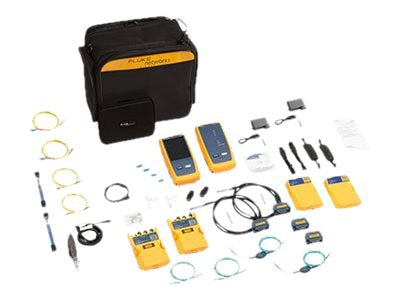

Ccx DSX2-8000QOI 2GHz Quad OTDR OLTS Kit
The Ccx DSX2-8000QOI 2GHz Quad OTDR OLTS kit is engineered for telecommunications professionals, fiber optic installers, and network technicians who demand precision optical testing and certification. This comprehensive OTDR and OLTS testing solution delivers dual-wavelength capability at 2GHz performance levels, enabling accurate fiber characterization, fault location, and link validation across single-mode and multi-mode fiber networks. Whether you're certifying new installations, troubleshooting network issues, or performing routine maintenance, this quad-channel optical testing kit provides the speed, accuracy, and reliability required for mission-critical fiber infrastructure.
Key Features
- Dual-wavelength OTDR functionality for comprehensive fiber analysis
- Integrated OLTS optical loss testing for link certification
- 2GHz bandwidth for high-resolution fault detection
- Quad-channel architecture for simultaneous multi-fiber testing
- Portable design with rugged construction for field deployment
- Fluke-grade optical testing accuracy and reliability
- Real-time fiber event detection and distance-to-fault measurement
- Comprehensive data logging and reporting capabilities
Technical Specifications
| Specification |
Details |
| Manufacturer |
Ccx |
| Part Number |
DSX2-8000QOI |
| Product Type |
Quad OTDR OLTS Kit |
| Operating Frequency |
2GHz |
| Testing Modes |
OTDR (Optical Time Domain Reflectometer) & OLTS (Optical Loss Test Set) |
| Wavelength Support |
Dual-wavelength configuration |
| Channel Configuration |
Quad-channel simultaneous testing |
| Fiber Compatibility |
Single-mode and multi-mode fiber |
| Application |
Fiber optic network installation, certification, and troubleshooting |
Frequently Asked Questions
What is an OTDR and how does it help with fiber optic testing?
An Optical Time Domain Reflectometer (OTDR) is a diagnostic instrument that measures fiber optic cable characteristics by sending light pulses down the fiber and analyzing reflections. The Ccx DSX2-8000QOI OTDR function identifies cable faults, measures distances to breaks or anomalies, and characterizes fiber quality—essential for installation verification and network troubleshooting.
How does OLTS differ from OTDR testing?
OLTS (Optical Loss Test Set) measures end-to-end link loss and validates that fiber connections meet performance standards, while OTDR provides detailed fault location and distance measurements. The dual-mode capability of this kit enables comprehensive fiber certification for both acceptance testing and ongoing network maintenance.
Can this quad OTDR kit test multiple fibers simultaneously?
Yes, the quad-channel architecture of the DSX2-8000QOI enables simultaneous testing across four fiber strands, significantly reducing field certification time and improving workflow efficiency for large-scale fiber optic installations and network upgrades.
What fiber types are compatible with this 2GHz optical testing solution?
The Ccx DSX2-8000QOI supports both single-mode and multi-mode fiber testing, making it versatile for diverse network environments including long-distance telecommunications links, campus networks, and data center interconnects.
