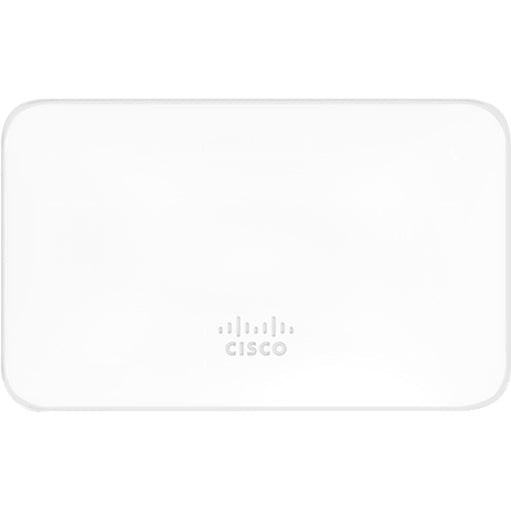

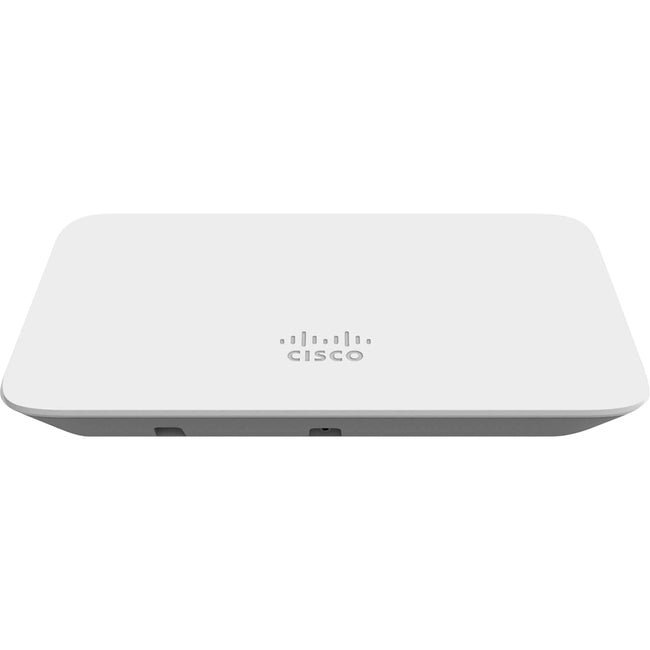

Meraki MR20 IEEE 802.11ac 1.30 Gbit/s Wireless Access Point
Entry-level cloud-managed 802.11ac wireless
The Cisco Meraki MR20 is a dual-radio, cloud-managed 2x2:2 802.11ac Wave 2 access point with MU-MIMO support. Designed for basic, very low-density deployments, the MR20 provides enterprisegrade security and simple management. The MR20 delivers a maximum 1.3 Gbps aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios.
The combination of intuitive cloud management, 802.11ac Wave 2 wireless, and enterprise-grade security provide safe, reliable WiFi for small business and home office networks that want basic connectivity.
MR20 and Meraki cloud management: a powerful combination
The MR20 is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Because the access point is monitored 24x7 by the Meraki cloud, the MR20 can deliver real-time alerts if the network encounters problems, and diagnostic tools enable real-time troubleshooting over the web. The MR20's firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.
Features
Aggregate data rate of up to 1.3 Gbps
A 5 GHz 2x2:2 radio supporting 80 MHz channel widths and a 2.4 GHz 2x2:2 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 1.3 Gbps, with up to 866 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 400 Mbps in the 2.4 GHz band.
Multi User Multiple Input Multiple Output (MU-MIMO)
With support for the 802.11ac Wave 2 standard, the MR20 offers MU-MIMO for more efficient transmission to multiple clients. This increases the total network performance and the improves the end user experience.
Integrated enterprise security and guest access
The MR20 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control.
Secure wireless environments using Air Marshal
The MR20 comes equipped with Air Marshal, a built-in wireless intrusion prevention system (WIPS) for threat detection and attack remediation. MR20 access points will scan their environment opportunistically based on user-defined preferences. Alarms and auto-containment of malicious rogue APs are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.
Application-aware traffic shaping
The MR20 includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.
- 2x2 MU-MIMO 802.11ac Wave 2
- 1.3 Gbps aggregate dual-band frame rate
- Integrated enterprise security and guest access
- Built-in WIPS for threat detection and remediation
- Application-aware traffic shaping
- Self-configuring, plug-and-play deployment
- Integrated location analytics and heat map
Product Type: Wireless Access Point
Country Of Origin: Taiwan
Brand Name: Meraki
Form Factor: Desktop
Manufacturer: Cisco Systems, Inc
Product Model: MR20
Product Name: MR20 Cloud Managed 802.11ac AP
Manufacturer Part Number: MR20-HW
Manufacturer Website Address: http://www.cisco.com
Package Contents:
- MR20 Cloud Managed 802.11ac AP
- Standard Mounting Hardware
Limited Warranty: Lifetime
Weight (Approximate): 9.60 oz
