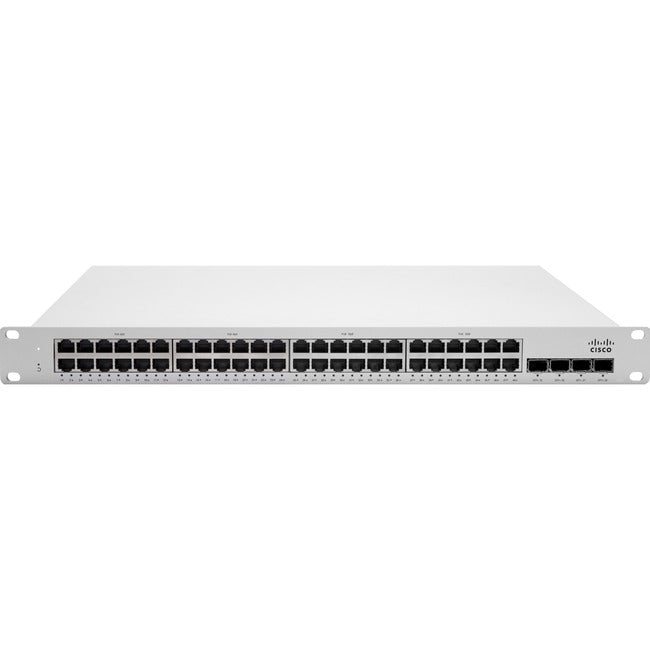

Meraki MS250-48FP Ethernet Switch
CLOUD MANAGED STACKABLE ACCESS SWITCHES
The Cisco Meraki MS250 series switches provide reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model, redundancy and performance are guaranteed. This family also supports redundant, field-replaceable power supplies for mission critical networks.
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicatedconfiguration files, or even direct physical access to the switch.
Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small:
- True zero-touch device provisioning
- Virtual stacking: manage up to thousands of ports from a single pane of glass.
- Application layer visibility with automatic operating system, client, and hostname fingerprinting.
- Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
- Alerts upon power loss, downtime, or configuration changes.
- Role-based administration and automatic, scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered ondemand from the Meraki cloud.
- Gigabit Access switching with 24 and 48 port models and optional PoE+
- 4 x 10G SFP+ uplink interfaces on all models
- Built-in dual stacking interfaces with up to 80G bandwidth
- Support for field replaceable, redundant power supplies
- Non-blocking switch backplane with up to 176 Gbps bandwidth support
- Up to 740 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, andother PoE-enabled devices
- 8 dedicated QoS queues for converged voice, video, and data applications
- Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
- Integrated mounting brackets for rack and desk mounting
- Fanless design on select models
- Lifetime hardware warranty and advanced replacement at no additional cost
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Compatible Rack Unit: 1U
Country Of Origin: Taiwan
Product Series: MS
Brand Name: Meraki
Form Factor: Desktop
Manufacturer: Cisco Systems, Inc
Product Model: MS250-48FP
Product Name: MS250-48FP Ethernet Switch
Manufacturer Part Number: MS250-48FP-HW
Manufacturer Website Address: http://www.cisco.com
Package Contents:
- MS250-48FP Ethernet Switch
- 1 x Power Cord
- 1 x Power Supply
- Mounting Screw Kit
- Rack Mount Hardware
Limited Warranty: Lifetime
Weight (Approximate): 12.83 lb
