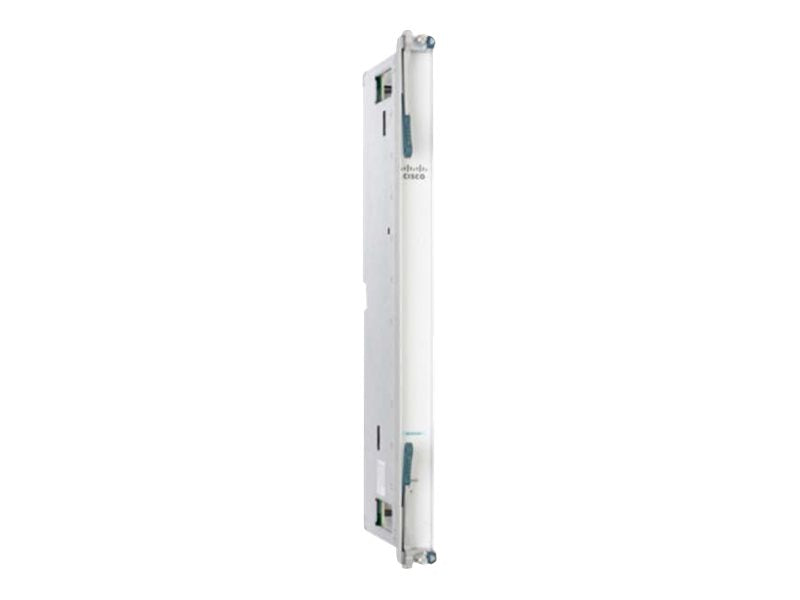

Cisco Nexus 7000 Series 18-Slot Chassis 110Gbps/Slot Fabric Module - Switch - managed - plug-in module - refurbished
- High availability and redundancy
- Scalable fabric
- Nondisruptive addition and removal of fabric modules
- Arbitrated crossbar for unicast
- Multistage crossbar fabric
- Super framing and frame segmentation
- ID LED
The Cisco Nexus 7000 Series Switches provide the foundation of the Cisco Unified Fabric. They are a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks with a fabric architecture that scales beyond 15 terabits per second (Tbps). Designed to meet the requirements of the most mission-critical data centers, it delivers continuous system operation and virtualized, pervasive services. The Cisco Nexus 7000 Series is based on a proven operating system, with enhanced features to deliver real-time system upgrades with no service disruption together with exceptional manageability and serviceability.
Switch fabric scalability is made possible through the support of from one to five concurrently active fabric modules for increased performance as your needs grow. All fabric modules are connected to all module slots. The architecture supports lossless fabric failover, with the remaining fabric modules load balancing the bandwidth to all the I/O module slots, helping ensure graceful degradation.
The combination of the Cisco Nexus 7000 Series fabric module and the supervisor and I/O modules supports virtual output queuing (VOQ) and credit-based arbitration to the crossbar switch to increase performance of the distributed forwarding system. VOQ and credit-based arbitration facilitate fair sharing of resources when a speed mismatch or contention for an uplink interface exists. The fabric architecture also enables future support for lossless Ethernet and unified I/O capabilities.
-
High availability and redundancy
The fabrics support multilevel redundancy, where all available fabrics are active, and provide redundancy for all other fabric modules. All I/O module slots receive a fair share of the total fabric bandwidth, helping ensure lossless forwarding in the event of failover.
-
Scalable fabric
The combined fabric modules deliver 10 channels per I/O module and 5 channels per supervisor module, for a scalable capacity of more than 15 Tbps for forwarding performance, which can be increased as your needs grow.
-
Nondisruptive addition and removal of fabric modules
The switch capacity can scale with the addition of modules, with transparent upgrades for continuous operations.
-
Arbitrated crossbar for unicast
Class-of-service-aware forwarding is delivered in a fully distributed forwarding system that allows future enhancements to Ethernet to support unified I/O.
-
VOQ
In conjunction with the supervisor module, VOQ provides a quality-of-service (QoS) aware lossless fabric, avoiding the problems associated with head-of-line blocking.
-
Multistage crossbar fabric
System forwarding performance is enhanced by a combination of local fabric switching between ports on the same module and centralized forwarding through the fabric for ports on different modules.
-
Super framing and frame segmentation
Crossbar efficiency is optimized by the use of super framing and frame segmentation to provide deterministic latency and throughput.
-
ID LED
Using the beacon feature, the administrator can clearly identify the chassis and fabric module.
