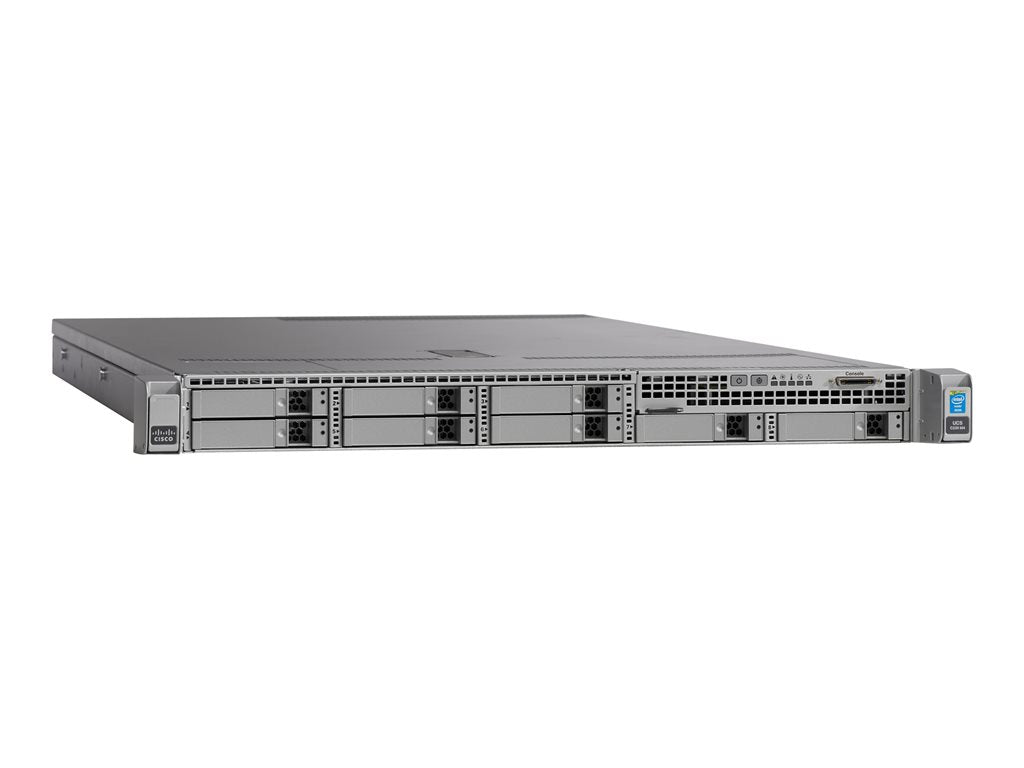

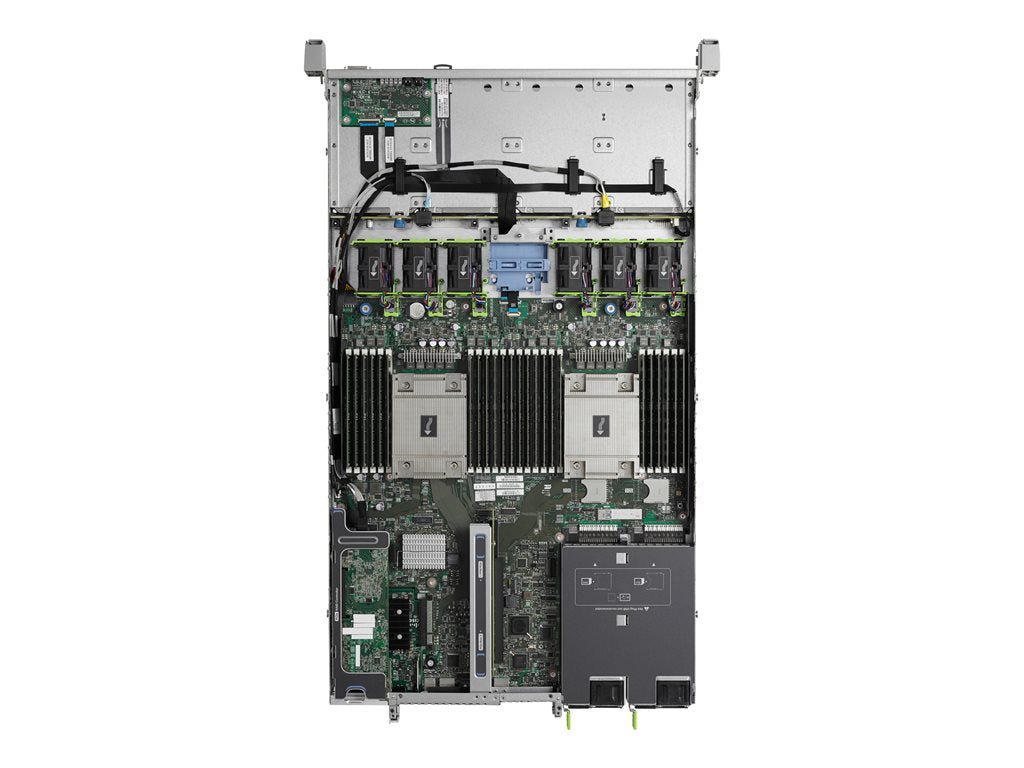

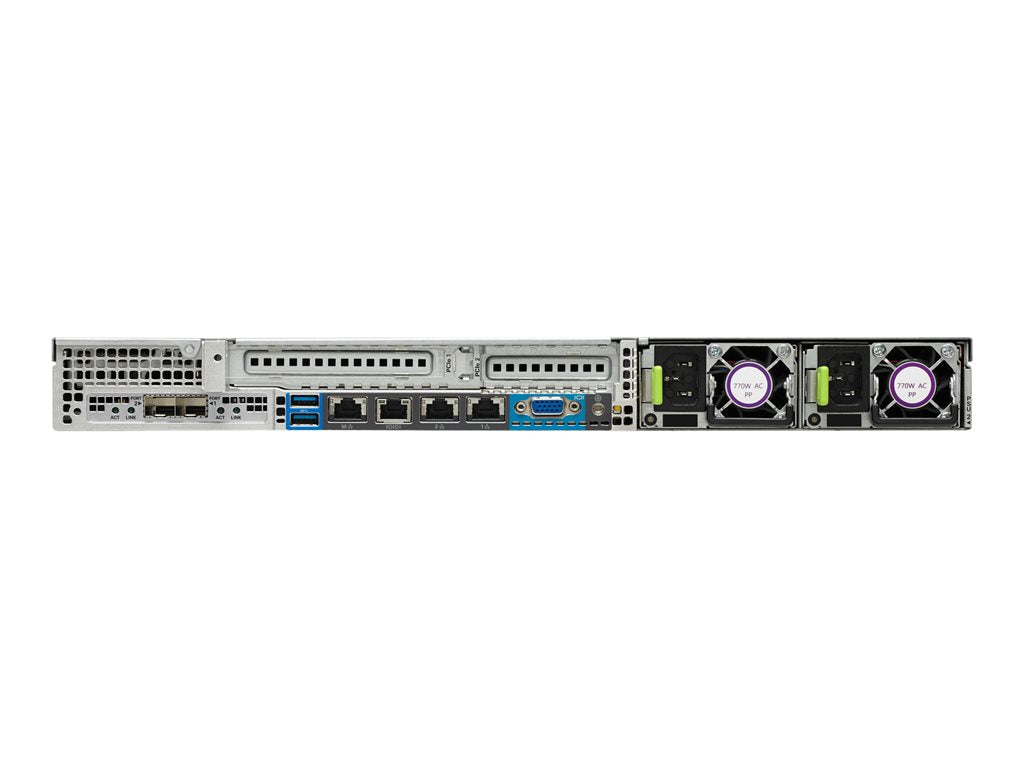

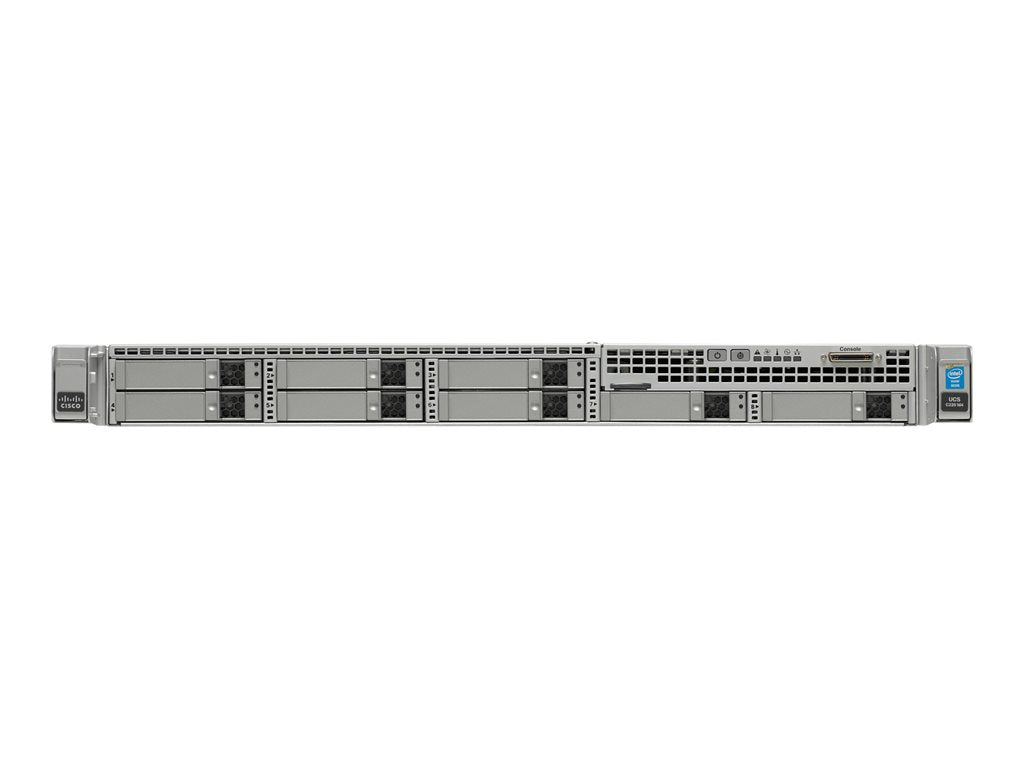

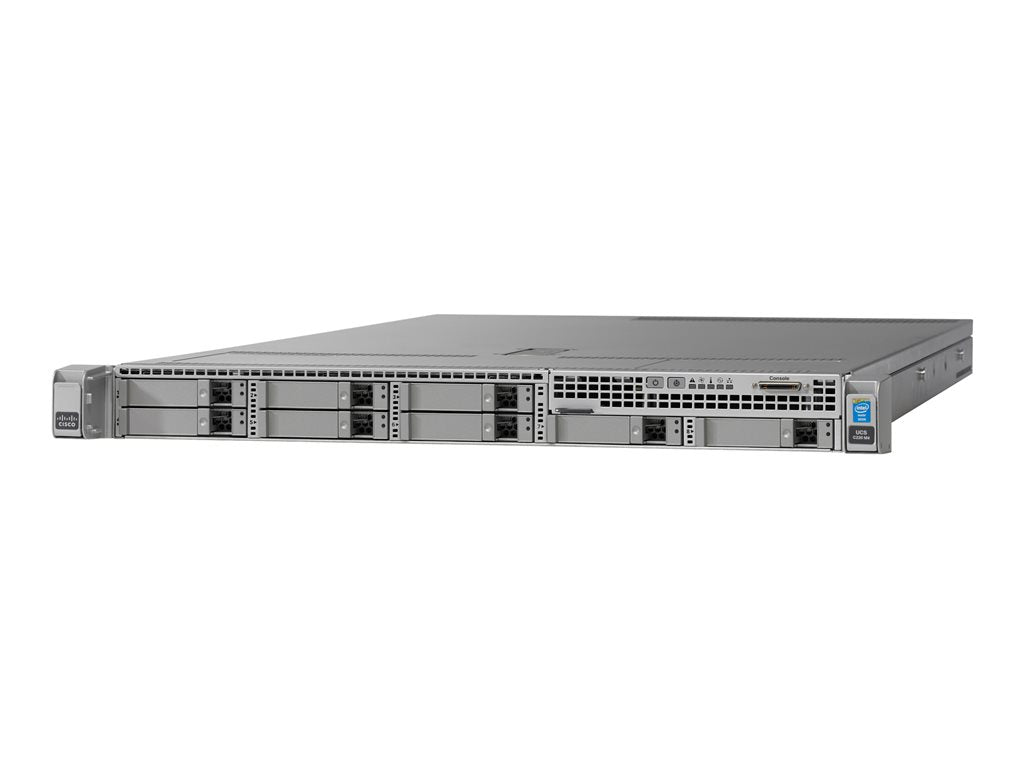

Cisco UCS SmartPlay Select C220 M4S Advanced 1 (Not sold Standalone ) - Server - rack-mountable - 1U - 2-way - 2 x Xeon E5-2680V3 / 2.5 GHz - RAM 128 GB - SAS - hot-swap 2.5 bay(s) - no HDD - G200e - GigE
- DDR4 DIMMs for improved performance and lower power consumption
- Support for 12-Gbps SAS module RAID controller in a dedicated slot, leaving the remaining two PCIe Gen 3.0 slots available for other expansion cards
- A modular LAN-on-motherboard (mLOM) slot that can be used to install a Cisco UCS virtual interface card (VIC) or third-party network interface card (NIC) without consuming a PCIe slot
- Two embedded 1 Gigabit Ethernet LAN-on-motherboard (LOM) ports
The Cisco UCS C220 M4 rack server is the most versatile, general-purpose enterprise infrastructure and application server in the industry. It is a high-density two-socket enterprise-class rack server that delivers industry-leading performance and efficiency for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications. The Cisco UCS C-Series rack servers can be deployed as standalone servers or as part of the Cisco Unified Computing System (Cisco UCS) to take advantage of Cisco's standards-based unified computing innovations that help reduce customers' total cost of ownership (TCO) and increase their business agility.
The enterprise-class Cisco UCS C220 M4 server extends the capabilities of the Cisco UCS portfolio in a 1RU form factor. It incorporates the Intel Xeon processor, next-generation DDR4 memory, and 12-Gbps SAS throughput, delivering significant performance and efficiency gains. The Cisco UCS C220 M4 rack server delivers outstanding levels of expandability and performance in a compact 1RU package.
-
Support for 2 PCIe 3.0 slots
Flexibility, increased performance, and compatibility with industry standards; substantially increased bandwidth compared to the previous generation, with more flexibility and backward compatibility with PCIe 2.0; greater I/O performance and flexibility.
-
Support for an mLOM slot
The Cisco UCS C220 M4, the mLOM slot can be used to install a Cisco VIC or third-party NIC without consuming a PCIe slot, providing greater I/O expandability.
-
40-Gbps unified network fabric
Low-latency, lossless, 40-Gbps Ethernet and industry-standard FCoE and native fiber channel fabric; wire-once deployment model: changing I/O configurations no longer requires installing adapters and recabling racks and switches; fewer interface cards, cables, and upstream network ports to purchase, power, configure, and maintain.
-
Virtualization optimization
Cisco Data Center Virtual Machine Fabric Extender (VM-FEX) and adapter-FEX technologies, I/O virtualization, and Intel Xeon processor features, extending the network directly to virtual machines; consistent and scalable operational model; increased security and efficiency with reduced complexity; capability to move virtual machine security features and policies from rack to rack or rack to blades.
-
Unified management
It can be deployed as a standalone server or in a UCS-managed environment. When combined with Cisco UCS, the entire solution can be managed as a single entity with Cisco UCS Manager, improving operational efficiency and flexibility; service profiles and templates that implement role- and policy-based management, enabling more effective use of skilled server, network, and storage administrators. Automated provisioning and increased business agility, allow data center managers to provision applications in minutes rather than days by associating a service profile with an added or repurposed Cisco UCS C220 M4 server. It has capability to move service profiles from rack server to another rack server, blade to rack server, or rack to blade server in minutes instead of hours or days.
-
Cisco 12-Gbps SAS modular RAID controller
Cisco 12Gbps modular RAID PCIe Gen 3.0 controller provides enterprise-class data protection. RAID card is plugged into a dedicated PCIe slot, leaving the two remaining PCIe slots available for other I/O expansion cards.
What's in the box:
- Cisco UCS SmartPlay Select C220 M4S Advanced 1 (Not sold Standalone )
- 2 x CPU Heatsink, 8x 2.5 inch HDD blanking panel, Cisco Ball Bearing Rail Kit
- Video / USB / serial cable
