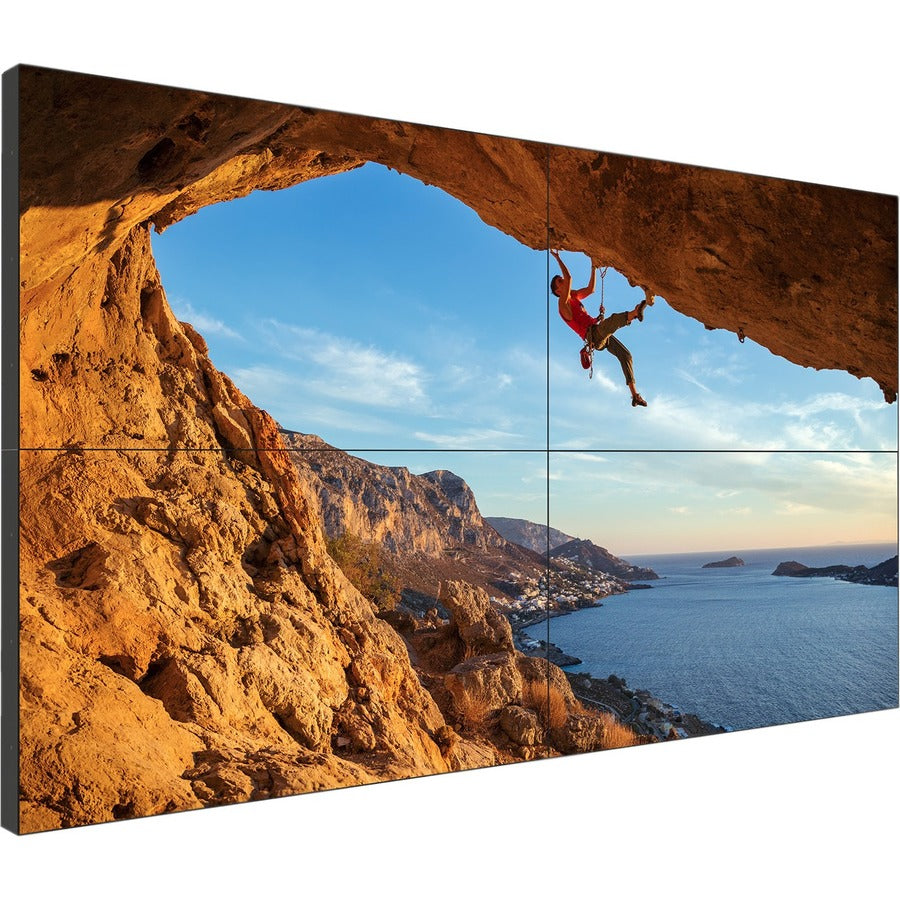

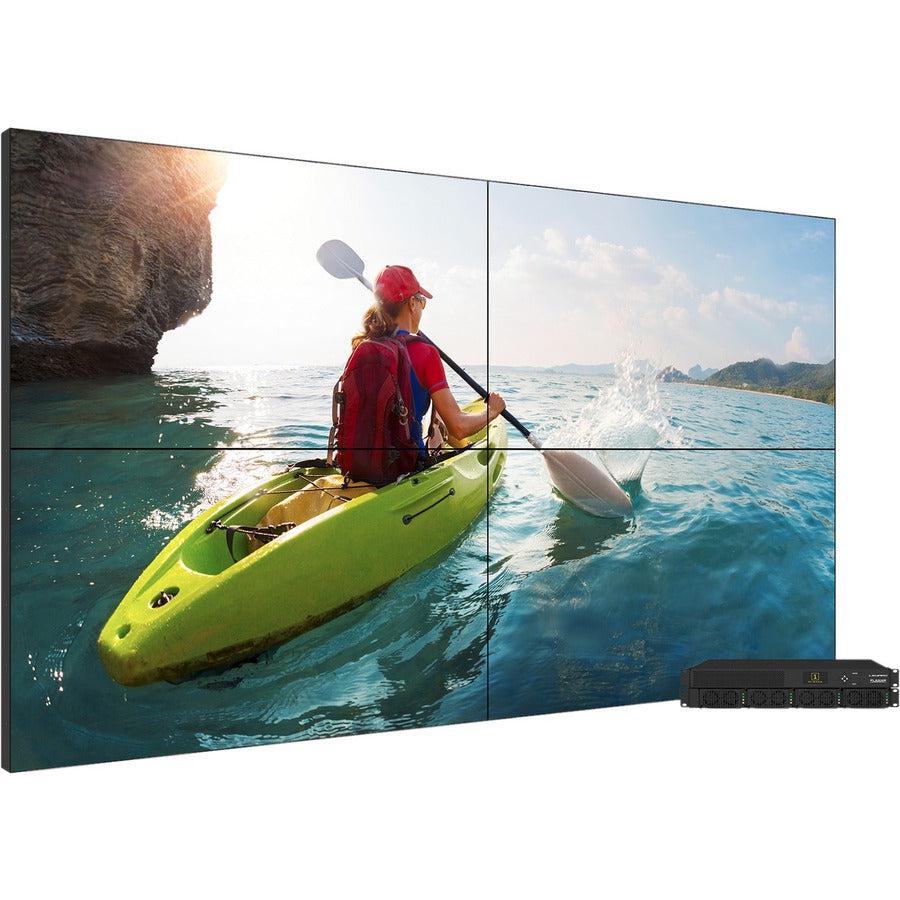

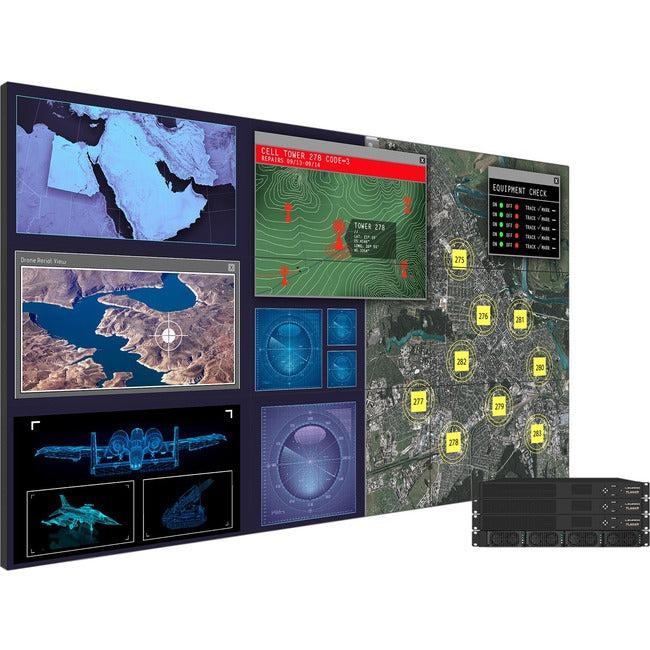

Planar Clarity Matrix G3 MX LCD Video Wall System
Designed for Demanding, High Ambient Light Applications
The Clarity® Matrix® G3 MX LCD Video Wall System meets the demands, mission-critical applications with higher ambient light conditions. Clarity Matrix G3 MX combines high 700 to 800-nit brightness and ultra-narrow bezel LCDs with next-generation improvements to video processing, installation, management and off-board electronics design, delivering an industry-leading video wall solution for improved visibility in bright ambient light environments.
Ultimate Visual Performance
Clarity Matrix G3 MX boasts narrow tiled bezel widths as small as 0.88mm between adjacent LCD displays, for a nearly seamless video wall solution. Clarity Matrix G3 MX delivers no-compromise visual performance with superb image quality, perfectly aligned panels and ultra-high resolution. It also includes the Planar® EasyAxis™ Mounting System, which provides an installed depth of just 3.6" (91mm) -the thinnest in the industry-for perfect panel-to-panel alignment. Clarity Matrix G3 MX is available with Planar® ERO-LCD™, an optically-bonded glass front that provides increased ruggedness and optical performance for public space or interactive touch applications. The 65" Clarity Matrix MX65U-4K offers the highest image clarity with native Ultra HD (3840x2160) resolution.
Simplifying Installation, Service and Monitoring
With simplified installation and service, Clarity Matrix G3 MX ensures a high performance, cutting-edge video wall system at a lower total cost-of-ownership. Leyard® WallDirector™ Software significantly reduces time spent configuring, operating and monitoring complex video walls. This intuitive web-based software tool features simple, one button presets for set-up and configuration, recalling windowing layouts, dragging and dropping sources on the video wall canvas and easy manipulation of the window size and position. Leyard WallDirector software captures the health status of all video wall components in a centralized, convenient location.
Advanced Video Wall Processing

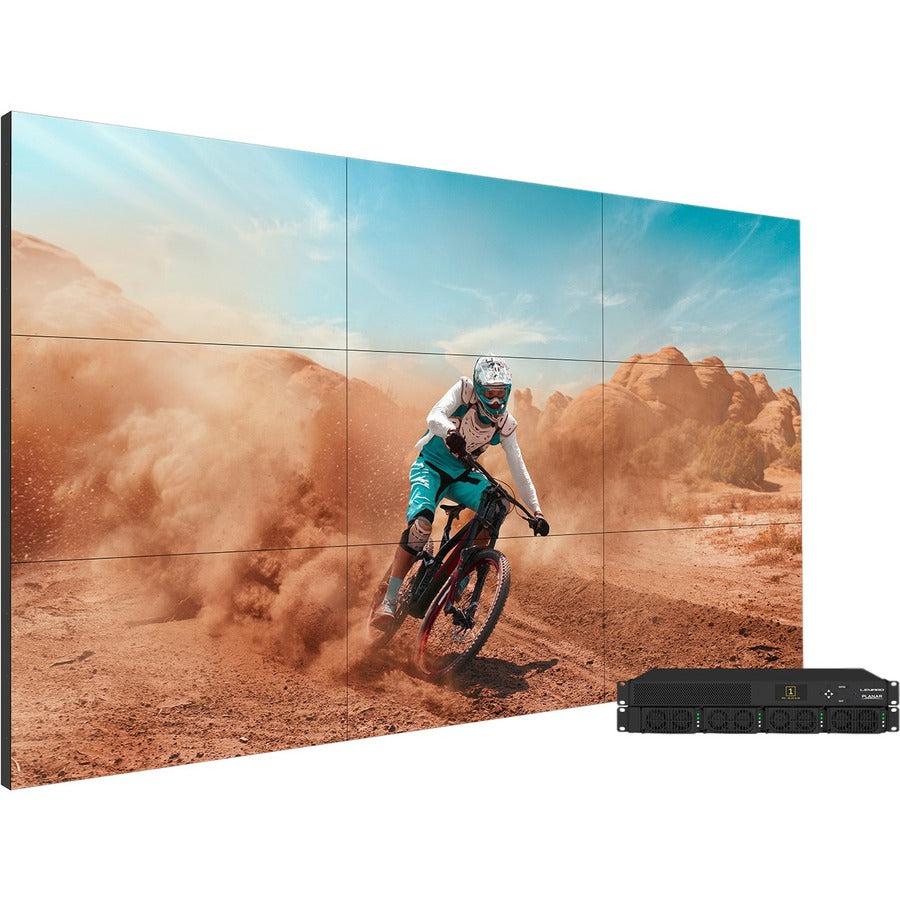

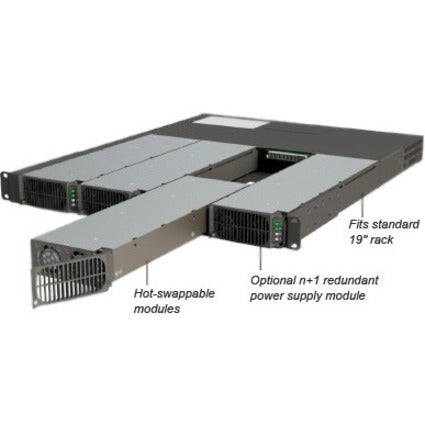

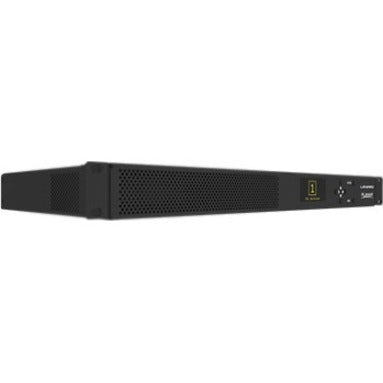

Clarity Matrix G3 MX now takes built-in video wall processing to a new level with the off-board Leyard Video Controller, becoming the first LCD video wall solution on the market to embed advanced video processing directly into the product, delivering up to (9) 1920x1080 outputs and full 3x3 wall capability from a single 1U Controller.
The Improved Planar® Big Picture Plus™ Video Wall Processing delivers more extensive on-display and off-board video wall processing, and can scale sources across the entire video wall or any section of the video wall, including multiple 4K @ 60Hz signals.

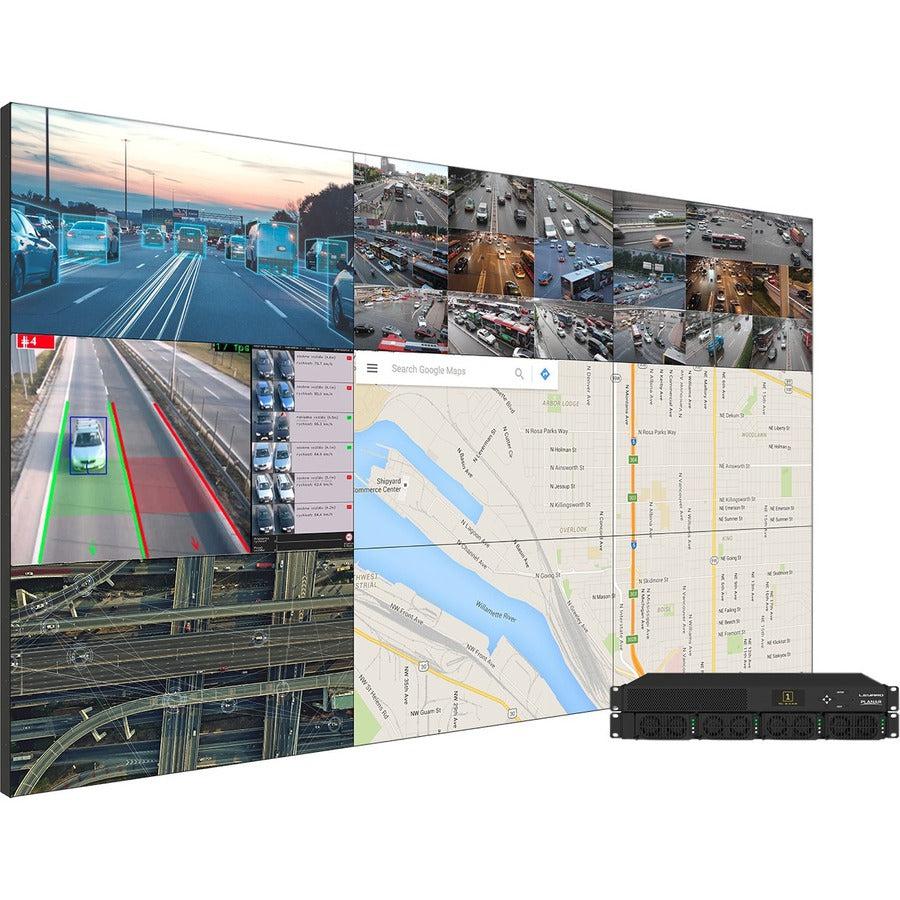

Using 4K quadview, users can combine content from a higher number of independent sources, superimpose a smaller image over a larger one with Picture-in-Picture (PiP) and incorporate up to four unique image sources within a single display. Clarity Matrix G3 MX supports the latest 4K connectivity standards, including both HDMI 2.0 and DisplayPort 1.2, offering customers flexibility when building their video infrastructure.
Integrated Synchronization with Genlock Technology
Clarity Matrix G3 MX also incorporates Leyard® WallSync™ genlock technology, making it the industry's first fully integrated synchronized video wall. Leyard WallSync resolves frustrating video wall genlock and synchronization challenges by incorporating a Smart Genlock feature that automatically ensures perfectly synchronized video playback without manual configuration. Leyard WallSync supports synchronization to both connected video sources and external house syncs.
- 46", 55" or 65" extreme narrow bezel LCD video wall with 0.88 to 3.7mm tiled bezel width
- High brightness of 700 to 800 nits
- Features Leyard WallDirector Software for simplified installation, monitoring and management
- Integrated Leyard WallSync technology eliminates video tearing and delivers genlock synchronization
- Supports 4K at up to 60Hz and scaling
- Mission-critical design for 24x7 reliability
- Includes Planar EasyAxis Mounting System for precise alignment and thinnest profile
- Available with Planar ERO-LCD protective
Product Type: Digital Signage Display
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Country Of Origin: United States
Product Series: MX
Brand Name: Planar
Manufacturer: Leyard
Product Model: MX55X
Product Name: Clarity Matrix G3 MX LCD Video Wall System
Product Line: Clarity Matrix G3
Manufacturer Part Number: 998-1541-00
Manufacturer Website Address: http://www.planar.com
Package Contents:
- Clarity Matrix G3 MXLCD Video Wall System
- EasyAxis™ Mounting System
Limited Warranty: 3 Year
Weight (Approximate): 51 lb
