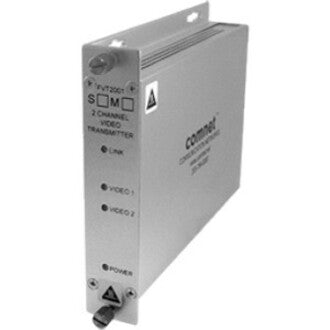

Comnet 2-Channel Video Transmitter (1310 nm)
The ComNet™ FVT/FVR2001 multiplexer simultaneously transmits two channels of video over one optical fiber utilizing state-of-the-art 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. These environmentally hardened units are ideal for use in unconditioned roadside or out-of-plant installations. These units are completely transparent to and universally compatible with any NTSC, PAL, or SECAM CCTV camera systems. Plugand-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment operating status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Features
- 10-bit digital video transmission: transmits 2 real-time color video signals on one optical fiber
- Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance
- Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
- Ideally suited to networks requiring multiple physical layers where video degradation may be a problem
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Wide optical dynamic range: optical attenuators are never required
- NTCIP compatible
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events.
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Automatic resettable solid-state current limiters
- Interchangeable between stand-alone or rack mount use
- ComFit
- Hot-swappable rack modules
- Lifetime Warranty
Product Type: Video Extender Transmitter
Transmitter Height: 1.10"
Transmitter Width: 5.30"
Transmitter Depth: 6.10"
Product Series: FVT/FVR2001(M)(S)1
Brand Name: Comnet
Form Factor: Wall Mountable
Manufacturer: Comnet Supply, Inc
Product Model: FVT2001M1
Product Name: 2-Channel Video Transmitter (1310 nm)
Manufacturer Website Address: http://www.comnetsupply.com
