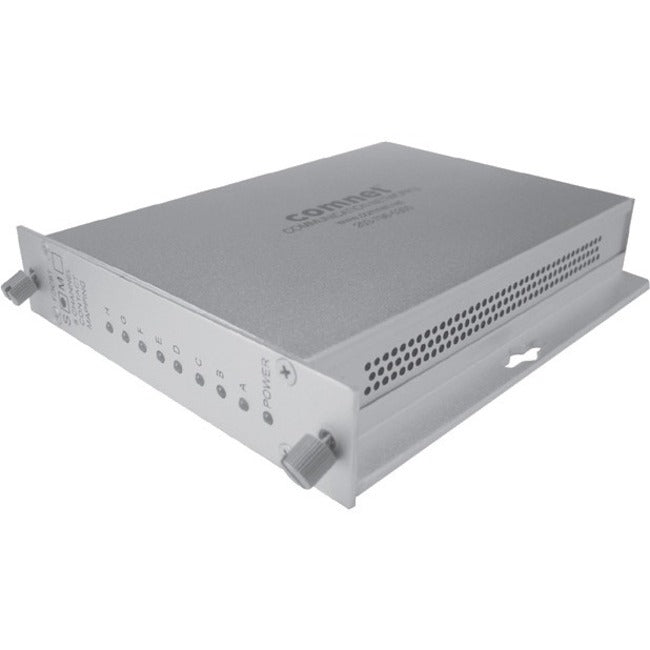

ComNet 8-Channel Contact Closure Transmitter
The ComNet™ FDC8ISOT 8-Channel Contact Closure Transmitter unit provides up to eight independent normally-open (NO) dry contact closures over one multimode or single-mode optical fiber, when used in conjunction with the companion ComNet model FDC8NLR Non-Latching Receiver or FDC8R Latching Receiver units. Each of the contact closure inputs are optically isolated at 1500V to ground, for those applications where high stray or transient voltages may exist. Microprocessor-based logic in the FDC8ISOT Transmitter detects a customer-furnished switch or contact closure, and encodes the closure into robust data packets that are mapped and transmitted to the FDC8NLR Receiver. Packets received with excessive bit errors will not result in random changes in the receiver relay contact resting or actuated states, making this system ideal for mission-critical remote switching applications. These transmitter modules incorporate status indicating LEDs for rapidly providing a local indication of each contact closure channel and operating power. Packaged in the exclusive ComNet ComFit housing, these units may be either shelf or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 Adaptor Plate Kit. Industrially hardened and rated for operation from -40 to +75 degrees C, the FDC8ISOT may be deployed in virtually any unconditioned out-of-plant or trackside/roadside environment, and voltage transient protection is provided across the operating voltage input rail. Plug-and-play design ensures ease of installation and operation, and no optical or electrical adjustments are ever required.
Product Type: Channel Transmitter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: FDC8
Brand Name: ComNet
Manufacturer: ACRE
Product Name: 8-Channel Contact Closure Transmitter
Application/Usage: Latching Relay
Manufacturer Part Number: FDC8ISOTM1
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- 8-Channel Contact Closure Transmitter
- Power Supply
Limited Warranty: Lifetime
