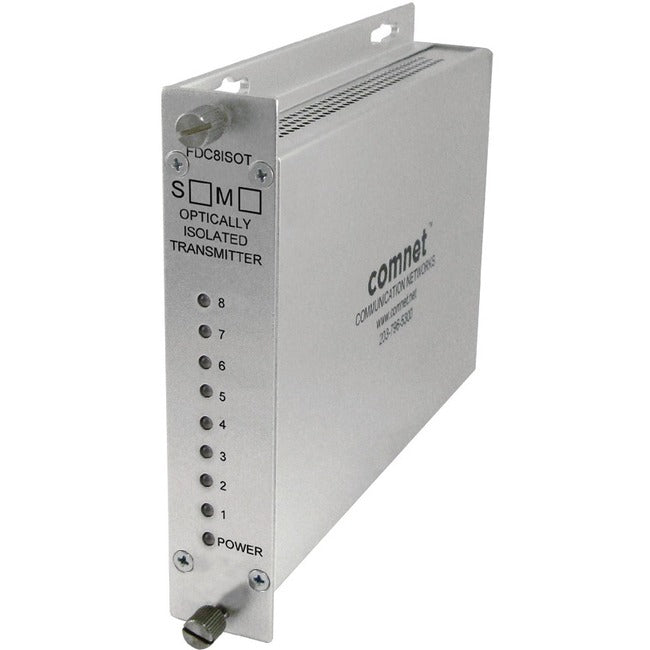

ComNet 8-Channel Contact Closure Transmitter
The ComNet™ FDC8ISOT 8-Channel Contact Closure Transmitter unit provides up to eight independent normally-open (NO) dry contact closures over one multimode or single-mode optical fiber, when used in conjunction with the companion ComNet model FDC8NLR Non-Latching Receiver or FDC8R Latching Receiver units. Each of the contact closure inputs are optically isolated at 1500V to ground, for those applications where high stray or transient voltages may exist. Microprocessor-based logic in the FDC8ISOT Transmitter detects a customer-furnished switch or contact closure, and encodes the closure into robust data packets that are mapped and transmitted to the FDC8NLR Receiver. Packets received with excessive bit errors will not result in random changes in the receiver relay contact resting or actuated states, making this system ideal for mission- critical remote switching applications. Plug-and-play design ensures ease of installation and operation, and no optical or electrical adjustments are ever required.
- May be DIN-rail mounted by the addition of ComNet DIN-Rail adaptor plate (Model DINBKT1 or DINBKT4, sold separately)
- Interchangeable between stand-alone or rack mount use - ComFit
- Hot-swappable rack modules
- Status indicating LEDs provide rapid indication of critical operating parameters
- Ambient operating temperature range: -40 ? C to +75 ? C for deployment in virtually any unconditioned out-of-plant or roadside environment
- Microprocessor-based logic eliminates random contact closure status in electrically noisy environments.
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Optically isolated inputs rated at 1500 V to ground
- Eight channel Point-to-Point architecture
- Transmits up to eight contact closures over one optical fiber
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: ComNet
Form Factor: Standalone
Manufacturer: ACRE
Product Model: FDC8ISOTS1
Product Name: 8-Channel Contact Closure Transmitter
Manufacturer Part Number: FDC8ISOTS1
Manufacturer Website Address: http://www.acre-co.com
Limited Warranty: Lifetime
