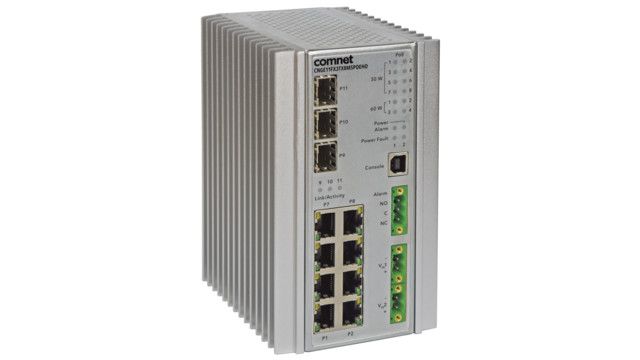

ComNet CNGE11FX3TX8MSPOE Ethernet Switch
Environmentally Hardened Managed Ethernet Switch
3 SFP + 8 Electrical Ports with Optional 30 or 60 Watt PoE
The ComNet CNGE11FX3TX8MS[POE][HO] has three 100/1000Base-FX SFP ports and eight 10/100/1000Base-TX ports. Two of the SFP ports support 2.5 Gbps SFPs for high speed communication in bandwidth intensive applications. All SFP ports utilize ComNet SFP modules for fiber and connector type and distance. The IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (MSTP/RSTP/ STP/ERPS (G.8032)) which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. Two models are available which supply Power over Ethernet (PoE). The CNGE11FX3TX8MSPOE model provides eight electrical ports supporting up to thirty watts of power. On the CNGE11FX3TX8MSPOEHO model, four of the eight PoE ports can support up to sixty watts of PoE power. All PoE ports are IEEE802.3at compliant.
- DIN Rail mountable design
- Lifetime Warranty
- Web-based, Telnet, Console (CLI), and Windows-based utility
- (eConsole) configuration
- Multiple notifications warn of unexpected events
- Supports 9K Bytes Jumbo Frame
- Supports ACL, 802.1x User Authentication for security
- Management
- Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network
- Supports Device Binding security function
- Provided HTTPS/SSH protocol enhances network security
- Supports IPV6 new internet protocol version
- and ERPS G.8032
- 60 W PoE++ ports
- Fast Redundancy/Recovery - MSTP/RSTP/STP (IEEE802.1s/w/D)
- IEEE802.3at
- compliant 30 W PoE+ ports and 4
- CNGE11FX3TX8MSPOEHO provides 4
- 30 W PoE+ ports
- IEEE802.3at compliant
- CNGE11FX3TX8MSPOE provides 8
- 2 SFP ports support 2.5 Gbps SFP modules for high speed communication
- 8 10/100/1000Base-TX RJ45
- 3 100/1000Base-FX SFP
- 11 Gbps Ports:
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: ComNet
Form Factor: Rail-mountable
Manufacturer: ACRE
Product Model: CNGE11FX3TX8MSPOE
Product Name: CNGE11FX3TX8MSPOE Ethernet Switch
Manufacturer Part Number: CNGE11FX3TX8MSPOE
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- CNGE11FX3TX8MSPOE Ethernet Switch
- Power Supply
Limited Warranty: Lifetime
Weight (Approximate): 3.31 lb
