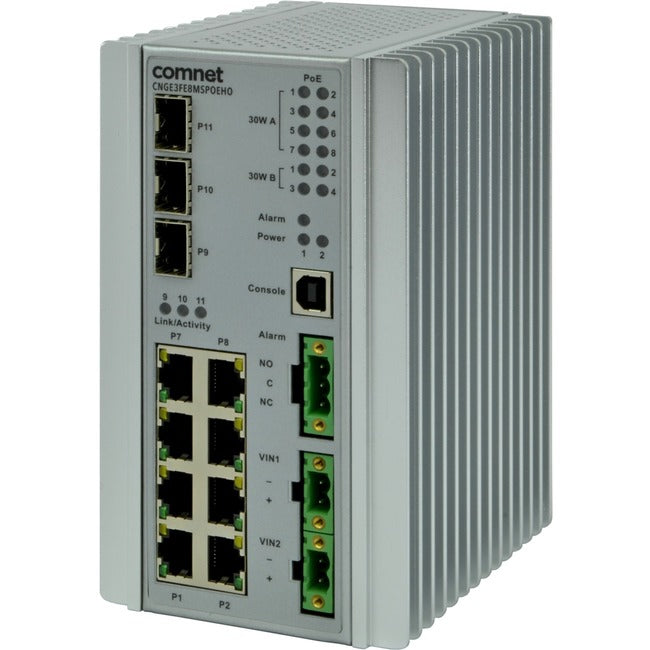

ComNet CNGE3FE8MS Ethernet Switch
The ComNet CNGE3FE8MS has three 100/1000Base-FX SFP ports and eight 10/100Base-TX ports. Two of the SFP ports support 2.5 Gbps SFPs for high speed communication in bandwidth intensive applications. All SFP ports utilize ComNet SFP modules for fiber and connector type and distance. The ComNet exclusive Port Guardian feature provides additional cyber security protection by enabling physical port lockout in the event that an existing cable is disconnected and prevents a potential network incursion using common spoofing techniques. The intrusion event is reported back to the operator using SNMP. The series offers multiple Ethernet redundancy protocols which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. The CNGE3FE8MSPOE models provide eight electrical ports supporting up to thirty watts of power. On the CNGE3FE8MSPOEHO model, four of the eight PoE ports can support up to sixty watts of PoE power. All PoE ports are IEEE802.3at compliant.
Features
- Fast Redundancy/Recovery - MSTP/RSTP/STP (IEEE802.1s/w/D) and ERPS G.8032
- Supports IPV6 new internet protocol version
- Provided HTTPS/SSH protocol enhances network security
- Supports Device Binding security function
- Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Supports ACL and 802.1x User Authentication for security
- Multiple notifications warn of unexpected events
- Supports IP-based bandwidth management
- Supports application-based QoS management
- Supports 2.5 Gbps SFP modules for high speed communication
- POE Models provide IEEE802.3at compliant 30 W PoE+ ports
- High Output POEHO Models provide IEEE802.3at compliant 60 W PoE++ ports
- Quality of Service (802.1p) for real-time traffic
- VLAN (802.1Q) with VLAN tagging and GVRP supported
- Port configuration, status, statistics, monitoring, security
- DHCP Client/Server, DHCP Snooping, DHCP Relay
- Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
- Web-based, Telnet and Console (CLI) configuration, and Windows-based (eVision) monitoring
- Layer 3 static routing
- Ethernet Ring Protection Switching (ERPS) (G.8032)
- Supports Link Layer Discovery Protocol (LLDP)
- IGMP v2/v3 (IGMP snooping support) and MLD v1/v2 for filtering multicast traffic
- Custom User Access Rights (15 Levels)
- Static and LACP Link Aggregation
- Supports Loop Protection function
- Multicast VLAN Registration (MVR)
- Supports IP Multicast Profile (IPMC)
- Supports Voice VLAN
- Supports Universal Plug and Play (UPnP)
- Designed for wall or DIN rail mount installations
- Supports Jumbo Frame up to 9.6KB for streaming video applications
- Port Guardian prevents network intrusion through intelligent physical port lockout
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: CNGE3FE8MS
Brand Name: ComNet
Form Factor: Wall Mountable
Manufacturer: ACRE
Product Name: CNGE3FE8MS Ethernet Switch
Manufacturer Part Number: CNGE3FE8MSPOE/24
Manufacturer Website Address: http://www.acre-co.com
Limited Warranty: Lifetime
Weight (Approximate): 2.60 lb
