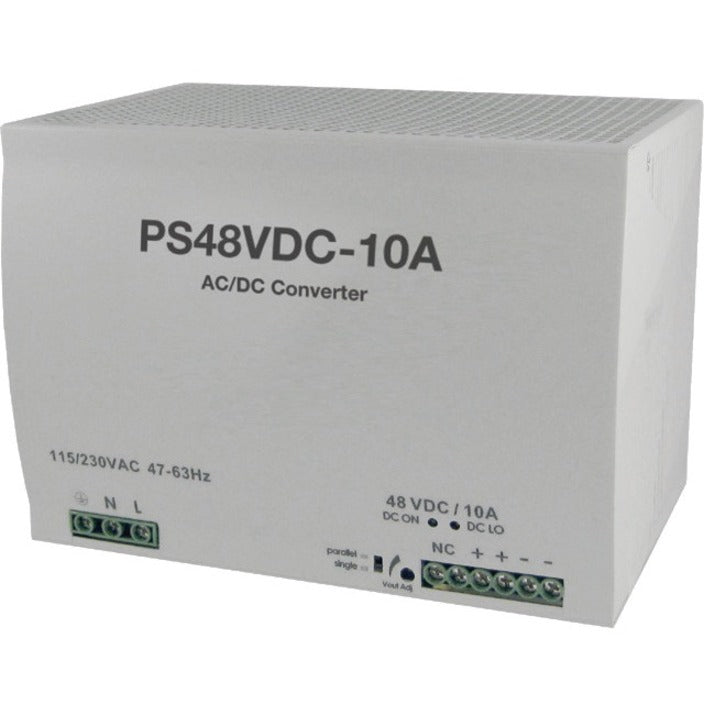

ComNet DIN Rail Power Supply for CNGE2FE24MSPOE - DIN Rail, Shelf Mount - 120 V AC, 230 V AC Input - 48 V DC @ 10 A Output - 480 W - 90% Efficiency
ComNet™ model PS48VDC-10A is a high-quality, low-noise switching mode power supply ideally suited to those applications requiring POE (Power Over Ethernet). This is the power supply recommended for the CNGE2FE24MSPoE. This rugged unit may be either DIN-rail or shelf-mounted, providing an identical mounting configuration to the mating POE switch. Up to 24 POE field devices may be powered from a single supply, and the high output current capacity provides an adequate safety margin. A maximum of three of these units may be paralleled together to triple the number of POE devices supported. The wide ambient operating temperature range permits installation in most out-of-plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.
ComNet CNGE2FE24MSPOE Switch
