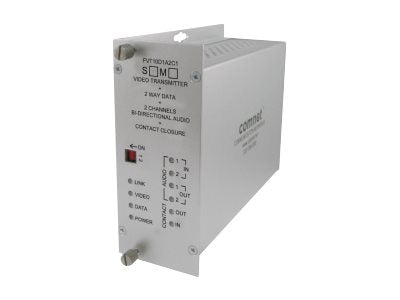

ComNet FVT10D1A2C1S1 - Video/audio/serial extender - up to 42.9 miles - 1310 nm / 1550 nm - 2U
- 10-bit digital video transmission: transmits one real-time color video signal and one bi-directional data signal on one optical fiber
- Supports RS232, RS422, and 2 or 4-wire RS485 with tri-state data interfaces
- Two bi-directional Audio Channels
- One bi-directional Contact Closure
- 24-Bit 96kHz Digitally Encoded Transmission
- 20Hz - 18 kHz Audio Bandwidth
- 600 Ohms Audio Input Impedence
- Transmits Balanced Line-Level Audio up to +6dBm
- Exceeds all requirements for EIA RS-250C short-haul transmission: Extremely high video performance
- Exceptionally low video distortion with zero Performance Variation vs. Optical Path Loss
- Ideally suited to networks requiring multiple physical layers where video degradation may be a problem
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Designed to meet full compliance with the environmentalrequirements
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
The ComNet FVT/FVR10D1A2C1 video transmitter/data transceiver and video receiver/data transceiver series utilize 10-bit digital encoding and decoding for high-quality video transmission that meets the requirements of EIA RS-250C for short-haul video transmission. These environmentally hardened units provide transmission of one independent video channel and one bi-directional data channel over one optical fiber and are ideal for use in unconditioned roadside or out-of-plant installations. They also provide transmission of two bi-directional audio signals and one bi-directional contact closure over the same fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. It also supports "up-the-coax" data transmission from all major manufacturers.
-
Robust environmental adaptability
Designed to operate in extreme conditions, this device thrives in temperatures ranging from -40°C to 75°C and humidity levels of 0 - 95% (non-condensing), ensuring reliable performance in any setting.
-
Versatile connectivity options
Equipped with a variety of interfaces including RS-232/422/485, network input, and dual audio outputs, alongside a video output with BNC connector, this device offers comprehensive connectivity solutions for diverse requirements.
-
Extended operational reliability
With an MTBF (Mean Time Between Failures) of 100,000 hours, this device promises enduring reliability and performance, minimizing downtime and maintenance needs.
-
Long-distance communication
Capable of transferring video, audio, and serial data over distances up to 69 km, thanks to its 1310 nm / 1550 nm optical wavelength support, it extends your reach without compromising signal integrity.
-
Comprehensive status monitoring
Features multiple status indicators for audio, link/activity, power, receive, transmit, and video, offering real-time monitoring and quick troubleshooting capabilities.
